Default Comparison Chinacharger 2871 vs Garrett 2554R vs Garrett 2560R

I couldn't live with the Chinacharger anymore. Drivability is horrible and I hated driving it. So I went off to buy a Silvia S15 turbo which is bascially a Garrett GT2560R. I am a very happy man now.

At 4000rpm, I gain about 70bhp at wheels and that's how a Miata should drives The Chinacharger cost me USD$350 and the Garrett USD$680. In my opinion, it was every single cents worth. I was also having problems boosting 14.5psi on the Chinacharger but no problem with the Garrett at all despite running the same hardware. Most importantly, I also noticed that the GT2560 is making more power at some point despite running the same boost.

The car is a 1.6 NA Miata and they figures taken are all with the same modifications. The only difference is ECU tune to run the turbo properly.

Here's the dyno figures(all figures at power at wheels):

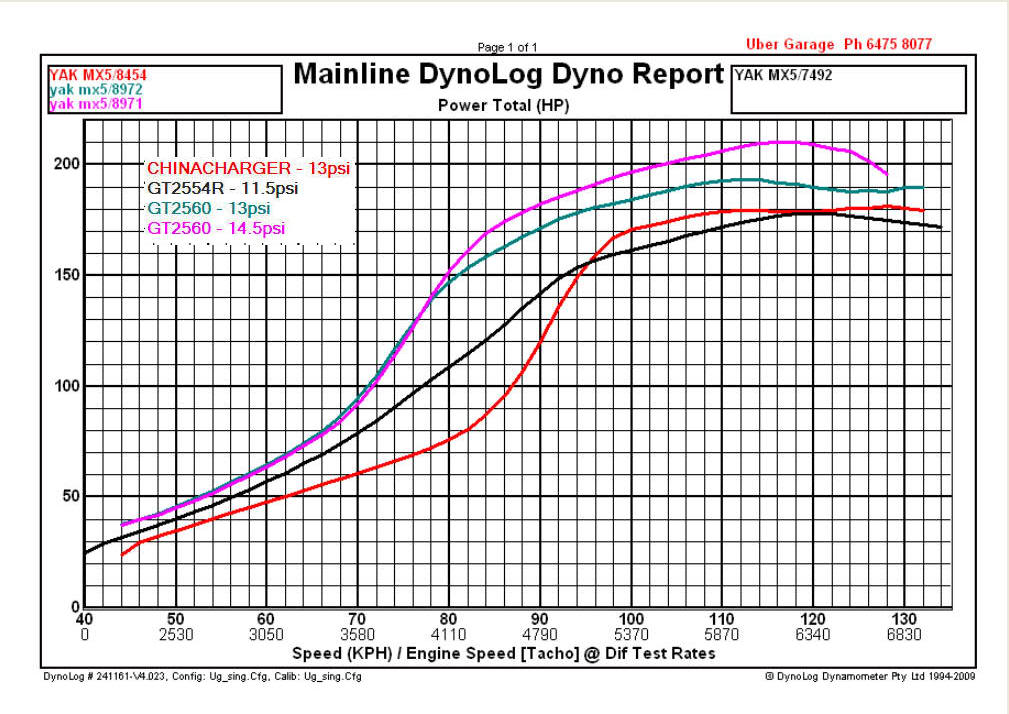

Comparison on Chinacharger vs GT2554 vs GT2560

Name:  TurboBHPcomparison-1.jpg
Views: 200
Size:  136.2 KB

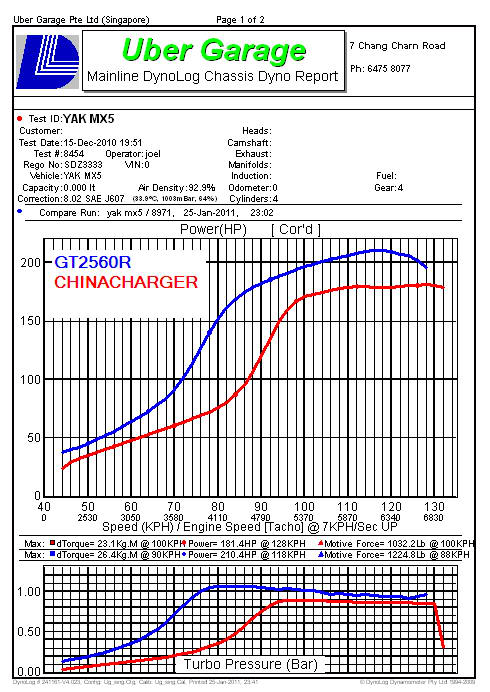

Chinacharger vs GT2560R
Name:  chinachargervsGT2560R.jpg
Views: 216
Size:  98.0 KB

Last edited by nismo502; 01-25-2011 at 12:40 PM.
nismo502 is offline   Reply With Quote
Old 01-25-2011, 12:24 PM   #2
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,207
Total Cats: 2,587
Default

Nice. Other's have had no problems whatsoever running a chinacharger over 14psi which leads me to believe you had a shitty one (they ARE known to be completely hit and miss) but congrats on the newfound torque
18psi is offline   Reply With Quote
Old 01-25-2011, 12:27 PM   #3
Junior Member
Thread Starter
iTrader: (2)

Join Date: Sep 2009
Location: singapore
Posts: 228
Total Cats: 2
Default

I missed out on this. This is more interesting:
Comparison on Chinacharger vs GT2554 vs GT2560

Name:  TurboBHPcomparison-1.jpg
Views: 371
Size:  136.2 KB

Last edited by nismo502; 01-25-2011 at 12:40 PM. Reason: wrong image attached
nismo502 is offline   Reply With Quote
Old 01-25-2011, 12:34 PM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,909
Total Cats: 1,793
Default

wow, major difference.

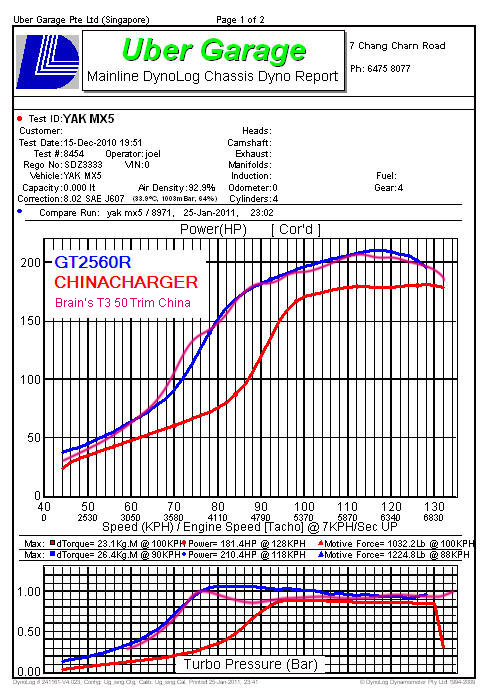

I plotted my last dyno against yours...I guess the T3 design was copied much better:



This makes sense, cause on paper its similar to the 2560. But wow that 2870 is weaksauce in comparison.



What was the setup like with the 2554? I don't see how that would spool slower than the 2560.
Attached Thumbnails
Comparison Chinacharger 2871 vs Garrett 2554R vs Garrett 2560R-chinas.jpg
Braineack is online now   Reply With Quote
Old 01-25-2011, 12:48 PM   #5
Elite Member
iTrader: (11)

chicksdigmiatas's Avatar

Join Date: Apr 2008
Location: Texas, 'Murica
Posts: 2,505
Total Cats: 7
Default

I guess there is a huge production variance between them then. The chinacharger I got from Bell doesn't spool like a 2871 or larger. I don't know what the differences are. IE: setup, manufacturer, so on and so forth. I will hit the dyno when my clutch finds its way in.
chicksdigmiatas is offline   Reply With Quote
Old 01-25-2011, 12:48 PM   #6
Junior Member
Thread Starter
iTrader: (2)

Join Date: Sep 2009
Location: singapore
Posts: 228
Total Cats: 2
Default

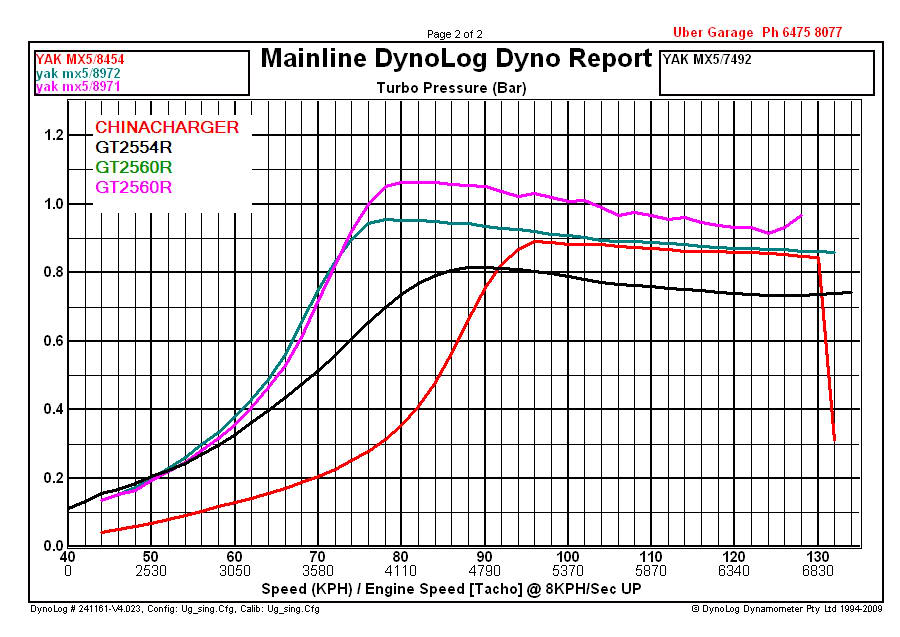

Here the spooling chart in BAR:
Name:  boost_comparison.jpg
Views: 219
Size:  111.0 KB

Last edited by nismo502; 01-25-2011 at 01:16 PM.
nismo502 is offline   Reply With Quote
Old 01-25-2011, 12:55 PM   #7
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,909
Total Cats: 1,793
Default

Quote:
Originally Posted by chicksdigmiatas View Post
I guess there is a huge production variance between them then. The chinacharger I got from Bell doesn't spool like a 2871 or larger. I don't know what the differences are. IE: setup, manufacturer, so on and so forth. I will hit the dyno when my clutch finds its way in.
That's because there's more than just 1 "replica" turbo made in China. I assume the one you got is the "2854" right?

Right now we are discussing the "2870".

nismo, can you link to the one you got?
Braineack is online now   Reply With Quote
Old 01-25-2011, 01:14 PM   #8
Junior Member
Thread Starter
iTrader: (2)

Join Date: Sep 2009
Location: singapore
Posts: 228
Total Cats: 2
Default

There you go, this is the one I got
http://cgi.ebay.com/ebaymotors/GT28-...s#ht_644wt_722
nismo502 is offline   Reply With Quote
Old 01-25-2011, 01:16 PM   #9
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,207
Total Cats: 2,587
Default

The 2870 chinacharger plotted in this thread spools worse than my Godspeed 3076 .86

So yeah.........
18psi is offline   Reply With Quote
Old 01-25-2011, 01:51 PM   #10
Antisaint
iTrader: (17)

Vashthestampede's Avatar

Join Date: Feb 2007
Location: Danbury, CT
Posts: 4,659
Total Cats: 54
Default

Hopefully this IS a hit and miss thing going on here. I still have the 2870 Chinacharger I got back in May sitting on the counter, just as new as it came to me.

Now I'm wondering if maybe I should just rebuild my Garrett and stick with that seeing I already had good luck with it.
Vashthestampede is offline   Reply With Quote
Old 01-25-2011, 04:35 PM   #11
Elite Member
iTrader: (11)

chicksdigmiatas's Avatar

Join Date: Apr 2008
Location: Texas, 'Murica
Posts: 2,505
Total Cats: 7
Default

Quote:
Originally Posted by Braineack View Post
That's because there's more than just 1 "replica" turbo made in China. I assume the one you got is the "2854" right?

Right now we are discussing the "2870".

nismo, can you link to the one you got?

Comprehension fail.
chicksdigmiatas is offline   Reply With Quote
Old 01-25-2011, 05:09 PM   #12
Junior Member

Join Date: Aug 2010
Location: south africa
Posts: 126
Total Cats: 1
Default

Brain please put up a link as to which t3 youre running,will be appreciated!
I need one!
oldschool is offline   Reply With Quote
Old 01-25-2011, 05:14 PM   #13
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,909
Total Cats: 1,793
Default

Quote:
Originally Posted by chicksdigmiatas View Post
Comprehension fail.
are you suggesting you got a china 2870 from bell?

Quote:
Originally Posted by oldschool View Post
Brain please put up a link as to which t3 youre running,will be appreciated!
I need one!
ive linked it like 700 times.


http://cgi.ebay.com/ebaymotors/VW-Vo...Q5fAccessories

Last edited by Braineack; 01-26-2011 at 09:21 AM.
Braineack is online now   Reply With Quote
Old 01-25-2011, 06:44 PM   #14
Junior Member

Join Date: Aug 2010
Location: south africa
Posts: 126
Total Cats: 1
Default


Last edited by oldschool; 01-25-2011 at 07:16 PM.
oldschool is offline   Reply With Quote
Old 01-25-2011, 10:01 PM   #15
Junior Member
Thread Starter
iTrader: (2)

Join Date: Sep 2009
Location: singapore
Posts: 228
Total Cats: 2
Default

Quote:
Originally Posted by Vashthestampede View Post
Hopefully this IS a hit and miss thing going on here. I still have the 2870 Chinacharger I got back in May sitting on the counter, just as new as it came to me.

Now I'm wondering if maybe I should just rebuild my Garrett and stick with that seeing I already had good luck with it.

I hated my chincharger everyday and that's why it lasted me for less than 2months. Then again, they are a matter of hit and miss, if yours performs as well as Braineack's, then why not?
nismo502 is offline   Reply With Quote
Old 01-25-2011, 10:31 PM   #16
Antisaint
iTrader: (17)

Vashthestampede's Avatar

Join Date: Feb 2007
Location: Danbury, CT
Posts: 4,659
Total Cats: 54
Default

Quote:
Originally Posted by nismo502 View Post
I hated my chincharger everyday and that's why it lasted me for less than 2months. Then again, they are a matter of hit and miss, if yours performs as well as Braineack's, then why not?
You know, I've been debating the chinacharger the whole time since I bought it. I went through all the trouble of getting all the lines sorted out, drilling the compressor housing, clocking it, removing the wg and tacking up the flapper door, etc etc, but I still was debating it. Seeing this thread almost makes me want to rebuild my Garrett and just put that back in the car.

The 2870 barely wanted to fit with the manifold and dp I had Abe make to match my Garrett. I don't know why it doesn't want to fit, but it being a pain in the *** is what stopped me from getting it in that day. Then enter broken wrist and snow, now the car sits till spring. At least I have some time to think about it. Glad to see the cold hard facts for the same exact turbo I have on paper though.
Vashthestampede is offline   Reply With Quote
Old 01-26-2011, 02:43 AM   #17
Junior Member
Thread Starter
iTrader: (2)

Join Date: Sep 2009
Location: singapore
Posts: 228
Total Cats: 2
Default

Well, let's just say that putting the Chinacharger in is the top of my list of regret on my Miata. Like you, I had to go through quite a bit of hassle to get it fitted and I didnt expect results to be that bad. 50-80bhp across 3500rpm to 5000rpm is lot of difference. I am glad the saga is over.
I am just wondering, from you built thread, you have all the quality parts, what got into you to decide on a eBay charger considering that the charger is one of the most important part of the equation?
But hey, there are good chinacharger out there and you maybe luckier than me
nismo502 is offline   Reply With Quote
Old 01-26-2011, 09:22 AM   #18
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,909
Total Cats: 1,793
Default

If my turbo spools like that I'd hate it too, what's the rest of the setup like? was the 2554 on the same setup or was the exhaust changed after?
Braineack is online now   Reply With Quote
Old 01-26-2011, 09:33 AM   #19
Antisaint
iTrader: (17)

Vashthestampede's Avatar

Join Date: Feb 2007
Location: Danbury, CT
Posts: 4,659
Total Cats: 54
Default

Quote:
Originally Posted by nismo502 View Post
Well, let's just say that putting the Chinacharger in is the top of my list of regret on my Miata. Like you, I had to go through quite a bit of hassle to get it fitted and I didnt expect results to be that bad. 50-80bhp across 3500rpm to 5000rpm is lot of difference. I am glad the saga is over.
I am just wondering, from you built thread, you have all the quality parts, what got into you to decide on a eBay charger considering that the charger is one of the most important part of the equation?
But hey, there are good chinacharger out there and you maybe luckier than me
Yeah after looking at the chart I can only imagine how much better the car drove afterwards. Big difference I'm sure.

At the time the chinachargers were all the rage, everyone HAD to get one, jk. To be honest, at the time I really didn't have the cash to fork over for a new Garrett unit and the thought of re-building mine was in the far back of my brain. I guess I just figured I would take a chance. The day I went to install it was the last day I touched it. The ****** fought me and wanted to do everything but slip into place, so after enough knuckle busting for the day I gave up. Not soon after that my broken hand ordeal happened and now snow is here.

I'm sure it really is a hit or miss type thing, but do I really want to take the chance of putting it all together only to have to take it back apart. I'm already happy with the drivability the Garrett gave me, as well as the numbers. So the more I think about it I'm probably just going to re-build that turbo and use the chinacharger as a pencil/pen holder.
Vashthestampede is offline   Reply With Quote
Old 01-26-2011, 10:12 AM   #20
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,696
Total Cats: 1,563
Default

Quote:
Originally Posted by nismo502 View Post
The car is a 1.6 NA Miata and they figures taken are all with the same modifications. The only difference is ECU tune to run the turbo properly.
Did the same guy tune the car for the Chinacharger that changed the tune for the Garrett?
sixshooter is online now   Reply With Quote
