Default EFR 7163: The new hotness

Looks like its finally out!

4 housing options, from $1855 for EWG to $2100 with IWG

BorgWarner EFR 7163 Turbo - Full-Race.com

Quote:
Originally Posted by http://www.full-race.com/store/turbos/borgwarner-efr/borgwarner-efr-7163-turbo.html
BorgWarner EFR 7163 Turbo

Brand new for 2014, The EFR 7163 is Borg Warner's newest addition to the EFR family.

Turbo Features:
  • Mixed Flow Gamma-Ti turbine wheel
  • Forged milled extended tip compressor wheel
  • Military-grade dual ceramic ball bearing assembly with silver plated metal cage
  • Stainless steel turbine housing
  • Water cooled Aluminum bearing housing
  • Large internal wastegate (optional)
  • Compressor recirculation valve (aka BOV)
  • Boost control solenoid valve
  • T25, T4 and V-Band Turbine Housing options to fit a variety of installations

Compressor Specifications
  • Compressor Type: Forged-Milled Wheel (FMW) Extended Tip
  • Compressor Wheel OD (exducer): 71mm
  • Compressor Wheel Inducer: 57mm
  • Max Flow Rate: 61 lb/min
  • Compressor Housing: 2.5" Ported shroud inlet, 2.0" hose coupler outlet
  • Built-in BOV: All EFR compressor housings incorporate an integrated BOV.
  • Connections:
  • Inlet: 2.5" Hose Coupler
  • Outlet: 2.0" Hose Coupler

Turbine Specifications
  • Turbine type: Low Inertia Gamma-Ti Turbine Wheel
  • Turbine Wheel OD: 64mm
  • Stainless Steel Sand cast Housing
  • The EFR 7163 is available in (4) different turbine housing configurations:
  • 0.85 A/R V-Band (Internal WG) - Part # 11639880006
  • 0.85 A/R V-Band (External WG)- Part # 11637105000 & 11631008003
  • 0.80 A/R T4 Twin Scroll (Internal WG)- Part # 11639880002
  • Turbine outlet: GT-Vband (aka small 3" vband) ~92mm OD for all EFR turbos
soviet is offline   Reply With Quote
Old 12-11-2013, 04:48 PM   #2
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,518
Total Cats: 258
Default

Attached Thumbnails

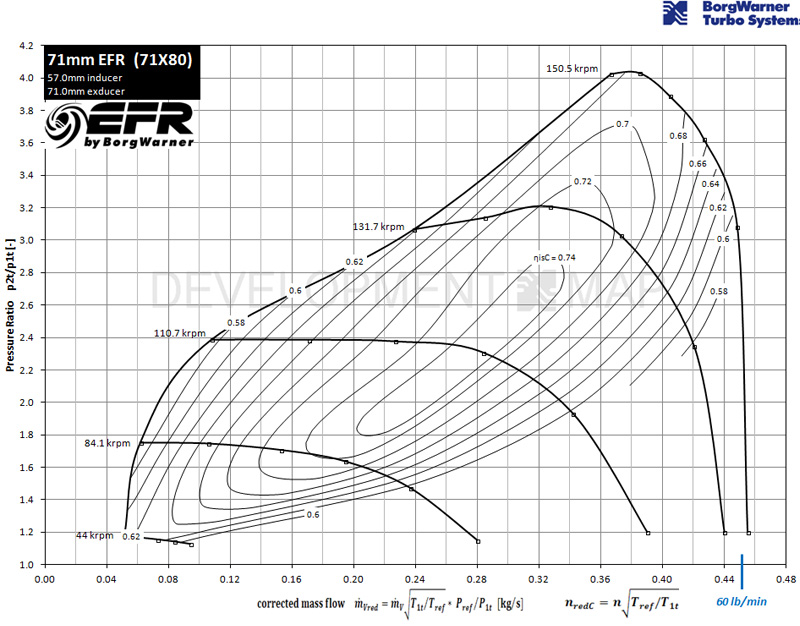

EFR 7163: The new hotness-71x80.jpg
soviet is offline   Reply With Quote
Old 12-11-2013, 04:51 PM   #3
Elite Member
iTrader: (8)

Ryan_G's Avatar

Join Date: Jan 2012
Location: Tampa, Florida
Posts: 2,579
Total Cats: 155
Default

Why the dramatic price increase from the 6758?

Is there new tech on this one or is it just because its bigger?
Ryan_G is offline   Reply With Quote
Old 12-11-2013, 04:59 PM   #4
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,192
Total Cats: 2,583
Default

You know what you have to do now
18psi is offline   Reply With Quote
Old 12-11-2013, 05:13 PM   #5
Elite Member
iTrader: (4)

Join Date: Sep 2006
Location: Charlotte, NC
Posts: 3,051
Total Cats: 7
Default

Some Indy engineers told me they've had a lot of failures due to the Aluminum Bearing housing.

I wonder if that will be an issue on a street car?
Efini~FC3S is offline   Reply With Quote
Old 12-11-2013, 05:33 PM   #6
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,518
Total Cats: 258
Default

Quote:
Originally Posted by Ryan_G View Post
Why the dramatic price increase from the 6758?

Is there new tech on this one or is it just because its bigger?
Its just a little bit bigger. 7064 starts off at $2k btw.

What makes me excited wet is the twin scroll housing.
soviet is offline   Reply With Quote
Old 12-11-2013, 05:34 PM   #7
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,518
Total Cats: 258
Default

Quote:
Originally Posted by 18psi View Post
You know what you have to do now
Get a hew transmission before I do anything? lol
soviet is offline   Reply With Quote
Old 12-11-2013, 08:13 PM   #8
Junior Member
iTrader: (4)

Join Date: Jun 2008
Location: Colorado
Posts: 345
Total Cats: 8
Default

If my 3.308 keeps traction under control, then I am going to be seriously looking at the 7163 T4 TS w/ QSV, if Abe can make a manifold that keeps PS and AC.
05pearl is offline   Reply With Quote
Old 12-12-2013, 02:13 AM   #9
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,518
Total Cats: 258
Default

I like the twin scroll with twin scroll manifold. QSV is for suckers.

Quote:
Originally Posted by 05pearl View Post
If my 3.308 keeps traction under control, then I am going to be seriously looking at the 7163 T4 TS w/ QSV, if Abe can make a manifold that keeps PS and AC.
Sure, but you won't be able to keep the hood
soviet is offline   Reply With Quote
Old 12-12-2013, 09:36 AM   #10
Junior Member
iTrader: (4)

Join Date: Jun 2008
Location: Colorado
Posts: 345
Total Cats: 8
Default

It is also possible that the 6758 may be the best choice for me.
05pearl is offline   Reply With Quote
Old 12-12-2013, 09:50 AM   #11
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

I want to see more applications use their smaller turbos...
Braineack is offline   Reply With Quote
Old 12-12-2013, 11:19 AM   #12
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

Quote:
Originally Posted by Braineack View Post
I want to see more applications use their smaller turbos...
don't be lame.
shlammed is offline   Reply With Quote
Old 12-12-2013, 11:22 AM   #13
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

don't worry, I'm not.
Braineack is offline   Reply With Quote
Old 12-13-2013, 12:40 PM   #14
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,518
Total Cats: 258
Default

Quote:
Originally Posted by Braineack View Post
I want to see more applications use their smaller turbos...
I want a twin-scroll v-band
soviet is offline   Reply With Quote
Old 12-13-2013, 12:40 PM   #15
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

So when are you getting one soviet?
Leafy is offline   Reply With Quote
Old 12-13-2013, 03:17 PM   #16
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,518
Total Cats: 258
Default

Not anytime soon.
soviet is offline   Reply With Quote
Old 12-13-2013, 03:49 PM   #17
Senior Member
iTrader: (6)

Join Date: May 2009
Location: San Francisco
Posts: 989
Total Cats: 23
Default

I want pictures of v band inlet on IWG housing.
wittyworks is offline   Reply With Quote
Old 12-13-2013, 05:11 PM   #18
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,518
Total Cats: 258
Default

Attached Thumbnails

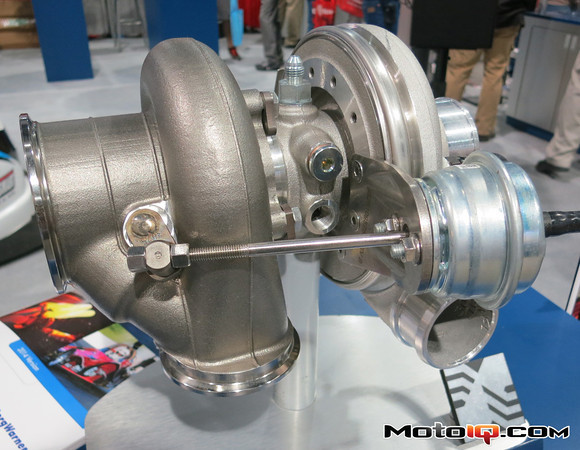

EFR 7163: The new hotness-img_3888.jpg
soviet is offline   Reply With Quote
Old 12-13-2013, 05:35 PM   #19
Newb

Join Date: Aug 2009
Posts: 21
Total Cats: 0
Default

I had a 7064 twinscroll on my 2.0L WRX. Frankly, too big for me. I realize I'm in the minority and not chasing dyno sheets.

I'm not ripping the 7163 at all. All of the EFR turbos are awesome. Just for this community, 6758 is about as big as I think we ought to go. Really, the 6258 is plenty. Our drivetrains can take it anyway.

If I was going to build another Subaru with a 2.5L, I'd be going 6258 all the way. I like a low torque setup. For the miata, I wish they made a slightly smaller option. Just my 2 cents. V-band in and out. That's what I was holding out for on my next Suby build.
thefoos is offline   Reply With Quote
Old 12-13-2013, 05:37 PM   #20
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

The 6258 is "too small" for the 2.5. Its not going to make noticably better low end than the 6758.
Leafy is offline   Reply With Quote
