Default EFR6258 v-band clamp

Hey there,

What v-band clamps are you guys using on the EFR6258?

I tried this kit but the clamp sits awkwardly because of the wastegate outlet. It seems to be too wide to sit properly.

Cheers
timk is offline   Reply With Quote
Old 11-24-2014, 02:23 AM   #2
Junior Member
iTrader: (3)

Join Date: Apr 2011
Location: Chicago
Posts: 58
Total Cats: 7
Default

I use the clamp made specifically for the Borg Warner EFR. I believe other non-EFR clamps may have fitment issues, as it seems you have discovered.

3" V-Band Flange Clamp (EFR Turbos) - Full-Race.com

Last edited by Zoot; 11-24-2014 at 02:50 AM.
Zoot is offline   Reply With Quote
Old 11-24-2014, 03:03 AM   #3
Senior Member
Thread Starter

Join Date: Dec 2004
Location: Brisbane, Australia
Posts: 1,272
Total Cats: 32
Default

Thanks Martin, the Aussie suppliers of this turbo don't seem to have one listed hence why it wasn't obvious not all v-band clamps are equal.

This one year, at band clamp...
timk is offline   Reply With Quote
Old 11-24-2014, 03:24 AM   #4
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,372
Total Cats: 1,333
Default

We use/sell a non-BW clamp/flange that is of significantly higher quality than the clamp Borg offers for the turbo.
Savington is offline   Reply With Quote
Old 11-24-2014, 10:46 PM   #5
Junior Member
iTrader: (3)

Join Date: Apr 2011
Location: Chicago
Posts: 58
Total Cats: 7
Default

^ Wish I had known that when I stripped the threads on my first Borg Warner clamp! Now I know what to get when my current one breaks.
Zoot is offline   Reply With Quote
Old 11-24-2014, 10:49 PM   #6
Junior Member
iTrader: (6)

Join Date: Dec 2008
Location: Boulder, CO
Posts: 291
Total Cats: 7
Default

My clamp is from Treadstone. Is that the BW clamp or the nicer one?
ftjandra is offline   Reply With Quote
Old 12-04-2014, 02:29 AM   #7
Senior Member
Thread Starter

Join Date: Dec 2004
Location: Brisbane, Australia
Posts: 1,272
Total Cats: 32
Default

I managed to get one locally (Australia) from GCG. It's the same brand as the one supplied on the compressor side of the EFR, and it fits perfectly.
timk is offline   Reply With Quote
Old 12-04-2014, 09:31 AM   #8
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

My clamp and exhaust side flange is treadstone as well. But I guess I suck at getting it lined up or something since it seems to leak like a sieve based on the carbon on the flanges, yes they are flat.
Leafy is offline   Reply With Quote
Old 12-04-2014, 06:24 PM   #9
Senior Member
Thread Starter

Join Date: Dec 2004
Location: Brisbane, Australia
Posts: 1,272
Total Cats: 32
Default

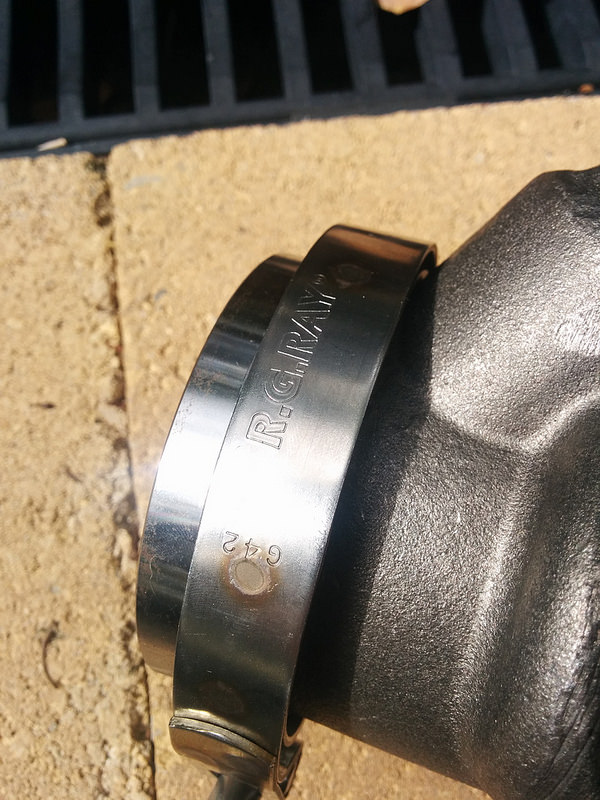

Is this the same clamp you guys are running?

Attached Thumbnails
EFR6258 v-band clamp-15328551003_a6bcf598af_c.jpg
timk is offline   Reply With Quote
