Default Engine apart for big maintenance. FM2 Turbo. Coolant line questions, please help

Hello Everyone. First and foremost, to those who post useful information for me to resolve my issues, thank you in advance.

Background.

1992 1.6 miata
Full fm2 turbo kit
M-tuned coolant reroute

I bought this car 2 years ago, and I am just getting around to do doing some big maintenance before I start tracking and cruising in the car. I am fixing a bunch of coolant leaks, and changing the timing belt and water pump since its last change was undocumented. Also doing copper plugs and wires.

So my questions.

I have that ugly stump on the front of the motor where the thermostat use to be. I would like to remove it, however there is a sensor on top of it (one wire), and two coolant lines. One goes to the turbo, and the other to the intake manifold. So my questions are really, how do I go about deleting this thing? Can I delete the intake manifold cooling lines? I do not drive the car in the winter. Where do I plumb the coolant line for the turbo. One line goes to where the coolant goes to the heaer core. I guess I should be able to plumb the second to the back of the m-tuned fitting on the back? Is there any issues with this? What about that sensor?

Easiest way would be to leave the stump there, but it is pretty ugly. I would like it gone.

Thank you!
romanm is offline   Reply With Quote
Old 06-09-2013, 10:08 PM   #2
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Someone with more 1.6 knowledge but if you're on a stand alone the fans should be getting turned on by the stand alone, so you dont need the switch. And IRRC for the 1.6 the manifold coolant is for the warm up airflow thingy which shouldnt be a big deal on a stand alone car only driven in the summer so the water doesnt need to flow there. It should only need to flow from the back of the head on the engine side of the thermostat to the turbo.
Leafy is offline   Reply With Quote
Old 06-09-2013, 10:27 PM   #3
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

I've got a bunch of pictures in my build thread for my reroute. I deleted all of those little lines for reliability. I have a Greddy though, so I didn't need to worry about water cooling the turbo. I haven't experienced any issues with cold drivability with all that stuff gone (including the Air Valve).

To have water flow to your turbo, you need to pick up water that is pressurized relative to the water pump inlet (i.e., from engine side of thermostat). Plumbing from the intake manifold port is convenient and avoids the hot-side parts. Basically a single line running across the front of the engine. You should be able to route it so it's not hideous.

Andrew Savington (Trackspeed) sells a block-off kit for cheap. Or you can build your own.
hornetball is offline   Reply With Quote
Old 06-12-2013, 11:13 AM   #4
Junior Member
iTrader: (4)

calteg's Avatar

Join Date: Nov 2006
Location: Austin, TX
Posts: 311
Total Cats: 14
Default

You can do away with the intake manifold lines completely. Just run lines:
Back of head ->oil cooler plate->mixing manifold
It's pretty obvious once you have the intake manifold completely off, but I have a pic somewhere.

First part of removing the front water neck is getting a 30mm freeze plug. If you're feeling super thrifty, I can send you one in the mail. Just got done doing this same project, accidentally bought a 10-pack of freeze plugs, so I've got a **** ton of them laying around.
calteg is offline   Reply With Quote
Old 06-12-2013, 11:15 AM   #5
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Quote:
Originally Posted by calteg View Post
You can do away with the intake manifold lines completely. Just run lines:
Back of motor ->oil cooler plate->mixing manifold
It's pretty obvious once you have the intake manifold completely off, but I have a pic somewhere.
He has a 1.6. I believe their intake manifold coolant lines do more than our 1.8s. On the 1.8s its just throttle body heat, on the 1.6 I believe it has something to do with cold start idle up and melting wax. And he also doesnt have an oil cooler.
Leafy is offline   Reply With Quote
Old 06-12-2013, 11:17 AM   #6
Junior Member
iTrader: (4)

calteg's Avatar

Join Date: Nov 2006
Location: Austin, TX
Posts: 311
Total Cats: 14
Default

1.6L = loose butthole. Funny side note, pretty sure Leafy was the one who talked me through the intake manifold bypass on my 1.8L
calteg is offline   Reply With Quote
Old 06-13-2013, 09:34 PM   #7
Newb
Thread Starter

Join Date: Dec 2011
Posts: 37
Total Cats: 0
Default

I do have an oil cooler. Its one of those plates that comes off the oil filter.

1.6 is fine for me. I bought the car this way. Its plenty fun the way it is. Really I want a V8, but that will come with time.
romanm is offline   Reply With Quote
Old 06-13-2013, 10:16 PM   #8
Senior Member
iTrader: (3)

Join Date: May 2005
Location: Mass.
Posts: 816
Total Cats: 41
Default

IMO, the cleanest way to run the coolant lines on a 1.6 is the following:

Water return:

Remove your mixing manifold from the water pump, remove OEM nipple with pliers, drill and tap for fitting (I used a 90deg -6an earls), reattach to water pump. Do yourself a favor and replace the heater tube o-ring while your at it. You can see the mixing manifold drilled/tapped on my engine in the below pic.



Water feed:

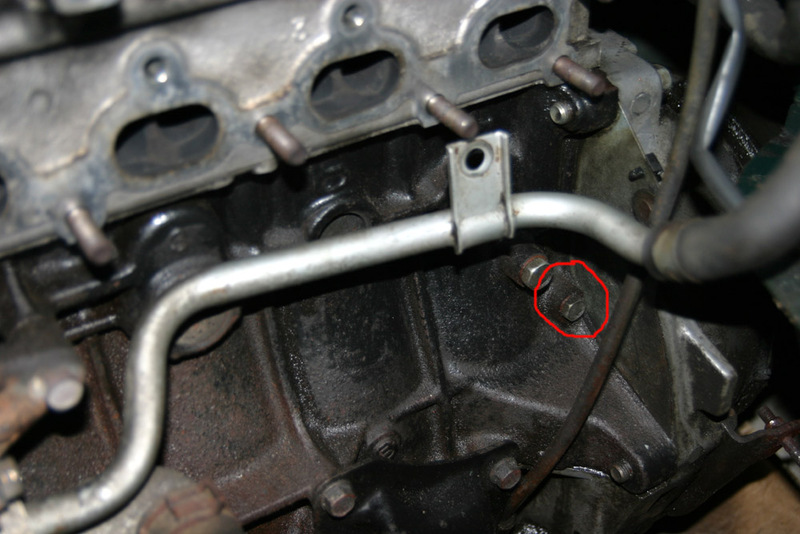

1.6 engines have a water port on the exhaust side of the block right next to the oil port. I believe it's threaded for m12x1.5 but I cannot confirm at the moment. See below picture - it's the larger of the two ports at the back of the block, i.e., the one NOT circle in red.



Going this route allows you to remove the unused water neck while keeping your coolant lines very short ... which is good since PTFE lines aren't cheap (do not cheap out and use rubber lines). Do it once, do it right.

-Zach
Attached Thumbnails
Engine apart for big maintenance. FM2 Turbo. Coolant line questions, please help-6473_565406864572_912947541_n.jpg   Engine apart for big maintenance. FM2 Turbo. Coolant line questions, please help-picturewb331blokasvarzt.jpg
thasac is offline   Reply With Quote
Old 06-13-2013, 11:07 PM   #9
Senior Member
iTrader: (2)

Join Date: Sep 2008
Location: ON
Posts: 523
Total Cats: 2
Default

^ This is what I just did on my vvt build, that and route all the long ss lines along the rear of the engine for cleanliness (97 block).

It's a 30mm freeze plug on 1.8 cars (probably same for 1.6) if you want to do it, about $3 from Mazda.
inferno94 is offline   Reply With Quote
Old 06-14-2013, 12:53 AM   #10
Elite Member
iTrader: (6)

TorqueZombie's Avatar

Join Date: May 2011
Location: Lebanon, TN
Posts: 1,668
Total Cats: 63
Default

That water location is on the 1.8 blocks to? Mines not here.
TorqueZombie is offline   Reply With Quote
Old 06-14-2013, 03:00 PM   #11
Elite Member
iTrader: (33)

RotorNutFD3S's Avatar

Join Date: Jan 2007
Location: Newnan, GA
Posts: 2,539
Total Cats: 29
Default

For 1.8 engines, those ports are only found on 94-95 or 04-05 MSM blocks.
