Default Epic fastener failure...

Well, currently upgrading to a Garrett from my chinacharger and I had a local guy coming by to buy my chinacharger, so I figured, better get the thing off so he doesnt have to wait when he gets here. Peeled back my heatshield to reveal some epic JGS fastener fail that I was completely unaware of.

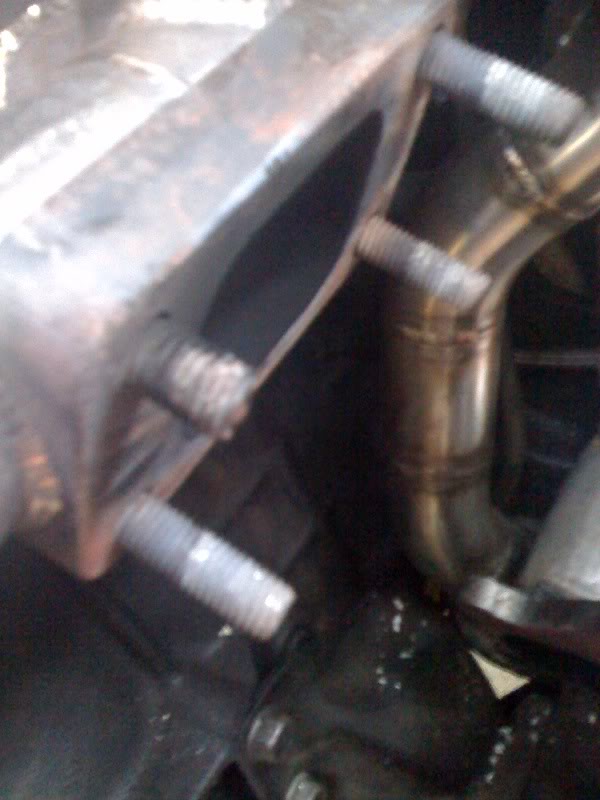

Name:  manifold.jpg
Views: 2
Size:  55.1 KB
this was a JGS Turbo T3 mounting hardware kit (10x1.5mm), was a good price but obviously failed me, any suggestions?
na8psi is offline   Reply With Quote
Old 05-28-2010, 03:52 AM   #2
Trackspeed Engineering
iTrader: (9)

Join Date: Jan 2008
Location: Bay Area, California
Posts: 937
Total Cats: 10
Default

crashnscar is offline   Reply With Quote
Old 05-28-2010, 06:45 AM   #3
I'm Miserable!
Thread Starter
iTrader: (1)

Join Date: Mar 2010
Location: North Carolina
Posts: 471
Total Cats: 0
Default

Quote:
Originally Posted by crashnscar View Post
Ouch, I just dont have it like that. I guess I gotta start that new prostitution position at target.
na8psi is offline   Reply With Quote
Old 05-28-2010, 09:39 AM   #4
Elite Member

Join Date: Dec 2008
Location: Colorado
Posts: 1,669
Total Cats: 36
Default

Machine shop time. One thing to try before anything else though, try just tapping on the broken stud in the turbine housing using a small punch or screw driver at the edge of it to turn it out. I saw a clutch pressure platew bolt removed this way last year and it was amazing. There will be a little burr in the stud still in the turbine housing, you just give that some very gentle tapps counter-clockwise to get it to turn and get the stud out.
Sparetire is offline   Reply With Quote
Old 05-28-2010, 09:56 AM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

that's not bad...next time a hardened breaks off flush let me know.
Braineack is offline   Reply With Quote
Old 05-28-2010, 09:58 AM   #6
Elite Member
iTrader: (24)

Join Date: Jul 2007
Location: Cypress, TX
Posts: 3,778
Total Cats: 35
Default

FOCUS!


mandatory lowercase letters
Bryce is offline   Reply With Quote
Old 05-28-2010, 10:13 AM   #7
Junior Member
iTrader: (1)

Join Date: May 2009
Location: Niagara Falls, ON
Posts: 433
Total Cats: 0
Default

Quote:
Originally Posted by braineack View Post
that's not bad...next time a hardened breaks off flush let me know.
+1
stranges12712 is offline   Reply With Quote
Old 05-28-2010, 11:05 AM   #8
Junior Member

Join Date: Jan 2010
Location: Todmorden UK
Posts: 98
Total Cats: 0
Default

Cam type stud remover will have that out, pronto.
j555pre is offline   Reply With Quote
Old 05-28-2010, 11:06 AM   #9
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,295
Total Cats: 26
Default

Quote:
Originally Posted by j555pre View Post
Cam type stud remover will have that out, pronto.
I thought that when I had one do that. No good. Eventually sheared off flush.
Splitime is offline   Reply With Quote
Old 05-28-2010, 01:26 PM   #10
I'm Miserable!
Thread Starter
iTrader: (1)

Join Date: Mar 2010
Location: North Carolina
Posts: 471
Total Cats: 0
Default

Got it out with no problem. Thanks guys
na8psi is offline   Reply With Quote
Old 05-28-2010, 01:52 PM   #11
Junior Member

Join Date: Jan 2010
Location: Todmorden UK
Posts: 98
Total Cats: 0
Default

Good to hear. They can be a real pain!
j555pre is offline   Reply With Quote
Old 05-28-2010, 01:53 PM   #12
I'm Miserable!
Thread Starter
iTrader: (1)

Join Date: Mar 2010
Location: North Carolina
Posts: 471
Total Cats: 0
Default

Quote:
Originally Posted by Bryce View Post
FOCUS!


mandatory lowercase letters
Lol sorry pic was taken with iPhone.
na8psi is offline   Reply With Quote
Old 05-28-2010, 04:29 PM   #13
Elite Member
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

I would have suggested:
Liquid Wrench overnight and a big pair of vicegrips... but it's already out.
samnavy is offline   Reply With Quote
Old 05-28-2010, 04:43 PM   #14
I'm Miserable!
Thread Starter
iTrader: (1)

Join Date: Mar 2010
Location: North Carolina
Posts: 471
Total Cats: 0
Default

Quote:
Originally Posted by samnavy View Post
I would have suggested:
Liquid Wrench overnight and a big pair of vicegrips... but it's already out.
Well after I discovered it, I just took some Visegrip's to it and it came right out. Actually didn't even have to use any penetrating oil/lubricant.
na8psi is offline   Reply With Quote
Old 05-28-2010, 04:48 PM   #15
Elite Member
iTrader: (10)

Join Date: Oct 2008
Location: Seattle, Wa
Posts: 1,780
Total Cats: 30
Default

2 things to avoid this in the future:

Use copper anti-sieze.
Don't overtorque them.

I'm willing to bet that the first one would have prevented this.
Jeff_Ciesielski is offline   Reply With Quote
Old 05-28-2010, 04:50 PM   #16
I'm Miserable!
Thread Starter
iTrader: (1)

Join Date: Mar 2010
Location: North Carolina
Posts: 471
Total Cats: 0
Default

Were not talking the same anti-seize that you would use say on brake caliper slides?
na8psi is offline   Reply With Quote
Old 05-28-2010, 04:52 PM   #17
Elite Member
iTrader: (10)

Join Date: Oct 2008
Location: Seattle, Wa
Posts: 1,780
Total Cats: 30
Default

Quote:
Originally Posted by na8psi View Post
Were not talking the same anti-seize that you would use say on brake caliper slides?
No, this stuff will resist baking on at high temps.

Jeff_Ciesielski is offline   Reply With Quote
Old 05-28-2010, 04:54 PM   #18
I'm Miserable!
Thread Starter
iTrader: (1)

Join Date: Mar 2010
Location: North Carolina
Posts: 471
Total Cats: 0
Default

Quote:
Originally Posted by Jeff_Ciesielski View Post
No, this stuff will resist baking on at high temps.

Dope, good looking out I'll go grab some, hey man I got a new turbo too.
na8psi is offline   Reply With Quote
Old 05-28-2010, 07:27 PM   #19
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

After putting anti-sieze on every single bolt I touch on both of my cars I'm a much more pleasant person do be around during and after working on the cars.
hustler is offline   Reply With Quote
Old 05-29-2010, 06:26 PM   #20
I'm Miserable!
Thread Starter
iTrader: (1)

Join Date: Mar 2010
Location: North Carolina
Posts: 471
Total Cats: 0
Default

Quote:
Originally Posted by hustler View Post
After putting anti-sieze on every single bolt I touch on both of my cars I'm a much more pleasant person do be around during and after working on the cars.
Will be doing this! I assumed that maybe I overtorqued the nuts when tightening? Thats about the only thing I could think of that broke it, the only part of it that was broken was the threads that the nut itself goes onto, it broke basically from the bottom of the nut where it makes contact with the flange.
na8psi is offline   Reply With Quote
