Default Extended Exhaust Studs for Tacotaco?

Hey guys, I have not been having any luck locally, finding Exhaust studs long enough to use with the TacoTaco 1.8 Cast manifold.

Where is everyone getting theirs?
viriiguy is offline   Reply With Quote
Old 02-15-2016, 11:49 AM   #2
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,780
Total Cats: 1,106
Default

We have not yet. I would probably just run a long bolt.
shuiend is offline   Reply With Quote
Old 02-15-2016, 12:23 PM   #3
Autobot Miata
Thread Starter
iTrader: (1)

Join Date: Dec 2009
Location: Knoxville, TN
Posts: 265
Total Cats: 0
Default

That is probably what I will have to end up doing. Thanks!
viriiguy is offline   Reply With Quote
Old 02-15-2016, 12:25 PM   #4
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,780
Total Cats: 1,106
Default

I don't think even mcmaster carr has ones in the correct thread pitch and length.
shuiend is offline   Reply With Quote
Old 02-15-2016, 12:26 PM   #5
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Running 40mm bolts from Fastenal on my Taco manifold with a washer on them. Could be 42-43mm, but a 45 bottomed out a touch too soon. Stud would be better but I couldn't find one quickly so ran bolts.
patsmx5 is offline   Reply With Quote
Old 02-15-2016, 12:48 PM   #6
Autobot Miata
Thread Starter
iTrader: (1)

Join Date: Dec 2009
Location: Knoxville, TN
Posts: 265
Total Cats: 0
Default

Awesome! Thanks! I have a TON of 40mm bolts in grade 10 and 12.
viriiguy is offline   Reply With Quote
Old 02-15-2016, 12:50 PM   #7
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,206
Total Cats: 2,587
Default

why not just machine or grind down the tacoburrito?
18psi is offline   Reply With Quote
Old 02-15-2016, 01:29 PM   #8
Newb

Join Date: Nov 2015
Location: Denver, CO
Posts: 35
Total Cats: -1
Default

Quote:
Originally Posted by 18psi View Post
why not just machine or grind down the tacoburrito?
That's what I'm thinking. If you have access to a milling machine it would make sense. Unless you're removing important structure from the manifold, or creating stress risers that will make it crack.

You could probably even do it with a drill press, if you have a square endmill and some patience.
discontinuuity is offline   Reply With Quote
Old 02-15-2016, 01:33 PM   #9
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,206
Total Cats: 2,587
Default

well considering begi did just that, and this thing is a knockoff of begi, I doubt you'd remove important structure
18psi is offline   Reply With Quote
Old 02-15-2016, 01:52 PM   #10
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Quote:
Originally Posted by 18psi View Post
why not just machine or grind down the tacoburrito?
It's 1/2" of material that needs to be removed. Grinding it would be awful. I thought about bandsawing the ends off thinner, that would be easier, but decided screw it just put different bolts. Faster, easier.
patsmx5 is offline   Reply With Quote
Old 02-15-2016, 01:59 PM   #11
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,328
Total Cats: 1,926
Default

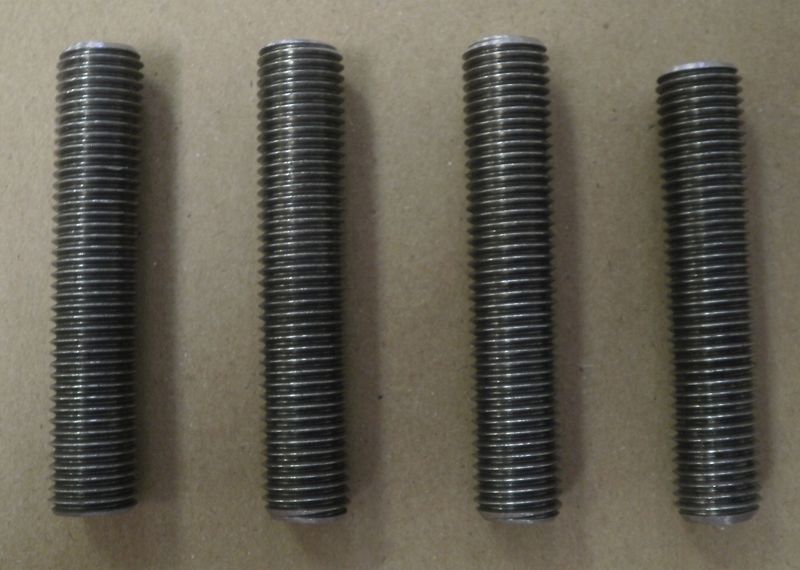

Or just use these: Miata Exhaust Manifold Stud




Replacement Exhaust Manifold to cylinder head stud for the older BEGI Cast Manifolds. The stud is 10mm x 1.25 thread pitch and approx 50 mm long. This stud is longer to account for the thicker head flange on the casting.
Attached Thumbnails
Extended Exhaust Studs for Tacotaco?-80-p8110009_b6701cd9993d38554ef5291c695408c0e3853c4c.jpg
Joe Perez is offline   Reply With Quote
Old 02-15-2016, 02:14 PM   #12
Elite Member
iTrader: (8)

bahurd's Avatar

Join Date: Apr 2013
Location: Ohio
Posts: 2,132
Total Cats: 145
Default

These are 48mm long (as opposed to the "approx 50mm" from BEGI). 10mm Exhaust Studs Serrated Nuts M10x1 25 Manifold Flange 4 Studs 4 Nuts | eBay

or these for a set of 8 (48.5 long) http://www.ebay.com/itm/10mm-Exhaust...NTMSLV&vxp=mtr
bahurd is offline   Reply With Quote
Old 02-16-2016, 04:28 AM   #13
Junior Member

Join Date: Oct 2015
Location: Stockholm, Sweden
Posts: 70
Total Cats: 9
Default

I have on occasion made studs out of threaded rod (if it's for something I like, a stainless steel one). Just takes a minute or two per stud to fix the thread in the ends.
jstck is offline   Reply With Quote
Old 02-16-2016, 06:21 AM   #14
Autobot Miata
Thread Starter
iTrader: (1)

Join Date: Dec 2009
Location: Knoxville, TN
Posts: 265
Total Cats: 0
Default

I don't have the equipment needed to mill the manifold down. Most of my tools are wood working tools Those Begi and Ebay studs will do the trick though! Thanks!
viriiguy is offline   Reply With Quote
Old 02-22-2016, 06:19 AM   #15
Autobot Miata
Thread Starter
iTrader: (1)

Join Date: Dec 2009
Location: Knoxville, TN
Posts: 265
Total Cats: 0
Default

For the record, These 48MM ones on Ebay are not long enough. They will be fine for the inner studs, but not the outer ones.

10mm Exhaust Studs Serrated Nuts M10x1 25 Manifold Flange 4 Studs 4 Nuts | eBay
viriiguy is offline   Reply With Quote
Old 02-22-2016, 04:33 PM   #16
Junior Member

Join Date: Mar 2014
Location: Jacksonville, FL
Posts: 435
Total Cats: 31
Default

Quote:
Originally Posted by viriiguy View Post
For the record, These 48MM ones on Ebay are not long enough. They will be fine for the inner studs, but not the outer ones.

10mm Exhaust Studs Serrated Nuts M10x1 25 Manifold Flange 4 Studs 4 Nuts | eBay
good to know, i also ordered the ebay studs, but havent tried them yet.

I will just use bolts for the outer holes.
borka is offline   Reply With Quote
Old 02-22-2016, 04:41 PM   #17
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,328
Total Cats: 1,926
Default

Quote:
Originally Posted by viriiguy View Post
For the record, These 48MM ones on Ebay are not long enough. They will be fine for the inner studs, but not the outer ones.
How much too short are they?

Based on the BEGI-supplied photo I posted, I count 42 - 42.5 full threads on each stud. At 1.25mm pitch, that gives an overall useful length of around 53mm.
Joe Perez is offline   Reply With Quote
Old 02-22-2016, 04:58 PM   #18
Elite Member
iTrader: (8)

bahurd's Avatar

Join Date: Apr 2013
Location: Ohio
Posts: 2,132
Total Cats: 145
Default

bahurd is offline   Reply With Quote
Old 02-23-2016, 08:08 AM   #19
Autobot Miata
Thread Starter
iTrader: (1)

Join Date: Dec 2009
Location: Knoxville, TN
Posts: 265
Total Cats: 0
Default

Quote:
Originally Posted by Joe Perez View Post
How much too short are they?

Based on the BEGI-supplied photo I posted, I count 42 - 42.5 full threads on each stud. At 1.25mm pitch, that gives an overall useful length of around 53mm.
They don't even have a single full thread protruding from the manifold.
viriiguy is offline   Reply With Quote
Old 09-29-2017, 03:26 PM   #20
Newb

Join Date: Mar 2017
Location: North Carolina
Posts: 21
Total Cats: -17
Default

Quote:
Originally Posted by bahurd View Post
So did anyone ever find the correct ones that work with this?
