DIY Turbo Discussion greddy on a 1.8? homebrew kit?

Reply



LinkBack Thread Tools
Old 10-23-2011, 09:04 PM   #1
Junior Member
Thread Starter

Join Date: May 2011
Location: Outside of Chicago
Posts: 153
Total Cats: -3
Default External wastegate on MSM manifold

My MSM boost creeps when i am catless. Im wondering can i weld on a external wastegate on the stock manifold and turbo, weld the internal wastegate closed and not have boost creep?
vplukas101 is offline   Reply With Quote
Old 10-23-2011, 09:25 PM   #2
Junior Member

Join Date: Jul 2008
Location: Bergen County NJ
Posts: 103
Total Cats: 0
Default

yes, but kind of pointless because you would need a new DP/ rework your current as well. and the MSM mani isn't really anything special or worth hacking up.... may as well just wait for something in the classifieds.
Slacker2223 is offline   Reply With Quote
Old 10-23-2011, 09:32 PM   #3
Junior Member
Thread Starter

Join Date: May 2011
Location: Outside of Chicago
Posts: 153
Total Cats: -3
Default

Quote:
Originally Posted by Slacker2223 View Post
yes, but kind of pointless because you would need a new DP/ rework your current as well. and the MSM mani isn't really anything special or worth hacking up.... may as well just wait for something in the classifieds.
I would just dump it to atmosphere, and i wasn't planning on changing the turbo until a couple of years down the road so no point in a new manifold. Im just wonder would this solve my creep problem.
vplukas101 is offline   Reply With Quote
Old 10-24-2011, 01:01 AM   #4
Elite Member
iTrader: (12)

Join Date: Sep 2007
Location: Charlotte, NC
Posts: 6,868
Total Cats: 66
Default

Ever thought of being conventional like most everyone else and just porting the turbine housing properly? Doing any work to the stock cast iron mani is just a waste of time.
Doppelgänger is offline   Reply With Quote
Old 10-24-2011, 03:53 AM   #5
Junior Member
iTrader: (30)

Join Date: Jul 2011
Location: Chandler, AZ
Posts: 430
Total Cats: -11
Default

I already told him i'd buy his msm manifold
Silentoreo34 is offline   Reply With Quote
Old 10-24-2011, 06:44 AM   #6
Senior Member

Join Date: Dec 2004
Location: Brisbane, Australia
Posts: 1,272
Total Cats: 32
Default

Quote:
Originally Posted by Doppelgänger View Post
Ever thought of being conventional like most everyone else and just porting the turbine housing properly? Doing any work to the stock cast iron mani is just a waste of time.
+1

It will be even worse having the dump pipe go to atmo!

You need to smooth out/taper toward the wastegate hole so air is encouraged to take that path. With it stock it has to take a 90 degree bend pretty much.

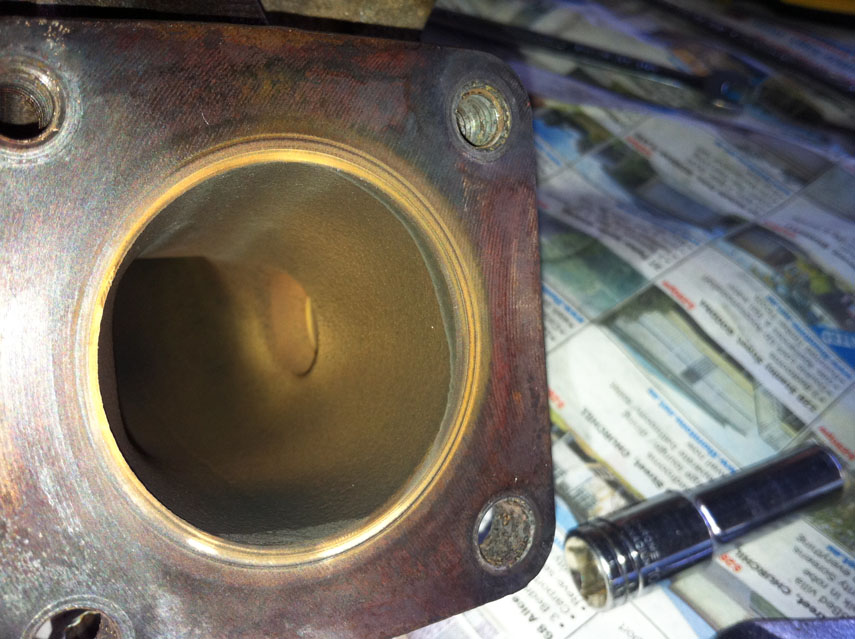

I've attached a pic of my MSM turbine housing to show you how pathetic it is when stock.

Cheers
Attached Thumbnails
External wastegate on MSM manifold-img_1918.jpg
timk is offline   Reply With Quote
Old 10-24-2011, 11:36 AM   #7
Junior Member
Thread Starter

Join Date: May 2011
Location: Outside of Chicago
Posts: 153
Total Cats: -3
Default

Already ported it made the wastegate hole bigger, and made a path from the inside so it wouldn't be a 90 degree turn. did not solve it. Thats why i want to do external.
vplukas101 is offline   Reply With Quote
Old 10-24-2011, 11:37 AM   #8
Junior Member
Thread Starter

Join Date: May 2011
Location: Outside of Chicago
Posts: 153
Total Cats: -3
Default

Quote:
Originally Posted by Silentoreo34 View Post
I already told him i'd buy his msm manifold
750 and its urs il be a jew like jake
vplukas101 is offline   Reply With Quote
Old 10-24-2011, 11:45 AM   #9
Elite Member

Join Date: Feb 2008
Location: Victoria, BC
Posts: 2,322
Total Cats: 12
Default

I'd just put your cat back in until you can afford a good turbo setup.
dustinb is offline   Reply With Quote
Old 10-25-2011, 02:18 AM   #10
Junior Member
iTrader: (30)

Join Date: Jul 2011
Location: Chandler, AZ
Posts: 430
Total Cats: -11
Default

Quote:
750 and its urs il be a jew like jake
You mean like 200 bucks.
Silentoreo34 is offline   Reply With Quote
Old 10-25-2011, 11:48 PM   #11
Junior Member
Thread Starter

Join Date: May 2011
Location: Outside of Chicago
Posts: 153
Total Cats: -3
Default

Quote:
Originally Posted by Silentoreo34 View Post
You mean like 200 bucks.


Il give you a best friend discount

749.50
vplukas101 is offline   Reply With Quote
Old 10-26-2011, 12:22 AM   #12
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Why god, why???? Why the **** would you want to do this.


Quote:
Originally Posted by saboteur View Post
+1

It will be even worse having the dump pipe go to atmo!

Cheers
Serious? Please explain why dumping your WG to atmo will cause boost creep.
Faeflora is offline   Reply With Quote
Old 10-28-2011, 02:07 AM   #13
Junior Member
Thread Starter

Join Date: May 2011
Location: Outside of Chicago
Posts: 153
Total Cats: -3
Default

Stupid ******* 240 owners keep confusing me! oo durp durp dont do it wont hold hurp durp durp drift tax ******* idiots!

Reading on the interwebs that if done right it will hold. Heating the manifold up then Patched it back up with ye old metal caulking gun let it slowly cool down

.
vplukas101 is offline   Reply With Quote
Old 10-28-2011, 11:12 AM   #14
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,484
Total Cats: 248
Default

Quote:
Originally Posted by vplukas101 View Post
My MSM boost creeps when i am catless. Im wondering can i weld on a external wastegate on the stock manifold and turbo, weld the internal wastegate closed and not have boost creep?
WAY too many variables to say for sure. I doubt anyone has done that to an MSM manifold. Only you should try it and find out.
TurboTim is offline   Reply With Quote
Old 10-28-2011, 12:42 PM   #15
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

I have a really awesome solution:

Put the cat back on.
Braineack is offline   Reply With Quote
Old 10-28-2011, 06:34 PM   #16
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,484
Total Cats: 248
Default

but then his car won't be fast.
TurboTim is offline   Reply With Quote
Old 10-28-2011, 07:30 PM   #17
Elite Member
iTrader: (12)

Join Date: Sep 2007
Location: Charlotte, NC
Posts: 6,868
Total Cats: 66
Default

Why do I feel that 98% of MSM owners are "special"....
Doppelgänger is offline   Reply With Quote
Old 10-28-2011, 07:49 PM   #18
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

(Posting from my phone.)

I thought it was a known fact?
Braineack is offline   Reply With Quote
Old 10-28-2011, 10:21 PM   #19
Junior Member

Join Date: Dec 2006
Location: Vancouver, BC
Posts: 131
Total Cats: 6
Default

This guy did it: http://www.mazda-speed.com/forum2/in...c,11941.0.html

I just changed my whole manifold/turbo/exhaust.
VanMSM is offline   Reply With Quote
