Old 02-28-2015, 11:34 PM   #41
Hug Life
iTrader: (3)

Monk's Avatar

Join Date: Apr 2014
Location: Huntington, Indiana
Posts: 2,803
Total Cats: 494
Default

Quote:
Originally Posted by aidandj View Post
Just ordered half radiators to do some scientific back to back testing. If Hondas can do it then Miata can too!
Attached Thumbnails
Fab9 350 hp intercooler vs ebay intercooler-2cgbpde.jpg
Monk is offline   Reply With Quote
Old 02-28-2015, 11:35 PM   #42
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,997
Total Cats: 1,463
Default

Quote:
Originally Posted by Monk View Post
aidandj is offline   Reply With Quote
Old 02-28-2015, 11:59 PM   #43
SadFab CEO
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,904
Total Cats: 613
Default

Quote:
Originally Posted by deezums View Post
The dollar value of ebay intercoolers I ordered and returned before I got a good one > any brand name IC

AFAIK all the ebay tube/fin deals are crap. I've seen pictures of mediocore looking ones, but the ones I got were thick tube extrusions with jack for surface area. They weigh a ton with thick tubes and end tanks but still easily twist and rack side to side.

The first bar/plate I ordered is the ebay IC pictured in this thread.
yes, but the hidden value in all this is that between myself and aidan, you have saved(us) a few hundred dollars
hi_im_sean is offline   Reply With Quote
Old 03-01-2015, 12:00 AM   #44
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,997
Total Cats: 1,463
Default

And Vlad, and a few others lol.
aidandj is offline   Reply With Quote
Old 03-01-2015, 12:53 AM   #45
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,192
Total Cats: 2,583
Default

just make sure not to use e-cool cause it will freeze your engine
e-cool+ebay intercooler = cure for global warming
18psi is offline   Reply With Quote
Old 03-01-2015, 02:08 AM   #46
Senior Member
iTrader: (2)

Join Date: Sep 2009
Location: Edmonton, AB, Canada
Posts: 1,177
Total Cats: 27
Default

Quote:
Originally Posted by FAB View Post
Oh man, now I'm making things up? His username on the forum is Landrew. There is NO way you could do that with the eBay unit he had shipped here. The entire core had a lean to it.

Regardless, my point is - there isn't enough information to put our intercoolers behind the FM units. It might be a good place to be (I've never seen an FM unit in person) one way or another, still it can't be decided based on this thread or the information in it.
It's me!

I bought that ebay IC a long time ago when I was really stretching a dollar. I really, really wanted the Fab9 IC and he was shipping me other stuff anyways so it would have been the optimum time to buy it. I love the mounting tabs and I do remember when I pulled my car apart that my old IC had somehow cracked a DIY steel mounting tab so I was thinking how good a nice custom fit one would be. Plus wouldn't you know it that Vibrant is a Canadian company. But I just ran way over budget at that time. Plus I have a soft spot for cheap eBay stuff as well, just ask my bicycles! Anyways, I'm still a long ways from the IC part of my build but let me get a picture of it next week and give it some twist. I do remember it had a slight bow in its length.
I tried to justify it because where I live we might get an 80 F day 10 times a year at most so I was assuming that cooling wasn't as critical and I'm street driving it as well. Right??
Landrew is offline   Reply With Quote
Old 03-04-2015, 01:14 AM   #47
Senior Member
iTrader: (2)

Join Date: Sep 2009
Location: Edmonton, AB, Canada
Posts: 1,177
Total Cats: 27
Default

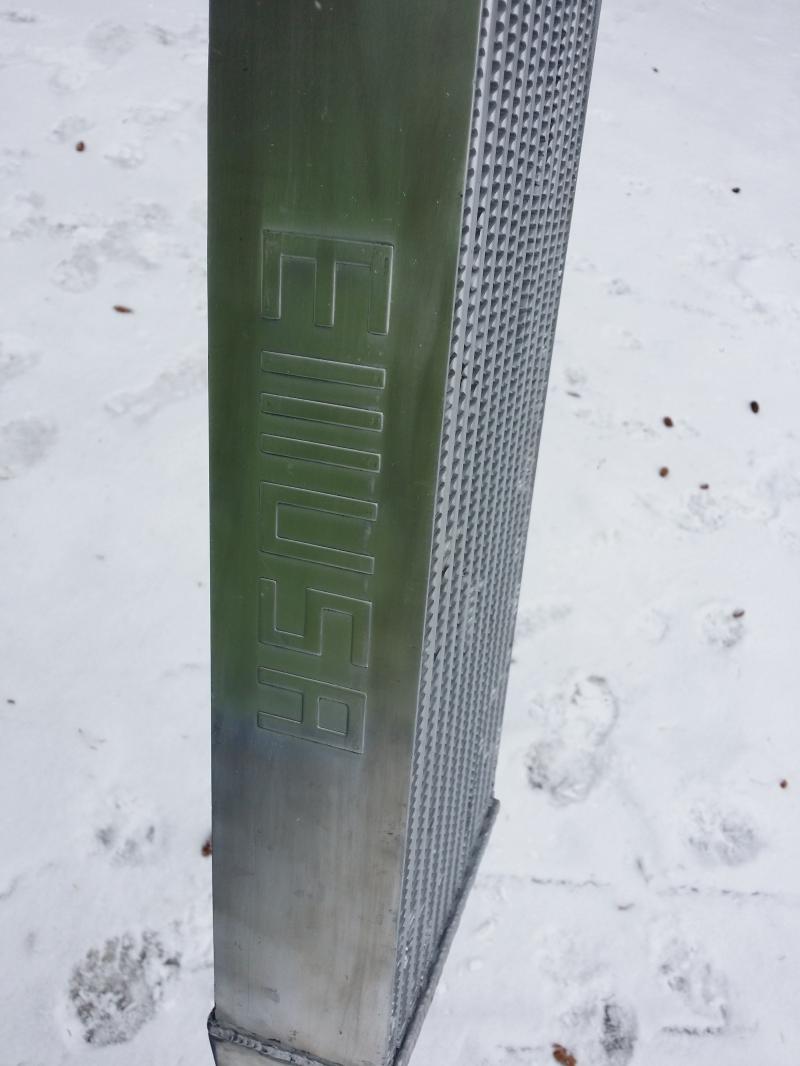

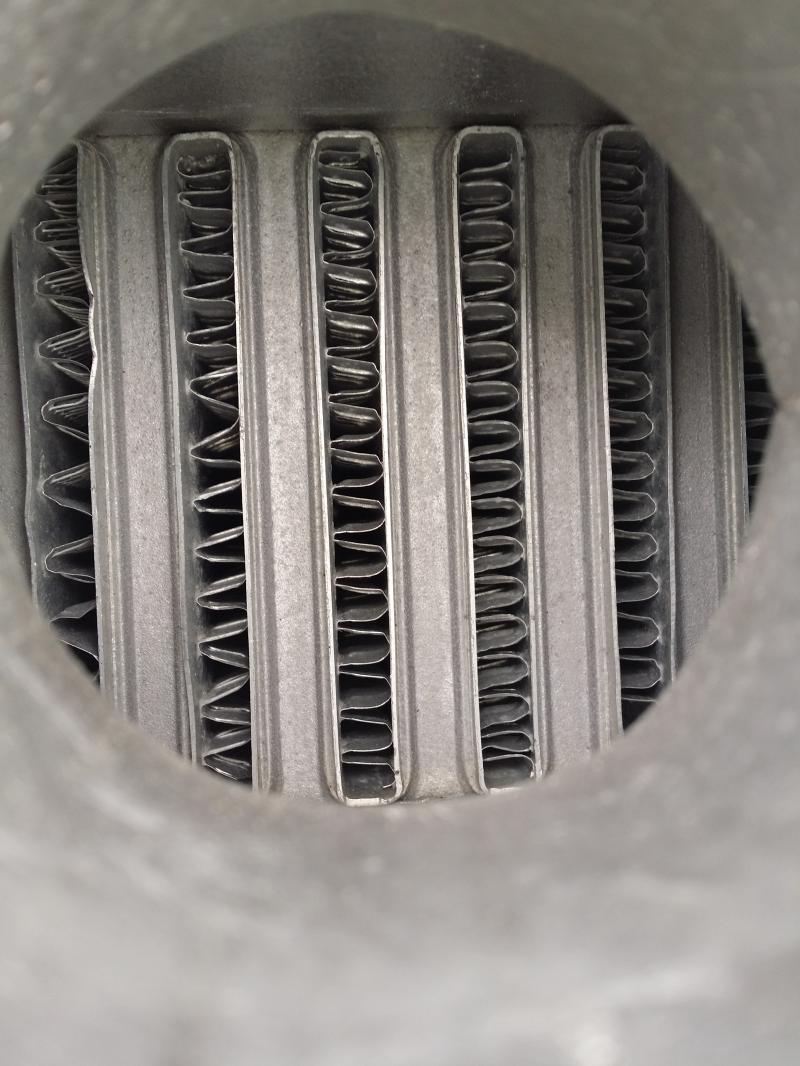

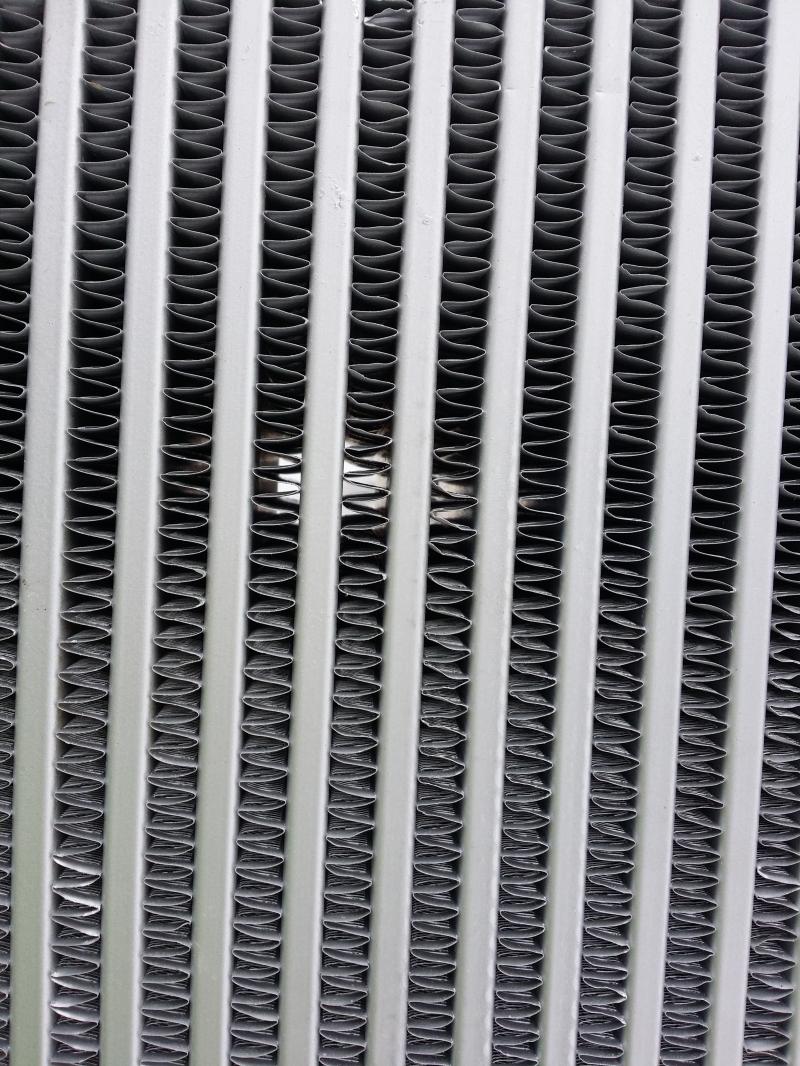

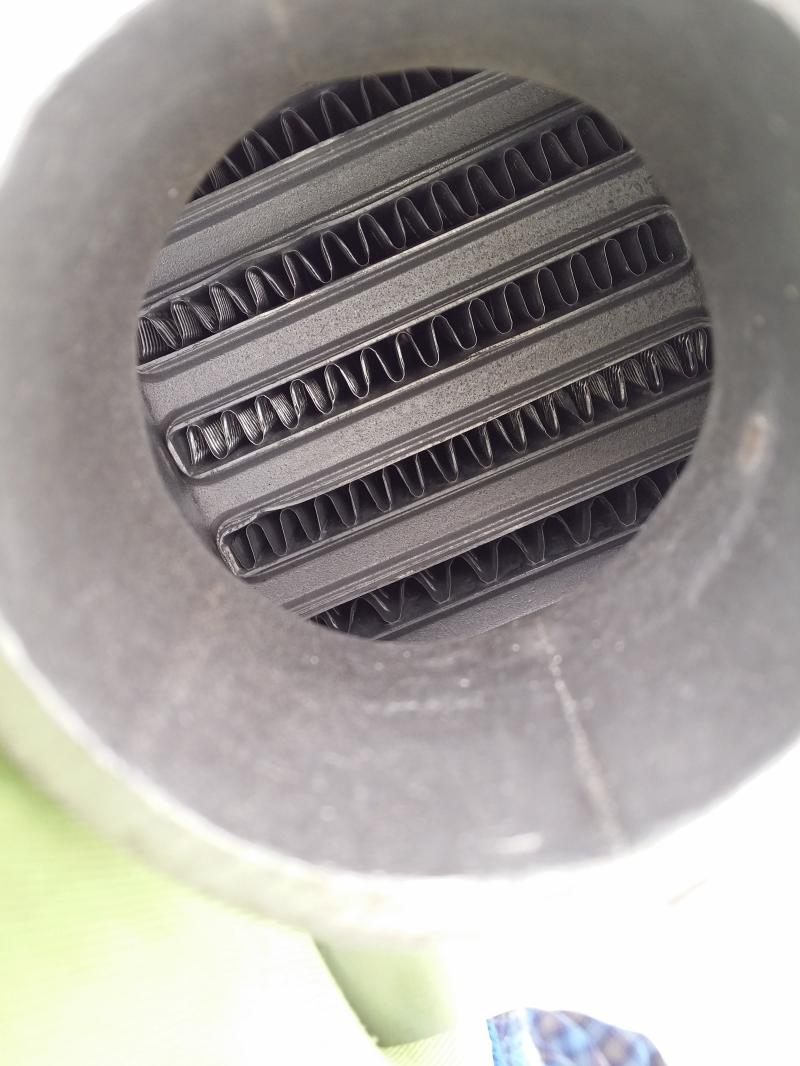

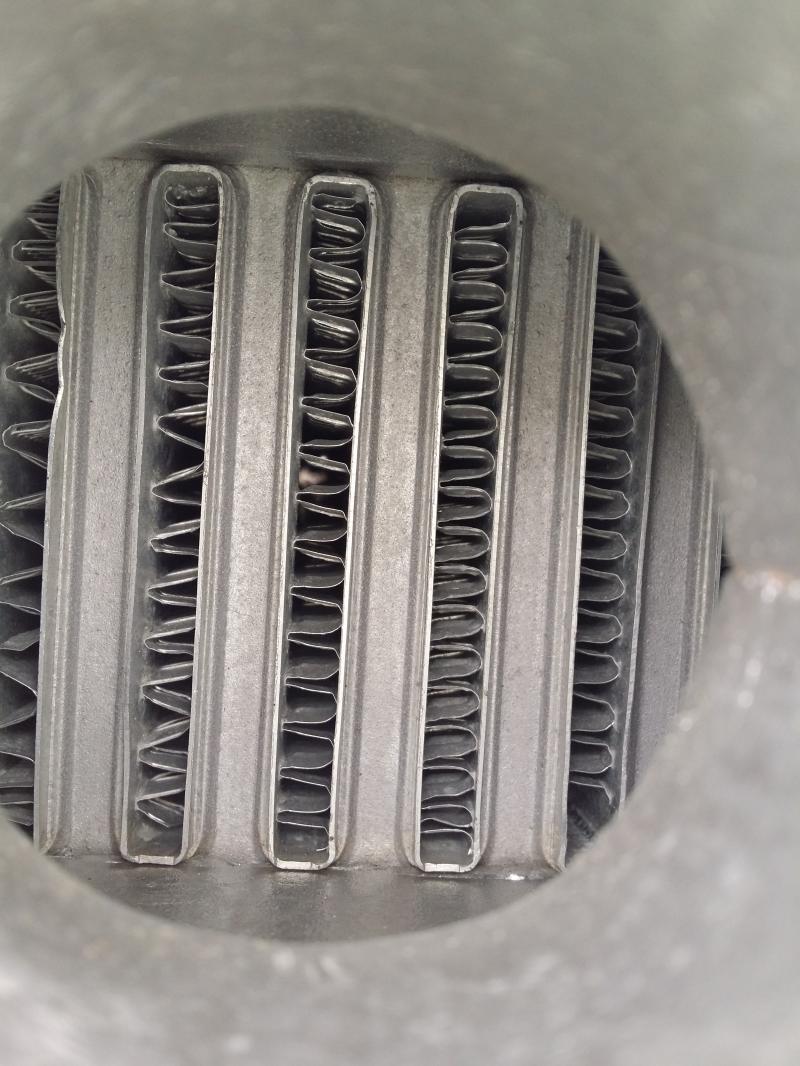

Here she is:
I tried to twist it but it would not budge. Perhaps If I mounted one side into something solid it would, but it felt pretty stiff.





Front
Attached Thumbnails
Fab9 350 hp intercooler vs ebay intercooler-20150302_105213.jpg   Fab9 350 hp intercooler vs ebay intercooler-20150302_105151.jpg   Fab9 350 hp intercooler vs ebay intercooler-20150302_105146.jpg   Fab9 350 hp intercooler vs ebay intercooler-20150302_105116.jpg   Fab9 350 hp intercooler vs ebay intercooler-20150302_105132.jpg

Landrew is offline   Reply With Quote
Old 03-07-2015, 10:35 AM   #48
Senior Member
iTrader: (9)

Join Date: Oct 2006
Location: Lexington SC
Posts: 1,003
Total Cats: 14
Default

Quote:
Originally Posted by FAB View Post
The latest cores from Vibrant have been their newer fin design - 25% more fin density. Thus far we've only seen this on our Stage 2 cores. (left intercooler in this picture)
When do you expect to get the newer fin design on the Stage 1 cores? I would love to pick a stage 1 intercooler up with the current tax sale, but would be willing to wait a few weeks or months for the improved core.
Rallas is offline   Reply With Quote
Old 03-07-2015, 11:15 AM   #49
FAB
Fab9Tuning.com
iTrader: (4)

FAB's Avatar

Join Date: Apr 2013
Posts: 943
Total Cats: 394
Default

Quote:
Originally Posted by relte View Post
When do you expect to get the newer fin design on the Stage 1 cores? I would love to pick a stage 1 intercooler up with the current tax sale, but would be willing to wait a few weeks or months for the improved core.
I don't think there is a good answer for this one or if they will be doing this with the 350hp cores (although I imagine they will). However if you'd like to purchase it under the Tax Season promo and have us hold the order please send me a PM with an order number and I'll flag it.
FAB is offline   Reply With Quote
Old 03-23-2015, 09:35 AM   #50
Senior Member
iTrader: (9)

Join Date: Oct 2006
Location: Lexington SC
Posts: 1,003
Total Cats: 14
Default

I pulled the trigger and got the Stage 1 Fab9 (Vibrant) intercooler. It showed up this past weekend.






This guy is real beafy and super strong. I wouldn't doubt some of the claims that you can jack the front end up with this thing . The intercooler itself is very well made and you can see the internal core is of much higher quality than most ebay cores. My only concern is that the fin count internally seems pretty low. As you can see in the pic with the ligh shining through the intercooler, each internal passage is nice and straight with no fins or protrusions into the air flow. This is awesome to ensure the minimum pressure drop accross the intercooler, but as an mechanical engineering I am concerned that this will reduce the heat transfer between the inside and outside air since turbulent air moving through those passages will transfer more heat from the hot charge air to the outside air.

The core is 18" long (FAB9 site claims 20") which is 50% longer than the core of my current old BEGI intercooler at 12". I wasn't looking for more HP capacity, just more surface area to transfer the additional heat for track use.

I know the BEGI cores are more efficient, but by how much? Will the 50% of increased frontal area of the FAB9 at a reduced efficiency still give me more cooling capacity than the smaller BEGI with higher cooling efficiency?

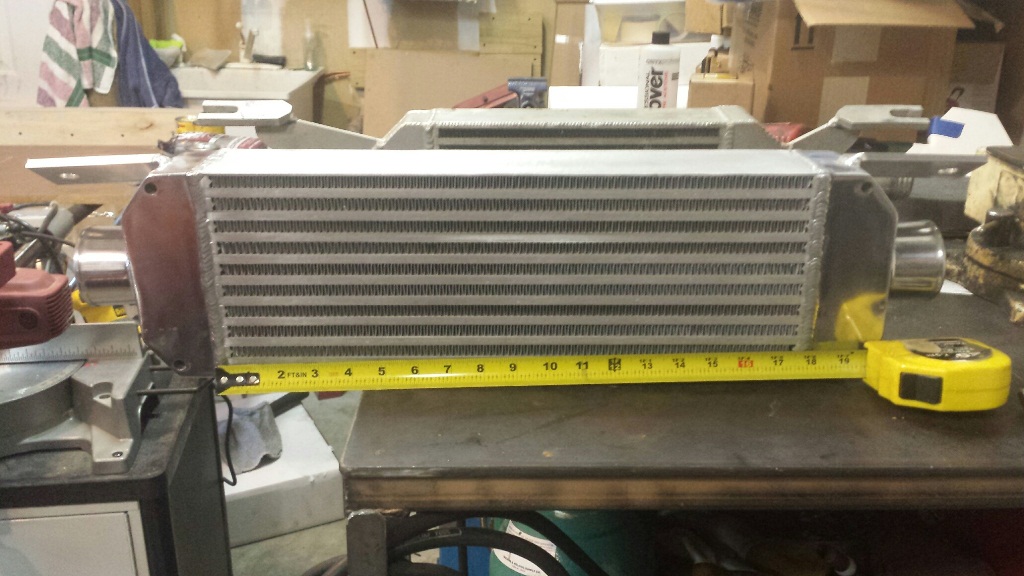

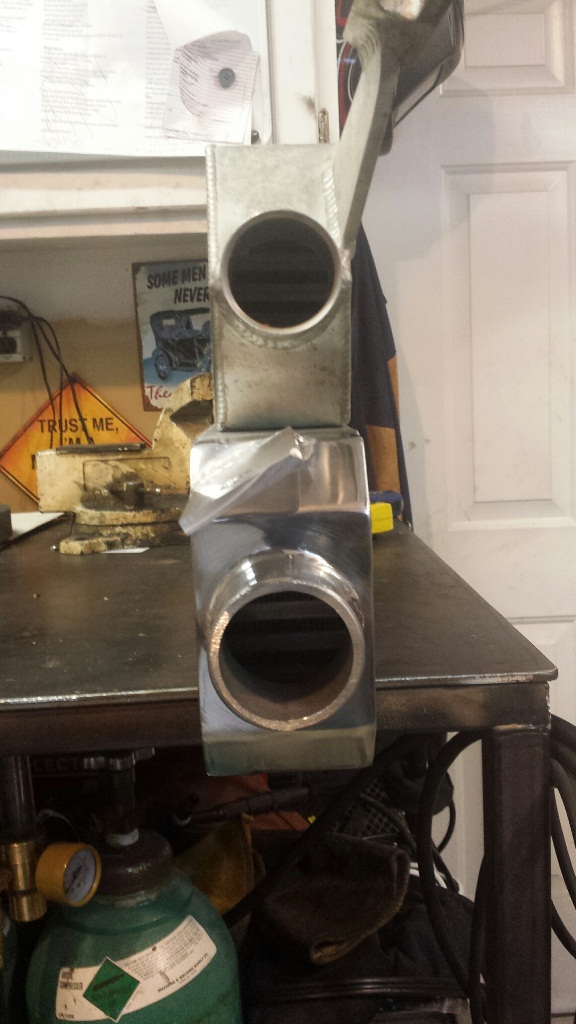

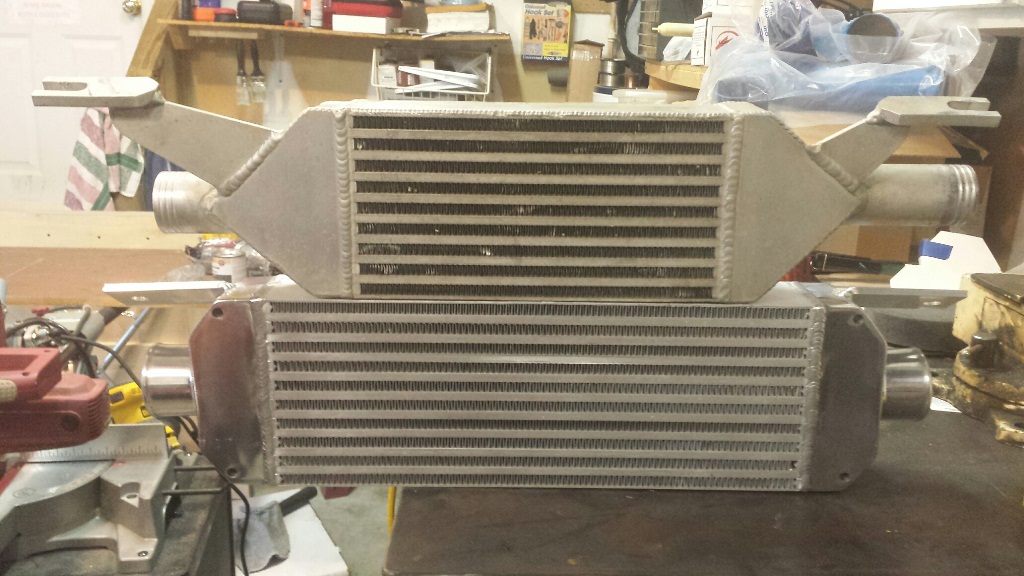

Here are some pics comparing the outside of the two intercoolers.

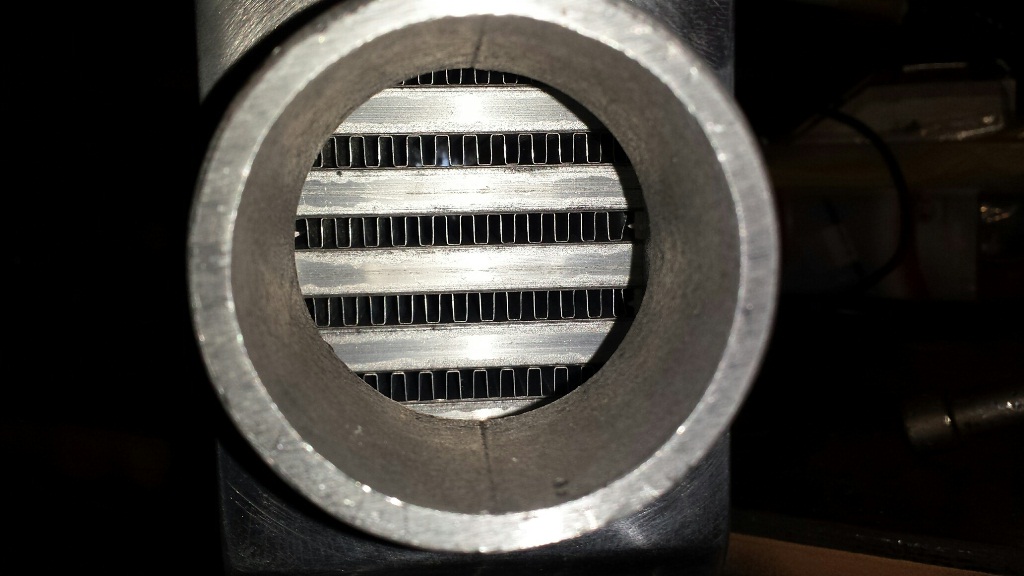

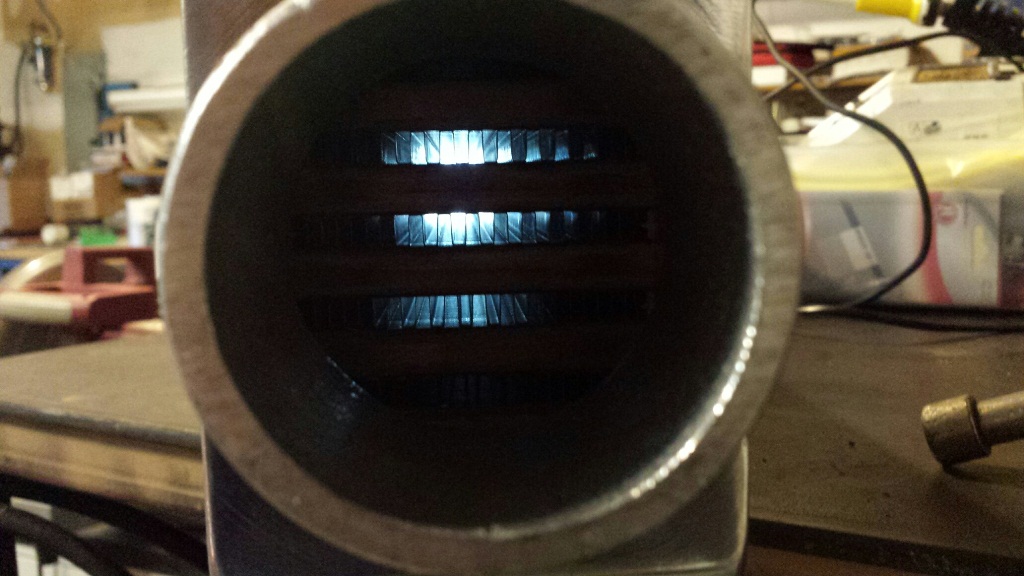

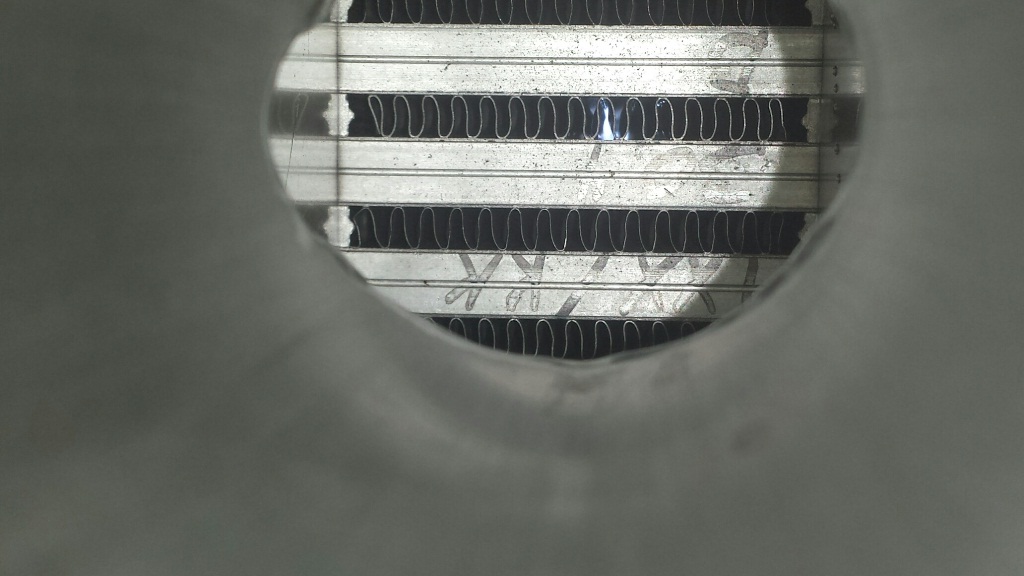

Here is a picture of the inside BEGI core fins. I know its a crappy pictyure, but you should be able to tell how the internal fins are shaped to cause a turbulent path of the air to pass through the core, similar to how the external air fins look like. This is the main difference that I am concerned about.

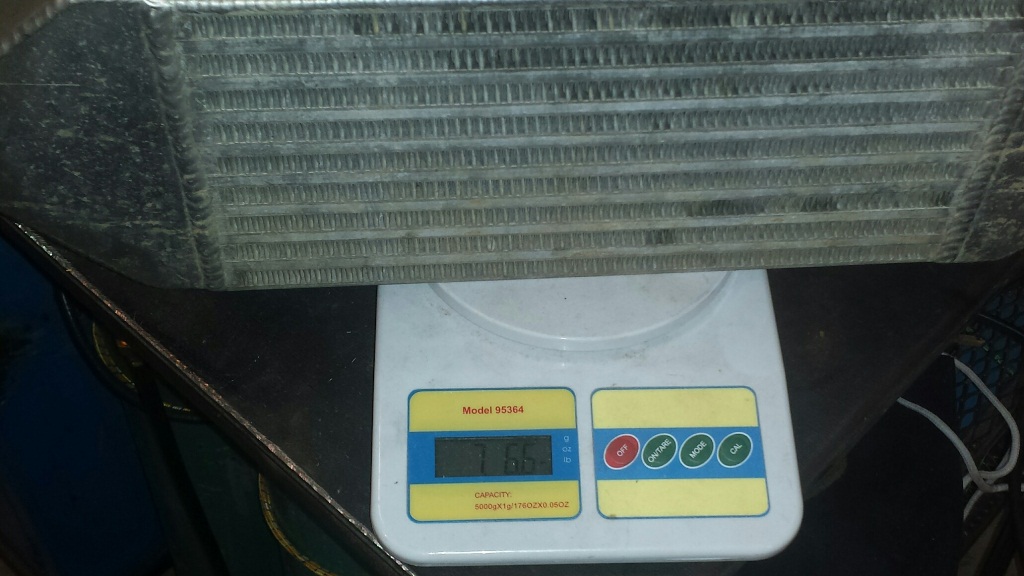

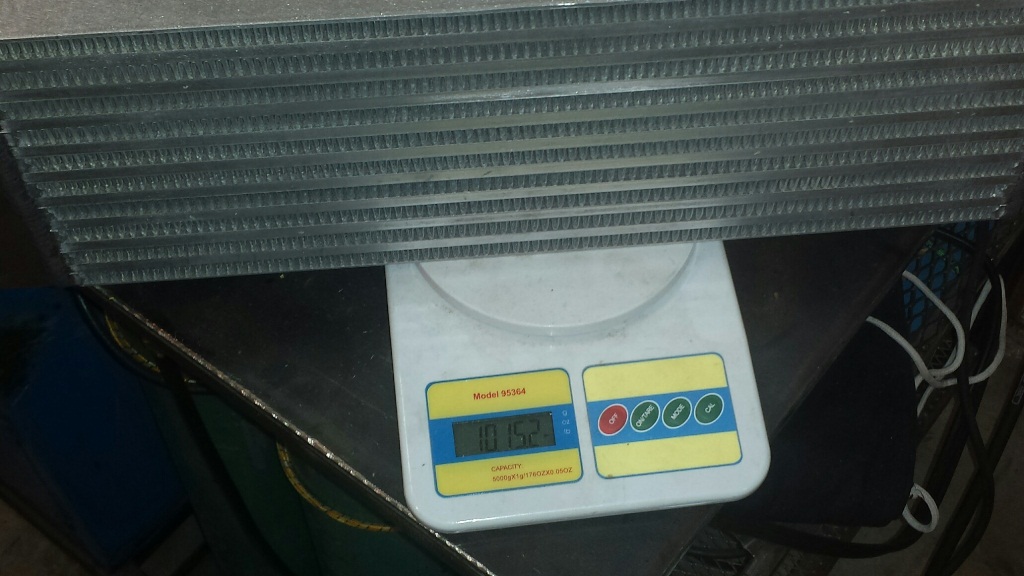

Lastly here is a weight comparison of the two. The Fab9 is right at 11 pounds and the BEGI came in at ~7.5lbs. Just for info.



No doubt the FAB9 is much better quality than any crappy ebay intercooler.

I am just concerned that I will not be gaining that much more cooling effeciency due to the lower cooling fin count with no internal fins or flow disturbing measures. I might have to return this one for now and wait until a newer core comes out like the updated one avaliable with the Stage 2 cores (see post #20). The pictures below show the staggered fin design that I was expecting.

Quote:
Originally Posted by FAB View Post
The latest cores from Vibrant have been their newer fin design - 25% more fin density. Thus far we've only seen this on our Stage 2 cores. (left intercooler in this picture)






Attached Thumbnails
Fab9 350 hp intercooler vs ebay intercooler-20150320_085043_resized.jpg   Fab9 350 hp intercooler vs ebay intercooler-20150319_181712_resized.jpg   Fab9 350 hp intercooler vs ebay intercooler-20150319_181729_resized.jpg   Fab9 350 hp intercooler vs ebay intercooler-20150320_085151_resized.jpg   Fab9 350 hp intercooler vs ebay intercooler-20150320_085217_resized.jpg

Fab9 350 hp intercooler vs ebay intercooler-20150320_085443_resized.jpg   Fab9 350 hp intercooler vs ebay intercooler-20150320_085656_resized.jpg   Fab9 350 hp intercooler vs ebay intercooler-20150320_085829_resized.jpg

Last edited by Rallas; 03-25-2015 at 06:04 PM.
Rallas is offline   Reply With Quote
Old 03-23-2015, 09:46 AM   #51
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,709
Total Cats: 319
Default

Also, the Fab9 inlet/outlets are 2.5" while begi is 2.25"

This was a nice surprise when my FM pipes wouldn't adapt over. I ended up hacking it up and just built a custom charge pipe with odds and ends.


If the stage 1 utilized the newer core design, and Fab could offer an intercooler with a pre-welded IAT bung on the end tank, that might tip the scale for me

Last edited by psyber_0ptix; 03-23-2015 at 10:06 AM.
psyber_0ptix is offline   Reply With Quote
Old 03-25-2015, 03:42 PM   #52
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Psyber were your FM pipes the one piece silicone or older? My FM one piece pipes are 2.5" and worked perfect.
Jeffbucc is offline   Reply With Quote
Old 03-25-2015, 05:19 PM   #53
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,709
Total Cats: 319
Default

FM pipes are 2.5"
FM and FAB intercoolers have the same size inlet/outlets

They had to be modified to work on my begi#3 which is 2.25"
psyber_0ptix is offline   Reply With Quote
Old 03-25-2015, 06:04 PM   #54
Senior Member
iTrader: (9)

Join Date: Oct 2006
Location: Lexington SC
Posts: 1,003
Total Cats: 14
Default

My old BEGI intercooler has 2" inlet/outlet. The newer BEGI intercoolers might have slightly larger connections.
Rallas is offline   Reply With Quote
Old 03-27-2015, 09:40 AM   #55
Former Vendor

Join Date: Dec 2007
Location: Texas Hill Country
Posts: 271
Total Cats: 16
Default

Midpack, why did you picture our water core? I think precision shares the same core maker.

Once the turbulators, tube length and flow area are well in hand, the streamlining and air distribution of the end caps needs getting straight. I love seeing those square boxes sitting on the ends of a core.

Yielding to enormous (?) pressure, I did move the alpha/omega IC to the center. I agree, it looks better. It's just a bit tighter fit up with the longer tube core we use than others.

corky
Corky Bell is offline   Reply With Quote
Old 03-27-2015, 09:44 AM   #56
Former Vendor

Join Date: Dec 2007
Location: Texas Hill Country
Posts: 271
Total Cats: 16
Default

2.5 inch tubes ? The 1000 horsepower Miata would certainly be a hoot.

cork
Corky Bell is offline   Reply With Quote
Old 03-27-2015, 09:47 AM   #57
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Quote:
Originally Posted by Corky Bell View Post
2.5 inch tubes ? The 1000 horsepower Miata would certainly be a hoot.

cork
<3 from the 2" tube club.
Leafy is offline   Reply With Quote
Old 03-27-2015, 02:11 PM   #58
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

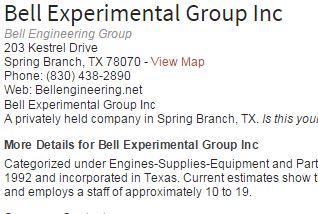

Corky, you are the same Bell as Bell Intercoolers - Custom Intercooler and Core Solutions correct? I know you both are in Texas and share an 830 area code and Manta is showing the same address for both Bell Experimental Group and Bell Intercoolers...

Attached Thumbnails
Fab9 350 hp intercooler vs ebay intercooler-begi_add.jpg   Fab9 350 hp intercooler vs ebay intercooler-bell_ic.jpg
EO2K is offline   Reply With Quote
Old 03-27-2015, 02:13 PM   #59
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,997
Total Cats: 1,463
Default

Then why is the bell intercooler site like 1000x prettier
aidandj is offline   Reply With Quote
Old 03-27-2015, 02:26 PM   #60
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,776
Total Cats: 1,106
Default

Quote:
Originally Posted by EO2K View Post
Corky, you are the same Bell as Bell Intercoolers - Custom Intercooler and Core Solutions correct? I know you both are in Texas and share an 830 area code and Manta is showing the same address for both Bell Experimental Group and Bell Intercoolers...

Yes, basically. There is some legal split between the two, but Corky is involved with both and they are in buildings right next to each other.
shuiend is offline   Reply With Quote
