Default Fab9 350 hp intercooler vs ebay intercooler

Fab9 worth the extra coin due to having mounting tabs? Anyone have any data logs (or can comment) on how fast the iat's raise and lower? Looking to run either on a fm2 type setup. Ebay intercooler is the one being discussed in a sticky.
stratosteve is offline   Reply With Quote
Old 02-22-2015, 05:42 PM   #2
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,199
Total Cats: 260
Default

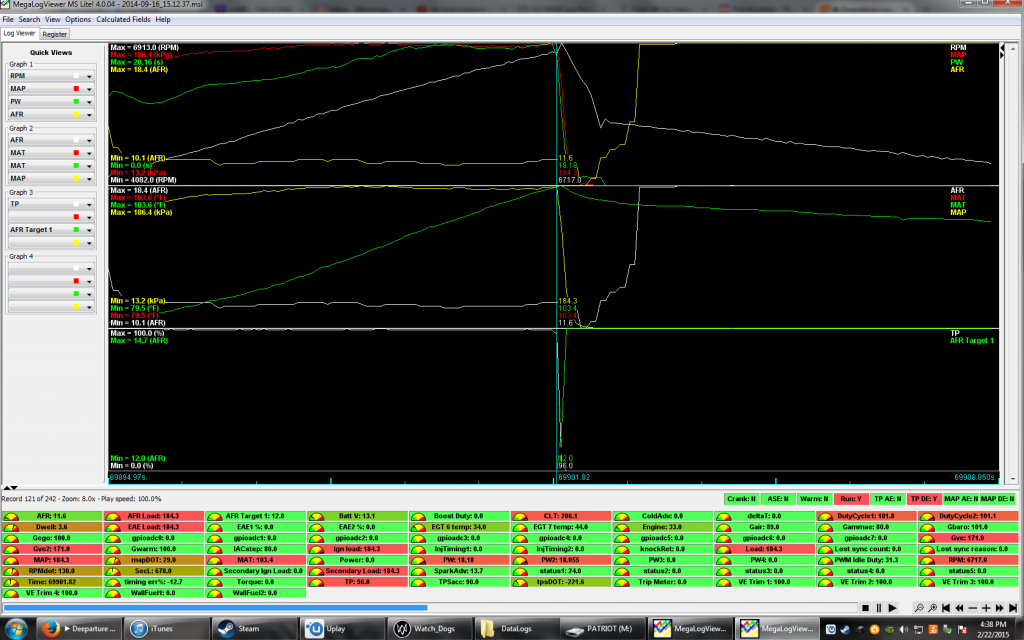

Here's one with the vibrant 350 core (fab9) intercooler on a pretty hot day doing a pull.



I'm trying to find one where i had just the crossover pipe on my voodoo kit. I know it spiked to at least 160F at some points on a cool night.

This intercooler could take a good amount of abuse. After a good long hard drive my intake temperatures were fairly consistent unlike my oil temperatures where had no auxiliary cooling.
Attached Thumbnails
Fab9 350 hp intercooler vs ebay intercooler-untitled-2.png
Attached Files
File Type: msl 2014-09-16_15.12.37.msl (68.9 KB, 41 views)
Erat is online now   Reply With Quote
Old 02-22-2015, 05:52 PM   #3
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Not having to fab a mounting solution was worth the extra cost for me. Painless. Plus he has them in flat black for a little more stealth.

Very steady IATs on my car. Heat soak disappears very fast after hot startup.
Jeffbucc is offline   Reply With Quote
Old 02-22-2015, 05:55 PM   #4
Senior Member
Thread Starter
iTrader: (1)

Join Date: Nov 2010
Location: Marylandistan
Posts: 841
Total Cats: 44
Default

Do the tabs work with nb2's also?
stratosteve is offline   Reply With Quote
Old 02-22-2015, 05:56 PM   #5
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,193
Total Cats: 2,583
Default

I'm impressed by how tough the vibrant cores are. They are built like tanks, I'm sure could take a ton of abuse.
And the size is perfect for a miata mouth, and of course his mounting tabs are super sturdy and work well.

Yes the tabs work perfectly with nb2
18psi is offline   Reply With Quote
Old 02-25-2015, 03:57 PM   #6
Senior Member
Thread Starter
iTrader: (1)

Join Date: Nov 2010
Location: Marylandistan
Posts: 841
Total Cats: 44
Default

I contacted fm about just getting an fm2 w/no electronics and minus intercooler/pipes. There isnt a huge amount to be saved by going with the fab9 ic.
stratosteve is offline   Reply With Quote
Old 02-25-2015, 04:00 PM   #7
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

ebay cores are pretty shitty.

i say this having run three different ones and comparing them to Bell cores.
Braineack is offline   Reply With Quote
Old 02-25-2015, 04:09 PM   #8
Senior Member
Thread Starter
iTrader: (1)

Join Date: Nov 2010
Location: Marylandistan
Posts: 841
Total Cats: 44
Default

This would be a whole lot easier to decide if no mkturbo existed. Thanks lars
stratosteve is offline   Reply With Quote
Old 02-25-2015, 04:14 PM   #9
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,712
Total Cats: 319
Default

I'm just not sure about the vibrant cores compared to the Begi or Precision cores. The internal fin density doesn't seem as high as they could be, but I dunno.

I'm running a used Begi #3 and have thought about switching to the Vibrant. Still on the fence.
psyber_0ptix is offline   Reply With Quote
Old 02-26-2015, 09:27 AM   #10
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,777
Total Cats: 1,106
Default

Quote:
Originally Posted by psyber_0ptix View Post
I'm just not sure about the vibrant cores compared to the Begi or Precision cores. The internal fin density doesn't seem as high as they could be, but I dunno.

I'm running a used Begi #3 and have thought about switching to the Vibrant. Still on the fence.
If you already have a begi #3 core, why would you change?
shuiend is online now   Reply With Quote
Old 02-26-2015, 10:23 AM   #11
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,712
Total Cats: 319
Default

Quote:
Originally Posted by shuiend View Post
If you already have a begi #3 core, why would you change?
Some piping adjustments and the asymmetry is killing my OCD. It would really be just one of those final touch things which is asinine since the car isn't running right now.
psyber_0ptix is offline   Reply With Quote
Old 02-26-2015, 10:45 AM   #12
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

are you going to pull your a/c just to mount the IC dead center?

paint it black and youll never notice it again.
Braineack is offline   Reply With Quote
Old 02-26-2015, 01:12 PM   #13
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,712
Total Cats: 319
Default

Vibrant/Fab9 has an intercooler that's A/C compatible. My A/C doesn't work anyhow as I need the two hoses that run to the r134a compressor.

I'm tempted to pull A/C completely, but I know.....Virginia humidity
psyber_0ptix is offline   Reply With Quote
Old 02-26-2015, 09:03 PM   #14
FAB
Fab9Tuning.com
iTrader: (4)

FAB's Avatar

Join Date: Apr 2013
Posts: 943
Total Cats: 394
Default

I'm mildly offended our cores are being compared to eBay's intercooler offerings. I'm sure not many have seen the two compared to each other in person but they are light years apart in quality and craftsmanship. The only level I even see them being compared on is pricing and I'll pat myself on the back for making that happen. I believe we still have the largest bolt-on core available and it's half the price of comparable units on the market.
FAB is offline   Reply With Quote
Old 02-26-2015, 09:10 PM   #15
FAB
Fab9Tuning.com
iTrader: (4)

FAB's Avatar

Join Date: Apr 2013
Posts: 943
Total Cats: 394
Default

In addition to the points mentioned previously, our cores are perfectly centered in the bumper.
FAB is offline   Reply With Quote
Old 02-26-2015, 09:18 PM   #16
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,712
Total Cats: 319
Default

So tempted. So. Tempted.

First I'll get the car running, then I'll probably order when I am ready to clean up the piping
psyber_0ptix is offline   Reply With Quote
Old 02-26-2015, 09:38 PM   #17
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Wait, you have a Bell intercooler and you want to change? Now that there's no new garrett cores being made Bell's probably got the best cores out there.

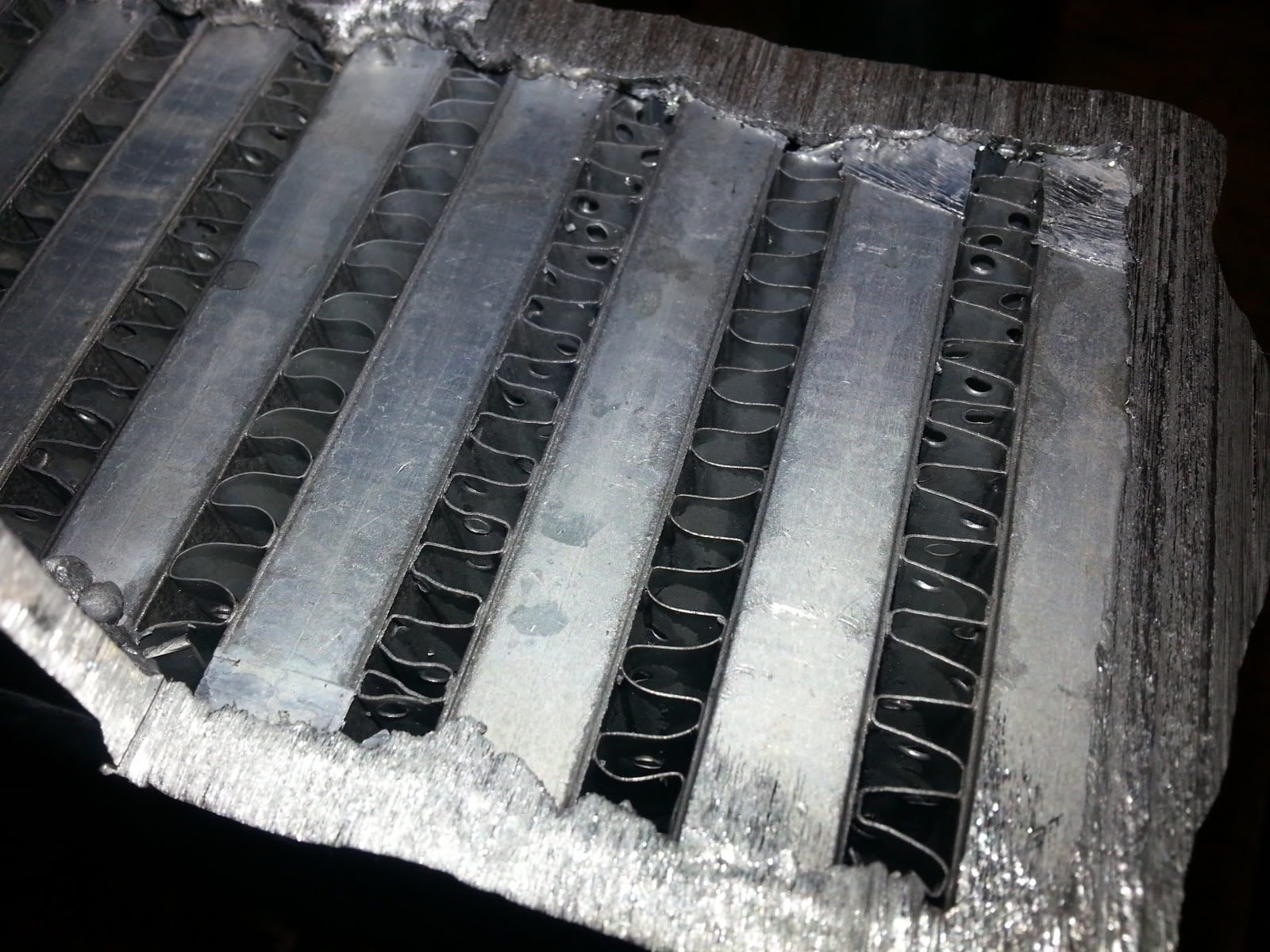

Surprisingly the ebay/cx racing cores dont look all that bad. Not amazing, but not like super terribad like some people make them out to be. Now the end tanks on at least the style I got leave a lot to be designed, they have no internal flow directors and they're also like 1/4" thick so the intercooler weighs a freaking ton.

Name:  IMG_20130226_193622.jpg
Views: 118
Size:  315.3 KB
Leafy is offline   Reply With Quote
Old 02-26-2015, 10:44 PM   #18
Senior Member
iTrader: (3)

Join Date: Jul 2011
Location: STL
Posts: 528
Total Cats: 24
Default

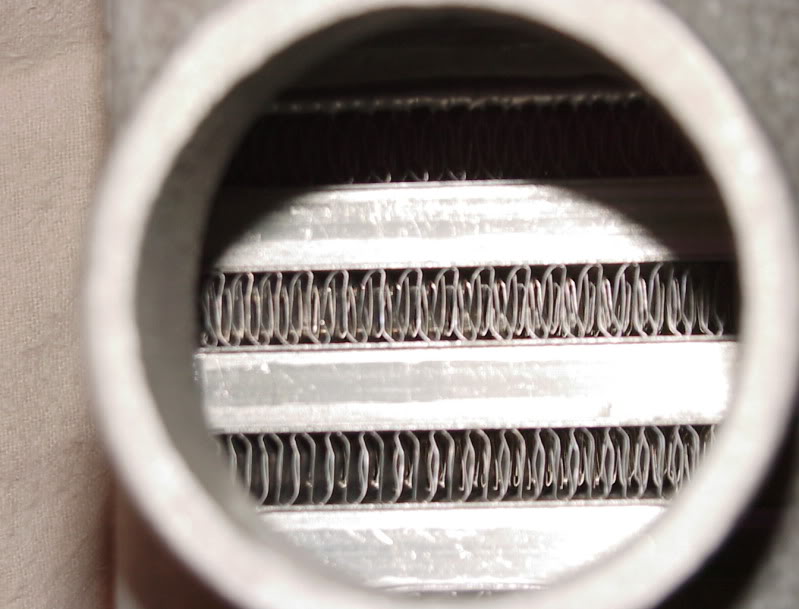

Precision:

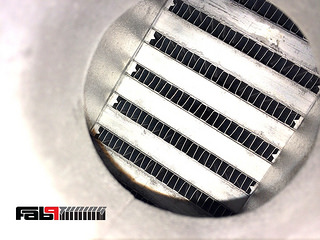

Fab9:

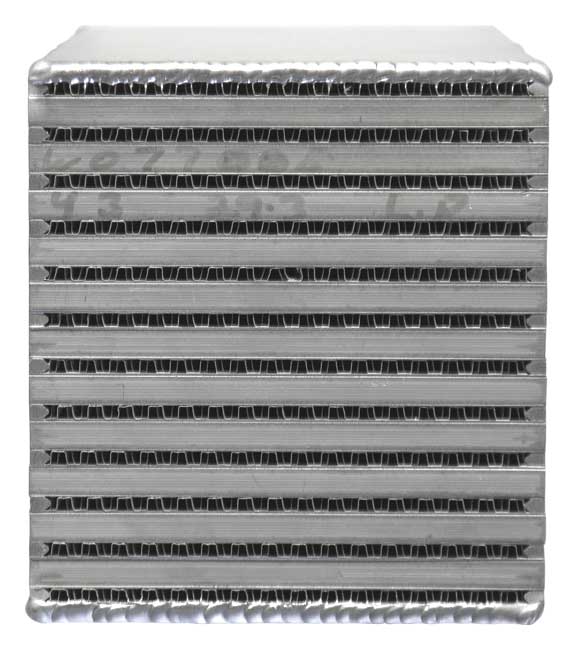

Bell:
Attached Thumbnails
Fab9 350 hp intercooler vs ebay intercooler-intercooler009.jpg   Fab9 350 hp intercooler vs ebay intercooler-12309943676_7125314d26_n.jpg   Fab9 350 hp intercooler vs ebay intercooler-bic_a_v3.jpg
midpack is offline   Reply With Quote
Old 02-26-2015, 10:58 PM   #19
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

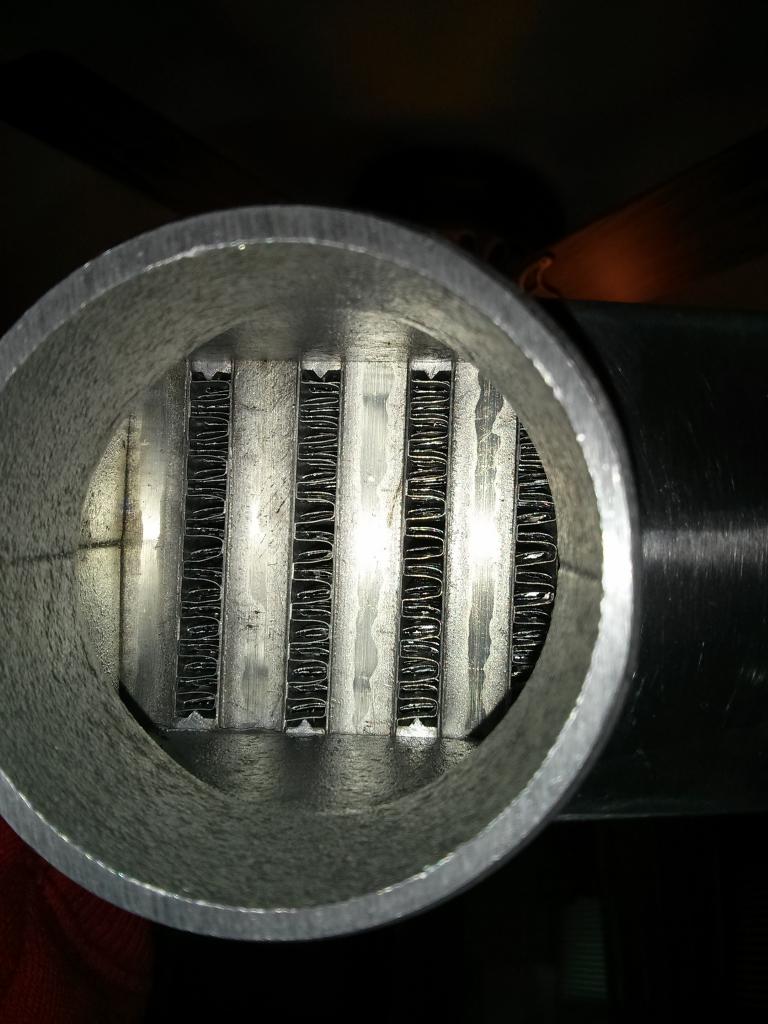

Ebay:

aidandj is offline   Reply With Quote
Old 02-26-2015, 11:02 PM   #20
FAB
Fab9Tuning.com
iTrader: (4)

FAB's Avatar

Join Date: Apr 2013
Posts: 943
Total Cats: 394
Default

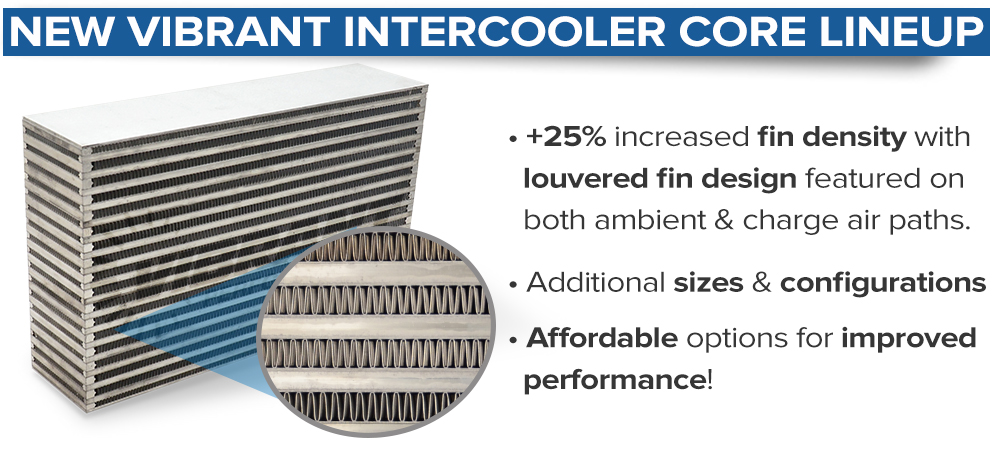

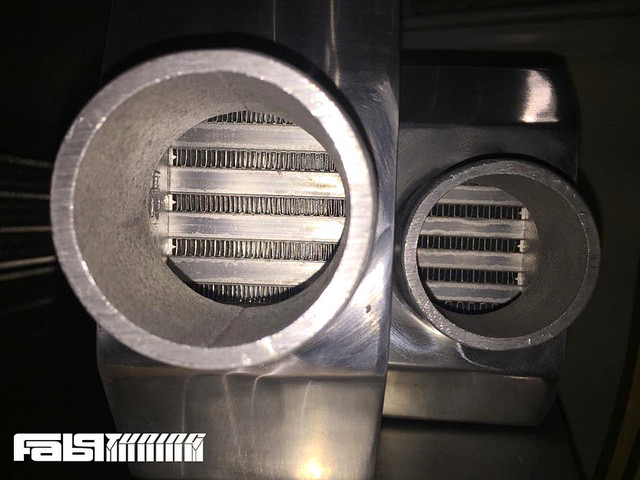

The latest cores from Vibrant have been their newer fin design - 25% more fin density. Thus far we've only seen this on our Stage 2 cores. (left intercooler in this picture)



Attached Thumbnails
Fab9 350 hp intercooler vs ebay intercooler-16658001422_6f0889f549_z.jpg   Fab9 350 hp intercooler vs ebay intercooler-vibrant.jpg
FAB is offline   Reply With Quote
