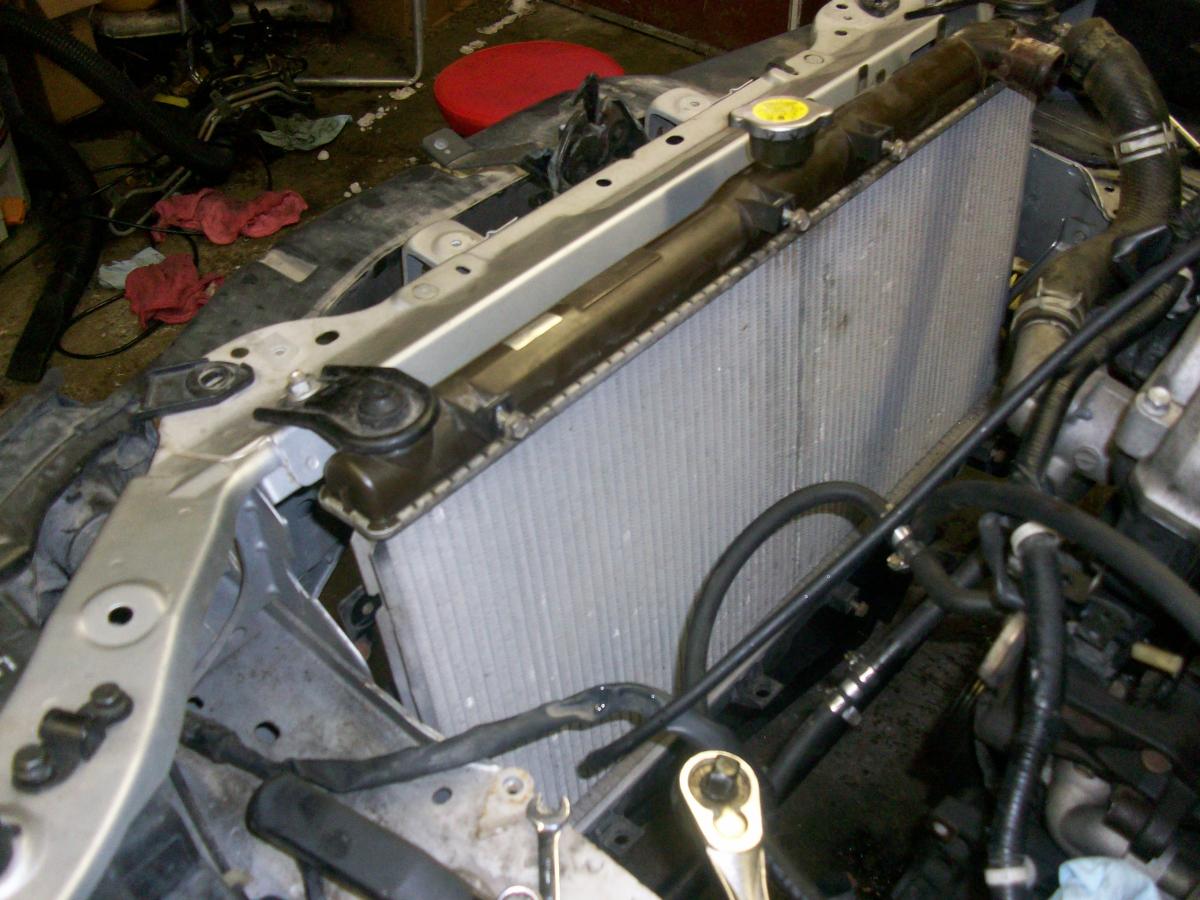

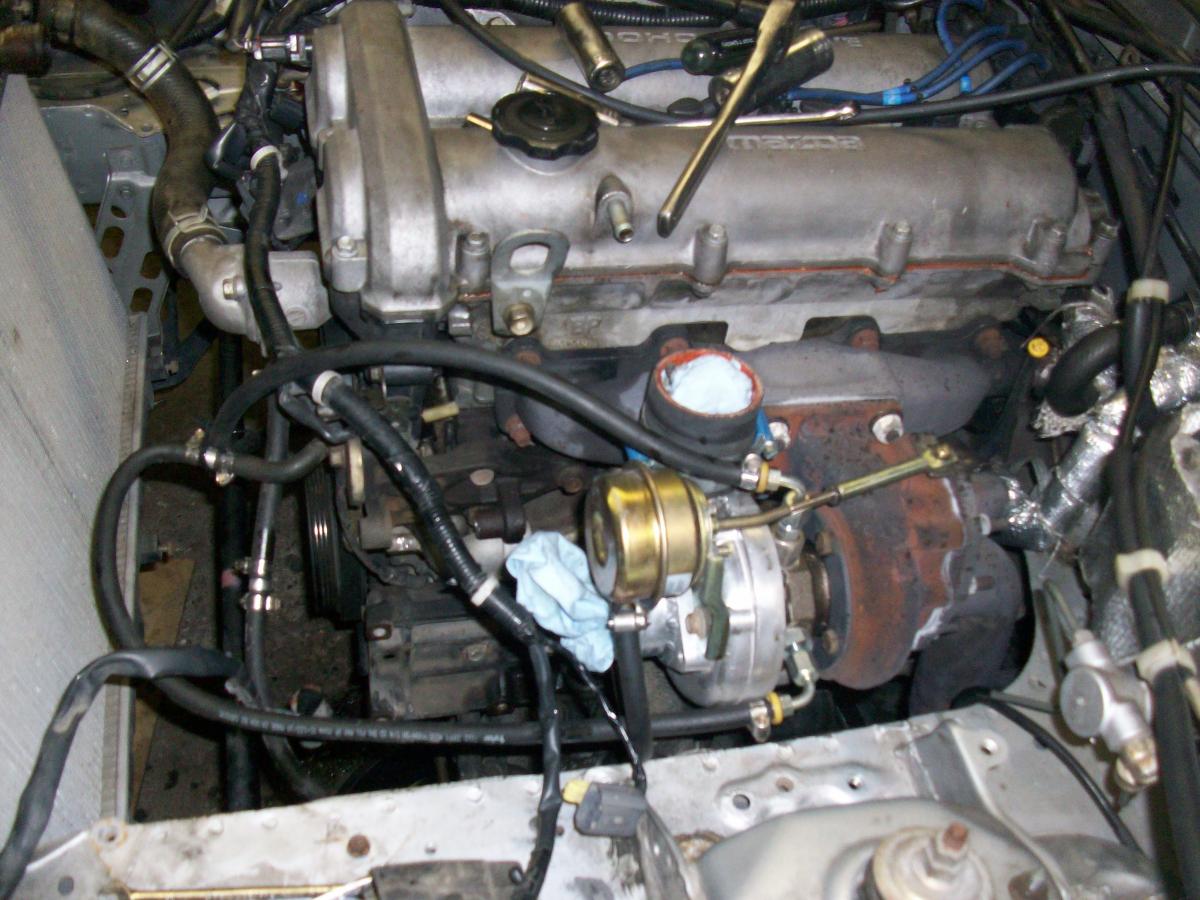

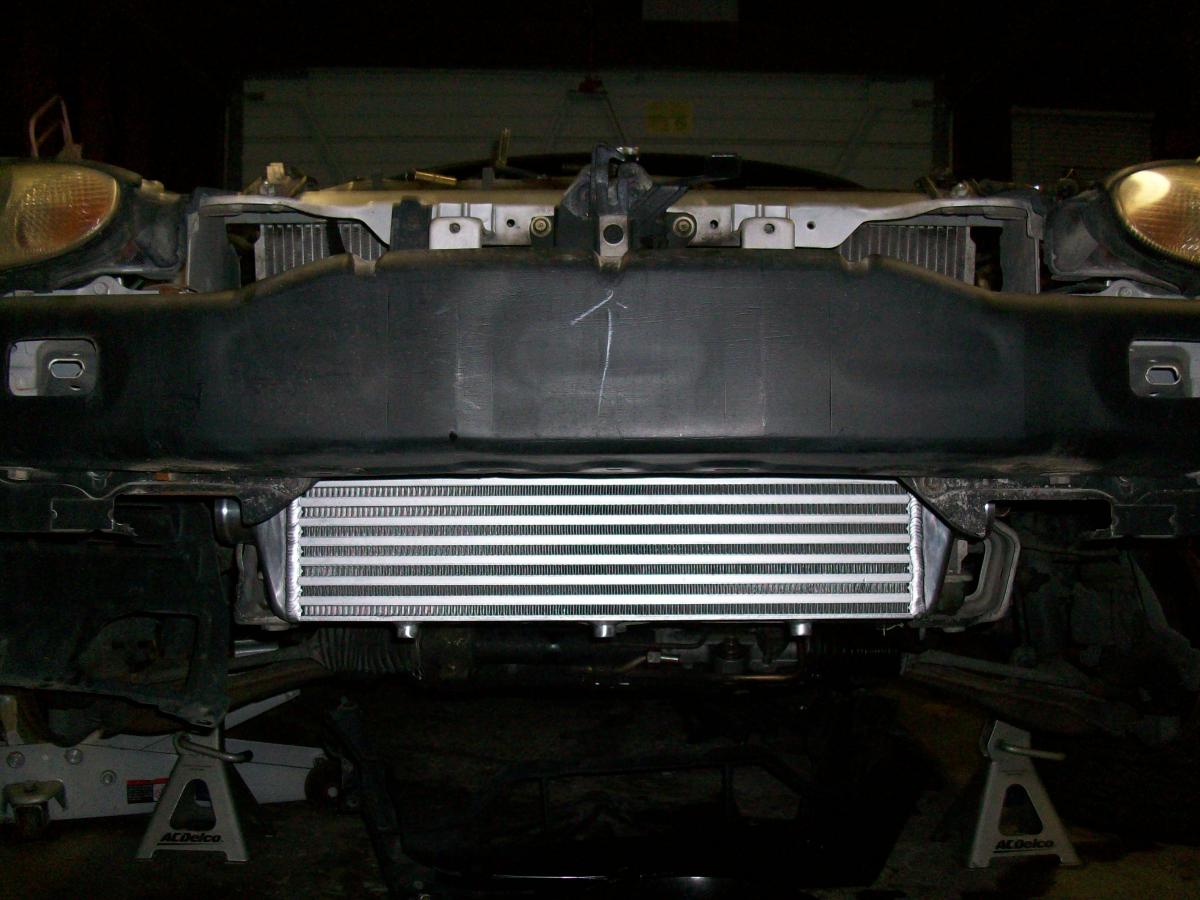

Here's a couple shots.
Attached Thumbnails
Fav ebay intercooler kit?  update with pics-100_2007.jpg   Fav ebay intercooler kit?  update with pics-100_2008.jpg
flounder is offline   Reply With Quote
Old 02-21-2011, 11:39 PM   #22
Junior Member

Join Date: Jun 2009
Location: Simi Valley, CA
Posts: 52
Total Cats: 0
Default

Looks good. I'm curious, how is it mounted?
FartTroll is offline   Reply With Quote
Old 02-22-2011, 08:01 PM   #23
Elite Member
Thread Starter

Join Date: Mar 2010
Location: Detroit
Posts: 1,524
Total Cats: 27
Default

Quote:
Originally Posted by FartTroll View Post
Looks good. I'm curious, how is it mounted?
Well FartTroll, it isn't.

I plan on adding a steel bar across the each lower radiator support and drilling out 3 holes to mount the IC.
flounder is offline   Reply With Quote
Old 02-26-2011, 04:02 PM   #24
Elite Member
Thread Starter

Join Date: Mar 2010
Location: Detroit
Posts: 1,524
Total Cats: 27
Default

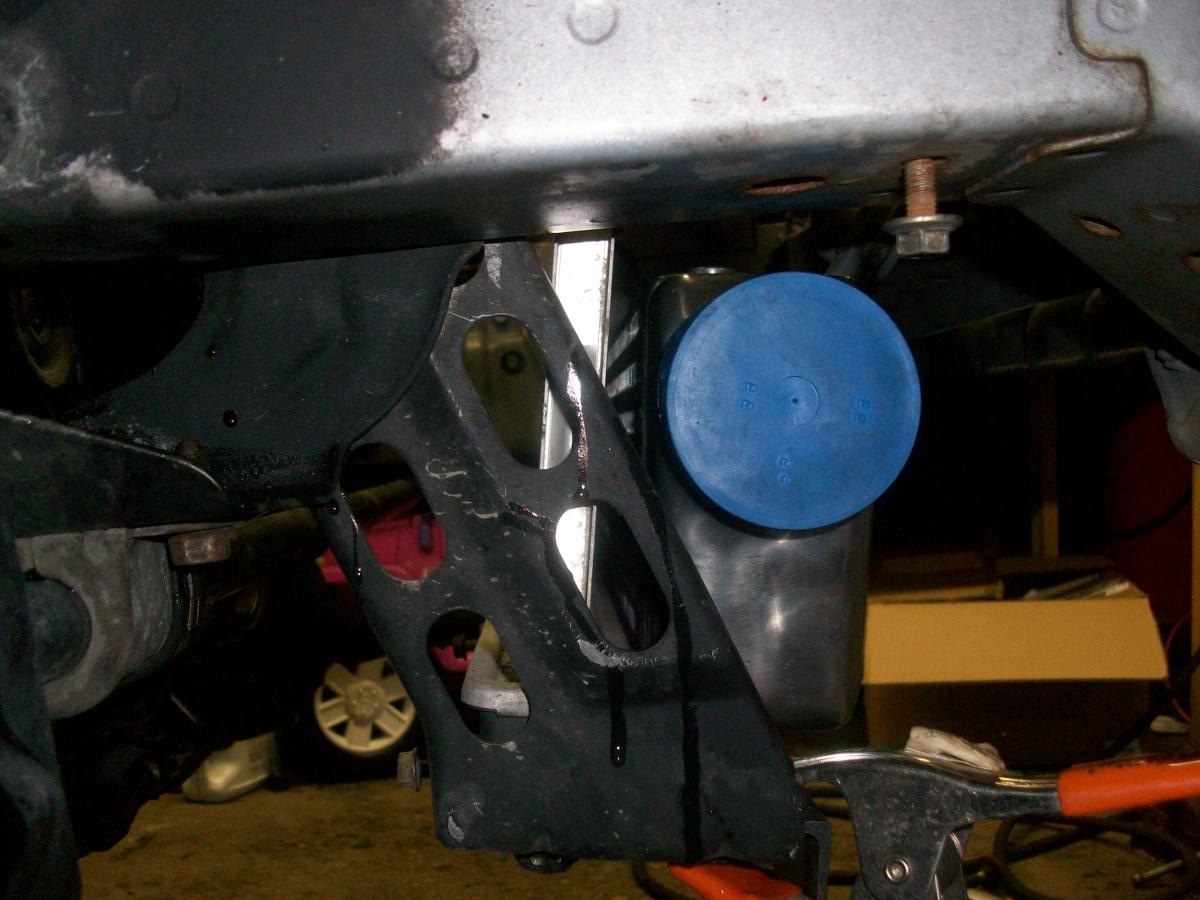

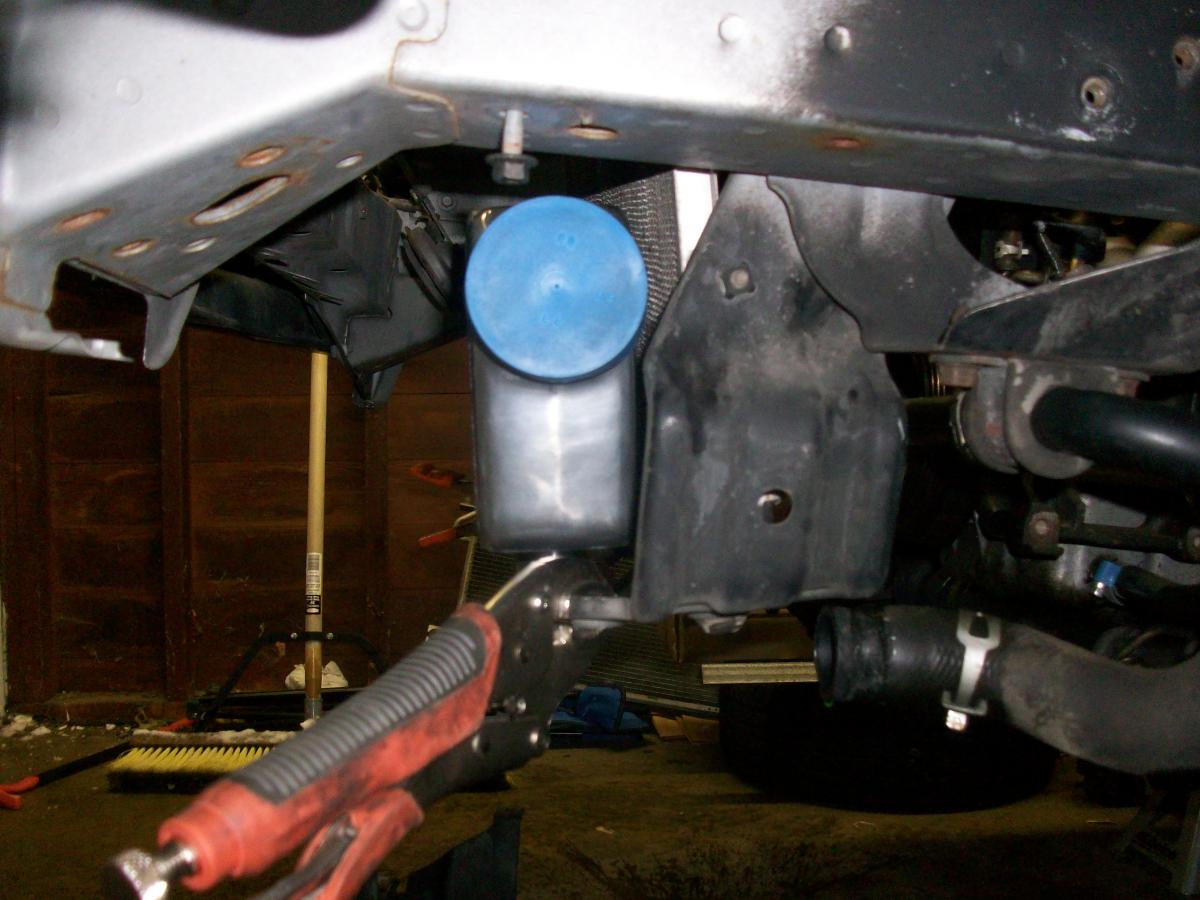

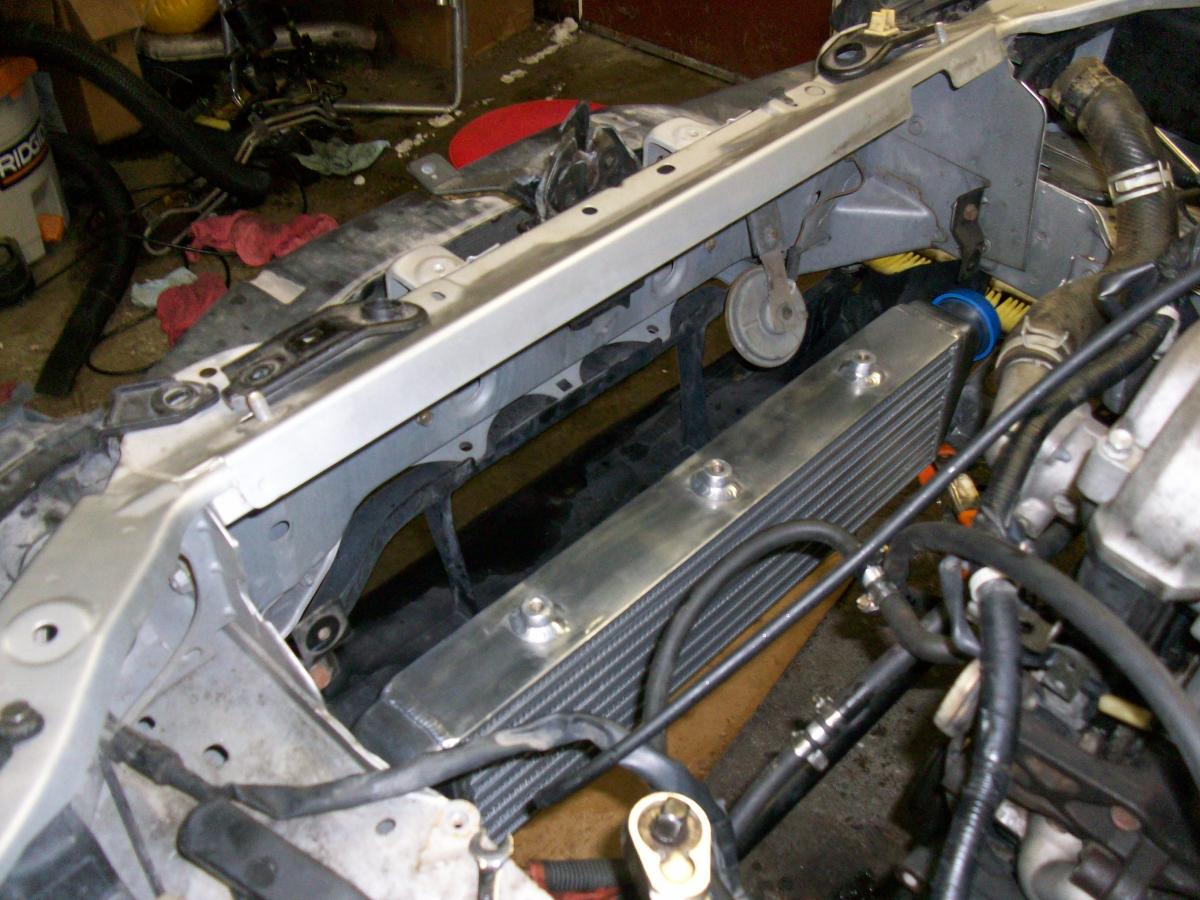

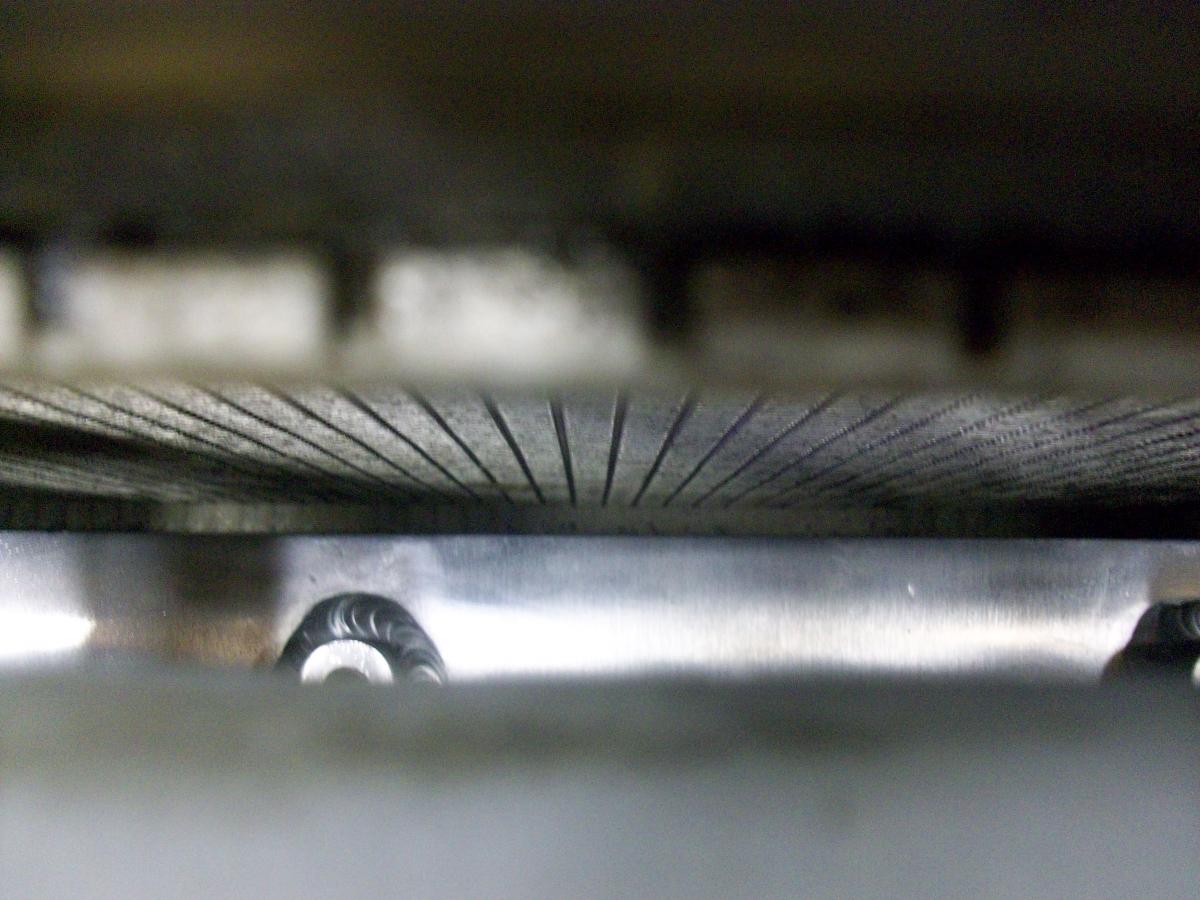

Got the angle steel sized and drilled for mounting. I decided i'm going to weld each core support bracket to the steel instead of trying to bolt it up. It's mocked up in the pics, but that is exactly where it will sit when completed.
I still have to cut out space on each side of the airdam for the piping

With everything back together the ic should fill up the entire mouth of the bumper.

Btw, where's a good place to find 90degree coupler reducers? I need a 2.50-2.25in and a 2.25-2.00in.

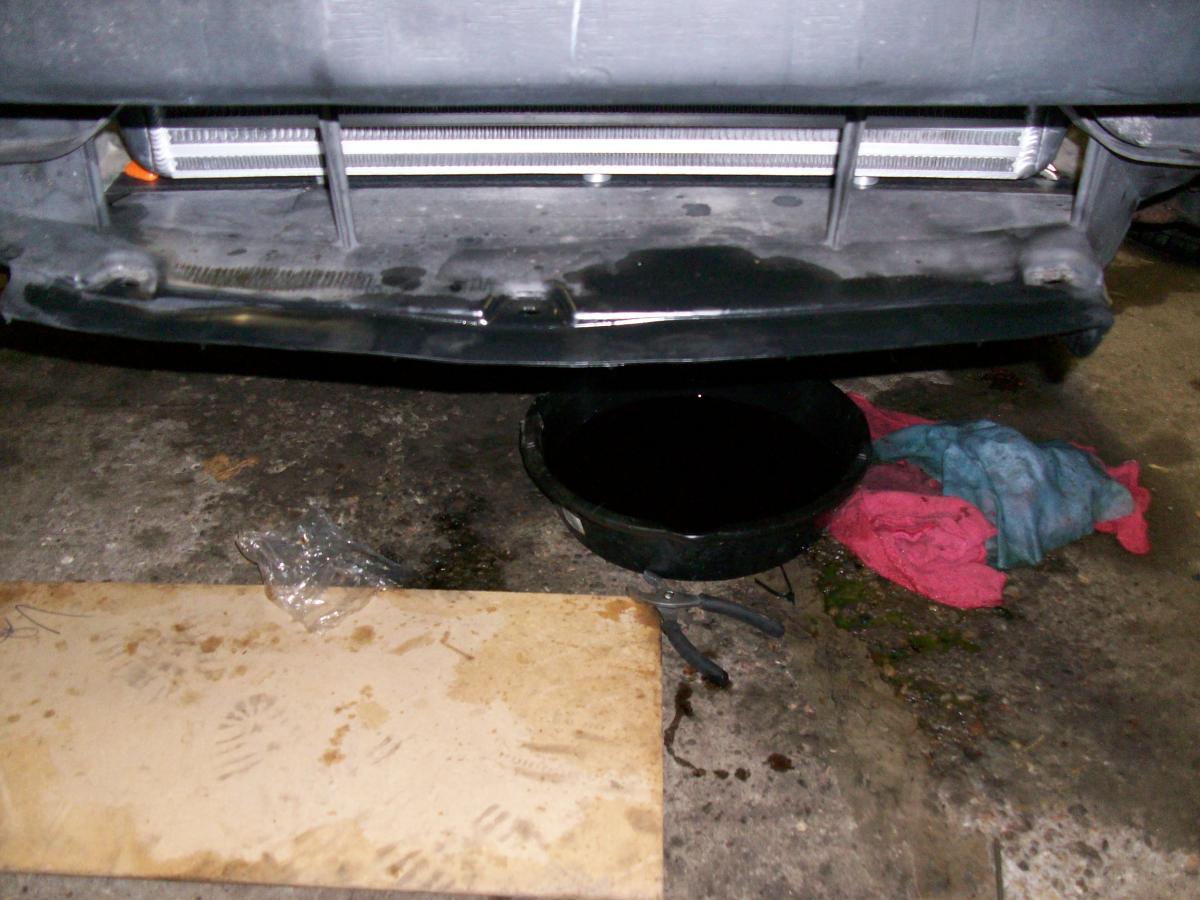

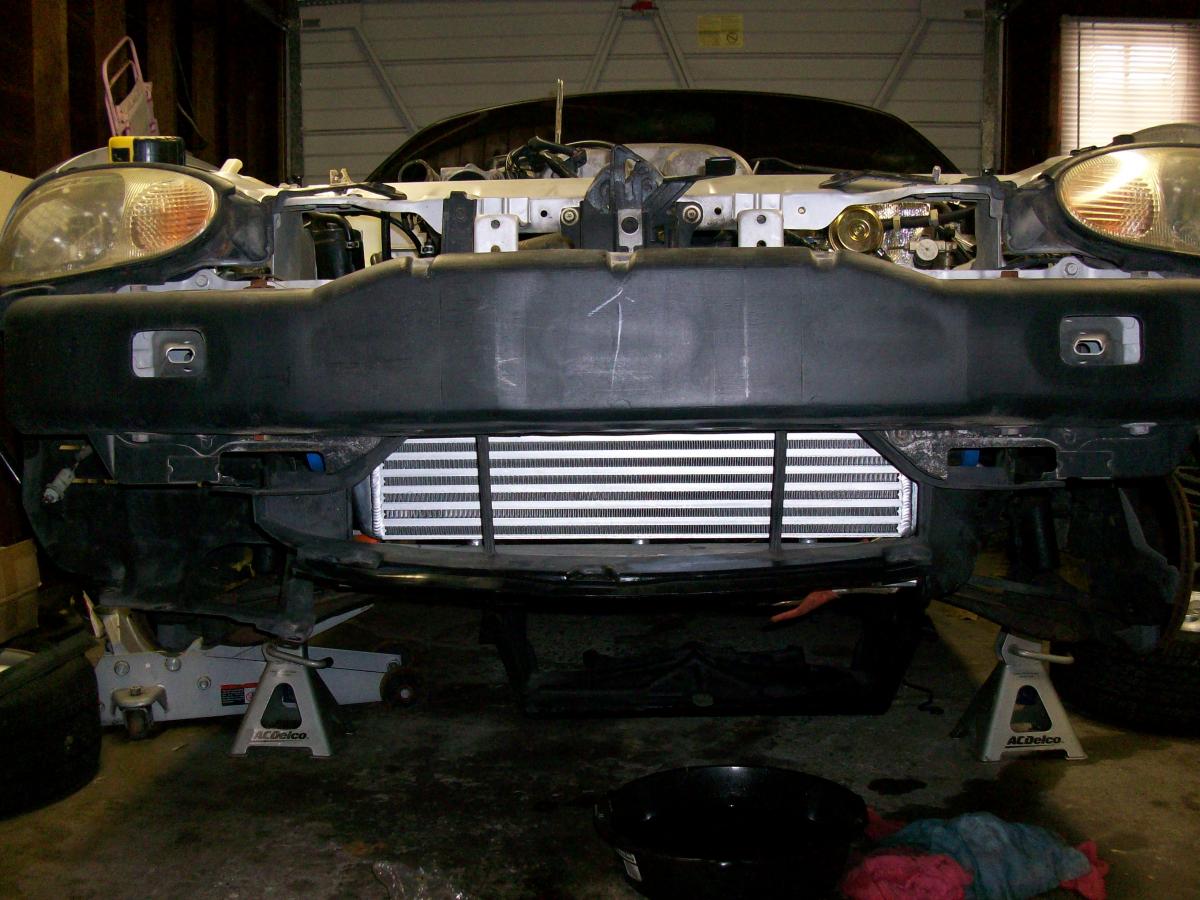

Attached Thumbnails
Fav ebay intercooler kit?  update with pics-100_2012.jpg   Fav ebay intercooler kit?  update with pics-100_2014.jpg   Fav ebay intercooler kit?  update with pics-100_2015.jpg   Fav ebay intercooler kit?  update with pics-100_2017.jpg   Fav ebay intercooler kit?  update with pics-100_2019.jpg

Fav ebay intercooler kit?  update with pics-100_2021.jpg   Fav ebay intercooler kit?  update with pics-100_2022.jpg
flounder is offline   Reply With Quote
Old 02-26-2011, 05:00 PM   #25
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,133
Total Cats: 599
Default

Do you need the reducers in metal specifically or can you use silicone? I personally like the gradual 90 degree reducers. Basically a 90 degree elbow that gradually goes from the size you want to whatever.

I believe most here shop at silicone intakes but let them confirm.
triple88a is offline   Reply With Quote
Old 02-26-2011, 05:38 PM   #26
Elite Member
Thread Starter

Join Date: Mar 2010
Location: Detroit
Posts: 1,524
Total Cats: 27
Default

Quote:
Originally Posted by triple88a View Post
Do you need the reducers in metal specifically or can you use silicone? I personally like the gradual 90 degree reducers. Basically a 90 degree elbow that gradually goes from the size you want to whatever.

I believe most here shop at silicone intakes but let them confirm.
Yeah, silicone is what i'd like to use. Just for the compressor and the throttlebody openings. The IC and piping is all 2.25in as well as the 8 straight couplers I already have.

I tried ebay but very limited in stuff that goes to 2.25in.
flounder is offline   Reply With Quote
Old 02-26-2011, 05:41 PM   #27
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,133
Total Cats: 599
Default

yeah most are 4"+ for them mad VTEC people

As i said siliconeintakes.com has the stuff u want...black, blue and red...
http://www.siliconeintakes.com/produ...cb4fb1aebec8c9

http://www.siliconeintakes.com/produ...cb4fb1aebec8c9
triple88a is offline   Reply With Quote
Old 02-26-2011, 05:44 PM   #28
Elite Member
Thread Starter

Join Date: Mar 2010
Location: Detroit
Posts: 1,524
Total Cats: 27
Default

Quote:
Originally Posted by triple88a View Post
As i said siliconeintakes.com has the 2-2.25 u want...black, blue and red...
http://www.siliconeintakes.com/produ...cb4fb1aebec8c9

http://www.siliconeintakes.com/produ...cb4fb1aebec8c9
Sorry, I missed that. Thanks for the link, just bought them both and hopefully they'll be here by mid week.

Last edited by flounder; 02-26-2011 at 07:01 PM.
flounder is offline   Reply With Quote
Old 02-28-2011, 11:35 PM   #29
Junior Member
iTrader: (4)

Join Date: Feb 2008
Location: North NJ
Posts: 271
Total Cats: -1
Default

Get some pics up!
1stproject is offline   Reply With Quote
Old 03-01-2011, 07:59 PM   #30
Elite Member
Thread Starter

Join Date: Mar 2010
Location: Detroit
Posts: 1,524
Total Cats: 27
Default

Quote:
Originally Posted by 1stproject View Post
Get some pics up!
It's coming.

I just finally got to weld the brackets today. I work 50+ hrs a week so i'm mostly working on this in the weekend. Plus, I still have to wait for the 2 reducers to come in the mail.
flounder is offline   Reply With Quote
Old 03-05-2011, 09:43 PM   #31
Elite Member
Thread Starter

Join Date: Mar 2010
Location: Detroit
Posts: 1,524
Total Cats: 27
Default

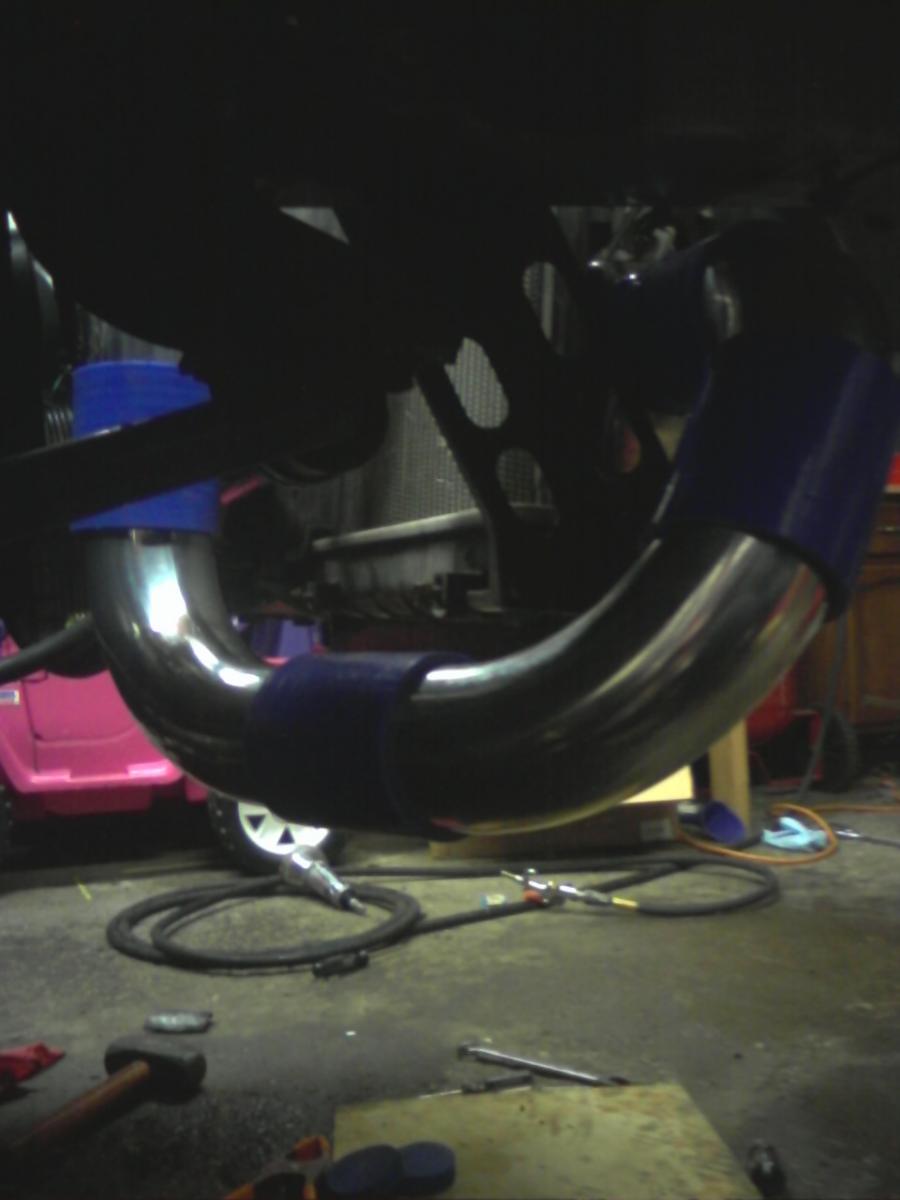

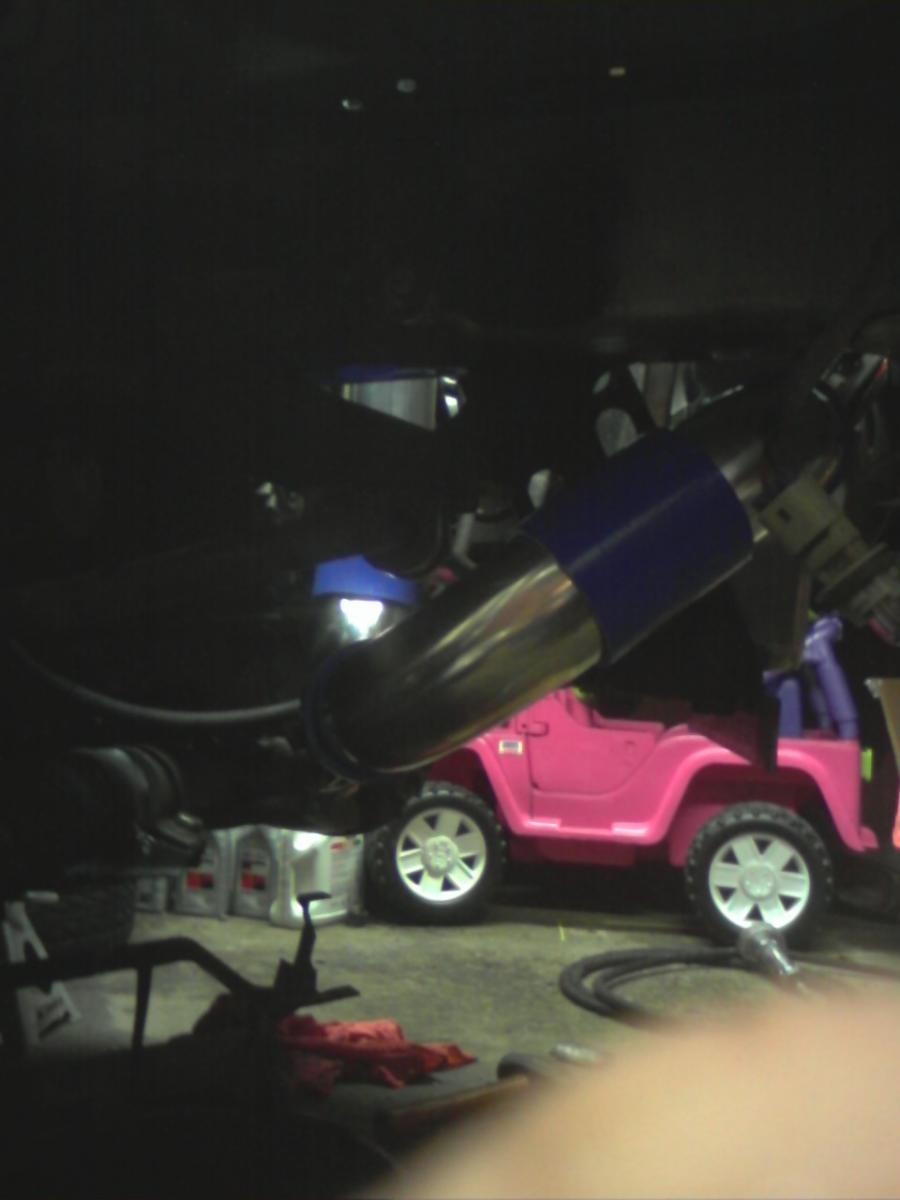

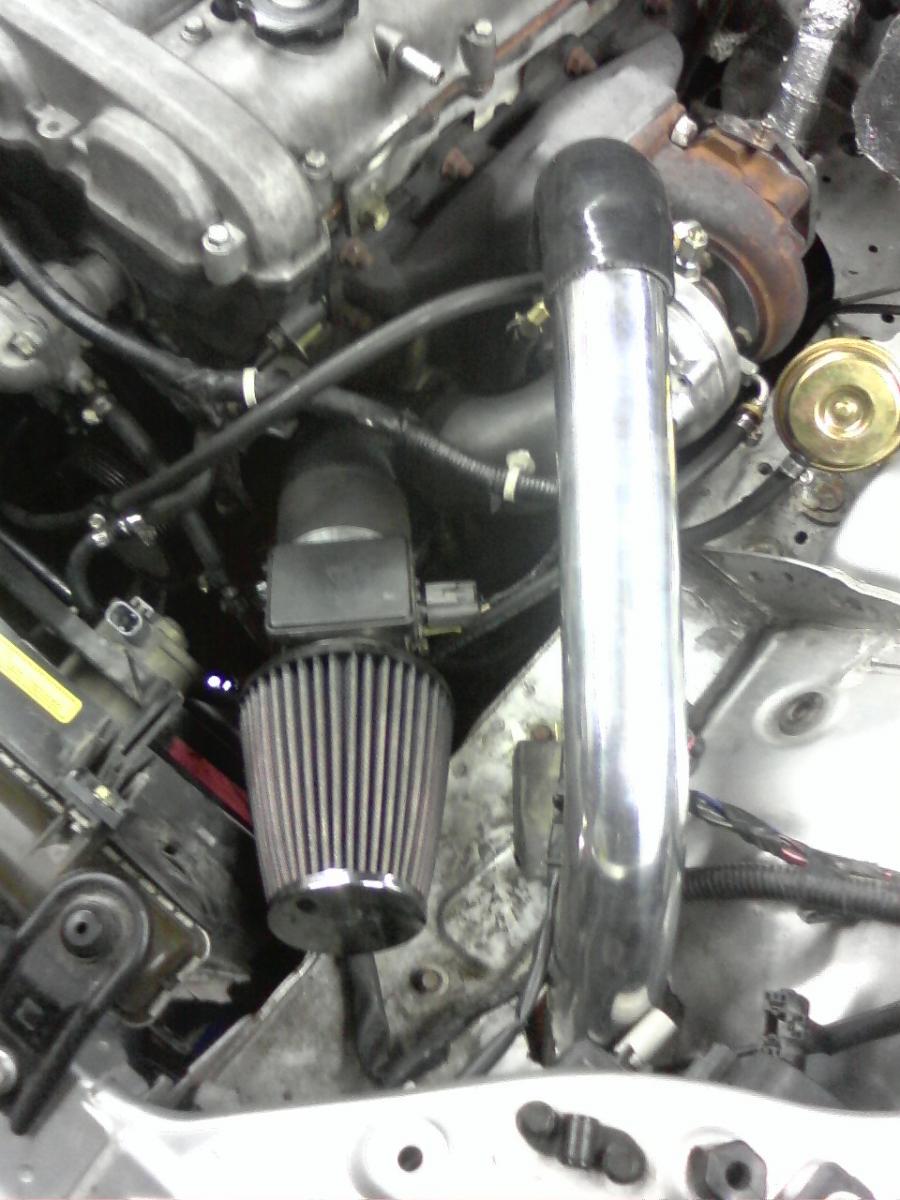

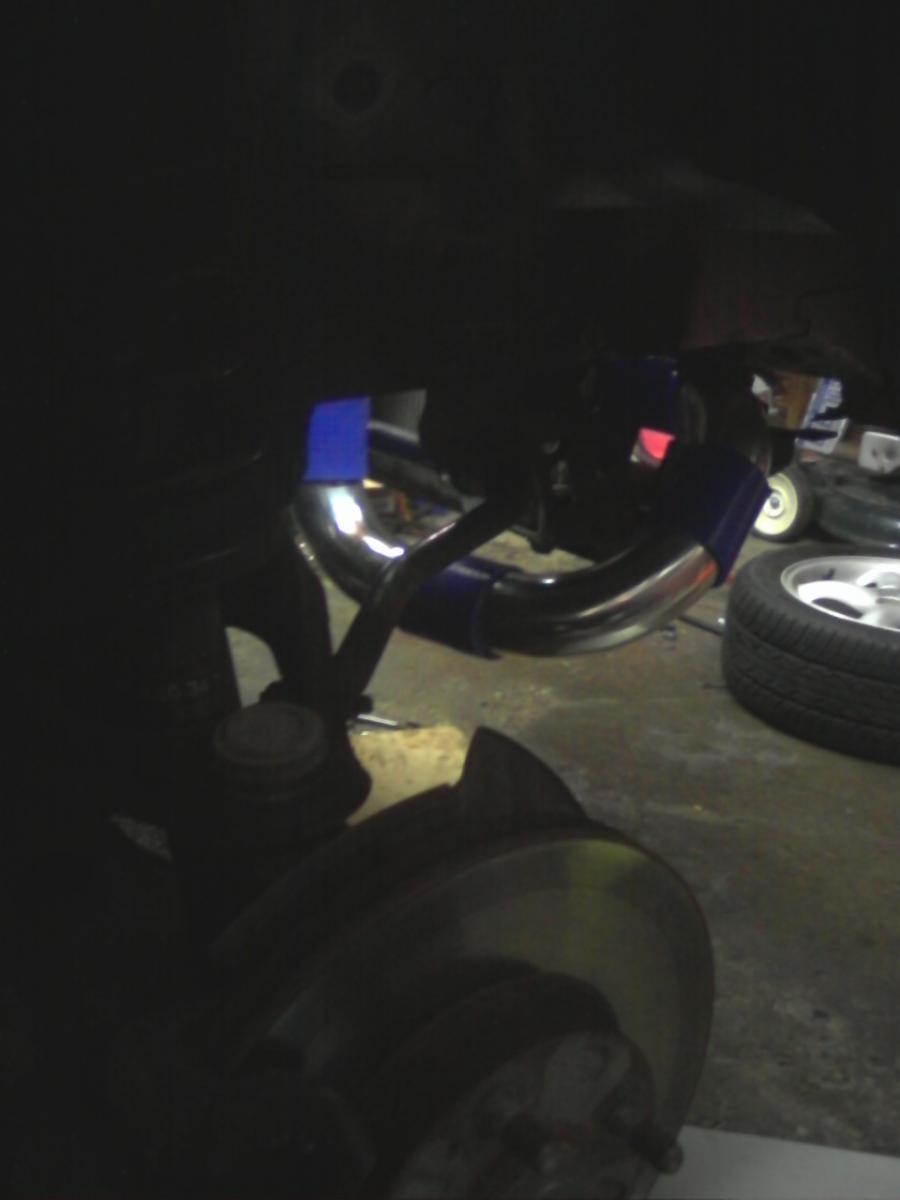

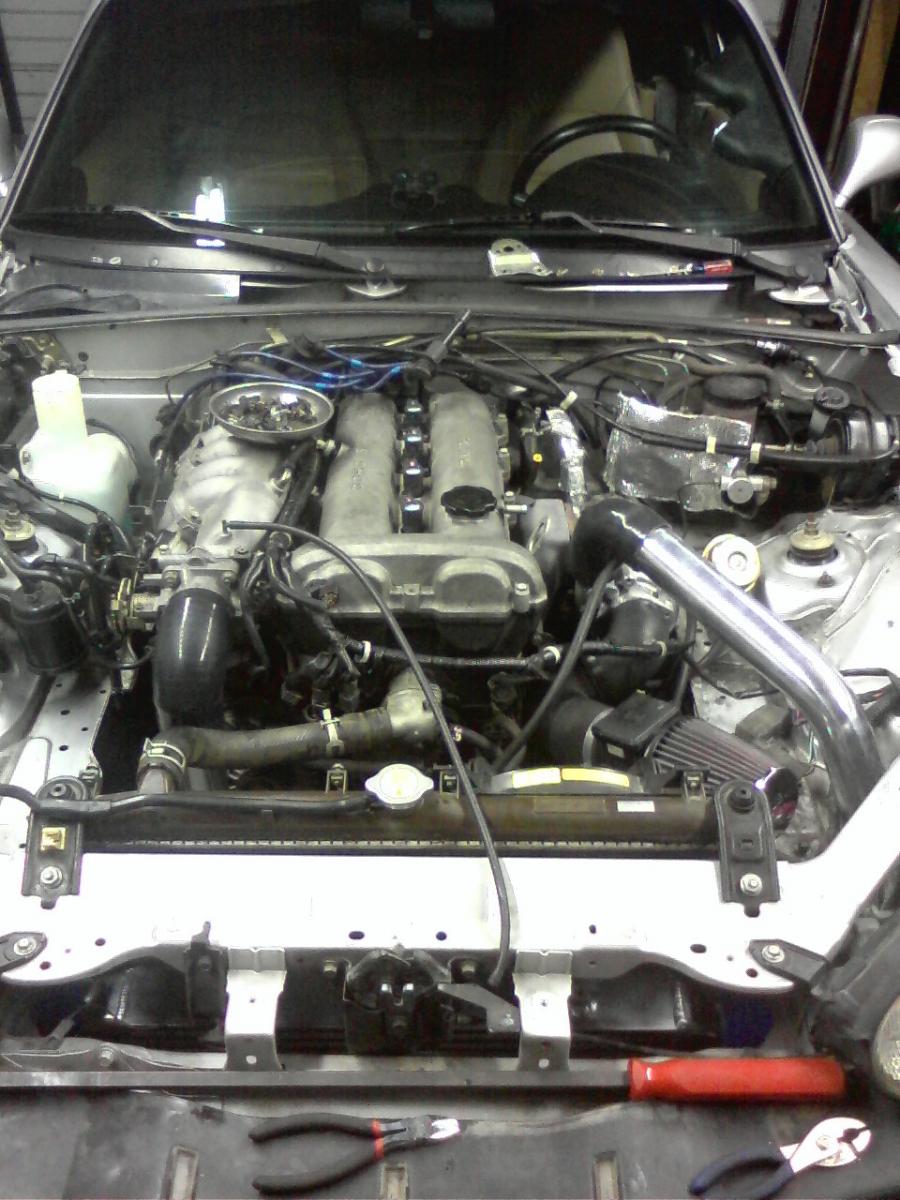

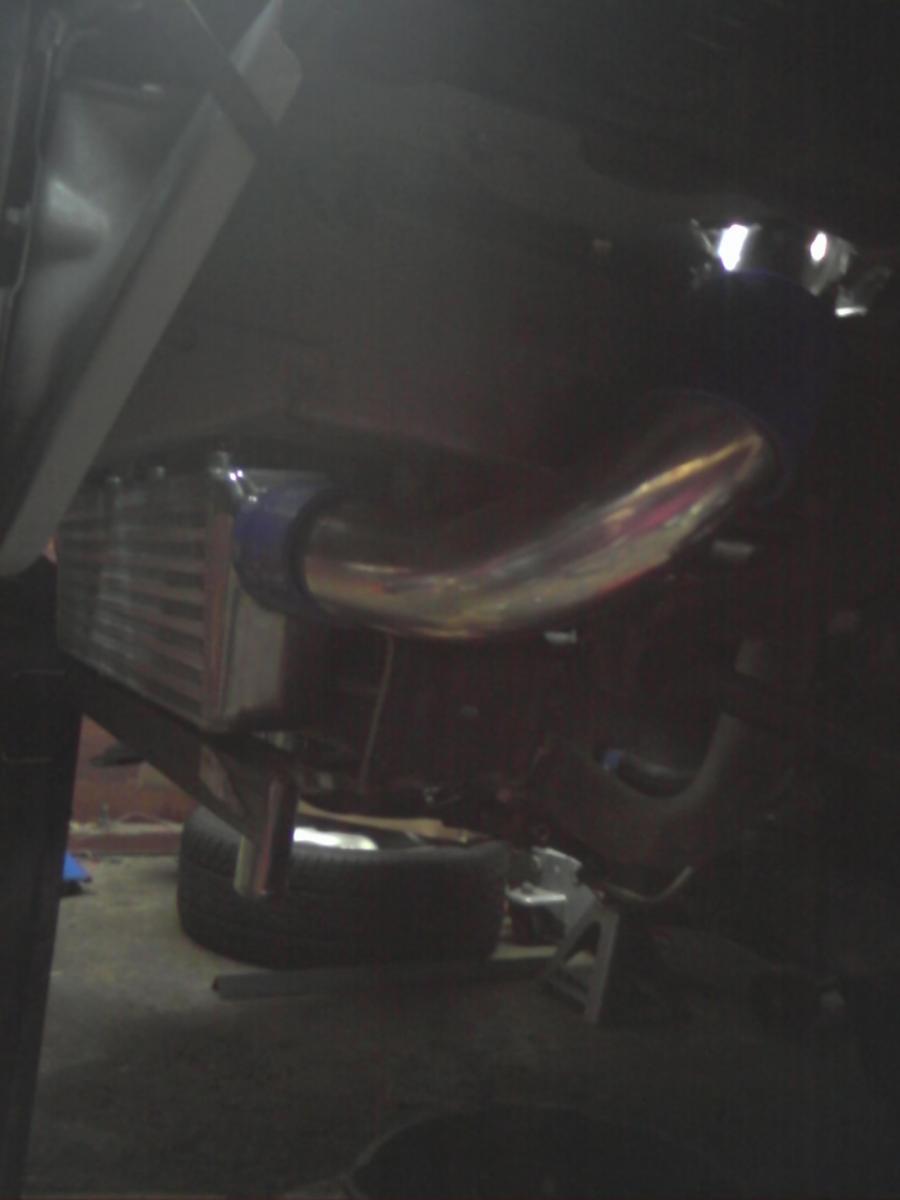

Ok, got some more work done today. Everything is cut and sized I just have to flare all the ends before I clamp them.

The compressor inlet is a work in progress. Currently I'm still using the begi steup until I think of something different. I still have to find a spot for the bypass valve too.

Sorry for the shitty quality pics, and yes, that is a pink barbie jeep in my garage. No you can't borrow it.

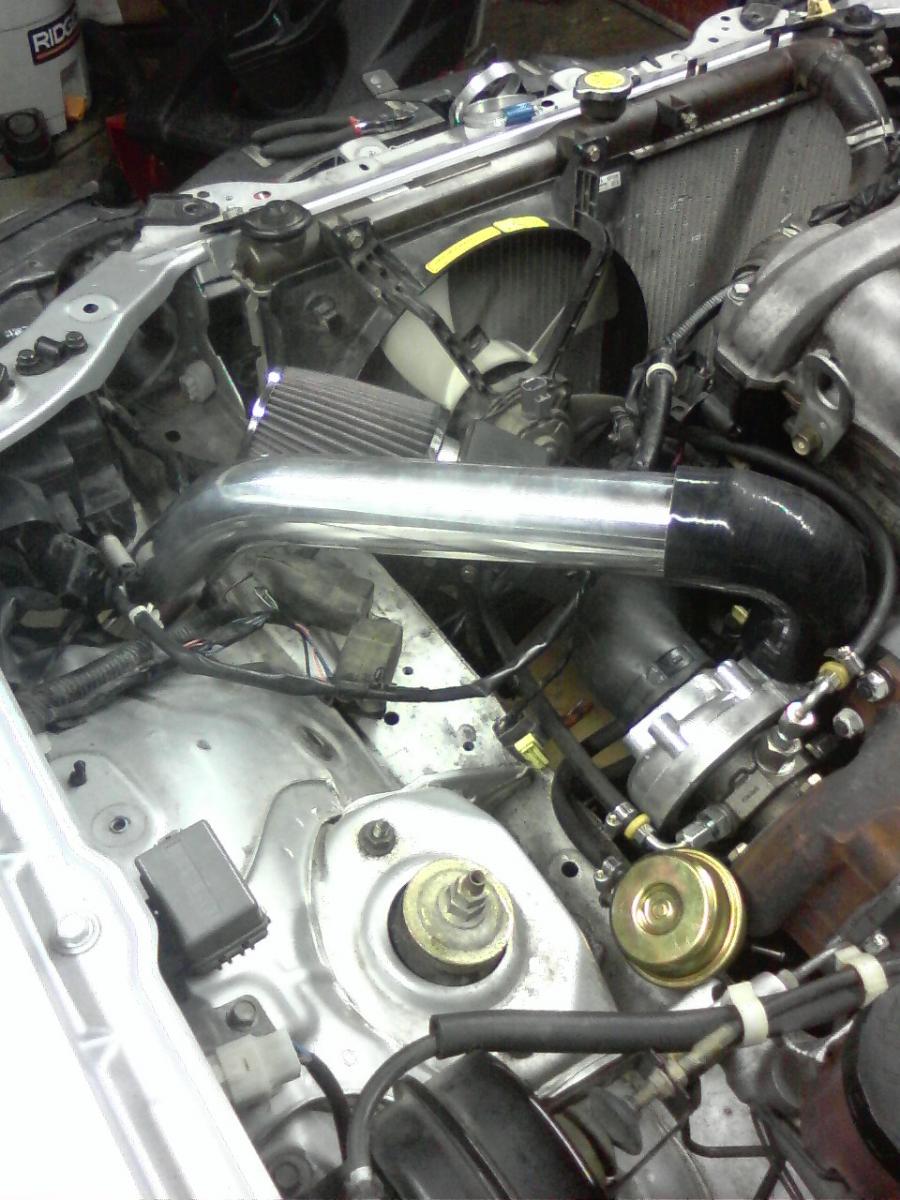

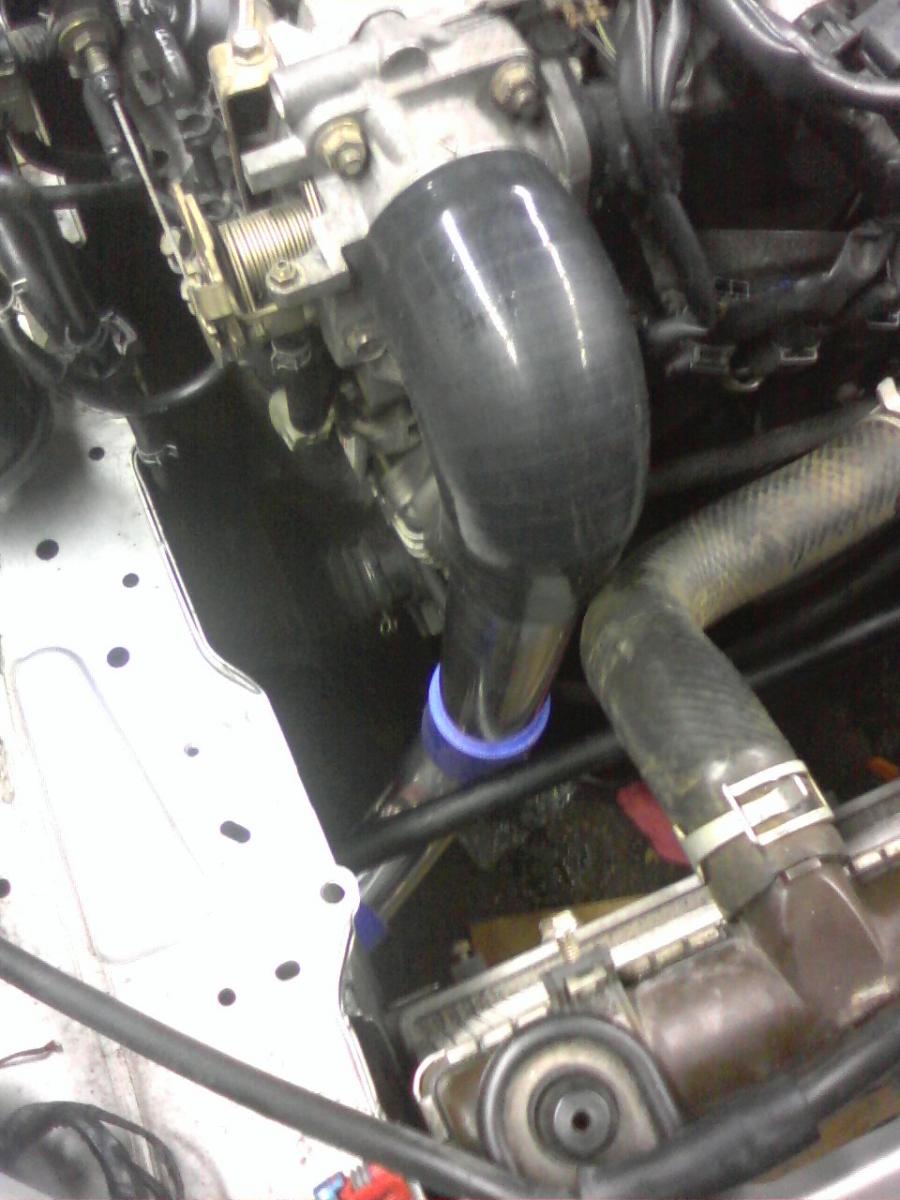

Attached Thumbnails
Fav ebay intercooler kit?  update with pics-p_00241.jpg   Fav ebay intercooler kit?  update with pics-p_00242.jpg   Fav ebay intercooler kit?  update with pics-p_00243.jpg   Fav ebay intercooler kit?  update with pics-p_00244.jpg   Fav ebay intercooler kit?  update with pics-p_00245.jpg

Fav ebay intercooler kit?  update with pics-p_00247.jpg   Fav ebay intercooler kit?  update with pics-p_00248.jpg   Fav ebay intercooler kit?  update with pics-p_00249.jpg   Fav ebay intercooler kit?  update with pics-p_00250.jpg   Fav ebay intercooler kit?  update with pics-p_00251.jpg

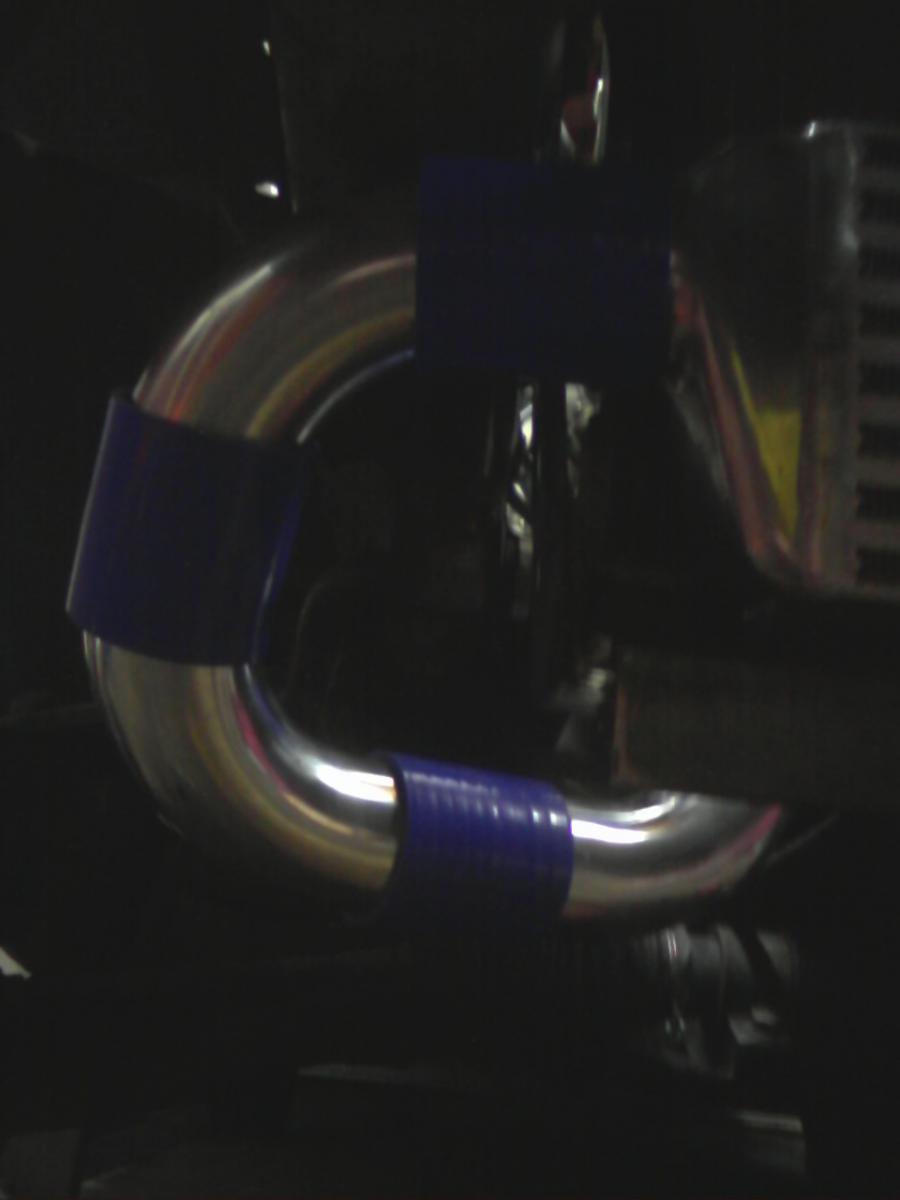

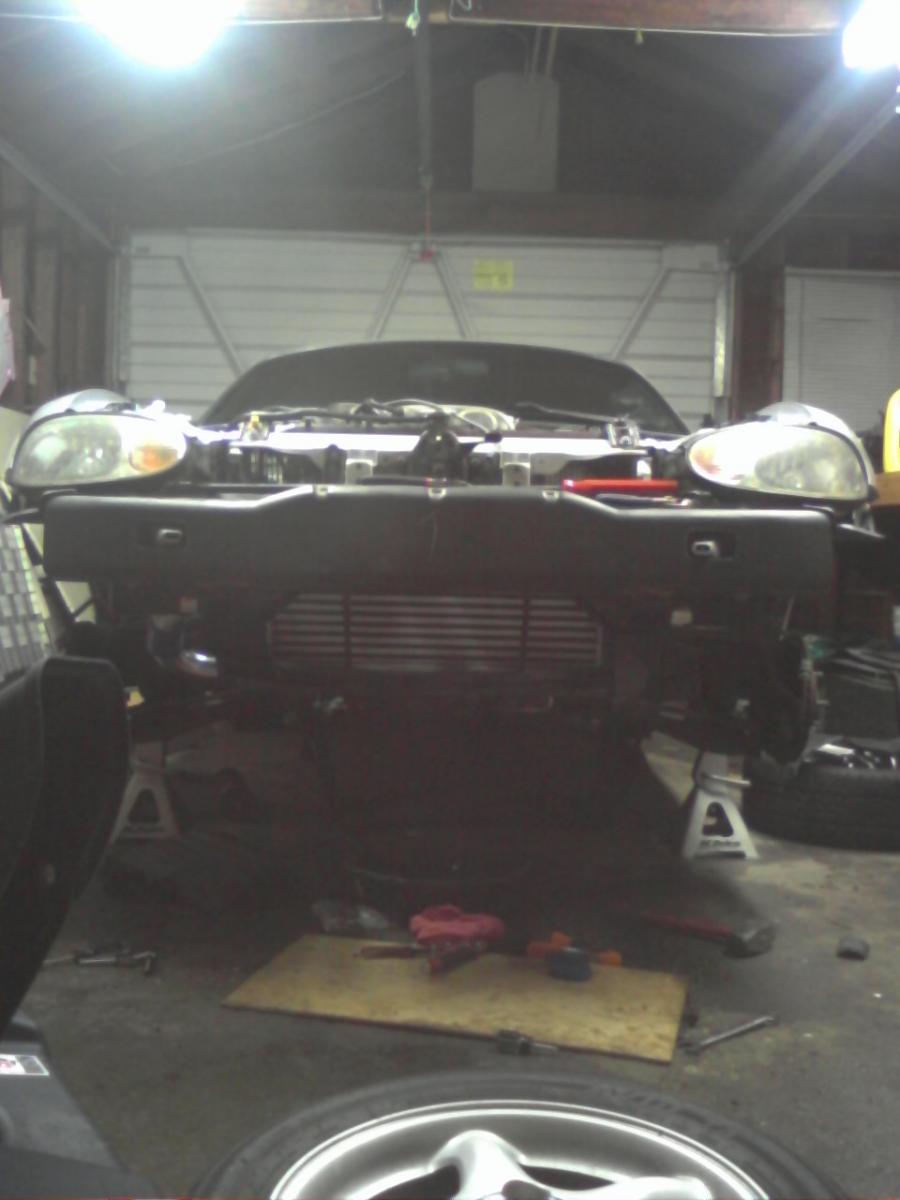

Fav ebay intercooler kit?  update with pics-p_00252.jpg
flounder is offline   Reply With Quote
Old 03-05-2011, 10:27 PM   #32
Senior Member
iTrader: (1)

Join Date: Apr 2008
Location: Florida
Posts: 774
Total Cats: -5
Default

Good work!!!
poobs is offline   Reply With Quote
Old 03-06-2011, 02:32 AM   #33
Newb

Join Date: Oct 2010
Location: West Palm Beach, FL
Posts: 29
Total Cats: 0
Default

I like how the intercooler doesn't hang too low. It is tucked up nicely near the middle of the radiator. Not obvious or flashy. Nice work, waiting for pics of bumper mounted.
marcoSTEEZ is offline   Reply With Quote
Old 03-06-2011, 06:11 PM   #34
Elite Member
Thread Starter

Join Date: Mar 2010
Location: Detroit
Posts: 1,524
Total Cats: 27
Default

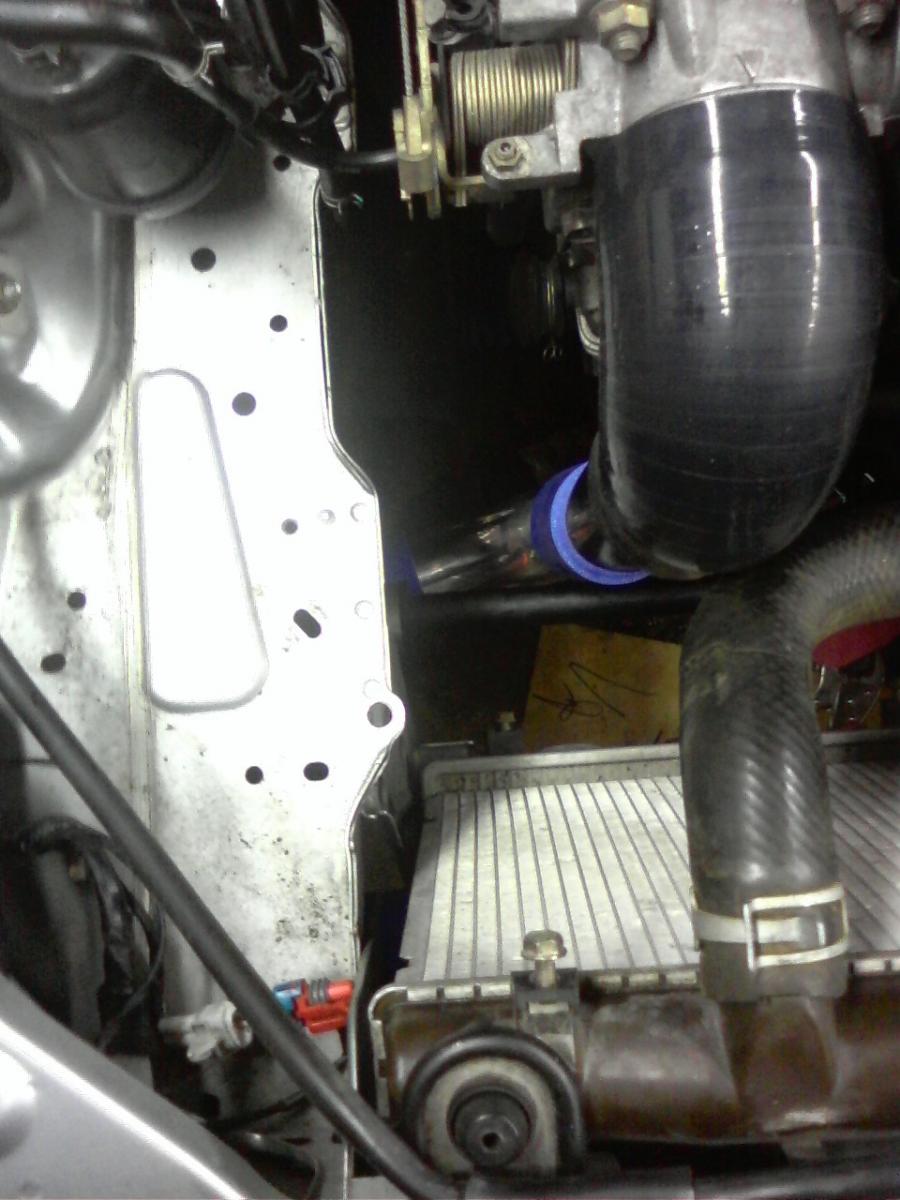

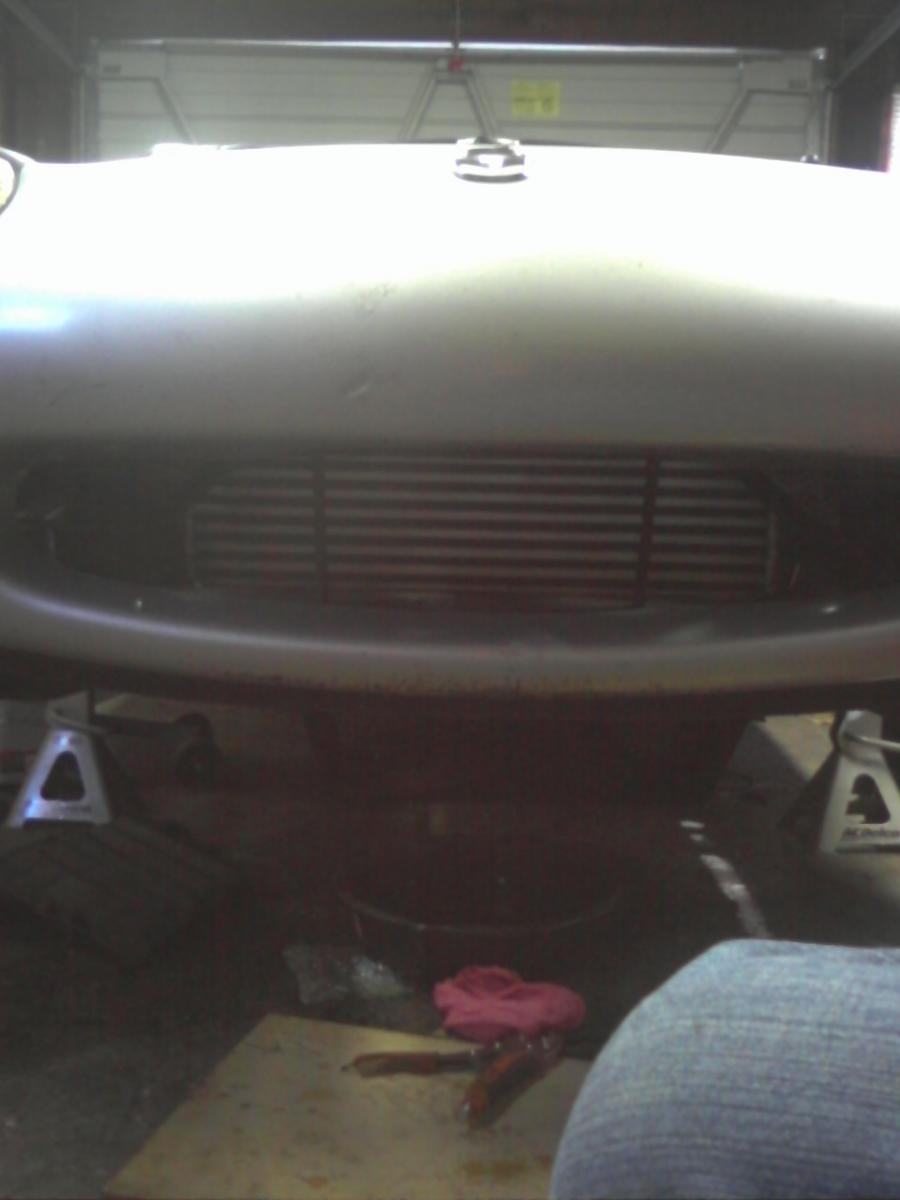

Here are a couple pics of the bumper installed. I can't for the life of me find my camera so cell phone is all I got. Fitment is good, totally centered and looks like it's meant to be there. I have a screen that will go in front of it but it needs to be cleaned and painted black first.

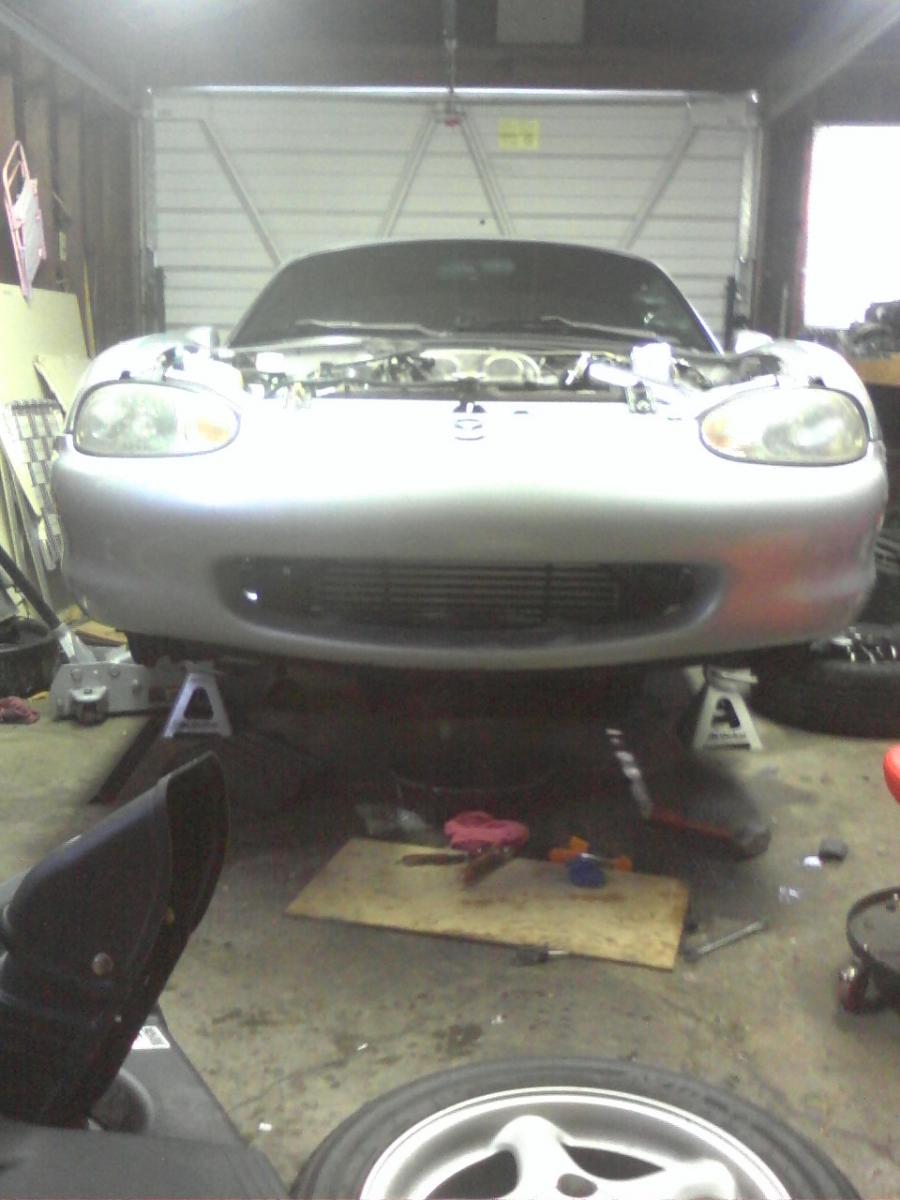

Attached Thumbnails
Fav ebay intercooler kit?  update with pics-p_00254.jpg   Fav ebay intercooler kit?  update with pics-p_00255.jpg
flounder is offline   Reply With Quote
Old 03-26-2011, 10:45 PM   #35
Elite Member
Thread Starter

Join Date: Mar 2010
Location: Detroit
Posts: 1,524
Total Cats: 27
Default

Ok, She's all done. Don't have any new pics but some questions.

Everything is tight and I ended up trying to use my begi sourced bypass valve without recirc by using a check valve. I bought a 2'' to 2.75'' reducer and installed the maf directly on the compressor inlet.

First thing I noticed was that there was a hell of a lot of pressure drop from previously. I was only seeing like 4 psi max where before I was maintaining a steady 7-8psi. (reading from manifold). Second, even with the check valve, the idle is crap. From some testing, I found that if I let the rpms drop below
2k before depressing the clutch it'll idle fine. If I depress the clutch anywhere above 2k when coming to a stop the car almost stalls and will barely stay running at 500rpms. Third, now when approaching 0 vac/boost the car runs super rich (10-1) and falls on it's face. Fourth, it's super jerky on/off when coming off boost. I experienced none of these issues before the IC install.

There is some good news though too. After making sure all of my clamps were tight, I went ahead and turned up the boost to 9 psi. My god, does it feel amazing, and my afr's are great (11.1-1) at 75%dc.

I figure biting the bullet and recirculating will take care of my idle issues and installing an o2 clamp should take care of the jerkiness i'm getting, but what about going rich at 0 vac? I am adding zero fuel at that point with the emb, I think it's got something to do with that check valve?

Any thing I'm missing that will help? I'll get some pics up tomorrow.
flounder is offline   Reply With Quote
Old 03-27-2011, 12:13 AM   #36
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,133
Total Cats: 599
Default

Air coming out of the bov into atmosphere letting out metered air would be my guess. I say pull the bov, plug the hole and see how it goes.
triple88a is offline   Reply With Quote
Old 03-27-2011, 11:34 AM   #37
Elite Member
Thread Starter

Join Date: Mar 2010
Location: Detroit
Posts: 1,524
Total Cats: 27
Default

Quote:
Originally Posted by triple88a View Post
Air coming out of the bov into atmosphere letting out metered air would be my guess. I say pull the bov, plug the hole and see how it goes.
That's an idea. Kind of afraid too with that much psi though, may turn it down to 5-6 for testing.

On another note, I love the way the depowered rack feels!

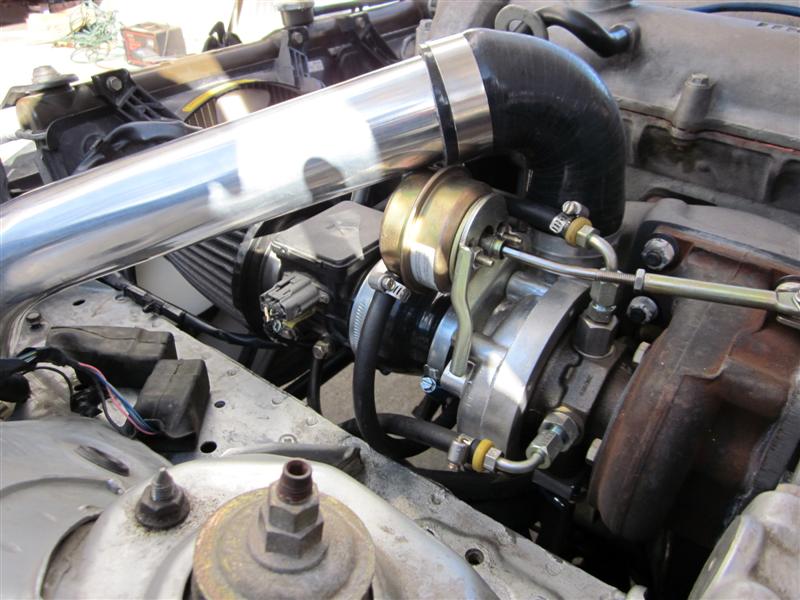

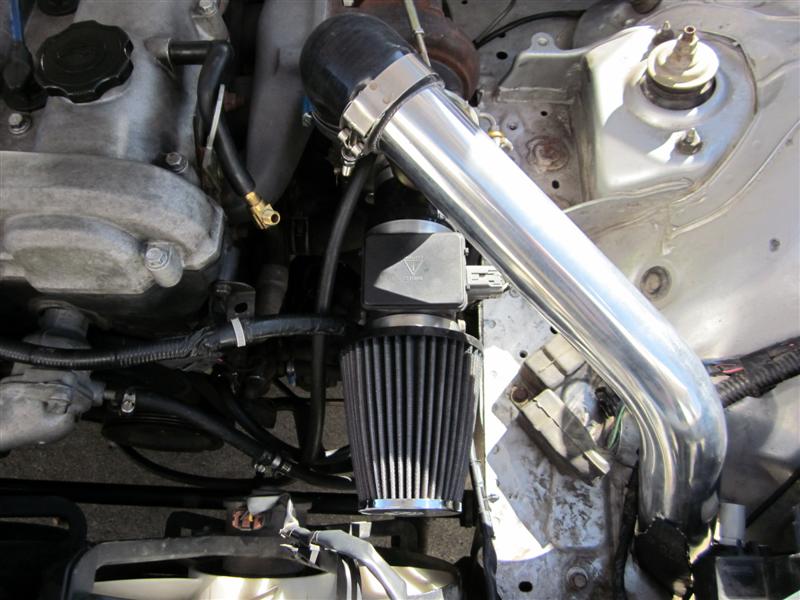

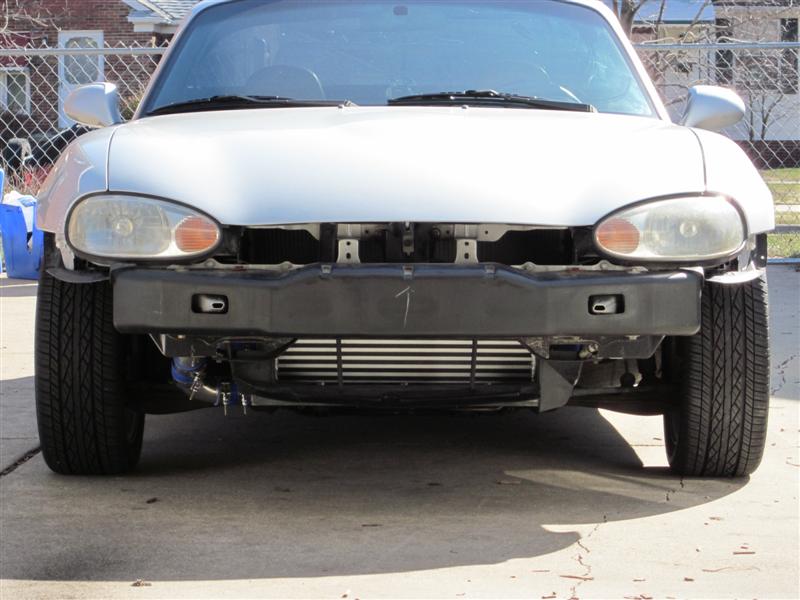

Here's some more pics sans bumper cover. I was planning on using a small filter for the breather but maybe that's another reason i'm having issues with stalling and idle quality? More testing to follow.

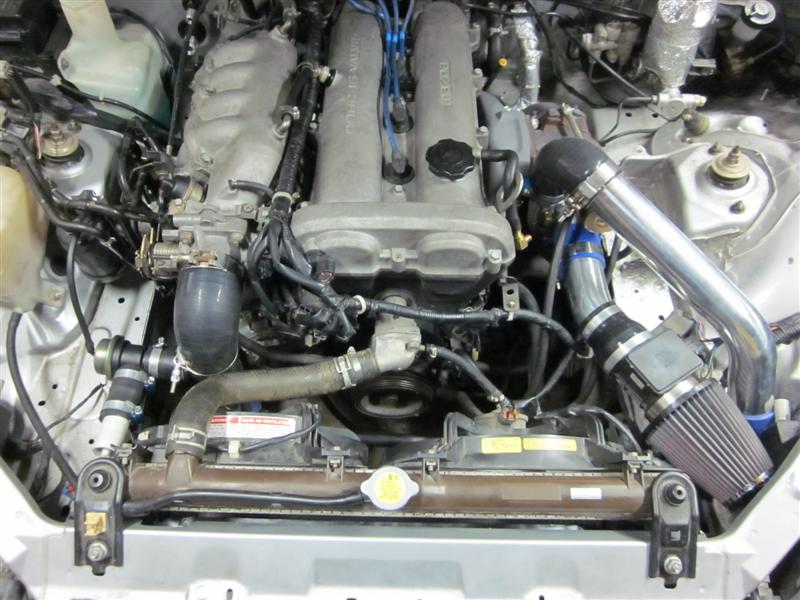

Attached Thumbnails
Fav ebay intercooler kit?  update with pics-img_0011-medium-.jpg   Fav ebay intercooler kit?  update with pics-img_0012-medium-.jpg   Fav ebay intercooler kit?  update with pics-img_0013-medium-.jpg   Fav ebay intercooler kit?  update with pics-img_0014-medium-.jpg   Fav ebay intercooler kit?  update with pics-img_0015-medium-.jpg


Last edited by flounder; 03-27-2011 at 11:49 AM.
flounder is offline   Reply With Quote
Old 03-29-2011, 02:17 AM   #38
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,133
Total Cats: 599
Default

What a/f are u getting at idle?
triple88a is offline   Reply With Quote
Old 03-29-2011, 07:41 PM   #39
Elite Member
Thread Starter

Join Date: Mar 2010
Location: Detroit
Posts: 1,524
Total Cats: 27
Default

Pretty similar to what I was previously, about 15:1 idle, 14.5-15.5 cruise.
flounder is offline   Reply With Quote
Old 03-30-2011, 10:25 PM   #40
Elite Member
Thread Starter

Join Date: Mar 2010
Location: Detroit
Posts: 1,524
Total Cats: 27
Default

Problem solved, thanks to TurboTim

I should have known better than to put the maf so close to the turbulent turbo inlet. It caused all sorts of droopy idle shenanigans so I came up with this setup. Here's a before/after.


The only issue now is for some reason I'm getting what sounds like compressor surge on my upshifts where before it sounded like a normal whooshing bov sound. Me thinks it's the check valve...

If anyone is wondering, total cost from start to finish was about $275 bucks.

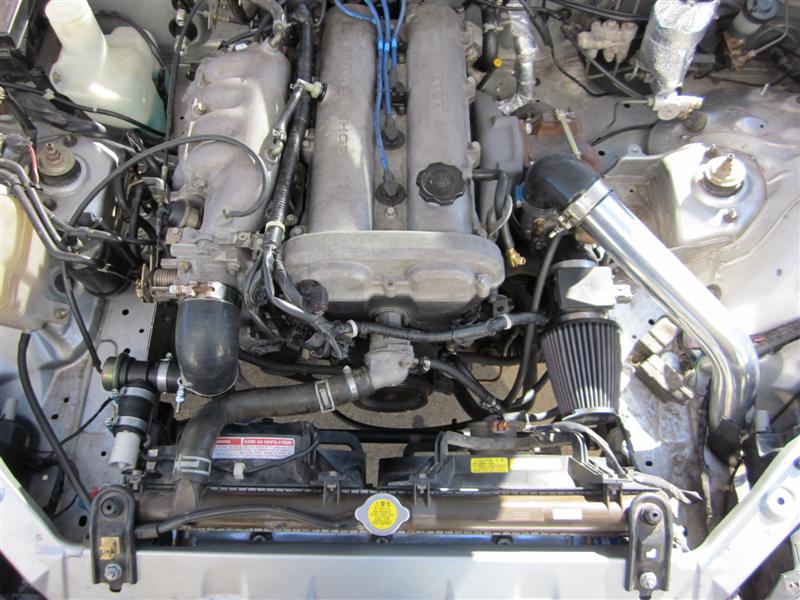

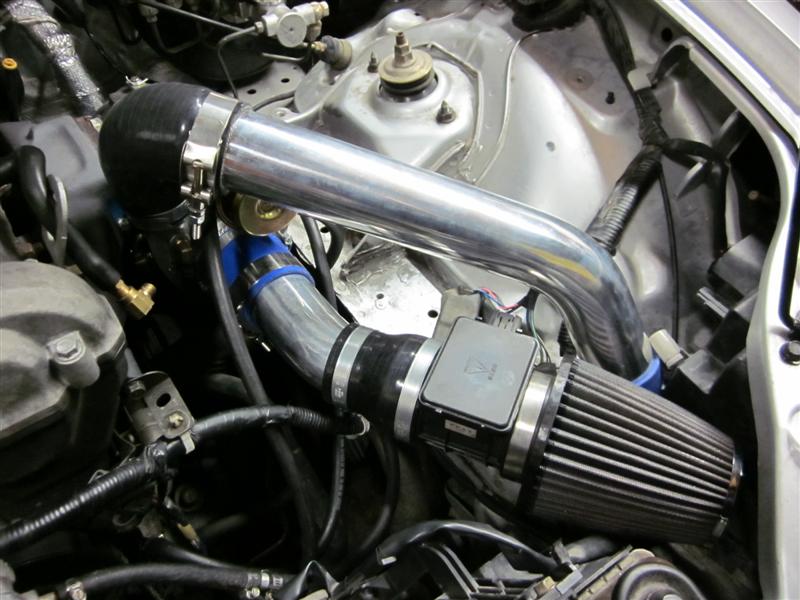

Attached Thumbnails

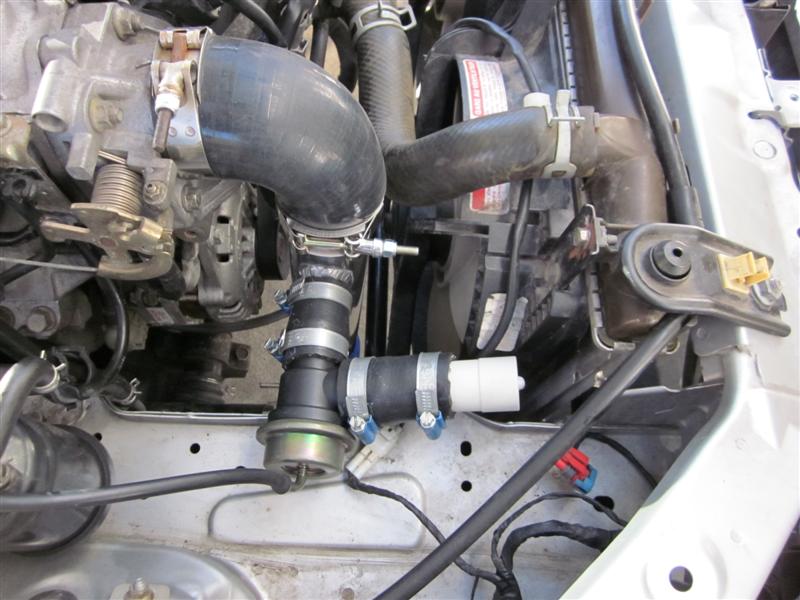

Fav ebay intercooler kit?  update with pics-img_0012-medium-.jpg   Fav ebay intercooler kit?  update with pics-img_0022-medium-.jpg   Fav ebay intercooler kit?  update with pics-img_0023-medium-.jpg

Last edited by flounder; 03-30-2011 at 10:36 PM.
flounder is offline   Reply With Quote
