Old 03-30-2011, 10:35 PM   #41
Junior Member
iTrader: (5)

Join Date: May 2010
Location: Wisconsin
Posts: 384
Total Cats: 1
Default

Looks great!

If you wanna give away one of those BOV adapters that came with the kit, I'll pay shipping
_spyder is offline   Reply With Quote
Old 03-30-2011, 10:42 PM   #42
Hear me Meow
iTrader: (3)

skidude's Avatar

Join Date: Apr 2008
Location: Outside Portland Maine
Posts: 1,993
Total Cats: 13
Default

Quote:
Originally Posted by _spyder View Post
Looks great!

If you wanna give away one of those BOV adapters that came with the kit, I'll pay shipping
Careful which one, I bought the same kit and one is stainless steel and the other is aluminum (at least it feels that way). I haven't decided if I will use mine or not, but if I don't use it you can have it. Which material are you looking for?
skidude is offline   Reply With Quote
Old 03-30-2011, 10:45 PM   #43
Elite Member
Thread Starter

Join Date: Mar 2010
Location: Detroit
Posts: 1,524
Total Cats: 27
Default

Quote:
Originally Posted by skidude View Post
Careful which one, I bought the same kit and one is stainless steel and the other is aluminum (at least it feels that way). I haven't decided if I will use mine or not, but if I don't use it you can have it. Which material are you looking for?
Yeah one is steel, I used the aluminum one.

Quote:
Originally Posted by _spyder View Post
Looks great!
Thanks! I still need to tidy up a few things, get a breather filter, reinstall the bumper, and tune the hell out of it. Feels so good to drive it again after a long winter of hibernating though.

Last edited by flounder; 03-30-2011 at 10:56 PM.
flounder is offline   Reply With Quote
Old 03-30-2011, 10:53 PM   #44
Junior Member
iTrader: (5)

Join Date: May 2010
Location: Wisconsin
Posts: 384
Total Cats: 1
Default

These are adapters to recirculate the BOV, right? Do they just screw into the side? But I would prefer stainless steel so I don't have to worry about rust, but either one would be fine. I just have a track day on April 10th that I would like to make, but I'm only going to go if I have my BOV recirculated by then. And I'm poor, so whatever is cheap will work lol.
_spyder is offline   Reply With Quote
Old 03-30-2011, 11:01 PM   #45
Elite Member
Thread Starter

Join Date: Mar 2010
Location: Detroit
Posts: 1,524
Total Cats: 27
Default

Quote:
Originally Posted by _spyder View Post
These are adapters to recirculate the BOV, right? Do they just screw into the side? But I would prefer stainless steel so I don't have to worry about rust, but either one would be fine. I just have a track day on April 10th that I would like to make, but I'm only going to go if I have my BOV recirculated by then. And I'm poor, so whatever is cheap will work lol.
I had mine welded on. They have no threads but I suppose you could create some if needed. If you want it and I can find time to mail it, pm me your addy.
flounder is offline   Reply With Quote
Old 03-30-2011, 11:18 PM   #46
Junior Member
iTrader: (5)

Join Date: May 2010
Location: Wisconsin
Posts: 384
Total Cats: 1
Default

Quote:
Originally Posted by flounder View Post
I had mine welded on. They have no threads but I suppose you could create some if needed. If you want it and I can find time to mail it, pm me your addy.
The adapter welded onto the BOV? And awesome, much appreciated, I'll send you a PM now.
_spyder is offline   Reply With Quote
Old 03-30-2011, 11:23 PM   #47
Elite Member
Thread Starter

Join Date: Mar 2010
Location: Detroit
Posts: 1,524
Total Cats: 27
Default

Quote:
Originally Posted by _spyder View Post
The adapter welded onto the BOV? And awesome, much appreciated, I'll send you a PM now.

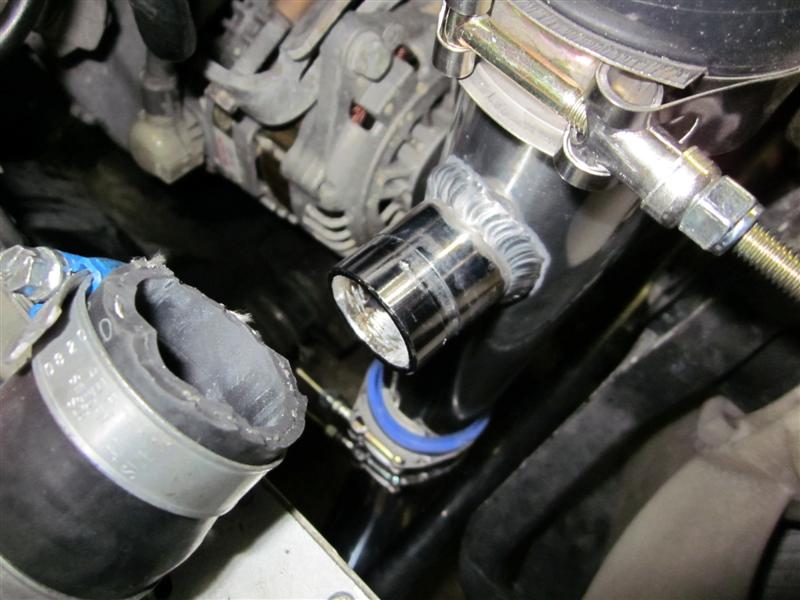

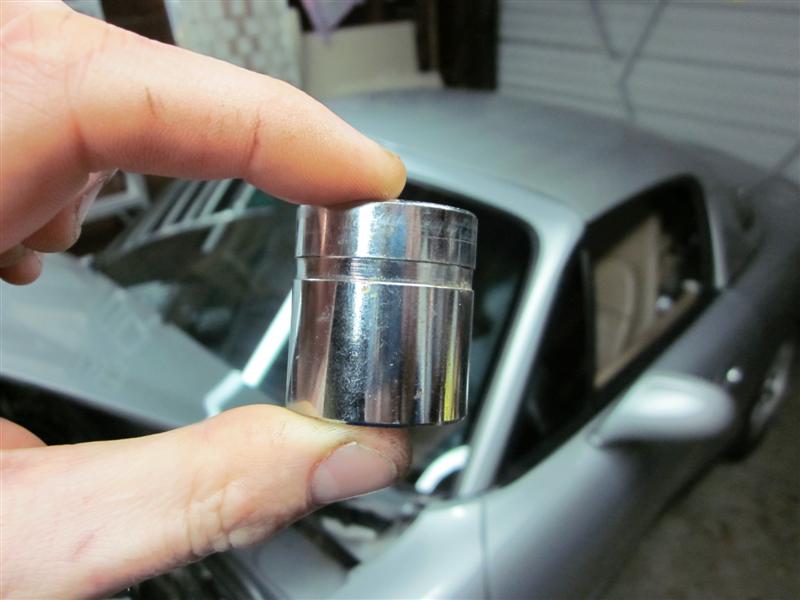

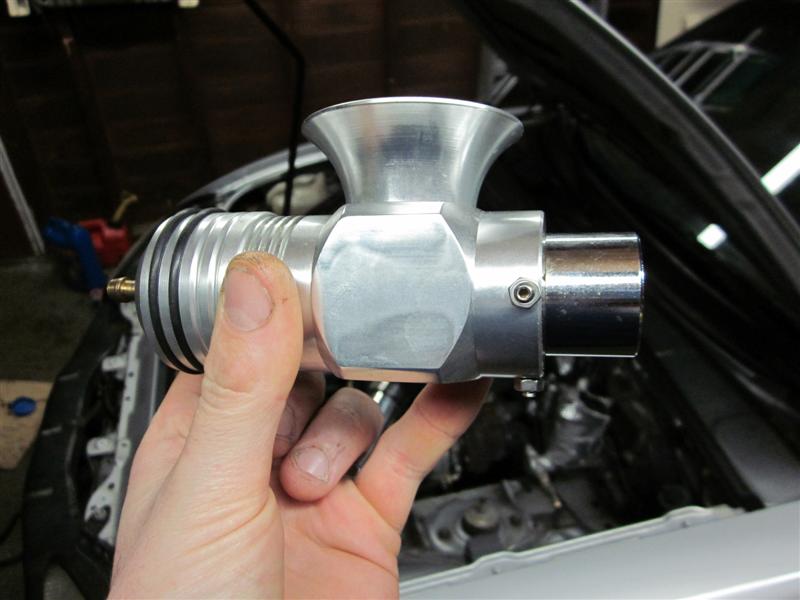

No, I couldn't recirc that bov due to the horn on it. These are just to mount the bov to the pipe. I ended up using a bypass valve that you can see in the pics off the cold side with a check valve attached by a radiator hose. It works, so far. Let me take a pic of it, i'll be right back.
Attached Thumbnails
Fav ebay intercooler kit?  update with pics-img_0026-medium-.jpg   Fav ebay intercooler kit?  update with pics-img_0027-medium-.jpg   Fav ebay intercooler kit?  update with pics-img_0028-medium-.jpg
flounder is offline   Reply With Quote
Old 03-30-2011, 11:34 PM   #48
Junior Member
iTrader: (5)

Join Date: May 2010
Location: Wisconsin
Posts: 384
Total Cats: 1
Default

Ahh I get it now, I thought you could unscrew the horn and then put that piece on to allow the ability to recirculate the BOV. My BOV looks just like yours, but doesn't have a horn on it, just a hole.

I found this piece on eBay:
http://cgi.ebay.com/ebaymotors/ws/eB...m=380104435489

Is that like the same piece you have, or can I somehow attach this to my BOV? I can find something to weld to the intake pipe to connect the two, but I can't recirculate my BOV right now because there is just a hole, nothing to connect hose to.

Sorry for the thread de-rail, if anyone wants to PM me, feel free.
_spyder is offline   Reply With Quote
Old 03-30-2011, 11:36 PM   #49
Hear me Meow
iTrader: (3)

skidude's Avatar

Join Date: Apr 2008
Location: Outside Portland Maine
Posts: 1,993
Total Cats: 13
Default

Quote:
Originally Posted by flounder View Post
No, I couldn't recirc that bov due to the horn on it. These are just to mount the bov to the pipe. I ended up using a bypass valve that you can see in the pics off the cold side with a check valve attached by a radiator hose. It works, so far. Let me take a pic of it, i'll be right back.
The horn should just unscrew and leave some threads you could use for recirculating.
skidude is offline   Reply With Quote
Old 03-30-2011, 11:46 PM   #50
Elite Member
Thread Starter

Join Date: Mar 2010
Location: Detroit
Posts: 1,524
Total Cats: 27
Default

Quote:
Originally Posted by skidude View Post
The horn should just unscrew and leave some threads you could use for recirculating.
It does, I kind of wanted to use the bpv anyway and didn't want to mess with threading the steel and trying to make it work with the aluminum bov.

Spyder- if you want to, you could use a check valve on your bov instead of recirc? Either way, if you still want it, it's yours.
flounder is offline   Reply With Quote
Old 03-30-2011, 11:50 PM   #51
Want fries with that?
iTrader: (3)

Join Date: Oct 2009
Location: Twin Cities, Minnesota
Posts: 2,023
Total Cats: -1
Default

Just a note: I am using that same fleabay BOV. Let me tell you, you will have to drill and tap the holes and bung or it will shoot off. Ask me how I know... I don't know if I mounted it right but I didn't really see any other way...
rider384 is offline   Reply With Quote
Old 03-30-2011, 11:57 PM   #52
Junior Member
iTrader: (5)

Join Date: May 2010
Location: Wisconsin
Posts: 384
Total Cats: 1
Default

Quote:
Originally Posted by flounder View Post
It does, I kind of wanted to use the bpv anyway and didn't want to mess with threading the steel and trying to make it work with the aluminum bov.

Spyder- if you want to, you could use a check valve on your bov instead of recirc? Either way, if you still want it, it's yours.
Hmm, now that I went out and took a look at it, I've got a SSQV AVO blow off valve. I bought it this way and it needs to be recirculated. I don't know if it came with I horn (I doubt it), so I don't think there is any threads in the hole. It's a nice BOV, but I need to recirculate it so I'm not bogging inbetween shifts and almost stalling out at stoplights. How does a check valve work and how would I even hook that up when there is nothing protruding from the hole?
_spyder is offline   Reply With Quote
Old 03-31-2011, 12:02 AM   #53
Elite Member
Thread Starter

Join Date: Mar 2010
Location: Detroit
Posts: 1,524
Total Cats: 27
Default

I'm not a pro with bov's but I thought the sequential ones had a check valve built in?
flounder is offline   Reply With Quote
Old 04-01-2011, 01:01 PM   #54
Newb

Join Date: Mar 2011
Posts: 11
Total Cats: 0
Default

Quote:
Originally Posted by flounder View Post
Problem solved, thanks to TurboTim

I should have known better than to put the maf so close to the turbulent turbo inlet. It caused all sorts of droopy idle shenanigans so I came up with this setup. Here's a before/after.


The only issue now is for some reason I'm getting what sounds like compressor surge on my upshifts where before it sounded like a normal whooshing bov sound. Me thinks it's the check valve...

If anyone is wondering, total cost from start to finish was about $275 bucks.
So because the MAF was so close to the turbo inlet, it caused the weird idle's and what not? Im turboing my miata next month after I get out of school and just want to make sure I space them far enough so I dont get the problem you had
namike is offline   Reply With Quote
Old 04-01-2011, 08:02 PM   #55
Elite Member
Thread Starter

Join Date: Mar 2010
Location: Detroit
Posts: 1,524
Total Cats: 27
Default

Quote:
Originally Posted by namike View Post
So because the MAF was so close to the turbo inlet, it caused the weird idle's and what not? Im turboing my miata next month after I get out of school and just want to make sure I space them far enough so I dont get the problem you had
Not so much just sitting idling, it was almost stalling when coming off rev. Like in normal city driving when approaching a stop light and you depress the clutch, the revs would drop and couldn't stabilize at 1k. It would drop to 500rpm and try to steady itself but could not.

Mass air flow sensors can read airflow both ways and mine was so close to the inlet I think it was picking up flow from the compressor wheel when the throttle body suddenly slammed shut. It seemed to be worse if I depressed the clutch above 2k rpms.

All is fine now that I added that little 45* bend.
flounder is offline   Reply With Quote
Old 04-01-2011, 11:45 PM   #56
Elite Member
Thread Starter

Join Date: Mar 2010
Location: Detroit
Posts: 1,524
Total Cats: 27
Default

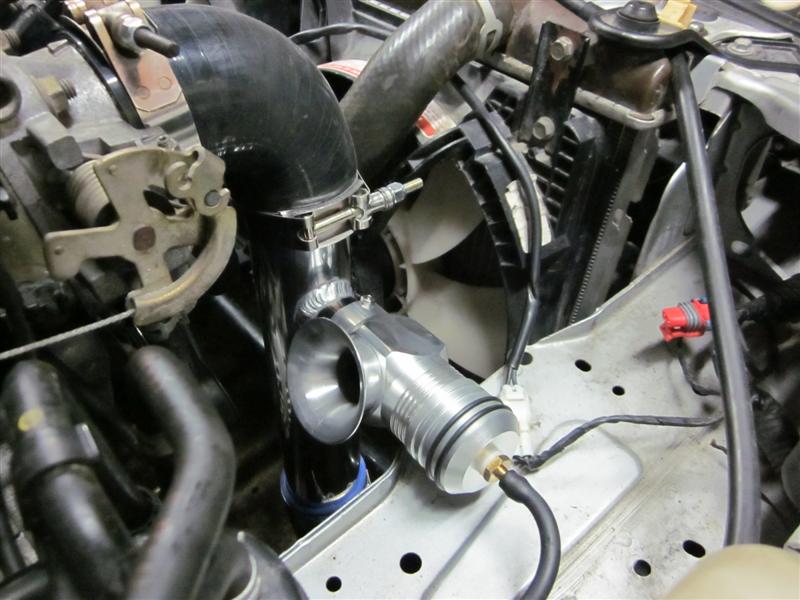

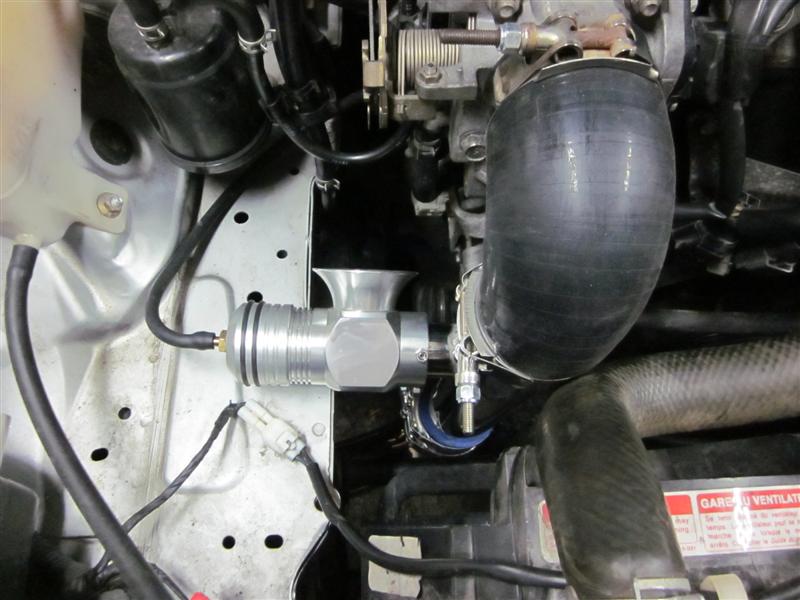

Ok, all this talk of bov's got me curious to try and mount this sucker. With a lot of spring cutting and a bit of luck, I got it to work great vta!

It's really not that loud and looks alot better then that bpv in the engine bay.

That check valve was the cause of my surging, it's just too small a hole to vent all that boost!

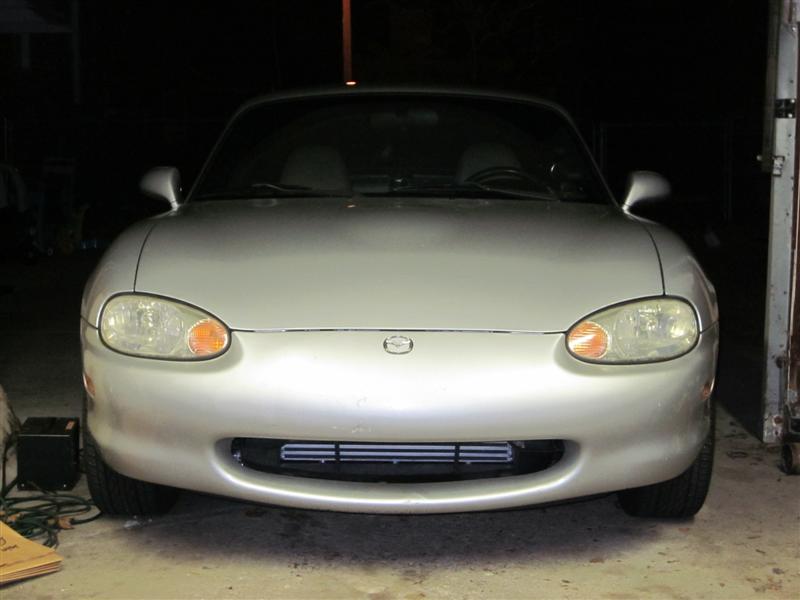

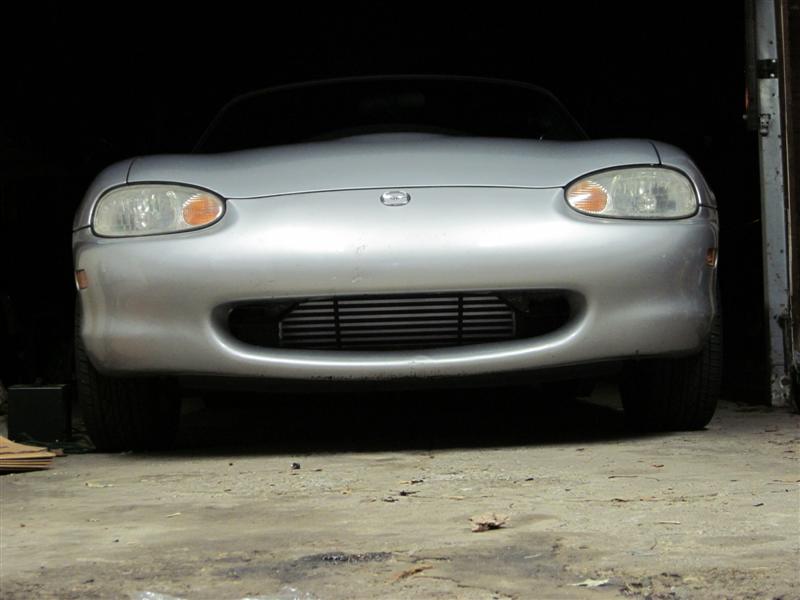

I finally reinstalled the bumper too, don't mind the crooked pics, I've been drinking.
Attached Thumbnails
Fav ebay intercooler kit?  update with pics-img_0031-medium-.jpg   Fav ebay intercooler kit?  update with pics-img_0032-medium-.jpg   Fav ebay intercooler kit?  update with pics-img_0033-medium-.jpg   Fav ebay intercooler kit?  update with pics-img_0034-medium-.jpg   Fav ebay intercooler kit?  update with pics-img_0035-medium-.jpg

flounder is offline   Reply With Quote
Old 04-02-2011, 03:04 PM   #57
Junior Member
iTrader: (5)

Join Date: May 2010
Location: Wisconsin
Posts: 384
Total Cats: 1
Default

Looks great, what custom work did you have to do to make the new BOV fit? And what's the 3rd pic?
_spyder is offline   Reply With Quote
Old 04-02-2011, 03:18 PM   #58
Elite Member
Thread Starter

Join Date: Mar 2010
Location: Detroit
Posts: 1,524
Total Cats: 27
Default

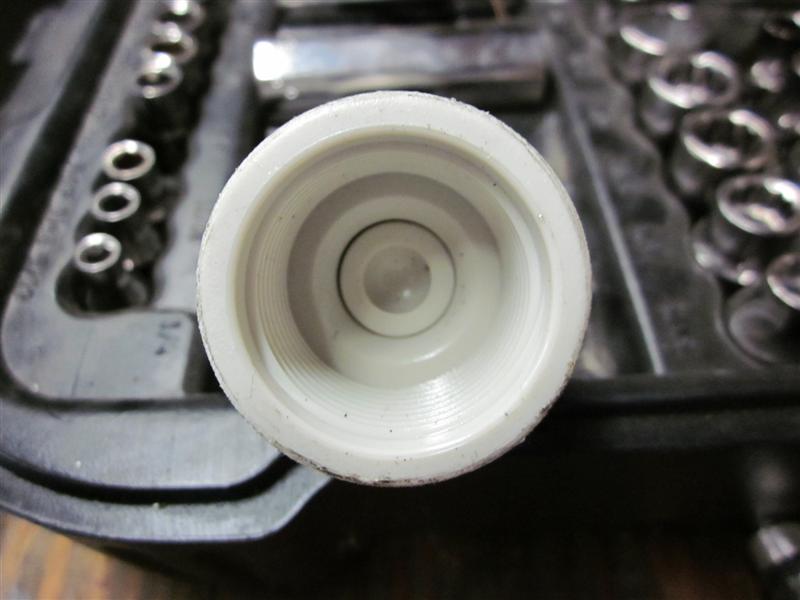

It's the lowes check valve that I just returned. That was the hole that all the pressure had to escape from and due to it's restrictive size, I was getting all sorts of surging.

With the bov, I was experiencing the same surging at first until I realized the stock spring was way to strong for the vac on my motor at idle. I had to cut a good inch off of it to get rid of the surge. Do a half a coil at a time and retest it until the surging goes away. When it's barely noticable, cut about a 1/4 coil off. If you cut too much and the idle gets jumpy, add a washer or two and retest.

The only issue I've yet to deal with is the rich condition nearing 0 vac/boost, but I was experiencing that with the bpv/check valve too. Thinking a o2 clamp will help out big time with that.

Honestly I don't see a problem running vta with the NB maf.

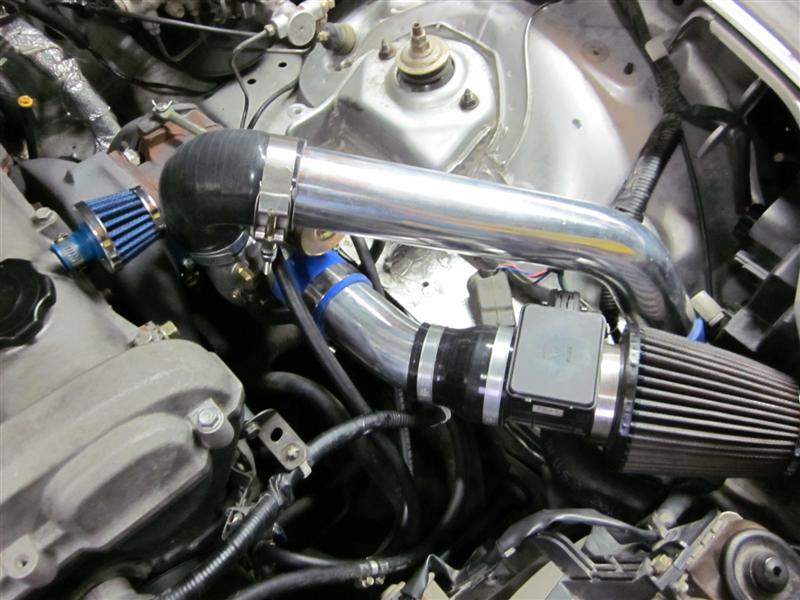

Added a fancy blue chrome crankcase breather too. bling bling!
Attached Thumbnails
Fav ebay intercooler kit?  update with pics-img_0038-medium-.jpg
flounder is offline   Reply With Quote
Old 05-02-2011, 01:18 PM   #59
Junior Member
iTrader: (8)

Join Date: Mar 2007
Location: Sarasota, FL
Posts: 334
Total Cats: 0
Default

Sorry to revive this a month later, but what made you go with 2.25" and not 2.5"? Curious as I'm looking at upgrade options.
chokeasphyxia is offline   Reply With Quote
Old 05-02-2011, 01:22 PM   #60
Elite Member
Thread Starter

Join Date: Mar 2010
Location: Detroit
Posts: 1,524
Total Cats: 27
Default

Did some research and that seemed to be the most common. Plus I think its easier to run the smaller piping behind the headlight.
flounder is offline   Reply With Quote
