Default Feedback on oil return fitting

Hi All,

Noob post, but this is my first time ever drilling and tapping an oil pan so I'm pretty paranoid of messing things up. I was pretty much freaking out over trying not to hit the oil pick up tube with the drill bit!

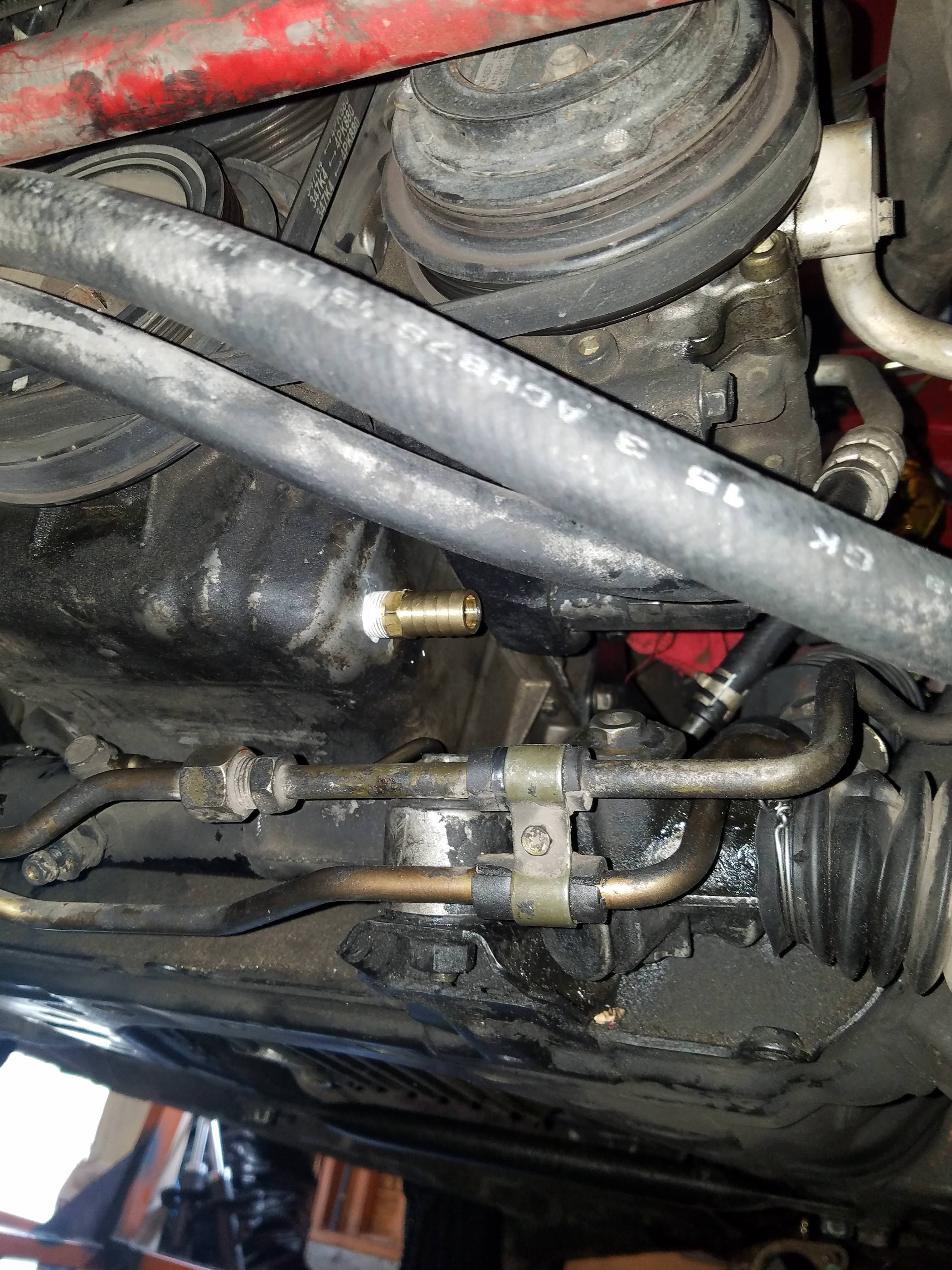

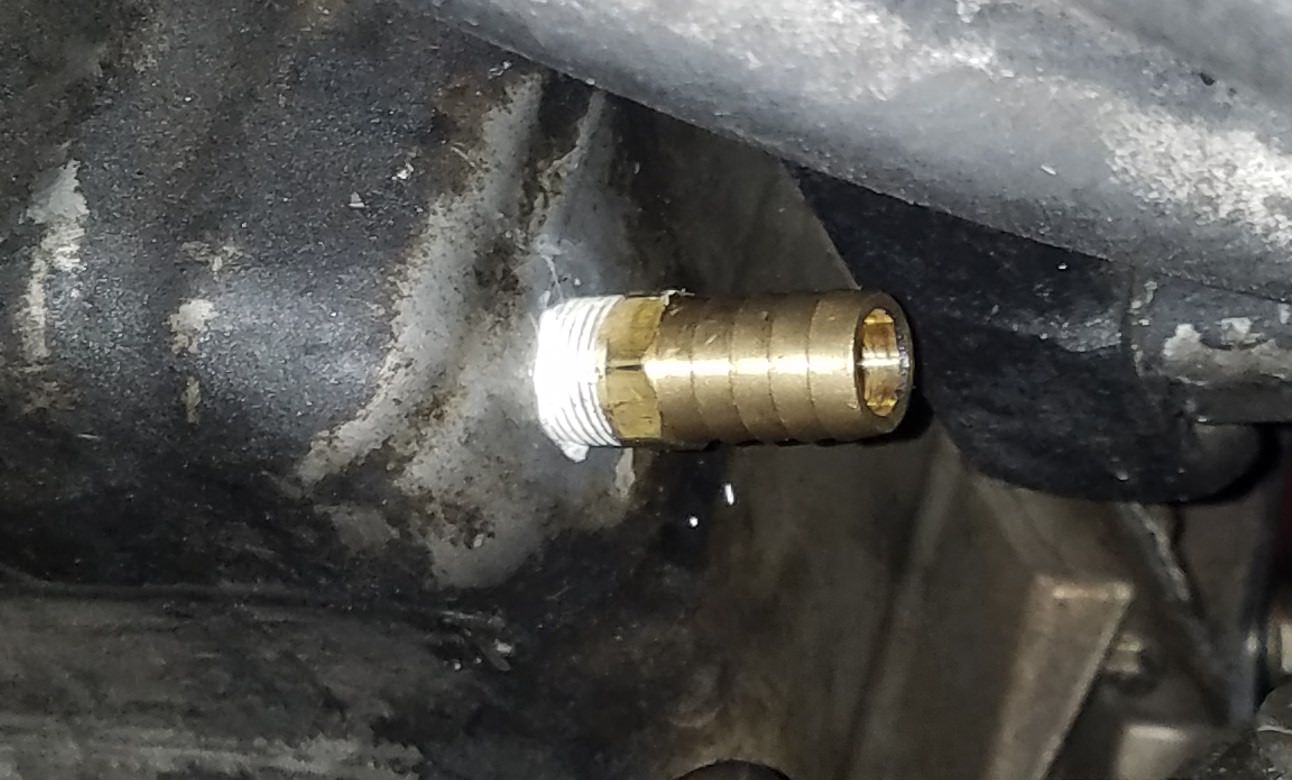

I started installing my FM turbo kit this past weekend and I wanted some feedback on the engagement of my oil return fitting. I know NPT threads aren't supposed to engage all the way as they are tapered and tighten as you thread them in, but I was wondering if I could I get some feedback whether the oil fitting is in far enough. It was starting to tighten up and I'm afraid to keep going for fear of stripping the threads. Should I be ok? Should I take it out and tap it deeper?





I did already run some mineral spirits through it to clean out any shavings and as far as I could tell it didn't leak any mineral spirits, but as I said this is my first time doing this so what do I know?

Thanks!
HmoobDude is offline
Old 09-04-2018, 09:52 PM
  #2
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,827
Total Cats: 55
Default

I always just put the old (not full of shavings) oil in, crank it for 2 minutes in 5 second bursts to keep the starter from cooking, then drain, swap the filter, and run more petrol or whatever through it, then just fill it and run it.

Dann
nitrodann is offline
Old 09-04-2018, 11:40 PM
  #3
Junior Member
Thread Starter

Join Date: Jul 2018
Location: Colorado
Posts: 86
Total Cats: 3
Default

Originally Posted by nitrodann View Post
I always just put the old (not full of shavings) oil in, crank it for 2 minutes in 5 second bursts to keep the starter from cooking, then drain, swap the filter, and run more petrol or whatever through it, then just fill it and run it.

Dann
My concern wasn't necessarily with flushing and cleaning. My main concern is whether my the oil fitting is threaded in the oil pan far enough.
HmoobDude is offline
Old 09-04-2018, 11:42 PM
  #4
Junior Member

Join Date: Feb 2018
Posts: 72
Total Cats: 1
Default

the fitting looks fine, pretty much like anyone else's. Don't overthink it. Some people add some jb weld around the threads for extra peace of mind.
mj1176 is offline
Old 09-04-2018, 11:46 PM
  #5
Junior Member
Thread Starter

Join Date: Jul 2018
Location: Colorado
Posts: 86
Total Cats: 3
Default

Originally Posted by mj1176 View Post
the fitting looks fine, pretty much like anyone else's. Don't overthink it. Some people add some jb weld around the threads for extra peace of mind.
Okay thanks. I did throw some high temp thread sealer on it. I probably am just over thinking it and being paranoid about it being my first time around.
HmoobDude is offline
Old 09-05-2018, 02:40 AM
  #6
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 4,465
Total Cats: 529
Default

The threads are just to hold it in mechanically, and the oil pan isn't very thick, so you don't need it to engage all that far. If you run the tap too deep it's quite possible to dent the pickup tube with that, so as long as the threads are fully engaged I'd say your fine.

The sealant will stop it leaking.

--Ian
codrus is offline
Old 09-05-2018, 08:03 AM
  #7
Senior Member

Join Date: Oct 2013
Location: NorthWest NJ
Posts: 1,447
Total Cats: 70
Default

Looks like enough. The pan is only 2 or 3mm thick there. So only a few threads engage anyway.

That is thread sealant and not teflon tape, right?
x_25 is offline
Old 09-05-2018, 10:00 AM
  #8
Junior Member
Thread Starter

Join Date: Jul 2018
Location: Colorado
Posts: 86
Total Cats: 3
Default

Originally Posted by codrus View Post
The threads are just to hold it in mechanically, and the oil pan isn't very thick, so you don't need it to engage all that far. If you run the tap too deep it's quite possible to dent the pickup tube with that, so as long as the threads are fully engaged I'd say your fine.

The sealant will stop it leaking.

--Ian
Originally Posted by x_25 View Post
Looks like enough. The pan is only 2 or 3mm thick there. So only a few threads engage anyway.

That is thread sealant and not teflon tape, right?
Thanks! Definitely makes me more at ease about it and yes it is Permatex high temp thread sealant, not Teflon tape.
HmoobDude is offline
