Default Find me a turbo that fits these critera

I am terrible at mapping out stuff on turbo compressor maps.

Basically, I am looking for a turbo that is extremely quick spooling to make 10PSI (ish) as fast as possible at 2-3k RPM and is efficient while doing sowhile ALSO being able to flow an easy 5-6PSI at 7.5kRPM. The PSI it would be pushing out of the compressor would be a linear down curve starting at about 10PSI at 2-3k RPM to approx 5-6PSI at 7500RPM.

Large external wastegate will be involved so turbine housing choke is not a big deal since a huge majority of exhaust gases will be bypassed at high RPM. So a small quick spooling turbine housing is a must.

Pls and thanks.

(if you think there is a tuburbo that has an internal gate (ported gate obviously) that would also meet this criteria I would be open to it.

So far I'm thinking a GT2550R meets this after briefly looking at the compressor map. But which turbine housing would be best?

Am I right in thinking that if it is efficient in flowing 10PSI by 2-3k that it will have no problem with the 5-6psi at high RPM? I'm guessing here that the high rpms stuff doesn't really matter?
falcon is offline   Reply With Quote
Old 03-28-2012, 01:51 PM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

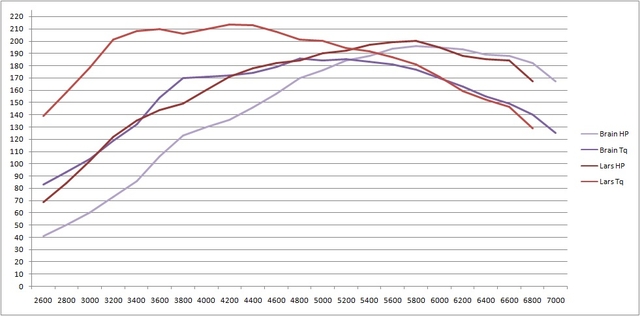

so basically you want this in red?

Attached Thumbnails
Find me a turbo that fits these critera-april-10_vs_lars_dyno.jpg
Braineack is offline   Reply With Quote
Old 03-28-2012, 01:58 PM   #3
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

More or less. What turbo is that?
falcon is offline   Reply With Quote
Old 03-28-2012, 01:58 PM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

a t25 off an SR20, thats running around 9.5psi to redline.


basically a GT2554.
Braineack is offline   Reply With Quote
Old 03-28-2012, 01:59 PM   #5
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

Yeah that's what I meant to say in my original post... 2554R. But those aren't available in v-band are they?
falcon is offline   Reply With Quote
Old 03-28-2012, 02:25 PM   #6
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

Braineack is offline   Reply With Quote
Old 03-28-2012, 03:52 PM   #7
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Braineack View Post
A GT2554 with a .86 turbine housing on a VVT engine would be pretty bauce.
hustler is offline   Reply With Quote
Old 03-28-2012, 03:55 PM   #8
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

I agree. Would make a really nice 225-250rwhp turbo.


also looks like if you have access to a machine shop, you could make the same happen.

need to go to GT28XX to get the cool Tial v-band housing or the one with integrated EWG.
Braineack is offline   Reply With Quote
Old 03-28-2012, 04:06 PM   #9
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Braineack View Post
I agree. Would make a really nice 225-250rwhp turbo.


also looks like if you have access to a machine shop, you could make the same happen.

need to go to GT28XX to get the cool Tial v-band housing or the one with integrated EWG.
I think the GT2860rs is still a viable option for daily driving, especially if you're using a tubular manipheould.
I have a GT2860rs .86 turbine housing, slight overbore, low compression, and 99 head and I'm seeing about 200wtq at 2700rpm. If I had a VVT head on that car, man it would be crazy low. I realistically feel like the car "moves" at 2250rpm even with the trailer on it. When I'm cruising on the highway, I leave it in 6th unless we go below 2500rpm because it just looks weird and it's not a Corvette, lol.
hustler is offline   Reply With Quote
Old 03-28-2012, 04:48 PM   #10
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

Yeah, looks of the milled v-band housing is not a big deal because it will be for the most part completely hidden away. I just want it for the reliability and not having to deal with turbo studs. Downpipe studs I think I can deal with.

This is just for an idea I have working in my head right now, we'll see if it ever comes to fruition.
falcon is offline   Reply With Quote
Old 03-28-2012, 04:50 PM   #11
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

well you can always bolt on a vband adapter on the outlet...
Braineack is offline   Reply With Quote
Old 03-28-2012, 05:54 PM   #12
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

true... would that solve the problems that some people have had with down pipe studs backing out? I dont really see it being THAT big of a problem?

The only think that I'm somewhat concerned about is the fact that while the turbo may only be pushing 5-6psi out of the compressor, there will be exhaust gasses coming out of the motor will be equivalent to 300+whp on a flowed, cammed head. This is why I'm thinking a big 44mm tial would be a solution.
falcon is offline   Reply With Quote
Old 03-28-2012, 05:56 PM   #13
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

i dunno, just saying.
Braineack is offline   Reply With Quote
Old 03-28-2012, 06:06 PM   #14
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by falcon View Post
true... would that solve the problems that some people have had with down pipe studs backing out? I dont really see it being THAT big of a problem?

The only think that I'm somewhat concerned about is the fact that while the turbo may only be pushing 5-6psi out of the compressor, there will be exhaust gasses coming out of the motor will be equivalent to 300+whp on a flowed, cammed head. This is why I'm thinking a big 44mm tial would be a solution.
That's not really how it works, lol.
hustler is offline   Reply With Quote
Old 03-28-2012, 06:10 PM   #15
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

You don't know what I'm doing

Lets just say that the motor will be seeing a substantially higher amount of boost than what the turbo will be pushing out.
falcon is offline   Reply With Quote
Old 03-28-2012, 06:12 PM   #16
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,199
Total Cats: 2,584
Default

so you're using the turbo for lowend and rotrex for topend. different from how its "normally" done but I can see it working
18psi is offline   Reply With Quote
Old 03-28-2012, 06:15 PM   #17
Elite Member
iTrader: (10)

Join Date: Oct 2008
Location: Seattle, Wa
Posts: 1,780
Total Cats: 30
Default

As long as you don't choke out from the small turbine wheel, this plan should work just fine .
Jeff_Ciesielski is offline   Reply With Quote
Old 03-28-2012, 06:15 PM   #18
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,519
Total Cats: 260
Default

yay twincharged miata
soviet is offline   Reply With Quote
Old 03-28-2012, 06:15 PM   #19
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

5PSI at the turbo = 1.34 PR
feeding into something else making 12PSI or 1.81PR

1.34 x 1.81 = 2.42 - 1 = 1.42 x 14.7 = 21PSI.

falcon is offline   Reply With Quote
Old 03-28-2012, 06:17 PM   #20
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,199
Total Cats: 2,584
Default

Get 1 giant (or 2 large) ewgs to vent that ish and you should no problem with turbine choking.
