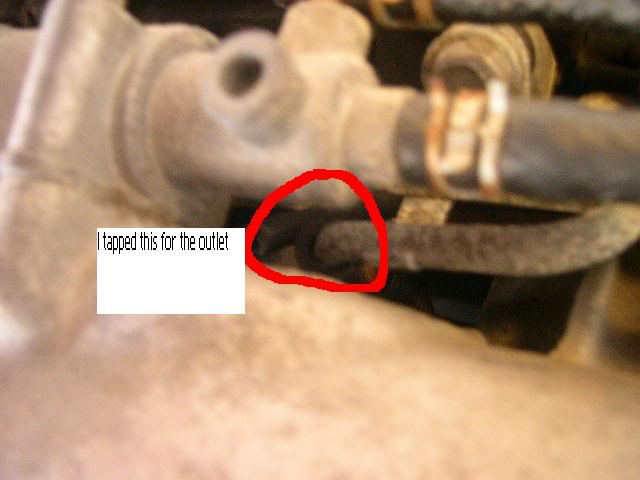

Hi everyone i finally got my car started...only to find dissapointment lol anyway the car is running very rough it bogs down alot, i dont think its getting enough fuel. Can anyone tell me if i routed my FMU correctly heres some pictures. I'd really appreciate the help, i need this car running. THANKS!!!



Name:  DSCN0016.jpg
Views: 1
Size:  31.3 KB
Kirby is offline   Reply With Quote
Old 08-06-2006, 07:16 PM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

the line you have circled for outlet is the inlet line.
Braineack is offline   Reply With Quote
Old 08-07-2006, 12:13 AM   #3
Newb
Thread Starter

Join Date: Jan 2006
Posts: 32
Total Cats: 0
Default

I meant that that hose with the Red Circle goes to the outlet of the FMU. Is that right?
Kirby is offline   Reply With Quote
Old 08-07-2006, 01:55 AM   #4
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

nope it is wrong put the fmu on the line that comes from the stock fpr wich is the real outlet. c
magnamx-5 is offline   Reply With Quote
Old 08-07-2006, 03:40 AM   #5
Newb
Thread Starter

Join Date: Jan 2006
Posts: 32
Total Cats: 0
Default

hmm okay i think this would be easier if someone just posted pictures of how they ran their lines. Do you think you can take a few pictures?

Thanks!
Kirby is offline   Reply With Quote
Old 08-07-2006, 03:53 AM   #6
Senior Member
iTrader: (2)

Join Date: Aug 2005
Location: Granbury, TX
Posts: 567
Total Cats: 1
Default

Im pretty sure u just have them flipped, try reversing them and see what happens
greenday3437 is offline   Reply With Quote
Old 08-07-2006, 08:45 AM   #7
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default




Basically your putting the APFR on the return line. So, take that goes from the firewall side of the rail and goes into the hard line and connect that to the AFPR in. Then take the AFPR out and connect that to the hardline you just undid, that's it.

Last edited by Braineack; 08-07-2006 at 12:43 PM.
Braineack is offline   Reply With Quote
Old 08-07-2006, 08:47 AM   #8
Senior Member

steelrat's Avatar

Join Date: Jul 2005
Posts: 514
Total Cats: 0
Default

  • Hard line without any marks (no white mark)... to FP gauge (optional) to front input on Fuel Rail (stock connection)
  • Rear output of fuel rail to input on new AFPR (I believe the JR one I had... was centre in)
  • Output of AFPR to the White Marked hard line

Don't have any pics, since I don't have the AFPR installed anymore, and well, didn't have it for long either.... hopefully, that will help.

Dave,
steelrat is offline   Reply With Quote
Old 08-08-2006, 11:52 PM   #9
Newb
Thread Starter

Join Date: Jan 2006
Posts: 32
Total Cats: 0
Default

Thanks for the help people i really appreciate it. Now i just need to buy a new turbo
Kirby is offline   Reply With Quote
Old 08-09-2006, 11:03 AM   #10
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

why do you need a new turbo?
Braineack is offline   Reply With Quote
Old 08-09-2006, 12:12 PM   #11
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

magnamx-5 is offline   Reply With Quote
Old 08-09-2006, 12:13 PM   #12
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

ahhh
Braineack is offline   Reply With Quote
