Default First Start (help me)

So everythings hooked up. I tried starting the motor but Im getting no oil pressure (nothing out of the oil feed line either). There is oil in the motor, and the motor wont stay on by itself (can be kept on with throttle) any ideas?
Loki047 is offline   Reply With Quote
Old 07-22-2006, 03:04 AM   #2
Senior Member

Join Date: Jan 2005
Posts: 737
Total Cats: 0
Default

you should first prime the engine before starting. I had to crank mine for about 45 seconds to get pressure to the head. If you have an oil pressure gauge wait until you see a blip from it so you know you have pressure. Then start it.
F20turbo is offline   Reply With Quote
Old 07-22-2006, 03:19 AM   #3
Elite Member
Thread Starter
iTrader: (6)

Loki047's Avatar

Join Date: Sep 2005
Location: Chicago
Posts: 4,145
Total Cats: 0
Default

Well we cranked it a few times but not for 45 seconds, ill try that tomorrow, thanks Mr. Floyd. Any other tips?
Loki047 is offline   Reply With Quote
Old 07-22-2006, 02:07 PM   #4
Elite Member
Thread Starter
iTrader: (6)

Loki047's Avatar

Join Date: Sep 2005
Location: Chicago
Posts: 4,145
Total Cats: 0
Default

Alright I cranked it for 45 seconds but still nothing, again the motor will come to life and die right away (without oil pressure)
Loki047 is offline   Reply With Quote
Old 07-22-2006, 02:16 PM   #5
Elite Member

Philip's Avatar

Join Date: Dec 2004
Posts: 3,270
Total Cats: -4
Default

vac leak on the motor.
can't say on the OP.
Philip is offline   Reply With Quote
Old 07-22-2006, 02:20 PM   #6
CRX
Junior Member

Join Date: Oct 2004
Location: Dallas, TX
Posts: 153
Total Cats: 0
Default

Disconnect the coil pack so you won't get spark. Put in a autozone mechanical oil pressure gauge, so you know that it's not your stock opg messing up. Then crank till you have oil pressue, if you don't get oil pressure, bigger things going on.

You DO have oil in the motor, right? :gay:
CRX is offline   Reply With Quote
Old 07-22-2006, 02:20 PM   #7
CRX
Junior Member

Join Date: Oct 2004
Location: Dallas, TX
Posts: 153
Total Cats: 0
Default

ANd the afm is hooked up, right?
CRX is offline   Reply With Quote
Old 07-22-2006, 02:20 PM   #8
Elite Member
Thread Starter
iTrader: (6)

Loki047's Avatar

Join Date: Sep 2005
Location: Chicago
Posts: 4,145
Total Cats: 0
Default

Quote:
Originally Posted by Philip
vac leak on the motor.
can't say on the OP.
Well dying motor i can deal with, dead no OIL pressure is osmehitng I cant.
Loki047 is offline   Reply With Quote
Old 07-22-2006, 02:22 PM   #9
Elite Member

Philip's Avatar

Join Date: Dec 2004
Posts: 3,270
Total Cats: -4
Default

this is the first start after what? A turbo install or an engine swap?

i'd tend to think you forgot to plug in the pressure sending unit.
Philip is offline   Reply With Quote
Old 07-22-2006, 02:52 PM   #10
Elite Member
Thread Starter
iTrader: (6)

Loki047's Avatar

Join Date: Sep 2005
Location: Chicago
Posts: 4,145
Total Cats: 0
Default

no we check its plugged in (turbo) and no oil from feed line
Loki047 is offline   Reply With Quote
Old 07-22-2006, 02:55 PM   #11
Elite Member
Thread Starter
iTrader: (6)

Loki047's Avatar

Join Date: Sep 2005
Location: Chicago
Posts: 4,145
Total Cats: 0
Default

Quote:
Originally Posted by CRX
Disconnect the coil pack so you won't get spark. Put in a autozone mechanical oil pressure gauge, so you know that it's not your stock opg messing up. Then crank till you have oil pressue, if you don't get oil pressure, bigger things going on.

You DO have oil in the motor, right? :gay:
Alright I know what im doing today (yes theres oil)
Loki047 is offline   Reply With Quote
Old 07-22-2006, 02:58 PM   #12
Senior Member
iTrader: (14)

brgracer's Avatar

Join Date: Nov 2004
Location: Ambler, PA
Posts: 1,275
Total Cats: 1
Default

You didn't happen to knick the oil pickup line when tapping the pan (if you tapped the pan that is)?
brgracer is offline   Reply With Quote
Old 07-22-2006, 03:28 PM   #13
Elite Member
Thread Starter
iTrader: (6)

Loki047's Avatar

Join Date: Sep 2005
Location: Chicago
Posts: 4,145
Total Cats: 0
Default

I did tap the pan I dont think i did, i was extremely careful not too. I can take the tap out and check.
Loki047 is offline   Reply With Quote
Old 07-22-2006, 03:41 PM   #14
Elite Member
Thread Starter
iTrader: (6)

Loki047's Avatar

Join Date: Sep 2005
Location: Chicago
Posts: 4,145
Total Cats: 0
Default

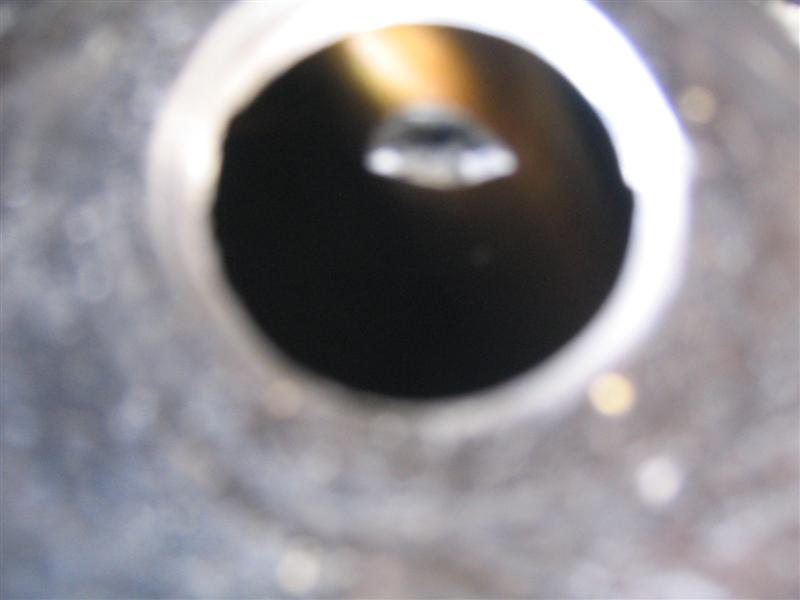

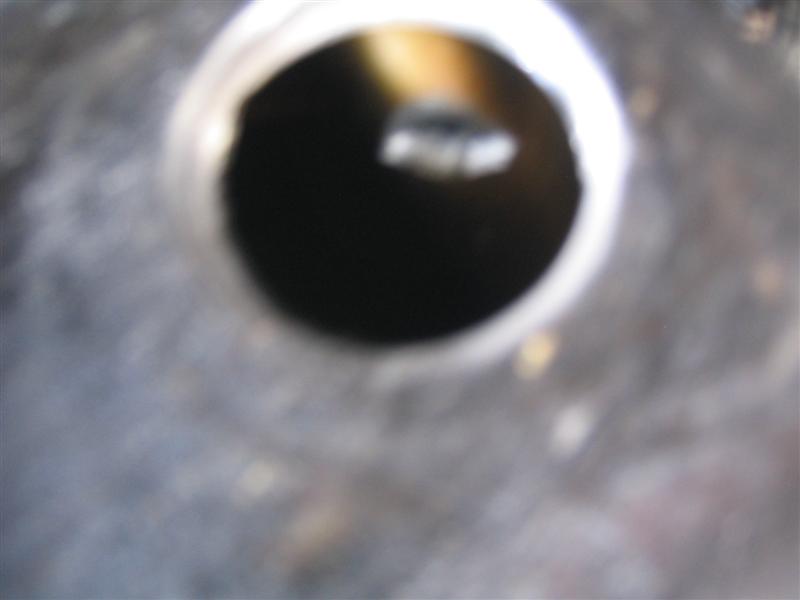

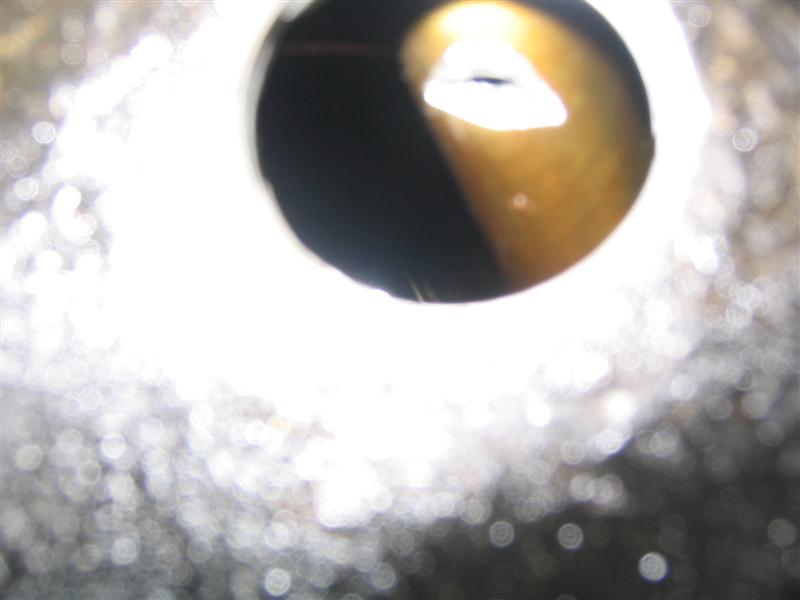

**** ME!! I dont know how I did that. Salvagble? What do i do now?
Attached Thumbnails
First Start (help me)-img_0015-medium-.jpg   First Start (help me)-img_0016-medium-.jpg   First Start (help me)-img_0017-medium-.jpg
Loki047 is offline   Reply With Quote
Old 07-22-2006, 03:50 PM   #15
Elite Member
Thread Starter
iTrader: (6)

Loki047's Avatar

Join Date: Sep 2005
Location: Chicago
Posts: 4,145
Total Cats: 0
Default

what material is that can i just throw a bead on it?
Loki047 is offline   Reply With Quote
Old 07-22-2006, 04:33 PM   #16
Senior Member

Join Date: Jan 2005
Posts: 737
Total Cats: 0
Default

damn that sucks, I dont know what it is. I want to say brass, but i think thats just because of the color of it since its oil stained.
F20turbo is offline   Reply With Quote
Old 07-22-2006, 04:48 PM   #17
Elite Member

Join Date: Jan 2005
Location: vancouver canada
Posts: 1,618
Total Cats: 0
Default

Quote:
Originally Posted by Loki047
**** ME!! I dont know how I did that. Salvagble? What do i do now?
HOLY ****!!! if you hit what I think you hit while drilling,your in for a shitload of work to replace the oil pick up tube.
spike is offline   Reply With Quote
Old 07-22-2006, 05:41 PM   #18
Elite Member

Philip's Avatar

Join Date: Dec 2004
Posts: 3,270
Total Cats: -4
Default

nah, rough it up and JB weld it. She'll hold.
Philip is offline   Reply With Quote
Old 07-22-2006, 05:58 PM   #19
AFM Crusader
iTrader: (18)

olderguy's Avatar

Join Date: Oct 2004
Location: Wayne, NJ
Posts: 4,438
Total Cats: 84
Default

Quote:
Originally Posted by Philip
nah, rough it up and JB weld it. She'll hold.
I'd try that before pulling the engine
olderguy is offline   Reply With Quote
Old 07-22-2006, 05:58 PM   #20
Elite Member
Thread Starter
iTrader: (6)

Loki047's Avatar

Join Date: Sep 2005
Location: Chicago
Posts: 4,145
Total Cats: 0
Default

Quote:
Originally Posted by Philip
nah, rough it up and JB weld it. She'll hold.
thats what im thinking
Loki047 is offline   Reply With Quote
