Default Fluctuating WG pressure

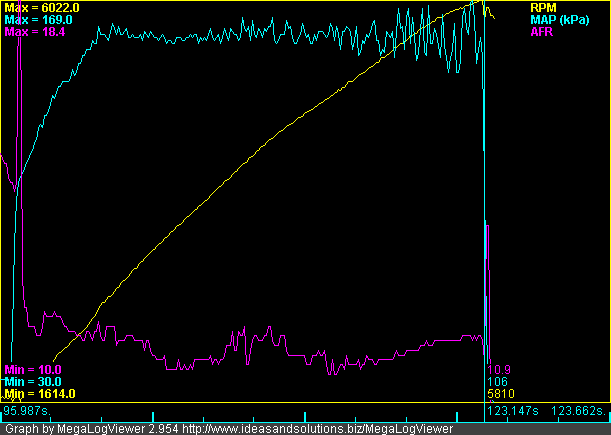

Attached are two logs. The first is an older log, one of my first, with the stock injectors and a rough tune. It is a fifth gear pull.

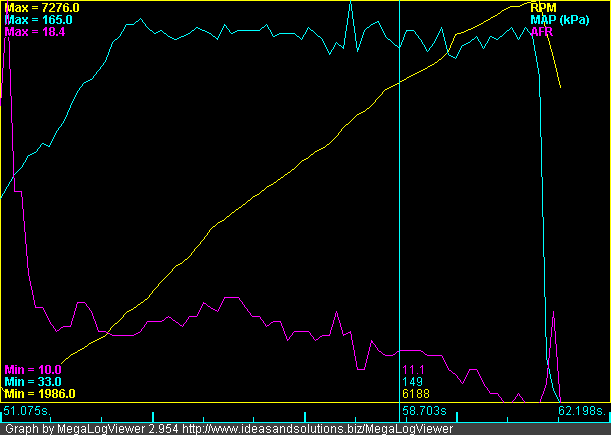

The second is from the other day, new 600's, pretty new tune, autotune only. I have since retuned for 12.0>11.5 at redline.

The question that I have is around 5500, the WG pressures really start to oscillate more and more. Is this just a function of the internal WG? Excessive backpressure? I have a 2 1/2" exhaust but a crappy Flowmaster muffler that was on the midpipe when I bought it.
Attached Thumbnails
Fluctuating WG pressure-fifth-gear.png   Fluctuating WG pressure-third-gear.png

Last edited by Stein; 04-15-2009 at 10:16 AM.
Stein is offline   Reply With Quote
Old 04-15-2009, 10:25 AM   #2
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

i tried switching to a tiny vac hose and it got worse than with the old hose and a filter. We're fucked.
hustler is offline   Reply With Quote
Old 04-15-2009, 10:27 AM   #3
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

where's your MAP line being sourced?
Braineack is offline   Reply With Quote
Old 04-15-2009, 10:35 AM   #4
Elite Member
Thread Starter
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

Quote:
Originally Posted by Braineack View Post
where's your MAP line being sourced?

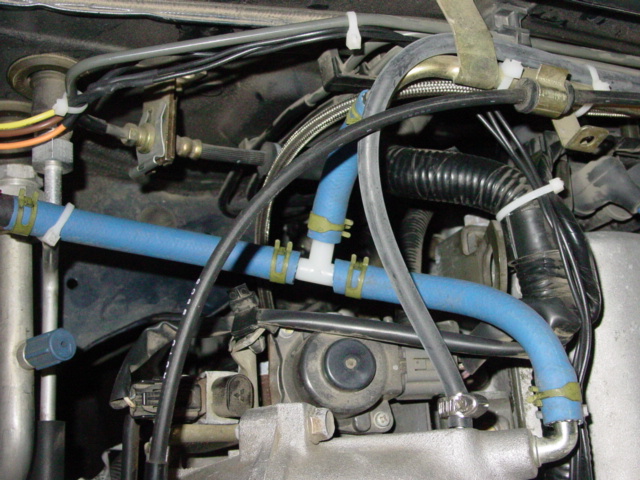

Tee'd off of brake booster line.
Attached Thumbnails
Fluctuating WG pressure-map-tee.jpg
Stein is offline   Reply With Quote
Old 04-15-2009, 04:55 PM   #5
Elite Member
Thread Starter
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

Thoughts anyone?
Stein is offline   Reply With Quote
Old 04-15-2009, 05:12 PM   #6
Elite Member
iTrader: (15)

Join Date: Sep 2007
Location: Incline Village, NV
Posts: 2,073
Total Cats: 5
Default

Mine is T'ed off the FPR, try that.
thesnowboarder is offline   Reply With Quote
Old 04-15-2009, 05:30 PM   #7
Elite AbsurdFlow Member

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Thumbs up

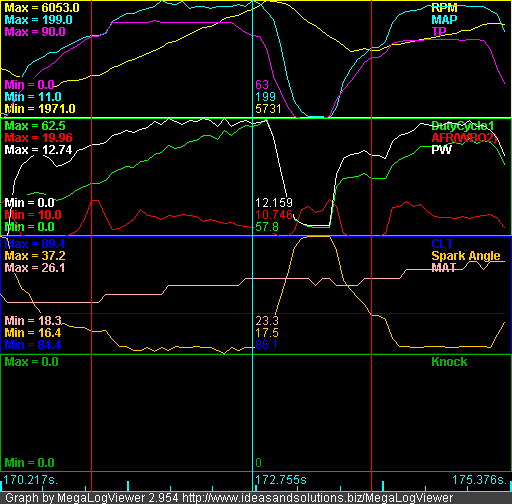

Mine off near/from the IM. The wastegate actuator is sourced from the compressor housing, I run no MBC or EBC:
Attached Thumbnails
Fluctuating WG pressure-graph.png
Laur3ns is offline   Reply With Quote
Old 04-19-2009, 12:41 AM   #8
Junior Member
iTrader: (9)

Join Date: Jan 2007
Posts: 455
Total Cats: 3
Default

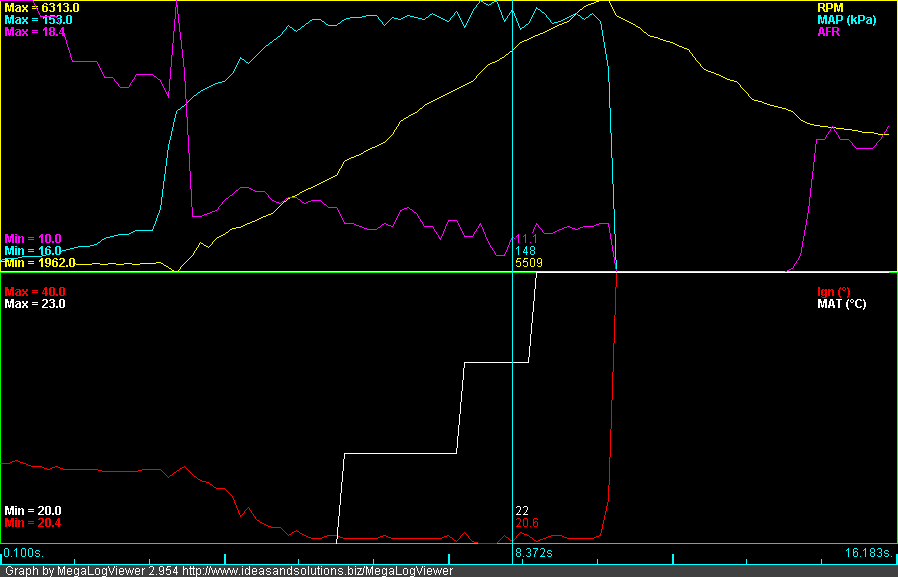

I tee'd off the small IM nipple below the brake booster line. Mine does something similar but not to the same extent. Will a line restrictor help? I've also got the 18.4 afr spike that I haven't been able to tune out.
Attached Thumbnails
Fluctuating WG pressure-4_16-run-4.png
sv650_ck is offline   Reply With Quote
Old 04-19-2009, 12:55 AM   #9
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

Its most likely back pressure man but its not bad enough to where you should need to worry about it.
magnamx-5 is offline   Reply With Quote
Old 04-19-2009, 01:39 AM   #10
Hittin' Boost & Cones
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

Go get urself one of those "universal" T fittings... don't cut it for the part going to your ecu so itll be a real tiny hole. That acts as a good enough restrictor to get you down to +- 3 kpa bounces if that.
240_to_miata is offline   Reply With Quote
Old 04-19-2009, 03:48 PM   #11
Elite Member
Thread Starter
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

I just glued a pop rivet into the 1/4" reducer. Going to try it now. Might even help that lean spike???
Stein is offline   Reply With Quote
Old 04-19-2009, 07:43 PM   #12
Elite Member
Thread Starter
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

Well, no joy on the pop rivet restrictor. It's possible the .060" hole was still too big. I can try smaller. Doesn't cost anything. Didn't notice any difference in how fast kPa's change either when you are on and off the throttle.

Magna mentioned backpressure. That is distinctly possible. I'm running 2 1/2" but it has a Flowmaster on it which I understand restricts flow. It came on the midpipe, so I thought I would try it. I'm planning on a Magnaflow soon.
Stein is offline   Reply With Quote
Old 04-22-2009, 01:18 PM   #13
Elite AbsurdFlow Member

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

To put things into perspective:

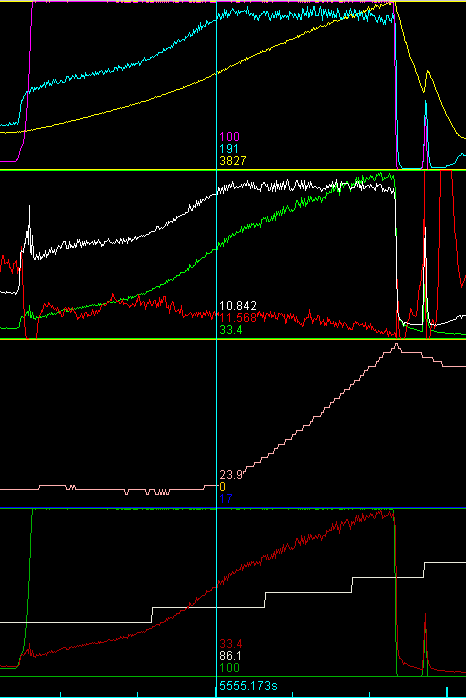

1) Stock CAT and **** exhaust, 7psi WG, EBC, load dyno
2) 3" Enthuza w/CAT, 14psi WG, no MBC/EBC, street

Conclusion: better spool (some 700rpm), flatter curve, less dropoff.
Attached Thumbnails
Fluctuating WG pressure-spookyfish-last-year-dyno-run.png   Fluctuating WG pressure-spookyfish-street-run.png
Laur3ns is offline   Reply With Quote
Old 04-22-2009, 01:30 PM   #14
Elite AbsurdFlow Member

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Damn, check the MAT increase on the dyno run. Back pressure is bad!
Laur3ns is offline   Reply With Quote
Old 04-22-2009, 02:57 PM   #15
Elite Member
Thread Starter
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

Yeah, can't wait to get the big honkin' Magnaflow. It's on order. The rest of the exhaust is 2 1/2" with FM stainlss Midpipe and FM high flow cat so should meet my needs.
Stein is offline   Reply With Quote
