Default FM turbo kit recirculate?

Hi I'm a noob to turbo miata, I got a fm2 kit, everytime when i let go a little of the gas the car shake, that is in any rpm higher than 1500. What can i do about it? I believe my bov is not recirculate, I don't see a recirculate line.

Thanks
jchiu is offline   Reply With Quote
Old 12-22-2010, 07:13 PM   #2
Junior Member
iTrader: (1)

Join Date: Jul 2010
Location: Tucson, AZ
Posts: 82
Total Cats: 0
Default

Quote:
Originally Posted by jchiu View Post
Hi I'm a noob
Pics of BOV?
lazyguy is offline   Reply With Quote
Old 12-22-2010, 09:12 PM   #3
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by lazyguy View Post
Pics of BOV?
I want to see his kneuter.
hustler is offline   Reply With Quote
Old 12-23-2010, 03:52 PM   #4
Newb
Thread Starter
iTrader: (1)

Join Date: Oct 2010
Posts: 16
Total Cats: 0
Default

I don't have a picture right now but its aps bov.
Which looks like this
http://www.vividracing.com/catalog/b...ti-p-4697.html
jchiu is offline   Reply With Quote
Old 12-23-2010, 03:56 PM   #5
Elite Member
iTrader: (7)

Join Date: Jul 2009
Location: Gainesville,Fl
Posts: 3,354
Total Cats: 7
Default

What does your BOV sound like?
turotufas is offline   Reply With Quote
Old 12-23-2010, 04:30 PM   #6
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

We need to know more about your car.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 12-23-2010, 10:41 PM   #7
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,812
Total Cats: 185
Default

If it looks like that, then it's simple. Take a hose, connect it to the end that vents to atmosphere, and connect the other end into the pipe between your MAF and your turbo compressor. Game over.
thirdgen is offline   Reply With Quote
Old 12-24-2010, 08:13 AM   #8
Newb
Thread Starter
iTrader: (1)

Join Date: Oct 2010
Posts: 16
Total Cats: 0
Default

I will post some pictures tommorrow. Thanks guys for helping me out.
jchiu is offline   Reply With Quote
Old 12-26-2010, 09:56 PM   #9
Newb
Thread Starter
iTrader: (1)

Join Date: Oct 2010
Posts: 16
Total Cats: 0
Default

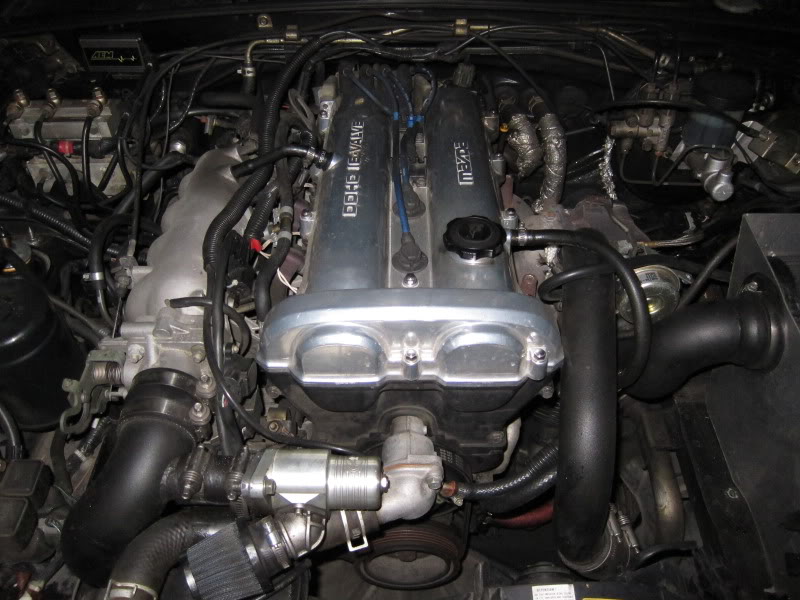

Name:  IMG_0828.jpg
Views: 2
Size:  89.1 KB

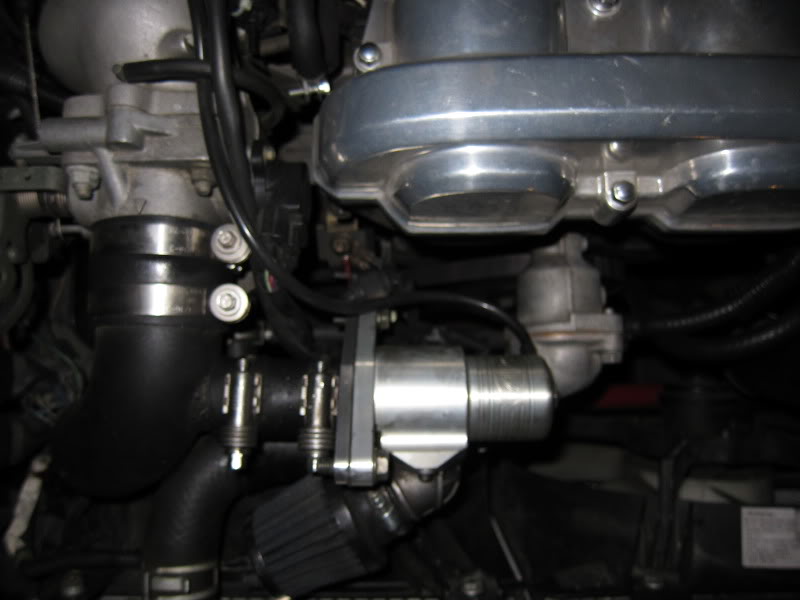

Name:  IMG_0827.jpg
Views: 2
Size:  44.0 KB

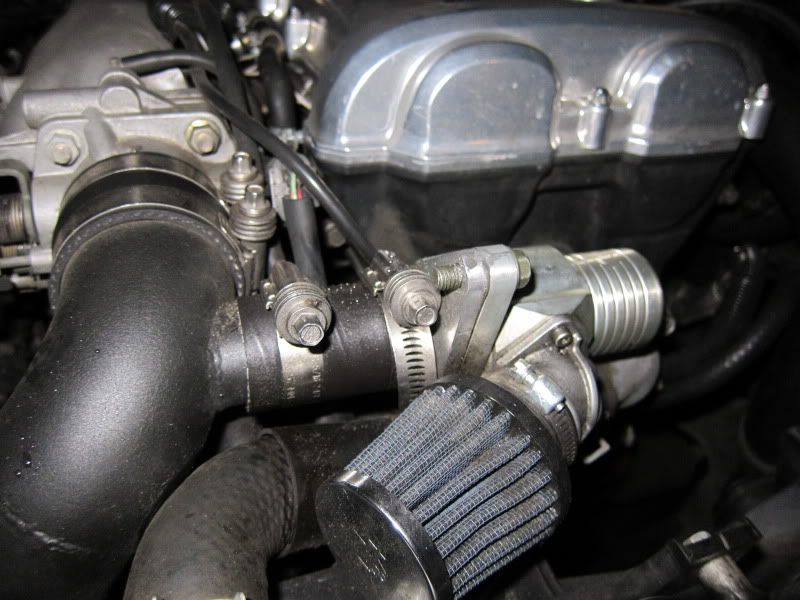

Name:  IMG_0826.jpg
Views: 3
Size:  87.1 KB

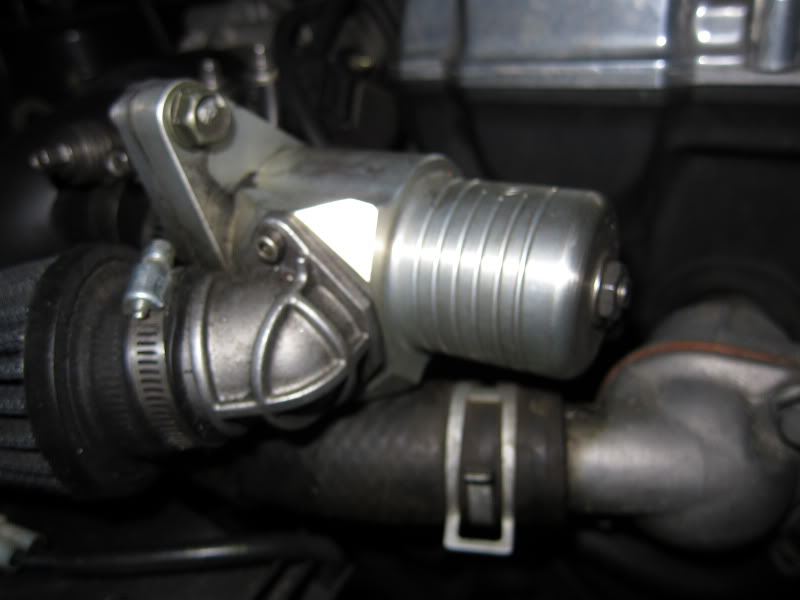

Name:  IMG_0824.jpg
Views: 2
Size:  36.7 KB

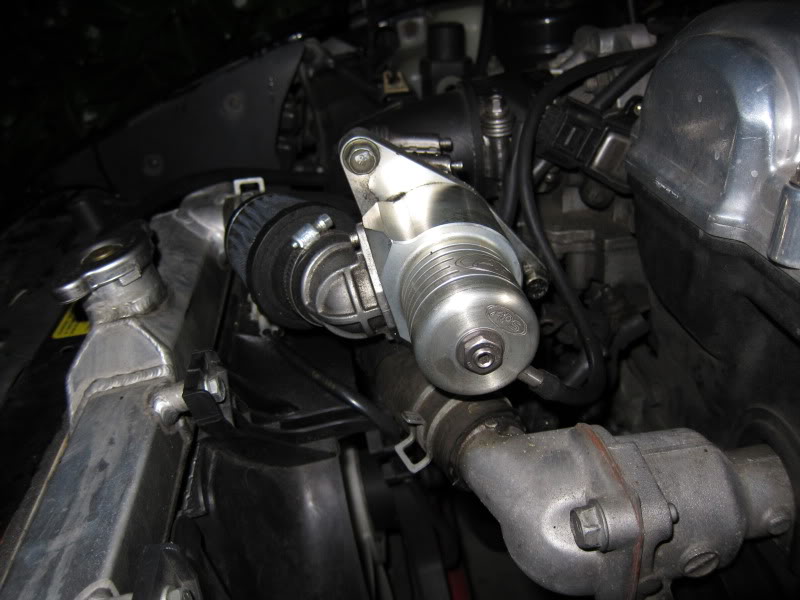

Name:  IMG_0823.jpg
Views: 2
Size:  64.6 KB

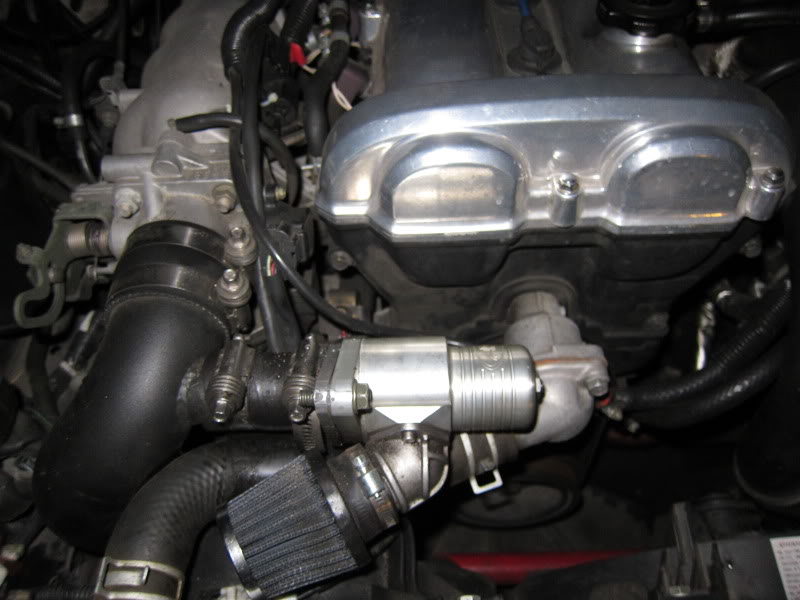

Name:  IMG_0822.jpg
Views: 2
Size:  62.0 KB

Here are the pictures, so what does it needs to get my car run normal and
is it possible to use a hks bov and the car still idles good?

Thanks
jchiu is offline   Reply With Quote
Old 12-27-2010, 05:31 AM   #10
Senior Member
iTrader: (9)

Join Date: Sep 2009
Location: Yamato Japan
Posts: 692
Total Cats: 26
Default

I'm gonna go out on a limb and say your problem has NOTHING to do with the BOV, see that filter, that's where your air leaves, it's not recirculate and I'm not really sure what made you think it was, or that is what caused your problem.
tasty danish is offline   Reply With Quote
Old 12-27-2010, 07:16 AM   #11
Junior Member

Join Date: Aug 2006
Location: Cedar City, UT
Posts: 228
Total Cats: 4
Default

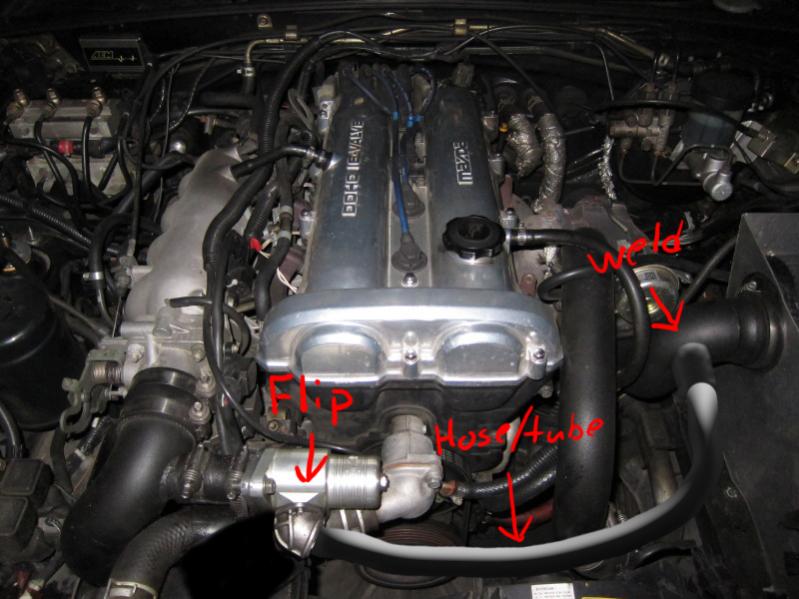

if your trying to make it recirculate, do this:


Attached Thumbnails
FM turbo kit recirculate?-3-copy.jpg
Dlaitini is offline   Reply With Quote
Old 12-27-2010, 07:35 AM   #12
Newb
Thread Starter
iTrader: (1)

Join Date: Oct 2010
Posts: 16
Total Cats: 0
Default

so what is causing the shake? im kinda lost here
jchiu is offline   Reply With Quote
Old 12-27-2010, 02:40 PM   #13
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

What are you using for fuel control? What does your wide and say while this "shaking" is happening?
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 12-27-2010, 05:34 PM   #14
Newb
Thread Starter
iTrader: (1)

Join Date: Oct 2010
Posts: 16
Total Cats: 0
Default

ecu im using fm2 link. I don't understand the second question you are asking, but basically everytime when i let go off the gas between 2k rpm or higher, the car "shake" for a second, it feels like there's a push from behind. This happens to my evo too, and i know that's because my bov doesn't recirculate.
jchiu is offline   Reply With Quote
Old 12-27-2010, 07:03 PM   #15
Junior Member

Join Date: Aug 2006
Location: Cedar City, UT
Posts: 228
Total Cats: 4
Default

sounds like maybe a broken motor mount or something.. the entire engine and drive train is twisting maybe?

if ecu related, acceleration settings?
Dlaitini is offline   Reply With Quote
Old 12-27-2010, 08:01 PM   #16
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Perhaps its getting too much fuel for the 20-30kpa range so it gets a bit of a kick as you're releasing the gas?

When you get off the throttle what does your boost gauge do?

The bov has nothing to do with this. Also how long does your bov vent for when you release the gas?
