Default FMU mounting with ABS

So I was out in the garage doing some preliminary fitting, and ran into the issue of where to mount the FMU. The normal spot is already taken by ABS and its lines. Anybody mount elsewhere, or run into the same problem? Anybody have pictures of alternate mounting? Thanks
Atlanta93LE is offline   Reply With Quote
Old 12-20-2006, 10:52 PM   #2
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Passenger shock tower mount works fine.

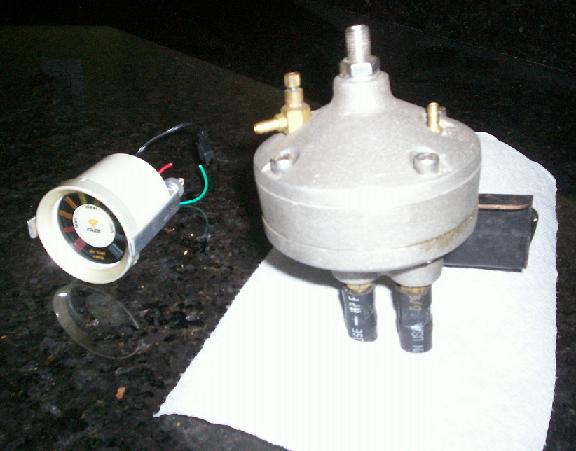

maybe expensivehobby will snap a pic of the fmu & bracket I sold to him

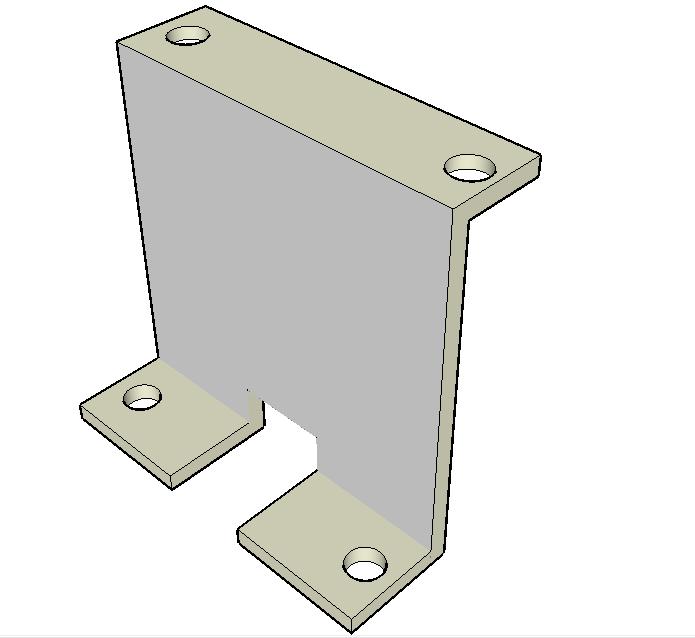

<edit> quick rendering of bracket not to any scale
Attached Thumbnails
FMU mounting with ABS-begifmu.jpg   FMU mounting with ABS-fmubracket.jpg

Last edited by Ben; 12-21-2006 at 12:11 AM. Reason: better rendering
Ben is offline   Reply With Quote
Old 12-20-2006, 11:40 PM   #3
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,819
Total Cats: 1,780
Default

here's an old pic of mine:



the BEGi unit fits, but required the use of zip-ties on the brake lines.
Braineack is online now   Reply With Quote
Old 12-20-2006, 11:47 PM   #4
Elite Member
Thread Starter
iTrader: (5)

Atlanta93LE's Avatar

Join Date: Sep 2006
Location: Marietta, GA
Posts: 2,198
Total Cats: 1
Default

Thanks guys. I'll try to play around some more tomorrow.
Atlanta93LE is offline   Reply With Quote
Old 12-20-2006, 11:48 PM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,819
Total Cats: 1,780
Default

you could also mount in the area above the shock mount.
Braineack is online now   Reply With Quote
Old 12-21-2006, 08:41 AM   #6
Senior Member

Join Date: Dec 2004
Posts: 1,450
Total Cats: -1
Default

I think I mounted mine to the charcoal cannister's bracket.
bripab007 is offline   Reply With Quote
Old 12-21-2006, 09:04 PM   #7
Newb

Join Date: Mar 2006
Location: Sacramento, CA
Posts: 44
Total Cats: 0
Default

ziptie it to the fuse box (that's what I did on my car w/no abs)...its a diaphram...why does it need to be solid?
Sactown_NA is offline   Reply With Quote
Old 12-21-2006, 09:13 PM   #8
Elite Member
Thread Starter
iTrader: (5)

Atlanta93LE's Avatar

Join Date: Sep 2006
Location: Marietta, GA
Posts: 2,198
Total Cats: 1
Default

My setup will be pretty ghetto to start with...I'd prefer to avoid zipties on the AFPR, even though it would work just fine that way
Atlanta93LE is offline   Reply With Quote
Old 12-22-2006, 03:37 AM   #9
Newb

Join Date: Mar 2006
Location: Sacramento, CA
Posts: 44
Total Cats: 0
Default

Don't be afraid.....you have to learn to trust the zip ties

We all know that the more zipties are on your car.....the more jdm you are

You should see my AE86's front end.....
Sactown_NA is offline   Reply With Quote
Old 12-22-2006, 09:48 AM   #10
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,819
Total Cats: 1,780
Default

Quote:
Originally Posted by Sactown_NA View Post
We all know that the more zipties are on your car.....the more jdm you are

correction...the more - streched / slammed / carbon you are the more JDM.
Braineack is online now   Reply With Quote
Old 12-22-2006, 11:04 AM   #11
Elite Member
Thread Starter
iTrader: (5)

Atlanta93LE's Avatar

Join Date: Sep 2006
Location: Marietta, GA
Posts: 2,198
Total Cats: 1
Default

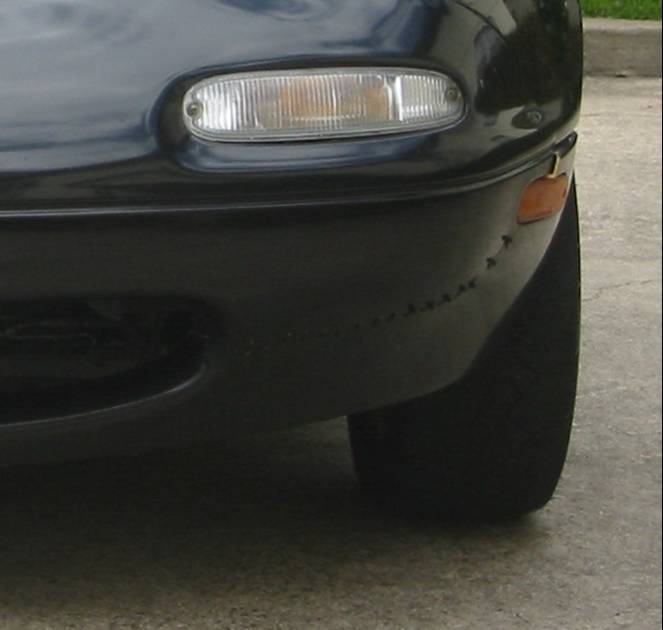

I'm currently removing the giant zip-tie repair of the front bumper that the PO did such a lovely job on. I had a Frankenbumper.

Gives me a chance to repaint it, though, which should be fun.
Attached Thumbnails
FMU mounting with ABS-bumper_before.jpg

Last edited by Atlanta93LE; 12-22-2006 at 11:07 AM. Reason: add picture
Atlanta93LE is offline   Reply With Quote
Old 12-22-2006, 05:50 PM   #12
Senior Member

Join Date: Apr 2005
Location: NAS Oceana/VA
Posts: 759
Total Cats: 0
Default

You could just rip out the ABS since it sucks.
getsidewaysd1 is offline   Reply With Quote
Old 12-23-2006, 06:12 PM   #13
Junior Member

Join Date: Aug 2005
Location: Iowa
Posts: 338
Total Cats: 0
Default

its actually proven to help you stop better.

wow, my first post...
Mouglie is offline   Reply With Quote
Old 12-23-2006, 07:27 PM   #14
I'm Miserable!
iTrader: (5)

Join Date: Sep 2005
Location: SLC, Utah
Posts: 1,591
Total Cats: 0
Default

Quote:
Originally Posted by MikeD View Post
A good enough driver can outbrake ABS...

ATL93LE did you figure out a mounting spot?
yes, with engine braking and non-abs brakes it is not hard.
zoom2zoom is offline   Reply With Quote
Old 12-23-2006, 08:08 PM   #15
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,819
Total Cats: 1,780
Default

engine braking...... Just modulate them suckers. The advantage with Non-ABS is the pedal feel. Although I finally got mine to where I'm 100% satisfied with them, a little soft to the touch, but I can smack my head on the steering wheel if I'm not careful.
Braineack is online now   Reply With Quote
Old 12-23-2006, 10:09 PM   #16
Elite Member
iTrader: (14)

Join Date: Mar 2006
Location: Edmonton, AB
Posts: 4,921
Total Cats: 0
Default

ABS means no flat spots. I'll take that with expensive V710's.

The only time you will out brake ABS is in dry, and only if you mash your foot to the floor. If you brake to the threshold of the ABS it's the same as doing it to the threshold of lockup.

ABS for teh win in the wet of snow.

Jay
jayc72 is offline   Reply With Quote
Old 12-24-2006, 02:04 AM   #17
Elite Member
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

Quote:
Originally Posted by jayc72 View Post
The only time you will out brake ABS is in dry
Thank you Jay, I'm glad somebody else said it. Once you get off smooth dry ashpalt, a person simply isn't better than ABS.
In perfect conditions, warm day, sticky tires, right surface, a person can beat the ABS... but try that same surface on 400 treadwear when it's 30* out.
samnavy is offline   Reply With Quote
