Default Full tilt interfooler!

So yesterday me and full tilt finally both had a free day to get things done and were able to knock out notching my block which ive been putting off way to long and we got the intercooler put on his car after a bit of a wait on that as well.

Im sure he will be around soon to post picks but i dont have any and i suck with cameras anyway.

TOM! Get some pics!
Tw34k is offline   Reply With Quote
Old 02-27-2010, 02:12 PM   #2
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,685
Total Cats: 216
Default

I haz no batteries for my camera
But Ill take some asap

You should snap some pictures of the block notching

We took it out for the first inercooled test ride last night at about midnight and promptly blew both charge pipes off, which was pretty exciting.
Even more reason to work on an MS, so if that happens again the car will still run and I wont have to fix it on the side of the road like we did last night.
Full_Tilt_Boogie is offline   Reply With Quote
Old 02-27-2010, 02:46 PM   #3
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,685
Total Cats: 216
Default

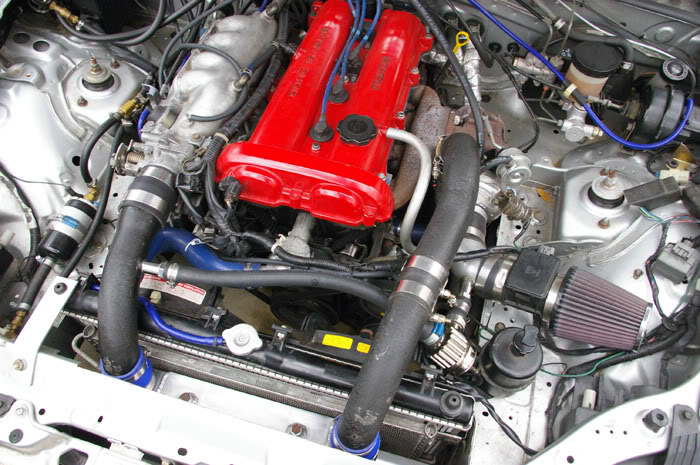

Name:  IMGP3905_small.jpg
Views: 2
Size:  107.0 KB

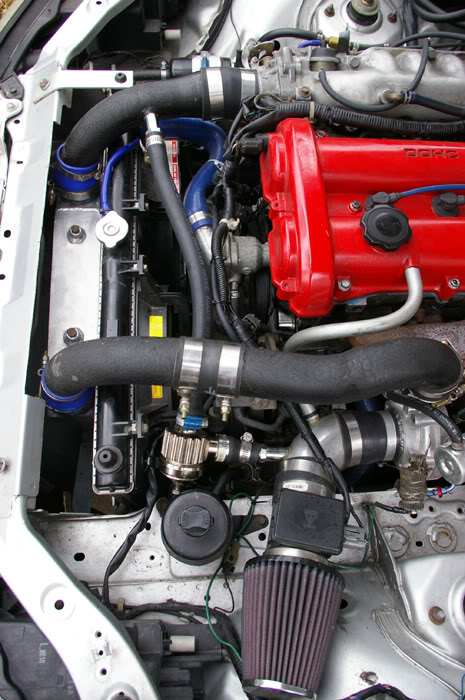

Name:  IMGP3910_small.jpg
Views: 4
Size:  94.8 KB

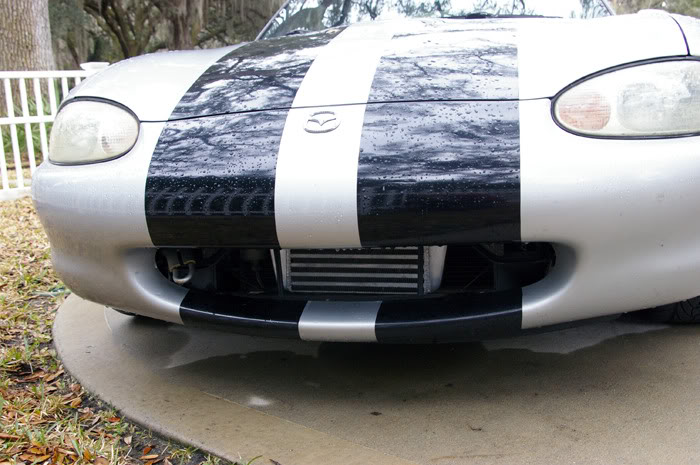

Name:  IMGP3911_small.jpg
Views: 4
Size:  78.4 KB

Now my car doesnt suck quite as hard
Full_Tilt_Boogie is offline   Reply With Quote
Old 02-27-2010, 03:20 PM   #4
Junior Member
Thread Starter

Join Date: Nov 2009
Location: Jax Fl
Posts: 469
Total Cats: 30
Default

now all we gotta do is your spacer and you can haz mad boostz
Tw34k is offline   Reply With Quote
Old 02-27-2010, 03:26 PM   #5
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,199
Total Cats: 2,584
Default

welcome to the "over the rad" family
18psi is offline   Reply With Quote
Old 02-27-2010, 03:34 PM   #6
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,685
Total Cats: 216
Default

Yah, I had it easy, I bought everything already made from some guy on ebay. I think he used to be a member on here several years ago.

The cold side piping is touching the radiator, which makes me a little concerned that it will rub a hole in it. So I may remake it, which will also allow me to add a Greddy type-s falnge so I can run a BOV that doenst suck (I.e. Forge motorsports)
Full_Tilt_Boogie is offline   Reply With Quote
Old 02-27-2010, 03:41 PM   #7
Elite Member
iTrader: (2)

miata2fast's Avatar

Join Date: Aug 2009
Location: Dover, FL
Posts: 2,901
Total Cats: 109
Default

Looks pretty awsome. Nice work.
miata2fast is offline   Reply With Quote
Old 02-27-2010, 03:43 PM   #8
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,199
Total Cats: 2,584
Default

Quote:
Originally Posted by Full_Tilt_Boogie View Post
Yah, I had it easy, I bought everything already made from some guy on ebay. I think he used to be a member on here several years ago.

The cold side piping is touching the radiator, which makes me a little concerned that it will rub a hole in it. So I may remake it, which will also allow me to add a Greddy type-s falnge so I can run a BOV that doenst suck (I.e. Forge motorsports)
forge sucks? the hell??? forge makes good ****. I LOVE my forge bov
18psi is offline   Reply With Quote
Old 02-27-2010, 03:55 PM   #9
Junior Member
Thread Starter

Join Date: Nov 2009
Location: Jax Fl
Posts: 469
Total Cats: 30
Default

The functionality of the bov is fine, its just the pita way its mounted and it does not look the best hanging by heater hose. I think he wants something more hardmounted with maybe just one hose coming from the end.
Tw34k is offline   Reply With Quote
Old 02-27-2010, 04:00 PM   #10
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,685
Total Cats: 216
Default

Yah should have been more clear
Its not really the BOV's fault, I think it was designed as a factory replacement for an Audi.
But on my setup its a pain, took us half an hour to sqeeze a 3/4" ID peice of heater hose over the end of the 1" OD inlet of the BOV, haha.

Which one are you running 18psi?

Im thinking of getting a Greddy Type-S knockoff like this,
JDM TYPE RS S TURBO BLOW OFF VALVE BOV BYPASS CIRCULATE : eBay Motors (item 200442750510 end time Feb-27-10 17:54:39 PST)
and have it hanging off the bottom of the cold side pipe, with a piece of heater hose going over to the turbo inlet, then when I ditch the AFM I can just take the hose off and vent to amto.
Full_Tilt_Boogie is offline   Reply With Quote
Old 02-27-2010, 04:05 PM   #11
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,199
Total Cats: 2,584
Default

No idea what its called, but here:


Got it used, came with 4 different pressure springs, works great, and sounds nice IMO
18psi is offline   Reply With Quote
Old 02-27-2010, 05:03 PM   #12
Senior Member
iTrader: (8)

Join Date: Feb 2009
Location: Jax, Fl
Posts: 907
Total Cats: 0
Default

Looks good congrats
johnmatt is offline   Reply With Quote
Old 02-27-2010, 05:50 PM   #13
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

Good to see more Jax members getting their cars sorted.
kotomile is offline   Reply With Quote
Old 03-01-2010, 12:44 PM   #14
Junior Member
iTrader: (1)

Join Date: Jan 2009
Posts: 107
Total Cats: 0
Default

I'm sorry in advance if I end up hijacking this thread but did you have to space your rad to get clearance for the IC piping? I have an ungodly amount of piping for my setup and would love to do an over the rad IC.
TheMcCoy14 is offline   Reply With Quote
Old 03-01-2010, 12:48 PM   #15
Junior Member
iTrader: (1)

Join Date: Jan 2009
Posts: 107
Total Cats: 0
Default

found 18psi's build thread... got it.
TheMcCoy14 is offline   Reply With Quote
Old 03-01-2010, 12:54 PM   #16
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,685
Total Cats: 216
Default

18 did it a littler differently than I did.

All I did was remount the lower radiator brackets to the same holes used for the sway bar bracket, which lowers it down a few inches. The I tilted it back a little with the brackets.

18 moved the whole thing backwards which requires lowering the sway bar brackets too.
Full_Tilt_Boogie is offline   Reply With Quote
Old 03-01-2010, 03:05 PM   #17
Junior Member
iTrader: (1)

Join Date: Oct 2009
Location: SOUTHERN MOST USA
Posts: 109
Total Cats: 0
Question Lowering swaybar brkts

''which requires lowering the sway bar brackets too.''

Wouldn't that change steering geometry???????
Luigi.
luigi is offline   Reply With Quote
Old 03-01-2010, 03:26 PM   #18
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,685
Total Cats: 216
Default

It wouldnt change the geometry, but it would change the effectiveness of the sway bar.
