Default garret turbo question

Hey, I'm new to these forums. I just bought a 2001 miata yesterday that came turboed and with an aquamist WI kit. the turbo seems to be pretty big for a 1.8L. All I could see on the compressor housing was "M24 A/R 60" I'm wondering if anyone knows anything about this turbo and what is comparable to. I have a DB 16g in my WRX, and the Miata turbo seems to be bigger

Any thoughts?
Piranah is offline   Reply With Quote
Old 05-27-2007, 10:10 PM   #2
Newb

Join Date: Apr 2007
Posts: 2
Total Cats: 0
Default Possible identification

Hey- did a quick search, it may be off of a twin turbo 300zx.

http://seattle.craigslist.org/sno/pts/338372279.html

It should be a t3 .60/.63 AR. I picked one up cheap from ebay, having it rebuilt at Alamo Turbo.
robomeme is offline   Reply With Quote
Old 05-27-2007, 10:19 PM   #3
Junior Member

Join Date: May 2007
Posts: 112
Total Cats: 0
Default

that's not syaing much if the turbo int he miata is bigger than the one in your wrx...wrx turbos are not big at all..basically the same size as a 1.6 greddy turbo...aka mittsubishi 15g-tdo4h.
MiazdaBLUE is offline   Reply With Quote
Old 05-27-2007, 10:19 PM   #4
Newb
Thread Starter

Join Date: May 2007
Location: Alamogordo, NM
Posts: 43
Total Cats: 0
Default

It could be a 300zx turbo. But it looks brand spankin new. And because it says "Garrett" on it, my thoughts are that it's new. could be off ebay though. not totally sure.
Piranah is offline   Reply With Quote
Old 05-27-2007, 10:20 PM   #5
Newb
Thread Starter

Join Date: May 2007
Location: Alamogordo, NM
Posts: 43
Total Cats: 0
Default

Well, It's not the stock turbo in the WRX, it's a Deadbolt superzilla 16g. and I think the miata one is slightly bigger.
Piranah is offline   Reply With Quote
Old 05-27-2007, 10:28 PM   #6
Junior Member

Join Date: May 2007
Posts: 112
Total Cats: 0
Default

ohhh, whoops sorry i musta read right over that.
MiazdaBLUE is offline   Reply With Quote
Old 05-27-2007, 10:40 PM   #7
Newb
Thread Starter

Join Date: May 2007
Location: Alamogordo, NM
Posts: 43
Total Cats: 0
Default

I have a friend who thinks that it's a KKK turbo. Any thoughts?
Piranah is offline   Reply With Quote
Old 05-28-2007, 12:05 AM   #8
Senior Member
iTrader: (2)

Join Date: May 2007
Location: Tampa, Florida
Posts: 502
Total Cats: 0
Default

Its not a triple K turbo unless it has triple K written on it. Garret and KKK are 2 different companies.
Does it look like this?

then its either a T2560 T2860 or T3 Super 60, based on your description I will go with T28

Last edited by drewbroo; 05-28-2007 at 03:22 AM.
drewbroo is offline   Reply With Quote
Old 05-28-2007, 12:12 AM   #9
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,851
Total Cats: 1,788
Default

it looks like a t3 with one of the larger wheels....

take the compressor housing off, (6) 13mm bolts, and measure the inducer.....
Braineack is offline   Reply With Quote
Old 05-28-2007, 06:34 AM   #10
Newb
Thread Starter

Join Date: May 2007
Location: Alamogordo, NM
Posts: 43
Total Cats: 0
Default

It looks exactly like the turbo pictured. After looking more closley at the manifold and assuming that most basic turbo manifold are a T3 footprint, I've come to the conclusion that it is a T2860. Still not completely sure. but it works.
Piranah is offline   Reply With Quote
Old 05-28-2007, 06:38 AM   #11
Senior Member
iTrader: (2)

Join Date: May 2007
Location: Tampa, Florida
Posts: 502
Total Cats: 0
Default

2860 is a nice turbo, its a good middle ground between a 25 and T3, and if its a BB its also super fast spooling. (Disco Potato) Begi makes a nice SS manifold for a T28 now too.
drewbroo is offline   Reply With Quote
Old 05-28-2007, 12:37 PM   #12
Senior Member

Join Date: Mar 2006
Posts: 1,379
Total Cats: 1
Default

looks like the 2560 FM uses.

Mark
Markp is offline   Reply With Quote
Old 05-28-2007, 02:03 PM   #13
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,851
Total Cats: 1,788
Default

Quote:
Originally Posted by Piranah View Post
It looks exactly like the turbo pictured. After looking more closley at the manifold and assuming that most basic turbo manifold are a T3 footprint, I've come to the conclusion that it is a T2860. Still not completely sure. but it works.

if it has a T3 footprint, then it's a t3....
Braineack is offline   Reply With Quote
Old 05-28-2007, 04:12 PM   #14
Junior Member
iTrader: (1)

Join Date: Oct 2004
Location: Haarlem ,the Netherlands
Posts: 453
Total Cats: 0
Default

Got a pic???
greddymx5 is offline   Reply With Quote
Old 05-28-2007, 05:11 PM   #15
Newb
Thread Starter

Join Date: May 2007
Location: Alamogordo, NM
Posts: 43
Total Cats: 0
Default

I'll get a pic up in a minute here. I'm still confused.
Piranah is offline   Reply With Quote
Old 05-28-2007, 05:14 PM   #16
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,851
Total Cats: 1,788
Default

well hurry up!!
Braineack is offline   Reply With Quote
Old 05-28-2007, 07:42 PM   #17
Newb
Thread Starter

Join Date: May 2007
Location: Alamogordo, NM
Posts: 43
Total Cats: 0
Default

Here are the pics!

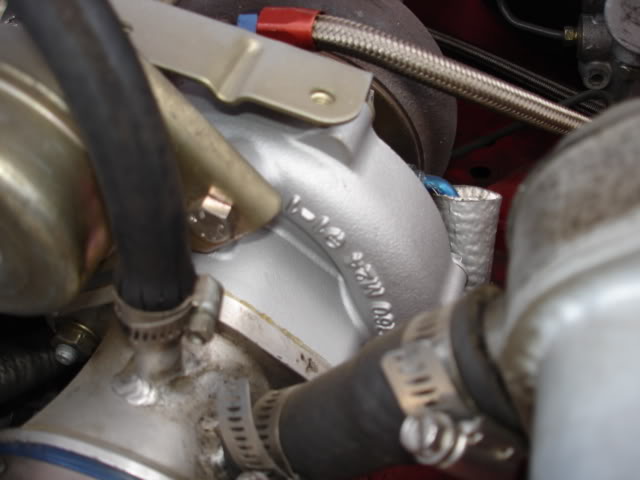

Name:  CarlaGraduation092.jpg
Views: 4
Size:  35.3 KB

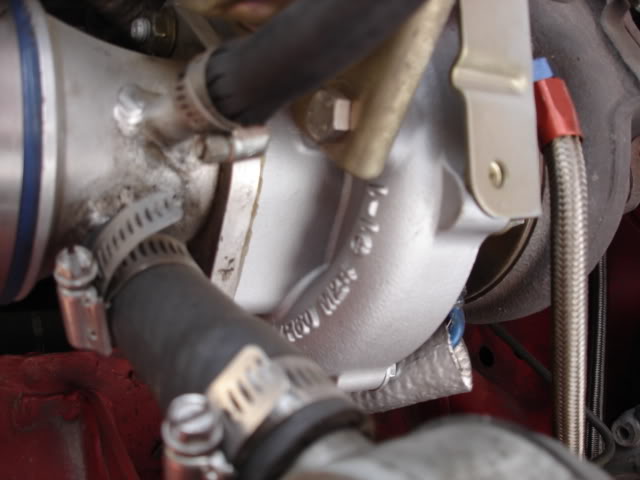

Name:  CarlaGraduation096.jpg
Views: 4
Size:  36.7 KB

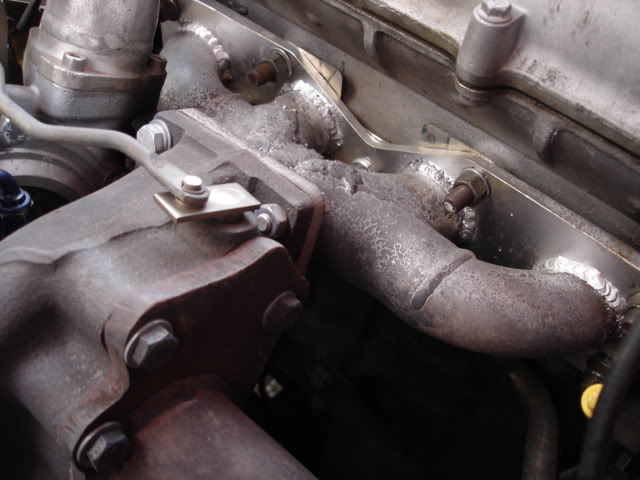

Name:  CarlaGraduation094.jpg
Views: 5
Size:  48.2 KB

Name:  CarlaGraduation090.jpg
Views: 4
Size:  74.5 KB
Piranah is offline   Reply With Quote
Old 05-28-2007, 09:38 PM   #18
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,851
Total Cats: 1,788
Default

looks like a T3 to me....

the blocked wategate port has me a bit confused....
Braineack is offline   Reply With Quote
Old 05-28-2007, 09:40 PM   #19
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,851
Total Cats: 1,788
Default

can you take an overall shot of the whole turbo and then of the setup?
Braineack is offline   Reply With Quote
Old 05-28-2007, 10:09 PM   #20
Senior Member

Join Date: Mar 2006
Posts: 1,379
Total Cats: 1
Default

Quote:
Originally Posted by Braineack View Post
looks like a T3 to me....

the blocked wategate port has me a bit confused....
T3's don't normally have the wastegate cast into them.

Mark
