Old 10-30-2011, 07:47 PM   #21
Senior Member
iTrader: (3)

Join Date: Nov 2009
Location: Royal Palm Beach, FL
Posts: 725
Total Cats: 5
Default

i have a t3 50trim "emusa" turbo from ebay. 180 shipped... brain has the same turbo and has been running it longer than me. he made 234ish hp at 14psi i believe. street car, just get a churbo. what are your goals? win a championship race, have a turbo miata or say you have super cool expensive parts?
Clos561 is offline   Reply With Quote
Old 10-30-2011, 08:37 PM   #22
Elite Member

Join Date: Feb 2008
Location: Victoria, BC
Posts: 2,322
Total Cats: 12
Default

My godspeed gt28 is still running like a champ. Awesome power too.
dustinb is offline   Reply With Quote
Old 10-30-2011, 08:43 PM   #23
Junior Member
Thread Starter
iTrader: (2)

Join Date: Jun 2011
Location: Tyler, TX
Posts: 254
Total Cats: 0
Default

At least 300 whp. I'm aiming for 340 with water/meth.
85z28 is offline   Reply With Quote
Old 10-31-2011, 11:29 AM   #24
Elite Member

Join Date: Feb 2008
Location: Victoria, BC
Posts: 2,322
Total Cats: 12
Default

Quote:
Originally Posted by 85z28 View Post
At least 300 whp. I'm aiming for 340 with water/meth.
I'd be switching up to a T3 turbo at this point.
dustinb is offline   Reply With Quote
Old 10-31-2011, 11:39 AM   #25
I'm Miserable!

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

Quote:
Originally Posted by 85z28 View Post
At least 300 whp. I'm aiming for 340 with water/meth.
why water\meth at 340? I wouldn't use water\meth until you are knock limited.
You have a built engine?
Techsalvager is offline   Reply With Quote
Old 10-31-2011, 11:43 AM   #26
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,813
Total Cats: 1,780
Default

Quote:
Originally Posted by Clos561 View Post
i have a t3 50trim "emusa" turbo from ebay. 180 shipped... brain has the same turbo and has been running it longer than me. he made 234ish hp at 14psi i believe. street car, just get a churbo. what are your goals? win a championship race, have a turbo miata or say you have super cool expensive parts?

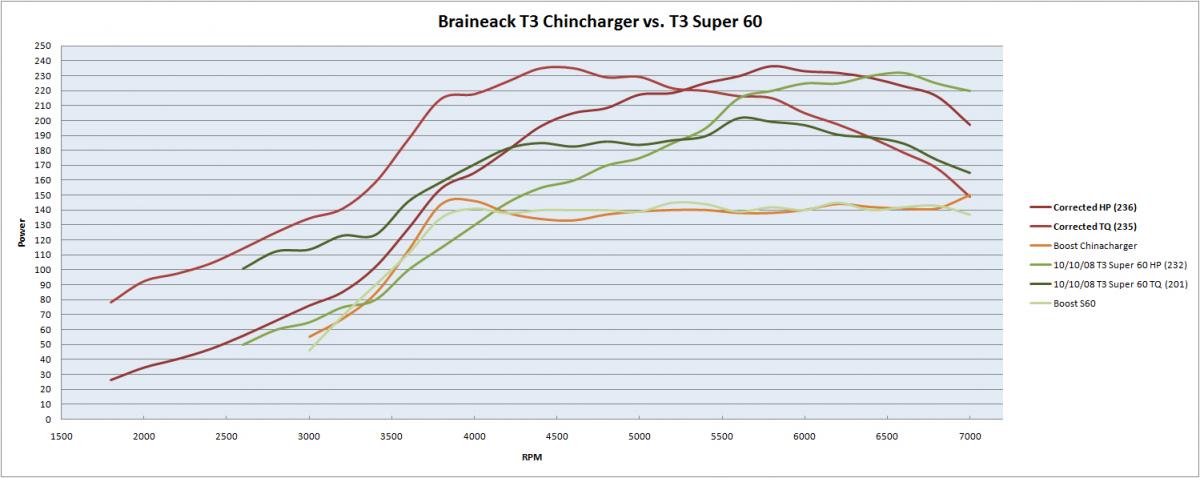

I'll gladly give up any top-end gains for a mid-range like that. I still want moar better down low...I'd downgrade it further if I could, but alas, this is about as small as it gets on a T3 flange.
Attached Thumbnails
Garrett or Chinacharger?-nov_13_2010_china_vs_nov_10_2008_garrett.jpg
Braineack is online now   Reply With Quote
Old 10-31-2011, 11:46 AM   #27
I'm Miserable!

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

I've seen that dyno before but iirc you had changes between the turbos, it maybe same pressure but I'm guesing actual airflow isn't the same.
Techsalvager is offline   Reply With Quote
Old 10-31-2011, 11:51 AM   #28
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,813
Total Cats: 1,780
Default

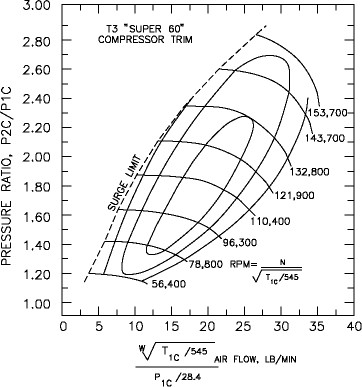

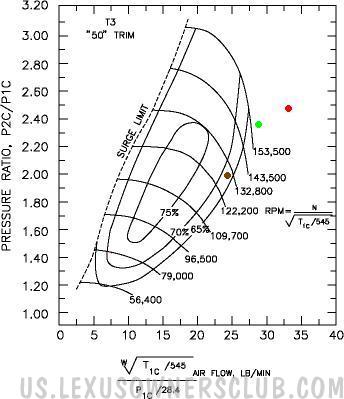

yeah, the compressor wheel is significantly smaller, so the torque curve has moved to the left. This compressor wheel outputs more like a 2554 (25 lb/min) vs a 2560 (35 lb/min).








Keep in mind the dynos were different and the red line has correction, but you can clearly see the chinacharger is better sized for my 1.6L motor.
Attached Thumbnails
Garrett or Chinacharger?-gallery_744_183_1130390642.jpg   Garrett or Chinacharger?-t3super60.jpg
Braineack is online now   Reply With Quote
Old 10-31-2011, 04:14 PM   #29
Junior Member
Thread Starter
iTrader: (2)

Join Date: Jun 2011
Location: Tyler, TX
Posts: 254
Total Cats: 0
Default

I'm working on getting my parts together. It just seems like a lot of people are having problems breaking 300. But now knowing what I know, would a 2876 be a better option than the 2871?
85z28 is offline   Reply With Quote
Old 10-31-2011, 04:17 PM   #30
I'm Miserable!

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

breaking 300 or breaking an engine?
Do you have upgraded internals?
Techsalvager is offline   Reply With Quote
Old 10-31-2011, 04:22 PM   #31
Junior Member
Thread Starter
iTrader: (2)

Join Date: Jun 2011
Location: Tyler, TX
Posts: 254
Total Cats: 0
Default

I will have a forged bottom end and a head with oversized valves before all is said and done.
85z28 is offline   Reply With Quote
Old 10-31-2011, 04:28 PM   #32
I'm Miserable!

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

Than if you want to hit 340 find a turbo that will be in its efficiency zone at that power output.
Techsalvager is offline   Reply With Quote
Old 10-31-2011, 04:32 PM   #33
Elite Member

Join Date: Feb 2008
Location: Victoria, BC
Posts: 2,322
Total Cats: 12
Default

Quote:
Originally Posted by 85z28 View Post
I'm working on getting my parts together. It just seems like a lot of people are having problems breaking 300. But now knowing what I know, would a 2876 be a better option than the 2871?
I don't think people have problems breaking 300, it's just that most people choose not to go that high.
dustinb is offline   Reply With Quote
Old 10-31-2011, 04:47 PM   #34
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,682
Total Cats: 216
Default

Quote:
Originally Posted by dustinb View Post
I don't think people have problems breaking 300, it's just that most people choose not to go that high.
Bingo.
Full_Tilt_Boogie is offline   Reply With Quote
Old 10-31-2011, 04:50 PM   #35
Junior Member
Thread Starter
iTrader: (2)

Join Date: Jun 2011
Location: Tyler, TX
Posts: 254
Total Cats: 0
Default

Hmmm..... okay, thenI'll stick with the 2871.
85z28 is offline   Reply With Quote
Old 11-07-2011, 10:15 PM   #36
I'm Miserable!

Join Date: Nov 2011
Posts: 44
Total Cats: -12
Smile

Quote:
Originally Posted by Wildanimal View Post
I upgraded to a Garrett T3 .60/.63 57 Trim and it was useless. Great turbo but too much for a 1.6 on the street. IMO, proper sizing of a turbo is more important than the name on it. I would buy another china charger in a heart beat.
What is your description of "too much for a 1.6 on the street?" 2/10's of a liter make no difference.

Instead of bouncing around from turbo to turbo you hopefully understand that turbo size/selection should be made on what your final goal's are. I would/will and have chosen Garrett over other turbo's simply because they are a proven product. Yes sometime's I got pulled by a car length or two simply because I did not want to abuse my clutch or half-shaft's in my T66 MR2T but I quickly made up those lost length's and walked away.

Well that was before I became a police officer but my point is just choose what you want to achieve with the car and save yourself alot of money and hassle in the long term. Also imho any highly boosted engine should have an EMS that you can program boost level's via the gear or rpm for maximum traction.
texasmr2 is offline   Reply With Quote
Old 11-08-2011, 01:49 AM   #37
Elite Member

Join Date: Feb 2008
Location: Victoria, BC
Posts: 2,322
Total Cats: 12
Default

Quote:
Originally Posted by texasmr2 View Post
What is your description of "too much for a 1.6 on the street?" 2/10's of a liter make no difference.

Instead of bouncing around from turbo to turbo you hopefully understand that turbo size/selection should be made on what your final goal's are. I would/will and have chosen Garrett over other turbo's simply because they are a proven product. Yes sometime's I got pulled by a car length or two simply because I did not want to abuse my clutch or half-shaft's in my T66 MR2T but I quickly made up those lost length's and walked away.

Well that was before I became a police officer but my point is just choose what you want to achieve with the car and save yourself alot of money and hassle in the long term. Also imho any highly boosted engine should have an EMS that you can program boost level's via the gear or rpm for maximum traction.
Actually 2/10's of a litre does make a difference.
dustinb is offline   Reply With Quote
Old 11-08-2011, 02:47 AM   #38
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,353
Total Cats: 1,319
Default

I made 300whp at 14psi on a 2871. I think that turbo will do 400whp.
Savington is offline   Reply With Quote
Old 11-08-2011, 03:02 AM   #39
Junior Member
Thread Starter
iTrader: (2)

Join Date: Jun 2011
Location: Tyler, TX
Posts: 254
Total Cats: 0
Default

Savington, always stepping in and telling me what I want to hear.
85z28 is offline   Reply With Quote
Old 11-08-2011, 10:44 AM   #40
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,813
Total Cats: 1,780
Default

Quote:
Originally Posted by dustinb View Post
Actually 2/10's of a litre does make a difference.
especially when you are bolting on a 450rwhp turbo.
Braineack is online now   Reply With Quote
