Old 11-13-2006, 12:52 PM   #21
Senior Member
Thread Starter

Join Date: Mar 2006
Posts: 1,379
Total Cats: 1
Default

Quote:
Originally Posted by Sirnixalot View Post
any chance you could take some pix of the trigger wheel and mag sensor on the motor?

im trying to get some ideas for when i get back to fab up the mount for the mag sensor
I will get some but it's a standard RM mounting kit.

Mark
Markp is offline   Reply With Quote
Old 11-13-2006, 12:54 PM   #22
Senior Member

Join Date: Mar 2005
Location: Holiday, FL
Posts: 563
Total Cats: 0
Default

how about some pics in general of your setup, can't say I've ever seen any before and am curious.
Fritch is offline   Reply With Quote
Old 11-13-2006, 01:00 PM   #23
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,479
Total Cats: 248
Default

Yeah same here.
TurboTim is offline   Reply With Quote
Old 11-13-2006, 01:02 PM   #24
Senior Member
Thread Starter

Join Date: Mar 2006
Posts: 1,379
Total Cats: 1
Default

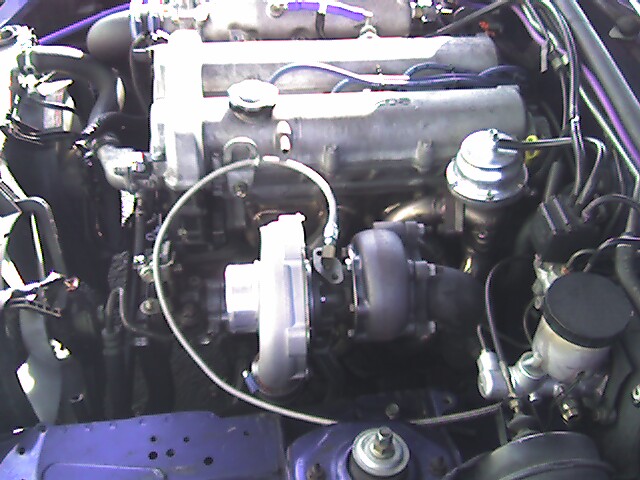

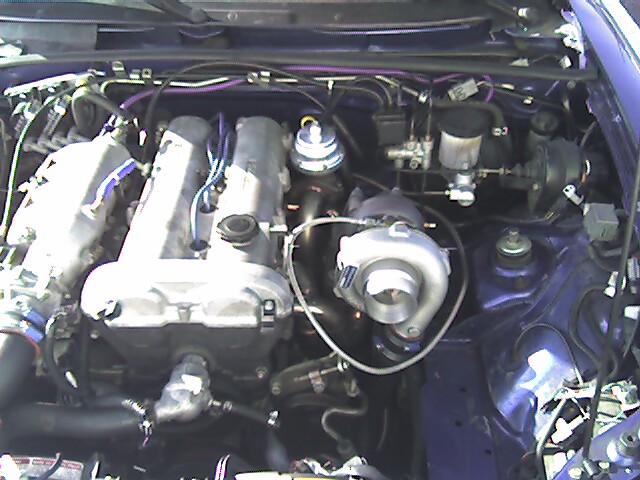

Here are some pics, crappy camera phone pics for now.... better ones later.
Attached Thumbnails
The Ghettocharger Lives!-ghetto1.jpg   The Ghettocharger Lives!-ghetto2.jpg
Markp is offline   Reply With Quote
Old 11-13-2006, 01:29 PM   #25
Junior Member

Join Date: Oct 2006
Posts: 312
Total Cats: 0
Default

How would a failed WG blow the motor? Wouldnt you have to not notice the high boost?
beerslurpy is offline   Reply With Quote
Old 11-13-2006, 02:32 PM   #26
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,236
Total Cats: 288
Default

Is your wastegate pipe dumping or routed back to exhaust?

Last edited by m2cupcar; 11-13-2006 at 04:21 PM.
m2cupcar is offline   Reply With Quote
Old 11-13-2006, 02:35 PM   #27
Elite Member
iTrader: (8)

Join Date: Sep 2006
Location: Severn, MD
Posts: 1,927
Total Cats: 5
Default

Quote:
Originally Posted by beerslurpy View Post
How would a failed WG blow the motor? Wouldnt you have to not notice the high boost?
Not like you can't hear it opening or something. I guess it's a matter of how quick you react to a nonfunctioning EWG. There's not much to 'em. The spring either works or it doesn't. Worst case it leaks and bleeds off too much boost.

Frank
fmowry is offline   Reply With Quote
Old 11-13-2006, 02:40 PM   #28
Senior Member
Thread Starter

Join Date: Mar 2006
Posts: 1,379
Total Cats: 1
Default

Quote:
Originally Posted by m2cupcar View Post
Is you're wastegate pipe dumping or routed back to exhaust?
It's a dump, so in my case, it would be hard to miss. However initially I had not planned it that way. I have seen wastegates stick (bad design and actually a BEGi wastegate for that matter) and the results as motors spooled past 20 PSI. Now do I think it would happen to me... nah, but originally I was planning to route the wastegate back into the exhaust. I guess I could have saved $150 with a cheap wastegate.

Mark
Markp is offline   Reply With Quote
Old 11-13-2006, 02:45 PM   #29
Senior Member

Join Date: Oct 2005
Location: Knoxville
Posts: 1,168
Total Cats: 0
Default

Quote:
Originally Posted by Markp View Post
Actually I chose the Tial WG because a failed wastegate can blow a motor quickly
I'd imagine the TEC III has some sort of overboost cut.

Cool project, very interested to see how it holds up. Are you planning on taking it to some track days or anything like that?
Al Hounos is offline   Reply With Quote
Old 11-13-2006, 02:51 PM   #30
Senior Member
Thread Starter

Join Date: Mar 2006
Posts: 1,379
Total Cats: 1
Default

Quote:
Originally Posted by Al Hounos View Post
I'd imagine the TEC III has some sort of overboost cut.

Cool project, very interested to see how it holds up. Are you planning on taking it to some track days or anything like that?
The wastegate was spec'd before the engine management. I had some original ideas that were very different than the final implementation.

Mark
Markp is offline   Reply With Quote
Old 11-13-2006, 04:03 PM   #31
Senior Member
iTrader: (2)

SamS's Avatar

Join Date: Jun 2006
Location: Wisconsin
Posts: 1,251
Total Cats: 7
Default

:jumpsonthebandwagon:

Dammit Mark,

Man, you really screwed up with that wastegate. Why can't you get it right the first time instead of changing your plans in the middle of your project?!
SamS is offline   Reply With Quote
Old 11-13-2006, 05:01 PM   #32
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,479
Total Cats: 248
Default

You should have gotten a chinese cylinder head.
TurboTim is offline   Reply With Quote
Old 11-13-2006, 05:09 PM   #33
Junior Member

Sirnixalot's Avatar

Join Date: Aug 2005
Location: Cayman Islands
Posts: 440
Total Cats: 17
Default

Quote:
Originally Posted by Markp View Post
I will get some but it's a standard RM mounting kit.

Mark
t
they dicked me around for over 3 months on their kit so i just bought the trigger wheel from electromotive and plan to do my own mounts
Sirnixalot is offline   Reply With Quote
Old 11-13-2006, 05:47 PM   #34
Senior Member
Thread Starter

Join Date: Mar 2006
Posts: 1,379
Total Cats: 1
Default

Quote:
Originally Posted by TurboTim View Post
You should have gotten a chinese cylinder head.
Well maybe next time... I can't make everyone happy.

Mark
Markp is offline   Reply With Quote
Old 11-13-2006, 11:12 PM   #35
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,037
Total Cats: 406
Default

whole chinese cars are likely to hit our shores in the next 3 years. why dont you just mod that? huh mark?
y8s is offline   Reply With Quote
Old 11-14-2006, 07:40 AM   #36
Senior Member
Thread Starter

Join Date: Mar 2006
Posts: 1,379
Total Cats: 1
Default

Quote:
Originally Posted by y8s View Post
whole chinese cars are likely to hit our shores in the next 3 years. why dont you just mod that? huh mark?
I'm looking forward to the chinese miata knock-off.
Markp is offline   Reply With Quote
Old 11-14-2006, 09:23 AM   #37
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,479
Total Cats: 248
Default

I'd like a 3/4 scale miata, just like the 3/4 scale chinese choppers you see around now. hehehe

OK back to topic. It looks good mark, nice job!
TurboTim is offline   Reply With Quote
Old 11-15-2006, 02:43 PM   #38
Senior Member
Thread Starter

Join Date: Mar 2006
Posts: 1,379
Total Cats: 1
Default

Ok, here are some real numbers datalogged from a 3rd gear roll on at about 70 MPH.

5 PSI at 4500
15 PSI at 5000
20 PSI at 5300

Street tune on pump gas. Yes, you can roll into the throttle and break the Falken Azenis loose in 3rd gear (six speed tranny with 3.636 diff.)

Seems that we hit the injector limit due to the factory rail at 20 PSI and 8500 RPM with a duty cycle of 90%. This is with the 880 cc/min injectors and walbro 255 HP pump. 11.2:1 AF Ratio, texas 93 octane.

Mark
Markp is offline   Reply With Quote
Old 11-15-2006, 02:49 PM   #39
Senior Member

Join Date: Mar 2005
Location: Holiday, FL
Posts: 563
Total Cats: 0
Default

damn!
Fritch is offline   Reply With Quote
Old 11-15-2006, 03:12 PM   #40
Elite Member
iTrader: (8)

Join Date: Sep 2006
Location: Severn, MD
Posts: 1,927
Total Cats: 5
Default

Dumb question markp. What car is this on? I remember you had a '99 back in the day.

Frank
fmowry is offline   Reply With Quote
