Default Got an gt2876r on ebay... Now want to fit it on my HKS mani...

Got lucky today: A 1500km (1100miles old) garrett gt2876r aka gt2540r.
Bought it for 268euro (350dollar)
Owner garranteed the turbo is in working condition.

http://cgi.ebay.nl/ws/eBayISAPI.dll?...m=130257612528

Now the next problem: Will this clear my hood with a HKS mani (1.8 NA)???
As i won today, i don't have it yet...
If anyone else have the same turbo i want to have one measurement:

From the center off the compressor wheel to the side, exactly where the 0 (zero) of the .70 a/r.

I measured my gt2560, it's about 7.5 cm....
Calculating from the pics found on internet I need about 2 cm max to clear my hood.
greddymx5 is offline   Reply With Quote
Old 09-28-2008, 03:48 PM   #2
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

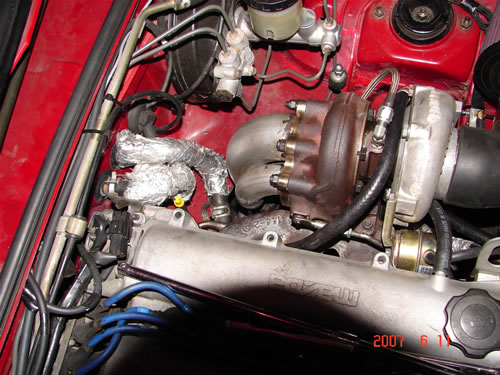

how's this? not exactly what you want but maybe helpful.

y8s is offline   Reply With Quote
Old 09-28-2008, 04:08 PM   #3
Junior Member
Thread Starter
iTrader: (1)

Join Date: Oct 2004
Location: Haarlem ,the Netherlands
Posts: 453
Total Cats: 0
Default

It's helpfull, looks like i need 1.5 cm... Maybe raise the hood slightly???

I have to point it down as much as possible.
Looks like it would work...
What are your experiance with this turbo??
Boost pressure at what rpm??
aiming for 10 psi (engine is stock 95, with 99 head) so i need to keep HP down.(maybe play with the cam gears)
Some forged rods and pistons are next... Also ordered the oil pump gears a while back.

Always wanted to upgrade the 2560... As (see the my name) i started with a greddy turbo, I always liked the high rpm boost kick...
greddymx5 is offline   Reply With Quote
Old 09-28-2008, 04:53 PM   #4
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

on a 99 head motor you'll see 10 psi around 3800-4200RPM.

with good tuning that's probably 240-250rwhp give or take.

Here's my car at 9.5 psi (stock 2001 motor)
Look at the overlapping red and green lines (the vvt is disabled in those)


It's not a bad turbo, but it really is better suited for more boost or a slightly bigger motor.
y8s is offline   Reply With Quote
Old 09-28-2008, 05:03 PM   #5
Junior Member
Thread Starter
iTrader: (1)

Join Date: Oct 2004
Location: Haarlem ,the Netherlands
Posts: 453
Total Cats: 0
Default

So you retarded the timing 12 degrees on the exhaust side and found 250 hp on 10psi?? Nice!
I can see the potential.

Does that mean that the more boost you run the more retarded the exhaust timing should be?

My engine is ok with 12-14 psi off the 2560... (link ecu)
greddymx5 is offline   Reply With Quote
Old 09-28-2008, 05:40 PM   #6
Hittin' Boost & Cones
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

you can always sell your hks manifold to me....


dibs
240_to_miata is offline   Reply With Quote
Old 09-28-2008, 10:19 PM   #7
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

intake side. I was learning the behavior of the VVT. default (unplugged) is full retard of the intake cam. end result is more-or-less the best of each of those graphs.
y8s is offline   Reply With Quote
Old 09-30-2008, 07:00 PM   #8
Junior Member

Join Date: Jul 2007
Posts: 107
Total Cats: 0
Default

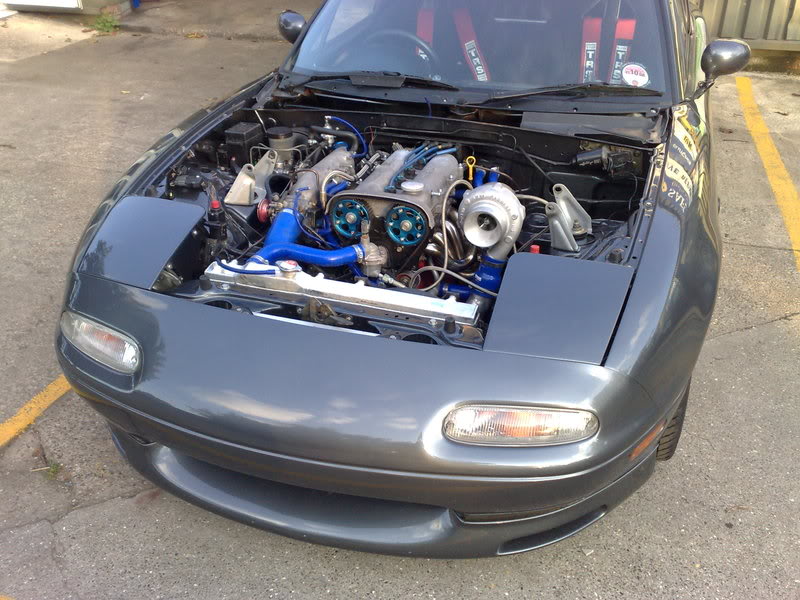

heres my gt2876r

Name:  25092008057.jpg
Views: 7
Size:  104.6 KB
madmalc is offline   Reply With Quote
Old 09-30-2008, 08:02 PM   #9
Junior Member
Thread Starter
iTrader: (1)

Join Date: Oct 2004
Location: Haarlem ,the Netherlands
Posts: 453
Total Cats: 0
Default

wow.. on a 1.6??
Is it build ? Max boost at??
greddymx5 is offline   Reply With Quote
Old 09-30-2008, 08:19 PM   #10
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,184
Total Cats: 2,582
Default

Quote:
Originally Posted by madmalc View Post
heres my gt2876r

nice
18psi is offline   Reply With Quote
Old 09-30-2008, 09:08 PM   #11
Ajb
Junior Member

Join Date: Dec 2007
Location: United Kingdom
Posts: 103
Total Cats: 0
Default

Quote:
Originally Posted by madmalc View Post
heres my gt2876r

Car looks great but you still owe me a T25 turbo , 1.8 injectors and a oil temperature gauge all of which i have payed for..... and its been several months now
Ajb is offline   Reply With Quote
Old 10-01-2008, 12:19 AM   #12
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

Going to need to flip that manifold upside-down
Braineack is online now   Reply With Quote
Old 10-01-2008, 02:16 PM   #13
Junior Member

Join Date: Jul 2007
Posts: 107
Total Cats: 0
Default

Quote:
Originally Posted by Ajb View Post
Car looks great but you still owe me a T25 turbo , 1.8 injectors and a oil temperature gauge all of which i have payed for..... and its been several months now
i sent them and asumed you had recived them as i hadnt hear anything from you sorry
madmalc is offline   Reply With Quote
Old 10-01-2008, 02:20 PM   #14
Junior Member

Join Date: Jul 2007
Posts: 107
Total Cats: 0
Default

yer fully built motor @ 15psi runs just a tad over 300bhp

it clears the bonnet just the noise from it is amazing

weiscos
carllio rods
lightened, balanced and knife edged crank
lightened flywheel
padle clutch
quife straight cut box
3angled valves
uprated valve springs
solid lifters
obx cams
vernier pulleys
rc 750 p&h low imp injectors
tunertoyz duel feed fuel rail
areomotive external fuel pump
swirl pot
walbro internal fuel pump
sard pres reg
front mount intercooler
oil cooler
alloy rad
hydra ems
hispec 4pot calipers with 305mm floating discs
gaz coilovers
custom exhaust manifold
gt2876r ball bearing turbo
collins -31 actuator
custom downpipe
wide band o2
3" exhaust from turbo back
digi dash
momo seats all sound proofing removed and carpets refitted

the list goes on all the work has been carried out by myself including the manifold
and the mapping


sorry to steel your thread lol

Last edited by madmalc; 10-01-2008 at 02:31 PM.
madmalc is offline   Reply With Quote
Old 10-01-2008, 02:26 PM   #15
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

T25






I don't see the 2876 fitting....cut a hole in the hood and use a stack like a real dragger.
Braineack is online now   Reply With Quote
Old 10-01-2008, 02:39 PM   #16
Junior Member

Join Date: Jul 2007
Posts: 107
Total Cats: 0
Default

lol i had thought about that but trust me iv had the bonnet dwn and it fits only buy about 15mm but it fits
madmalc is offline   Reply With Quote
Old 10-01-2008, 02:42 PM   #17
Junior Member

Join Date: Jul 2007
Posts: 107
Total Cats: 0
Default

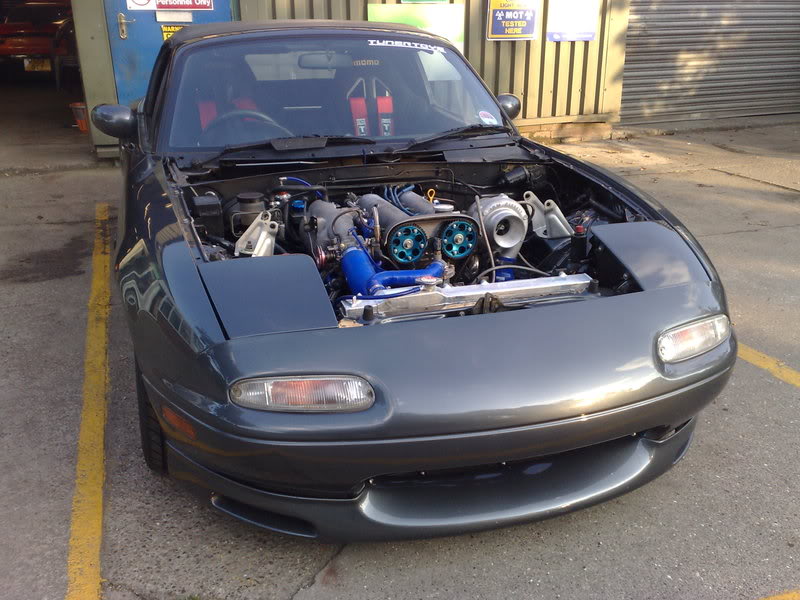

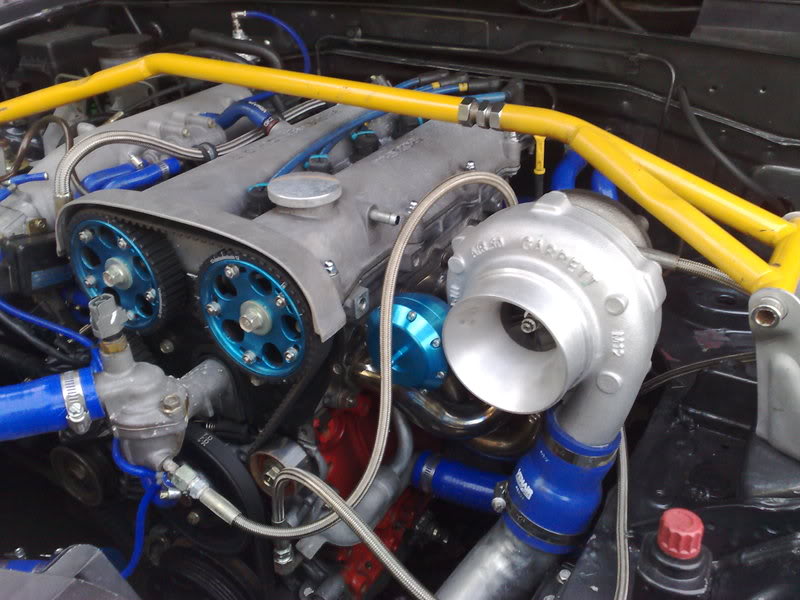

diffrent pics its level with the strut brace

Name:  25092008056.jpg
Views: 7
Size:  93.9 KB

Name:  10092008016.jpg
Views: 7
Size:  85.5 KB
madmalc is offline   Reply With Quote
Old 10-01-2008, 06:27 PM   #18
Newb

Join Date: Oct 2006
Location: Boston, MA
Posts: 36
Total Cats: 0
Default

Quote:
Originally Posted by madmalc View Post
diffrent pics its level with the strut brace

Good taste in color . I thought I was alone
Cowpoke is offline   Reply With Quote
Old 10-01-2008, 07:13 PM   #19
Ajb
Junior Member

Join Date: Dec 2007
Location: United Kingdom
Posts: 103
Total Cats: 0
Default

Do you have any proof of the posting? Why would only half of it turn up ?
