Default Got ripped off again........I think

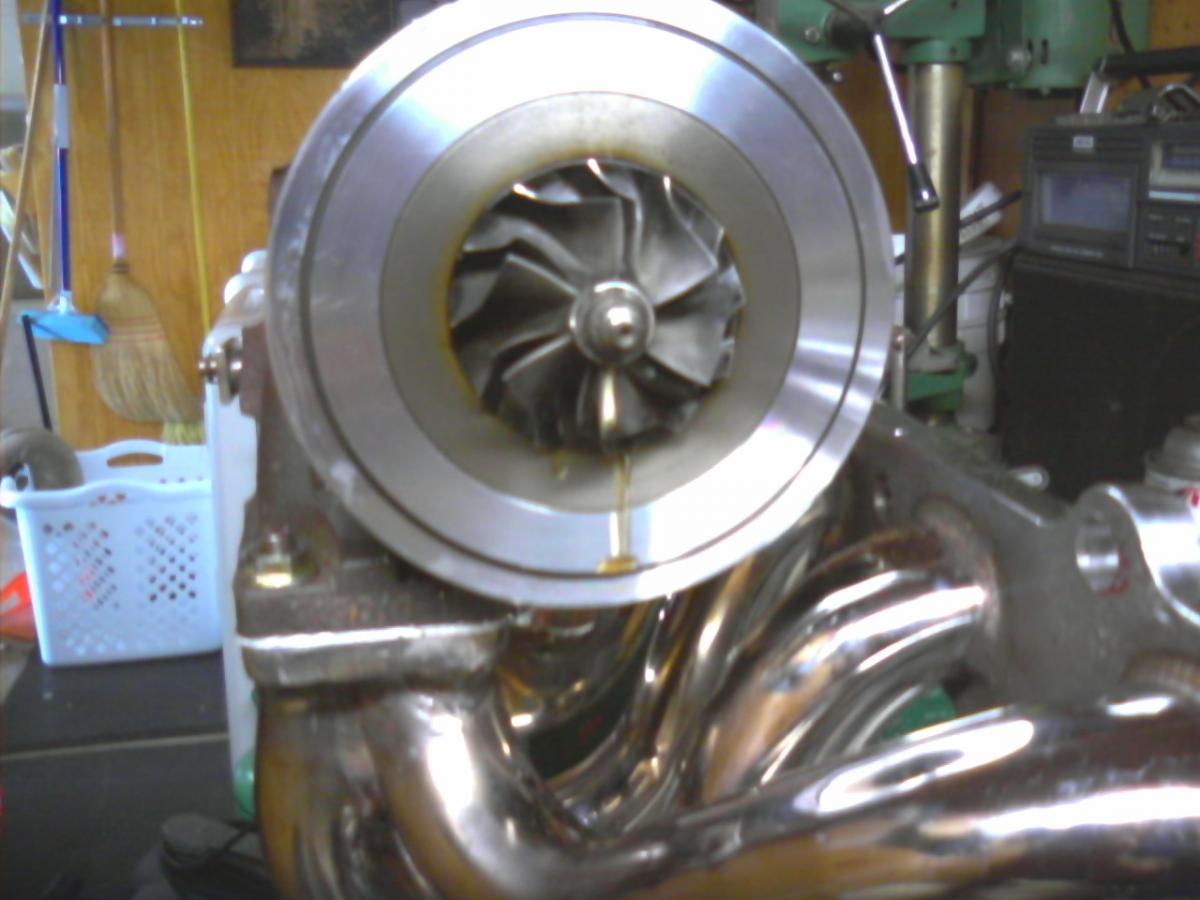

I'am in the process of upgrading my Saab T-25 turbo which is maxed out now at 219whp, so I bought a used GT2560R with "low miles" so before I installed it I capped off my inlet and filled the drain with oil to see if it leaks before I installed it and found this ! ..... I'am stuck with the turbo for now so what if any are my opitions I've heard BB turbochargers can't be rebuilt ?
Attached Thumbnails
Got ripped off again........I think-leaking-seal.jpg
elderc is offline   Reply With Quote
Old 07-17-2010, 11:43 AM   #2
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,110
Total Cats: 518
Default

I'm not sure it works that way. Same reason we use a rivet to control feed pressure. Too much oil and it'll easily go past the seals.
curly is offline   Reply With Quote
Old 07-17-2010, 11:53 AM   #3
!!! NOT CONFIRMED !!!
Thread Starter

Join Date: Nov 2007
Location: Virginia Beach, Va
Posts: 158
Total Cats: 1
Default

Its leaking under "no" pressure I've never installed it in the car I just filled the drain and it started running out ? My guess is if it leaks with zero pressure it must pour out under pressure unless it needs pressure to seat ?
elderc is offline   Reply With Quote
Old 07-17-2010, 12:52 PM   #4
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

PM JKav and ask him. He knows more about turbos than anyone.
hustler is offline   Reply With Quote
Old 07-17-2010, 01:52 PM   #5
Junior Member
iTrader: (4)

Join Date: Dec 2006
Location: Charlotte , nc
Posts: 325
Total Cats: 1
Default

How much are you loosing if you bolt it up as a test mule.... for us all.

I say put it on , see if it blows oil or not. Either way you would have to replace the turbo or not. Then you know

Slap that bitch on. Even if its without downpipe connected, run pressure to it and oil flow, its supposed to drain out, not run with internal oil pressure either.
jedduh01 is offline   Reply With Quote
Old 07-17-2010, 01:55 PM   #6
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

I'm pretty sure if I filled up my chra like that it would leak in the same place.
Braineack is offline   Reply With Quote
Old 07-17-2010, 02:33 PM   #7
Newb
iTrader: (2)

Join Date: Nov 2008
Location: crestview fl
Posts: 44
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
I'm pretty sure if I filled up my chra like that it would leak in the same place.
i cant stop starring at your sig. lol
chris850 is offline   Reply With Quote
Old 07-17-2010, 02:38 PM   #8
Elite Member
iTrader: (17)

Join Date: Apr 2009
Location: Atlanta, GA
Posts: 2,831
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
I'm pretty sure if I filled up my chra like that it would leak in the same place.
with the turbine housing off, i believe this would happen.


EDIT: wait that is the compressor side...

Last edited by WonTon; 07-17-2010 at 03:10 PM.
WonTon is offline   Reply With Quote
Old 07-17-2010, 03:09 PM   #9
!!! NOT CONFIRMED !!!
Thread Starter

Join Date: Nov 2007
Location: Virginia Beach, Va
Posts: 158
Total Cats: 1
Default

Ok guys, I'll fit it up in a few days and keep you updated. Also talked to a neighbor who builds and races RX-7's here in Va. Beach he said once installed and the turbo warms up that should stop the leak unless the seals are blown..........but because it only leaks on the compressor side he thinks the seals maybe ok.
elderc is offline   Reply With Quote
Old 07-18-2010, 02:56 AM   #10
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,485
Total Cats: 248
Default

The garrett CHRA exchange program is like $500 I think.
TurboTim is offline   Reply With Quote
Old 07-18-2010, 07:51 AM   #11
!!! NOT CONFIRMED !!!
Thread Starter

Join Date: Nov 2007
Location: Virginia Beach, Va
Posts: 158
Total Cats: 1
Default

Thanks TT going with the exchange from Garrett
elderc is offline   Reply With Quote
