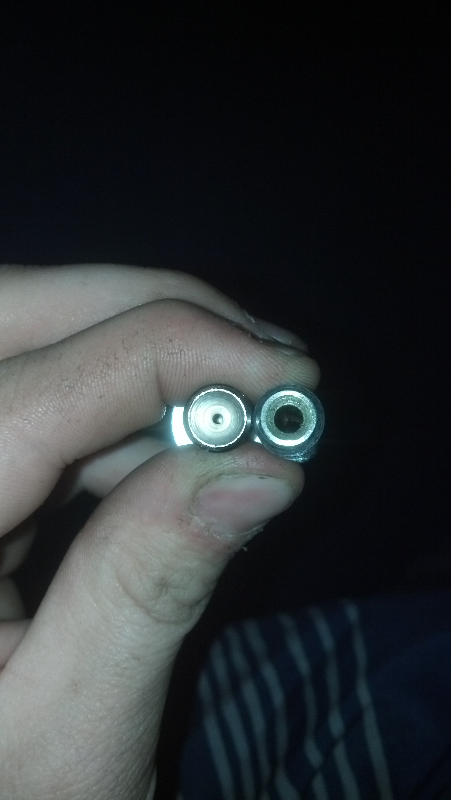

The other day I went to re route my oil feed line and the banjo bolt snapped . I ordered a new one from kinugawa. And the main concern I have is the hole in the bolt . The new one is way smaller than the one that was on it. Just wondering if I should leave the new one at the size its at or drill it out . Let me know what you guys think thanks


greddy tdo4h banjo bolt snapped help-forumrunner_20140604_183125.png
xmacmiatax is offline   Reply With Quote
Old 06-04-2014, 07:44 PM   #2
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,201
Total Cats: 260
Default

Quote:
Originally Posted by xmacmiatax View Post
I ordered a new one from kinugawa.
I found the problem.
Erat is offline   Reply With Quote
Old 06-04-2014, 07:52 PM   #3
Junior Member
Thread Starter

Join Date: Dec 2013
Posts: 59
Total Cats: -16
Default

Are they a bad place yo buy from I was in a rush to find one. And just ordered it. It looks like a pretty solid bolt just the hole is that small . Just wondering if it is going to restrict to much oil
xmacmiatax is offline   Reply With Quote
Old 06-04-2014, 08:03 PM   #4
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,201
Total Cats: 260
Default

I've never seen anything good from that ebay brand.

Oil to the turbo should be restricted.
Weather or not that's to much, i dunno.
Erat is offline   Reply With Quote
Old 06-04-2014, 08:06 PM   #5
Junior Member
Thread Starter

Join Date: Dec 2013
Posts: 59
Total Cats: -16
Default

Didn't even know they from eBay I ordered right off there website lol. Owell as long as it will work . Just don't wanna starve my turbo for oil.
xmacmiatax is offline   Reply With Quote
Old 06-04-2014, 11:59 PM   #6
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,206
Total Cats: 2,587
Default

Every single fitting I've used for the past year or two, and everyone I know uses kinugawa stuff with great results. All steel, all strong and beefy.

as long as you ordered specifically the correct restrictor size, you'll be ok. do I think its a great brand? no. Do I think they make ok fittings and lines? yep
18psi is offline   Reply With Quote
Old 06-05-2014, 12:01 AM   #7
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,206
Total Cats: 2,587
Default

I bet one of those is the restrictor size all the way through vs the other just at one point of the bolt. You should post better pics. as long as the smallest part of each bolt opening is the same, they are the same.
18psi is offline   Reply With Quote
Old 06-05-2014, 12:06 AM   #8
Junior Member
iTrader: (20)

Join Date: Apr 2010
Location: Redmond, WA
Posts: 494
Total Cats: 15
Default

kinugawa is good stuff

you said the new one has a smaller hole, which is good. Like 18psi said, check your old one for a restrictor. If it doesn't have a restrictor on that bolt, do you have one somewhere else, such as on the block or inline?

Figure out the correct restrictor size for your turbo and if it's bigger than the kinugawa one, drill it out to the correct size. research before modifying anything
bmxfuel007 is offline   Reply With Quote
Old 06-05-2014, 02:35 AM   #9
Senior Member
iTrader: (4)

2manyhobyz's Avatar

Join Date: Feb 2011
Location: Joliet, IL
Posts: 622
Total Cats: 16
Default

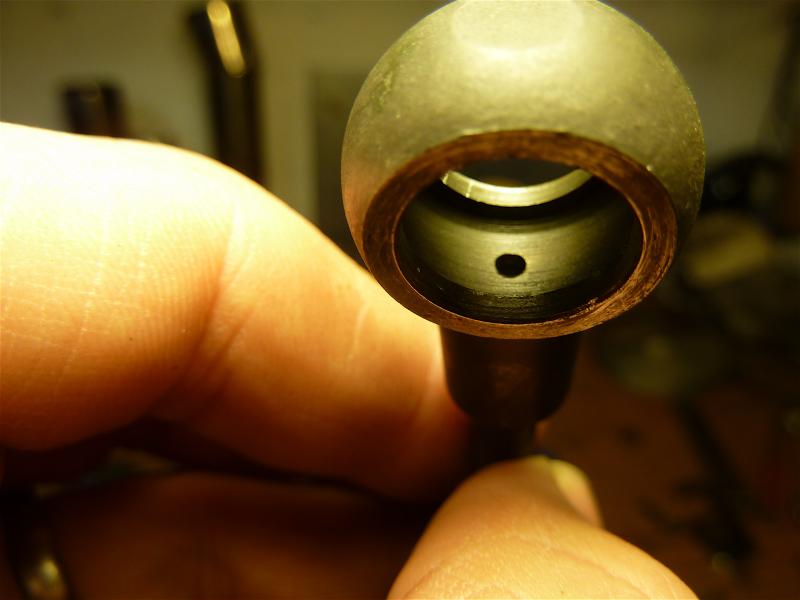

This is what the factory oil feed looks like on my TD05. See if yours is the same.

Hope this helps.
Cheers,
-JB
Attached Thumbnails
greddy tdo4h banjo bolt snapped help-p1020049_zpse730f1b5.jpg
2manyhobyz is offline   Reply With Quote
Old 06-05-2014, 05:13 AM   #10
Junior Member
Thread Starter

Join Date: Dec 2013
Posts: 59
Total Cats: -16
Default

I called kinugawa and this is what they recommended . I think the other bolt was just a bolt as it was a little longer in length and the head of it is huge. I bought the kit second hand. Unused, when I bought the kit the seller said everything I needed was there so I think he made his own. Kinugawa also sent a new one of these

greddy tdo4h banjo bolt snapped help-forumrunner_20140605_041249.png



greddy tdo4h banjo bolt snapped help-forumrunner_20140605_041329.png
xmacmiatax is offline   Reply With Quote
Old 06-05-2014, 12:56 PM   #11
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,110
Total Cats: 518
Default

The broken one looks exactly like my broken Greddy bolt, pretty sure that's the "stock" one.

I wouldn't run the banjo they sent you. The greddy one is properly restricted, and the bolt doesn't need to be. Now you're switching the restriction over to the bolt, and it appears to be a different size from what 2manyhobyz posted.

I'd keep your old banjo, and drill out the banjo bolt they sent you. Just not as large as the greddy one, as to keep some strength in it. Looks like maybe a 1/8" or 3/16"?
curly is offline   Reply With Quote
Old 06-05-2014, 01:38 PM   #12
Junior Member
iTrader: (2)

albertogti117's Avatar

Join Date: Jul 2011
Location: Houston, Tx
Posts: 167
Total Cats: 4
Default

I would agree that you should drill it out. I ran into a similar issue with my Greddy kit. Snapped the banjo bolt torquing down on it like an idiot. I ended up purchasing a new bolt from an auto parts store that is used for brake parts. Similarly, the hole was smaller than that of the Greddy bolt and there was only one hole drilled into the side of the bolt instead of two like the Greddy bolt. I drilled out the hole to match the diameter of the Greddy bolt and drilled a second hole in the side.

Here is a link to said bolt:

http://www.oreillyauto.com/site/c/de...ord=banjo+bolt
albertogti117 is offline   Reply With Quote
