Default GT28R oil/water feed fittings, other bolts ??

I've searched everywhere and just can't find any info on this.
I'm trying to build custom SS lines with AN fitting for oil and water supply for my turbo and can't find what fittings I need for the turbo. Anyone know what size/thread they are? It's a gt2560R turbo btw

edit:
Does anyone know what bolts are used for valve cover?

Last edited by RusMan; 04-18-2007 at 01:25 AM.
RusMan is offline   Reply With Quote
Old 04-18-2007, 01:46 AM   #2
Senior Member
iTrader: (1)

Join Date: Dec 2005
Location: irvine, ca
Posts: 729
Total Cats: 0
Default

i did that on a gt2554. i had an fm/begi mani. the side closest to the engine was a tight fit with the compressor housing at 12 oclock. i used a banjo fitting on that side. the rest i used metric to AN fitting adapters.

i know i posted pics of it last year. i'll look for it an link it.
kung fu jesus is offline   Reply With Quote
Old 04-18-2007, 01:54 AM   #3
Senior Member
iTrader: (1)

Join Date: Dec 2005
Location: irvine, ca
Posts: 729
Total Cats: 0
Default

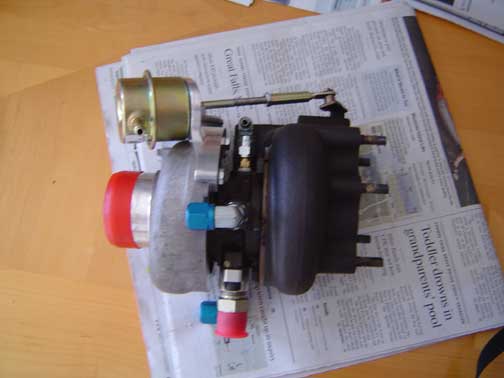

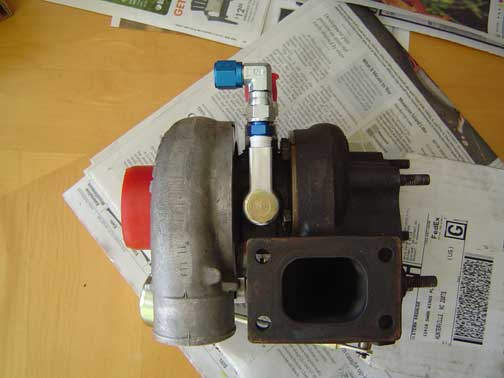

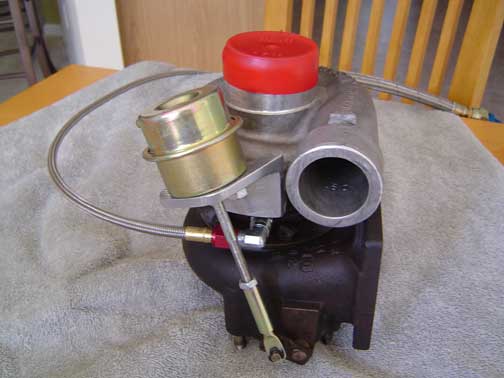

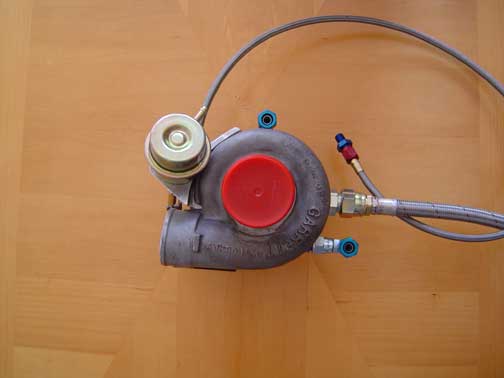

pics arent up on my server, so i attached them to this post.
Attached Thumbnails

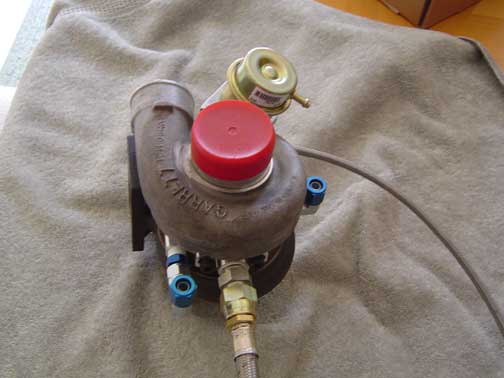

GT28R oil/water feed fittings-turbo_fully_dressed.jpg   GT28R oil/water feed fittings-turbo_fully_dressed2.jpg   GT28R oil/water feed fittings-turbo_fully_dressed3.jpg   GT28R oil/water feed fittings-turbo_side_outter.jpg   GT28R oil/water feed fittings-turbo_side_towards_engine.jpg

kung fu jesus is offline   Reply With Quote
Old 04-18-2007, 01:59 AM   #4
Senior Member
iTrader: (1)

Join Date: Dec 2005
Location: irvine, ca
Posts: 729
Total Cats: 0
Default

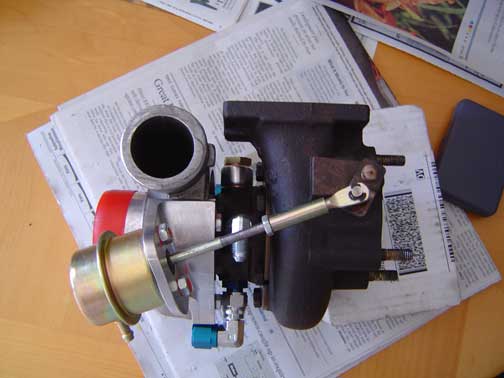

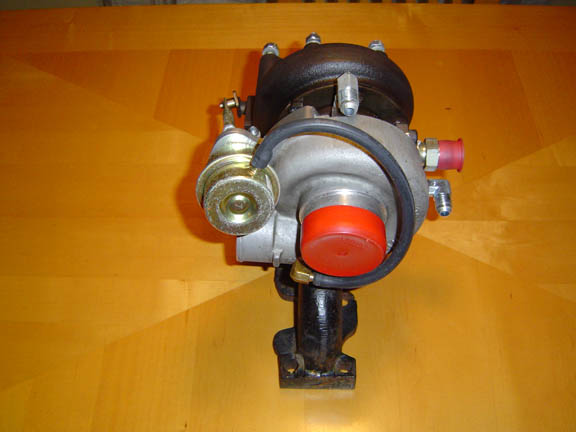

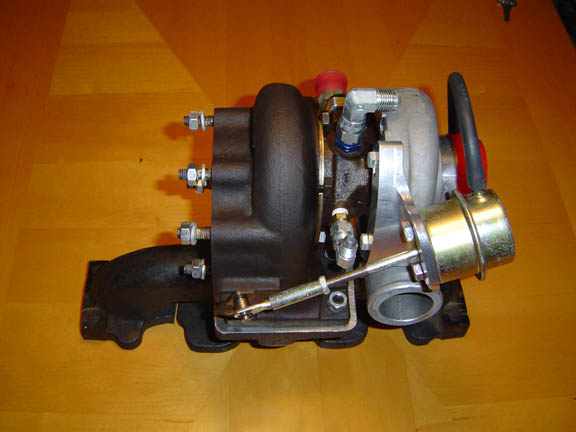

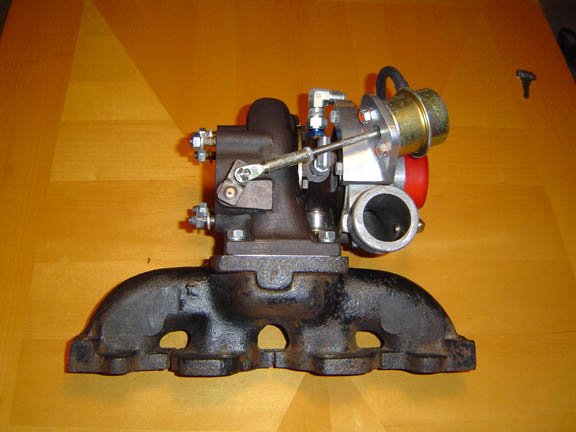

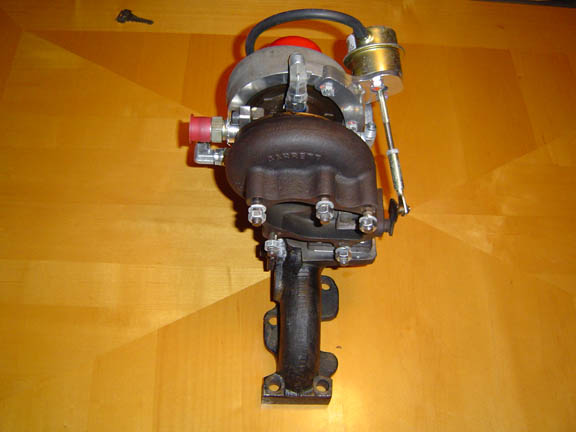

here are some more with it on the manifold:
Attached Thumbnails
GT28R oil/water feed fittings-turbo_top.jpg   GT28R oil/water feed fittings-manifold_rear.jpg   GT28R oil/water feed fittings-manifold_side.jpg   GT28R oil/water feed fittings-manifold_side_2.jpg   GT28R oil/water feed fittings-manifold_top.jpg

kung fu jesus is offline   Reply With Quote
Old 04-18-2007, 02:16 AM   #5
Senior Member
Thread Starter

Join Date: Jun 2005
Location: WA
Posts: 500
Total Cats: 0
Default

Very nice, thanks for the pictures. Do you remember what fittings you used for the turbo? I think 2554 and 2560 should be the same.
RusMan is offline   Reply With Quote
Old 04-18-2007, 02:17 AM   #6
Senior Member
iTrader: (1)

Join Date: Dec 2005
Location: irvine, ca
Posts: 729
Total Cats: 0
Default

i bought a lot of the stuff from ATP turbo. the AN fittings from www.anplumbing.com i can't remember what the thread/pitch is, but i believe you can find it on m.n or by calling atp.
kung fu jesus is offline   Reply With Quote
Old 04-18-2007, 02:39 AM   #7
Senior Member
iTrader: (1)

Join Date: Dec 2005
Location: irvine, ca
Posts: 729
Total Cats: 0
Default

banjo fitting

it's been a while, but i believe the oil is m12, the water m14. dont know the pitch.

the oil drain is an ATP two bolt. i used an 18" 10 an SS line from the drain to an NTP to AN adapter in the pan.

the othe water outlet was an m14 to 6an adapter, 6an swivel female to male.

it's best to sketch out a diagram of what you need so you don't order the wrong parts.
kung fu jesus is offline   Reply With Quote
Old 04-18-2007, 02:57 AM   #8
Senior Member
Thread Starter

Join Date: Jun 2005
Location: WA
Posts: 500
Total Cats: 0
Default

Sweet man, thanks for all the help! Much appreciated.

I'll see what I can come up with.
RusMan is offline   Reply With Quote
Old 04-18-2007, 03:02 AM   #9
Senior Member
iTrader: (1)

Join Date: Dec 2005
Location: irvine, ca
Posts: 729
Total Cats: 0
Default

good luck! i'm going to be doing all over again as soon i can find a gt2554r.

i had to sell than system off.
kung fu jesus is offline   Reply With Quote
Old 04-18-2007, 03:29 AM   #10
Senior Member

Join Date: Dec 2005
Posts: 865
Total Cats: 0
Default

oil inlet is 12x1.25 i believe.its a bitch to find that to 4an
turbopezz is offline   Reply With Quote
Old 04-18-2007, 03:33 AM   #11
Senior Member
iTrader: (6)

Join Date: Mar 2005
Location: Sammamish, Washington
Posts: 1,396
Total Cats: 0
Default

Whenever you decide what you need from ATP, shoot me a PM and I will save you some cash.
Kelly is offline   Reply With Quote
Old 04-18-2007, 03:50 AM   #12
Senior Member
Thread Starter

Join Date: Jun 2005
Location: WA
Posts: 500
Total Cats: 0
Default

Thanks turbopezz, I'll look for one. I think atp has one, I'll hit you up wideopen when I'll be ready to order.
RusMan is offline   Reply With Quote
Old 04-18-2007, 07:09 PM   #13
Senior Member
iTrader: (1)

Join Date: Dec 2005
Location: irvine, ca
Posts: 729
Total Cats: 0
Default

i will too, wide. thanks!
kung fu jesus is offline   Reply With Quote
Old 04-18-2007, 07:39 PM   #14
Supporting Vendor
iTrader: (6)

Join Date: Mar 2005
Location: Broken Arrow,Ok
Posts: 1,061
Total Cats: 40
Default

Let me know if I can help. It will be about a week before I order anything new.
-Michael-
TheBandit is offline   Reply With Quote
Old 04-18-2007, 09:19 PM   #15
Senior Member
Thread Starter

Join Date: Jun 2005
Location: WA
Posts: 500
Total Cats: 0
Default

I've got most of the fittings figured out, when it's all finished I'll post a list of all the bits that you would need to do SS lines with AN fittings for oil and water supply.

Thanks for all the help guys.
