Default Manifolds and Downpipes

Even though there is already the "What's your setup" thread. This might work in tandem if people are willing to post photos of their manifolds and downpipes. Or we could just ad photos to the other thread.


Car: '99 with PS and A/C
Motor: 1.8L
Turbo: Garret T25 with square turbine inlet 5 bolt outlet

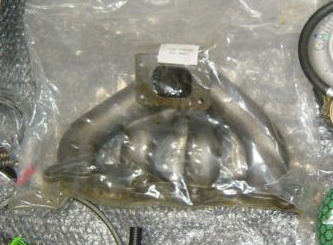

Manifold: HKS cast without external WG port/flange

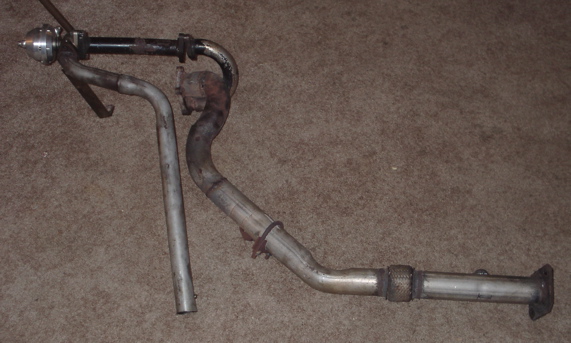

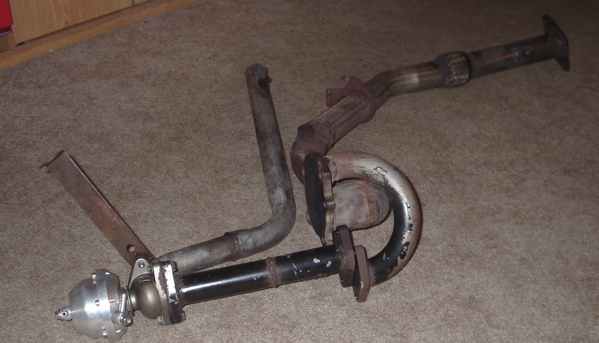

Downpipe: Custom fabd with external wastegate flange integrated
WG: External Tial 38mm

(External wastegates are usually run off of the manifold, not after the turbo like my setup. It is not recommended but as shown in my case, it does work.)
Attached Thumbnails
Manifolds and Downpipes-12_10.jpg   Manifolds and Downpipes-03100006.jpg   Manifolds and Downpipes-03100007.jpg
cjernigan is offline   Reply With Quote
Old 11-28-2006, 09:32 PM   #2
Senior Member
iTrader: (2)

SamS's Avatar

Join Date: Jun 2006
Location: Wisconsin
Posts: 1,254
Total Cats: 7
Default

All BEGi for me:

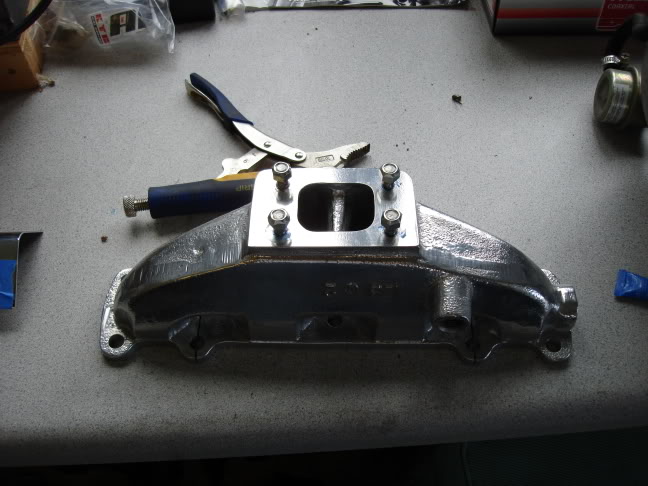

Ceramic coated mani


Name:  DSC00176.jpg
Views: 10
Size:  55.3 KB

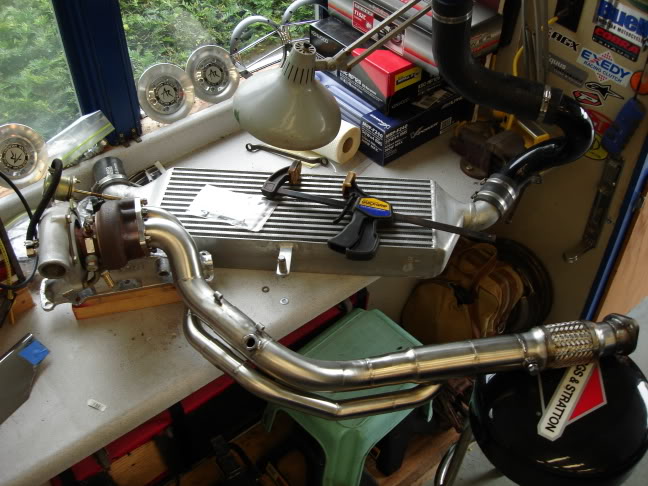

and Stainless Downpipe
Name:  DSC00226.jpg
Views: 11
Size:  76.6 KB
SamS is offline   Reply With Quote
Old 11-28-2006, 09:34 PM   #3
Senior Member
iTrader: (1)

Join Date: Mar 2006
Location: Tucson "it's 110" Arizona
Posts: 1,017
Total Cats: 0
Default

Damn I love that downpipe
UofACATS is offline   Reply With Quote
Old 11-28-2006, 09:48 PM   #4
Senior Member

Join Date: Jun 2005
Location: WA
Posts: 500
Total Cats: 0
Default

Car: '99 with PS
Motor: 1.8L
Turbo: Garret GT28
Manifold: AVO turbo world log style cast manifold

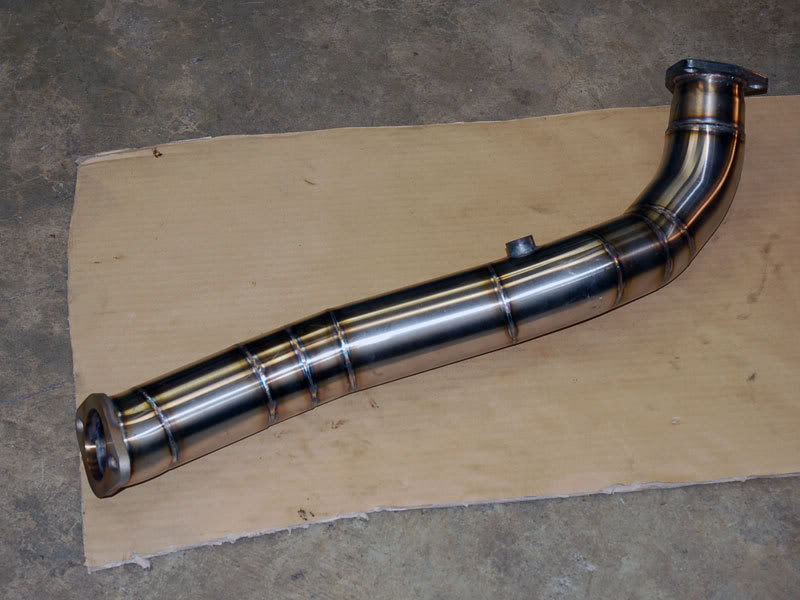

Downpipe: AVO turbo elbow, 3" SS custom downpipe

Name:  dp1.jpg
Views: 12
Size:  63.7 KB
RusMan is offline   Reply With Quote
Old 11-28-2006, 11:51 PM   #5
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,295
Total Cats: 26
Default

Car: '93 no PS or A/C
Motor: 1.6L
Turbo: Garret GT28RS
Manifold: Lovefab custom SS
Intercooler: XSpower used for Vmount.
Downpipe: To be made... vband 3inch.
WG: External Tial 38mm

Splitime is offline   Reply With Quote
Old 11-29-2006, 12:27 AM   #6
Senior Member

Join Date: Apr 2005
Location: NAS Oceana/VA
Posts: 759
Total Cats: 0
Default

Hey, how much was that Lovefab manifold?
getsidewaysd1 is offline   Reply With Quote
Old 11-29-2006, 12:34 AM   #7
Junior Member

Join Date: Jul 2005
Location: Alexandria, VA
Posts: 125
Total Cats: 0
Default

I have manifold envy...
MiaTurbo is offline   Reply With Quote
Old 11-29-2006, 12:45 AM   #8
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

^damn that's purty^ how big is that wg flange/port?

cjernigan- do you think the hks could be redrilled to work with a t3 flange?
m2cupcar is offline   Reply With Quote
Old 11-29-2006, 01:06 AM   #9
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,295
Total Cats: 26
Default

Quote:
Originally Posted by getsidewaysd1 View Post
Hey, how much was that Lovefab manifold?
Lol, back on topic guys

www.lovefab.com and ask Cody yourself

Its standard t28/gt28rs flange. The WG flange is standard 38mm.

I'll hopefully have mockup pictures soon also, I have aweful vid cam pictures... waiting on friends/girlfriend to send me some real camera pictures I snapped. Was a long sunday work day... rediculous amount of work left... going to be a fun winter
Splitime is offline   Reply With Quote
Old 11-29-2006, 01:13 AM   #10
Junior Member

Join Date: Jul 2006
Posts: 88
Total Cats: 0
Default

****. I am embarassed to post my DIY job.
retro is offline   Reply With Quote
Old 11-29-2006, 01:53 AM   #11
Junior Member

Join Date: Jul 2006
Posts: 88
Total Cats: 0
Default

Ok, here it is. It's a slag encrusted POS compared to the sexy beasts posted above, but I am proud to say:

I taught myself to weld
I made it myself
It's my first project
It's on my car and it works

I do have some clearance issues as it sits really close to the steering shaft and the lower frame brace. Still, it's good enough to use as I get my car tuned, and I can always make another when I am ready to attempt something better.



Specs:
2000 NB Miata
BEGI Manifold
2.5" Mild Steel
AMG Three bold Flange for T3 Super 60
retro is offline   Reply With Quote
Old 11-29-2006, 01:54 AM   #12
Elite Member
Thread Starter
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

M2cupcar: I don't think the HKS manifold could be redrilled. There just isn't enough material in the walls to drill and port for the T3. An adapter could be made or purchased for it though. The problem with that is the adapters for sale are like 2-3" tall and that would raise your turbo so much you would have clearance problems with the hood. If you want a T3 manifold that is cast, the BEGI is a good product and can be bought with an external WG flange.
cjernigan is offline   Reply With Quote
Old 11-29-2006, 01:55 AM   #13
Elite Member
Thread Starter
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Retro, not bad work for a first time. What manifold are you running?
cjernigan is offline   Reply With Quote
Old 11-29-2006, 02:00 AM   #14
Junior Member

Join Date: Jul 2006
Posts: 88
Total Cats: 0
Default

Edited my post above. I have the BEGI, got it this summer when they had the sale on the new manifolds, and I started acquiring stuff from there.
retro is offline   Reply With Quote
Old 11-29-2006, 02:04 AM   #15
Elite Member
Thread Starter
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Guess i could have used my brain for a moment and looked at your avatar, thanks for fixing the post.
cjernigan is offline   Reply With Quote
Old 11-29-2006, 10:03 AM   #16
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default









Braineack is offline   Reply With Quote
Old 11-29-2006, 10:19 AM   #17
Senior Member
iTrader: (2)

Join Date: Feb 2006
Location: Mesa, AZ
Posts: 999
Total Cats: 0
Default

retro, looks good to me! I am in the process of building one myself, and im sure it wont look nearly as good as yours. What did you weld that with? Ive been learning on a flux core wire welder
adbradley is offline   Reply With Quote
Old 11-30-2006, 07:14 PM   #18
Junior Member

Join Date: Jul 2006
Posts: 88
Total Cats: 0
Default

I got an el-cheapo unit from Harbor Freight. It's 220 Volt, that can run with Gas or flux-core. I had a real hard time learning with the flux core. Went real easy with the Argon/CO2. It was under $200 for a refurbished unit. Gas was $90 including the tank.

I added a new breaker to my fuse box in the garage with a really long cable. All the welding was done in my garage, and I was even able to wheel the unit out to my car that was on jacks in the driveway tack weld the final fitting. The flex joint went last, after the two ends were complete.

retro is offline   Reply With Quote
Old 11-30-2006, 07:36 PM   #19
Senior Member
iTrader: (2)

Join Date: Feb 2006
Location: Mesa, AZ
Posts: 999
Total Cats: 0
Default

HAHAHAHAH that is a lot like mine retro! Mine is a bit bigger though. I havent got a tank of argon/co2 yes but need to. Are you using an auto darkening helmet?? you can get one for like 40 bucks shipped on e-bay, well worth it. they have adjustable darknesses, so u can pick what works for you. Helped me a lot.
adbradley is offline   Reply With Quote
Old 11-30-2006, 07:38 PM   #20
Senior Member
iTrader: (2)

Join Date: Feb 2006
Location: Mesa, AZ
Posts: 999
Total Cats: 0
Default

i feel like a minority, everyone has these nice t3s and t4s, and i have a crappy old DSM MHI turbo
