Is there some reason I have never seen anyone put a vent on the upper part of the firewall to allow heat out of the engine compartment? The area just behind the upper firewall does not go into the cabin of the car it just vents to the windshield area. Why could I not cut a 4 inch by 2 inch vent and allow air to escape that way? With TSI or other front vents there is lots of air coming in but not much way for it to escape this seems like a natural area to use as it is right behind the turbo. I know that for spec racing it is not allowed but for a daily driver has anybody done it?
Kenny is offline   Reply With Quote
Old 04-09-2007, 11:43 AM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

I think Tom (brgracer) had fooled around with it.

the problem is, the pressure at the back of the firewall is higher than in front of the nose. So, while driving air will enter the back of the firewall, not escape....eitherway, if it lowers temps, than so be it.
Braineack is offline   Reply With Quote
Old 04-09-2007, 03:51 PM   #3
Senior Member

Join Date: Mar 2005
Posts: 531
Total Cats: 0
Default

yeah I think braineack is onto the fundamental flaw with venting at the cowl... at high speeds its no longer a vent.

I have my hood pitched for looks and to help cool off while waiting in the grid at drift events. it actually mad a big difference in how fast my bay cooled off at idle. and the top speed at most of the smaller events barely break 3rd gear in my (then) stock miata.

but if I were doing like an open track event I think its the worst way to aid cooling. alot of race cars seem to vent just in front of the door at the rear of the fender or manage the air under the car, so I would guess those are the most efficient ways.

a miata I bet the stock belly pan with the normal hood placement is the most efficient you can get without lots of fab work.
VRTSid is offline   Reply With Quote
Old 04-09-2007, 05:32 PM   #4
Junior Member

Join Date: Nov 2005
Location: Eddington, ME
Posts: 117
Total Cats: 0
Default

I have been running with no belly pan since I got my car, the old one was broke so I chucked it. I am going turbo soon so should I get some sort of belly pan in there to aid in cooling?
akthor is offline   Reply With Quote
Old 04-09-2007, 05:36 PM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

yeah, i couldn't stop overheating without one on the track. everytime i hit about 100mph(substained) the water temp would skyrocket....as soon as i slowed it down a bit it would go back to normal.

installed the pan, add a cheap *** scooper....went back and could hit substained 120-130mph and not a blip on the OEM gauge.
Braineack is offline   Reply With Quote
Old 04-09-2007, 06:41 PM   #6
Senior Member

Join Date: Jun 2005
Location: WA
Posts: 500
Total Cats: 0
Default

Yeah, put the pan back on. It helped my cooling a lot.
RusMan is offline   Reply With Quote
Old 04-09-2007, 11:24 PM   #7
Senior Member

Join Date: Mar 2005
Posts: 531
Total Cats: 0
Default


from another thread but I think this is the best way.
VRTSid is offline   Reply With Quote
Old 04-10-2007, 09:58 AM   #8
Junior Member

Join Date: Nov 2006
Location: Australia
Posts: 120
Total Cats: 0
Default

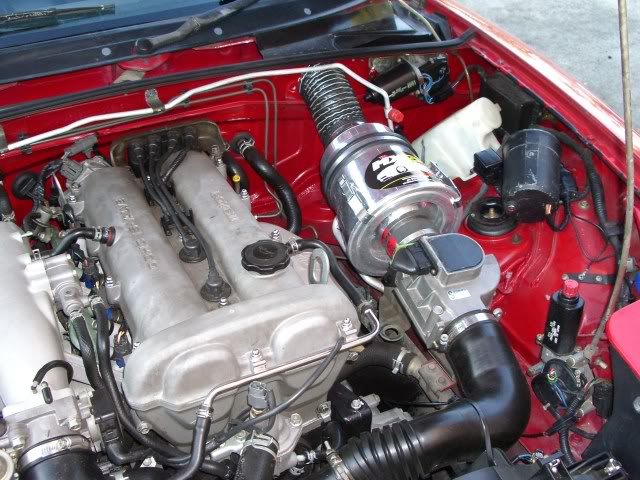

a lot of us right hand drive guys (like here is australia) have a hole cut in the part of the firewall that you are talking about. but yeah we use it as a cold air intake, not a heat vent, for the reasons mentioned by braineack.

this is what mine looks like at the moment (not boosted yet)

Name:  IMGP0204.jpg
Views: 10
Size:  110.5 KB

you guys have a lot more stuff on that side (brake cylinder etc yeah? ) so can you guys do this on a left hand drive car ? coz some of the turbo guys here do have a cold air intake similar to mine on their turbo set ups.
fatty is offline   Reply With Quote
Old 04-10-2007, 10:02 AM   #9
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

look at uofacat's setup.
Braineack is offline   Reply With Quote
Old 04-10-2007, 10:06 AM   #10
Junior Member

Join Date: Dec 2006
Posts: 85
Total Cats: 0
Default

Yep, above 35mph the cowl becomes a high pressure area. I have a hole there from my CAI (similar to fatty's) and so does Uncle Arthur. You can see the holes in his pics that he posted recently.
t25miata is offline   Reply With Quote
Old 04-10-2007, 10:13 AM   #11
AFM Crusader
iTrader: (18)

olderguy's Avatar

Join Date: Oct 2004
Location: Wayne, NJ
Posts: 4,438
Total Cats: 84
Default

Quote:
Originally Posted by t25miata View Post
Yep, above 35mph the cowl becomes a high pressure area. I have a hole there from my CAI (similar to fatty's) and so does Uncle Arthur. You can see the holes in his pics that he posted recently.
Hmmm; cooler air intake at higher pressure. Certainly beats a "Tornado" on an NA Miata. I wonder if anyone has taken actual measurements here to see what kind of "boost" it provides
olderguy is offline   Reply With Quote
Old 04-10-2007, 10:16 AM   #12
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

Black cherry on .net did i believe.
magnamx-5 is offline   Reply With Quote
Old 04-10-2007, 11:05 AM   #13
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default



green sucks, red blows. you can see how air wants to enter by the firewall....
Braineack is offline   Reply With Quote
Old 04-10-2007, 12:03 PM   #14
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

wait, you mean the JDM style hood vents are right and the FM hood vents are less effective?
y8s is offline   Reply With Quote
Old 04-10-2007, 12:14 PM   #15
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

no id would say the fm style hoods are correct, cause there is a low pressure zone and the air will not try to enter back into the hood but exhaust from it....the jdm riser hoods allow an opening for the high pressure to enter from behind into the cowl, and not escape
Braineack is offline   Reply With Quote
Old 04-10-2007, 03:04 PM   #16
Senior Member

Join Date: Jan 2007
Location: Maryland
Posts: 701
Total Cats: 0
Default

Not sure what you mean by JDM hoods but what braineack said is right. The other way to look at it is to say the red areas are low pressure areas, where you will find the most consistant slip stream. The grean areas are high pressure where the air meets some sort of resistance or wall it will build there until it spills out somewhere else.

God convertables mess with your air flow over the car. Wonder if anyone has a flow pattern analysis with hard tops and with any of the rear spoiler types...meaning simple lip v.s. GT wing.
MX_Eva is offline   Reply With Quote
Old 04-10-2007, 03:34 PM   #17
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

i think the above pic is velocity, not pressure, but whatever... it still gives you the right idea.
Braineack is offline   Reply With Quote
Old 04-10-2007, 04:08 PM   #18
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

Quote:
Originally Posted by Braineack View Post
i think the above pic is velocity, not pressure, but whatever... it still gives you the right idea.
well now it doesn't!

I was gonna say FM puts their vents under the green part and the JDM ones (garage vary, stage21, etc) put them under the red... if green was pressure it'd push the air INTO the vent and red would pull it out. in through the nose, out through the vent.

but since it's velocity, you can't really tell. though generally higher velocity is lower pressure a la bernoulli. for example the blue area behind the seats has low velocity but it could be a low pressure region too. hmm.
y8s is offline   Reply With Quote
Old 04-10-2007, 05:04 PM   #19
Senior Member

Join Date: Mar 2005
Posts: 531
Total Cats: 0
Default

also the dangerous thing about graphics and graphs like that is there is no reference for the speed at which that particular event happens...

at a dead stop that graphic is moot, and speeds lower or higher it might be a different gradient... VASTLY different. there is also no reference to the pressure gradient at the edges of the hood or body, while it might be true at the dead center it might be the inverse at the edges...

and even so while it might be true at one speed its not true at all speeds.
VRTSid is offline   Reply With Quote
Old 04-10-2007, 05:20 PM   #20
Senior Member

Join Date: Jan 2007
Location: Maryland
Posts: 701
Total Cats: 0
Default

not though it's a high pressure area it really only works (the velocity image that is) if you look at if in terms of applying what you know to the image. The red areas clearly indicate the fastest velocity areas. if an area has a fast velocity it means it has a drop in pressure. Anywhere that the velocity drops (in the air dam, the windsheild) the pressure increases.
