Default Heater hose relocate ideas

So I am at that point in my turbo installation process that I am installing my turbo. Weird, right? So now I have a small obstacle in my path that I have to take care of. It turns out that the heater return hard line that runs off the mixing manifold is hitting my downpipe preventing me from seating the turbo on the manifold.

I am brainstorming some ideas as the auto shop on base here is closed until Friday.

So far what I got is...

1) Try to bend it around to the other side of the dip stick. It seemed like a tough bit of metal so I think it may crack if I bend it, but hey... IDK.

2) Cut dat bitch, and just run it straight without the bend .

3) Flip the mixing manifold and run the heater line somewhere else. This one seems like to much work.

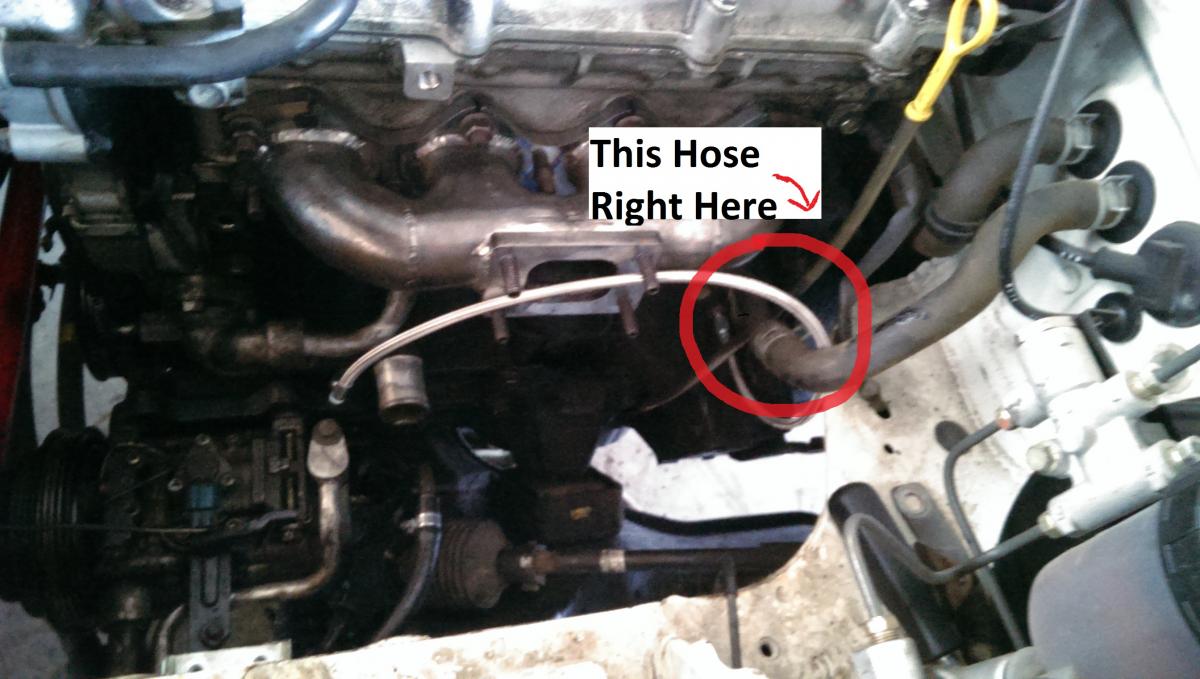

Attached Thumbnails
Heater hose relocate ideas-imag0336.jpg
connor is offline   Reply With Quote
Old 11-20-2013, 02:42 AM   #2
Senior Member
iTrader: (1)

Onyxyth's Avatar

Join Date: May 2013
Location: Boyertown, PA
Posts: 719
Total Cats: 55
Default

I think most people bend it toward the firewall more. That's what I did.
Onyxyth is offline   Reply With Quote
Old 11-20-2013, 03:42 AM   #3
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,175
Total Cats: 2,578
Default

hyper re-route
18psi is offline   Reply With Quote
Old 11-20-2013, 07:13 AM   #4
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,196
Total Cats: 260
Default

Quote:
Originally Posted by 18psi View Post
hyper re-route
lol


Yeah, you can bend that thing where you want.

I've found it's much easier to take it off and bend it too.
Erat is offline   Reply With Quote
Old 11-20-2013, 09:26 AM   #5
Elite Member
iTrader: (2)

fooger03's Avatar

Join Date: Jan 2009
Location: Columbus, OH
Posts: 4,132
Total Cats: 187
Default

put it in a vice, not too tight. Heat it with a torch, not too hot. Stick a ratched drive extension into the tube and carefully bend it straight, not too straight. Be careful not to oval out the end.

It's much easier to manipulate than you may think.
fooger03 is offline   Reply With Quote
Old 11-20-2013, 09:40 AM   #6
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,638
Total Cats: 25
Default

Just put a 1/2 drive extension inside it and bend it where you want to without removing anything except it's rubber hose.

Easy.
nitrodann is offline   Reply With Quote
Old 11-20-2013, 11:04 AM   #7
Junior Member

Join Date: Mar 2012
Location: Tampa FL
Posts: 135
Total Cats: 10
Default

Quote:
Originally Posted by 18psi View Post
hyper re-route
The only logical answer
I<3flippyheadlights is offline   Reply With Quote
Old 11-20-2013, 11:20 AM   #8
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,638
Total Cats: 25
Default

maybe it's not half drive.. But yeh just bend it.

Dann
nitrodann is offline   Reply With Quote
Old 11-20-2013, 12:47 PM   #9
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

I put a 90* fitting right off the heater core to point it towards the master cylinder booster. Then I ran a long line along the outside of the engine bay, to a "T" in the lower radiator hose. In my setup, the mixing manifold is flipped and welded. Alternatively, you could tap the welded mixing manifold and stick in another 90* fitting.

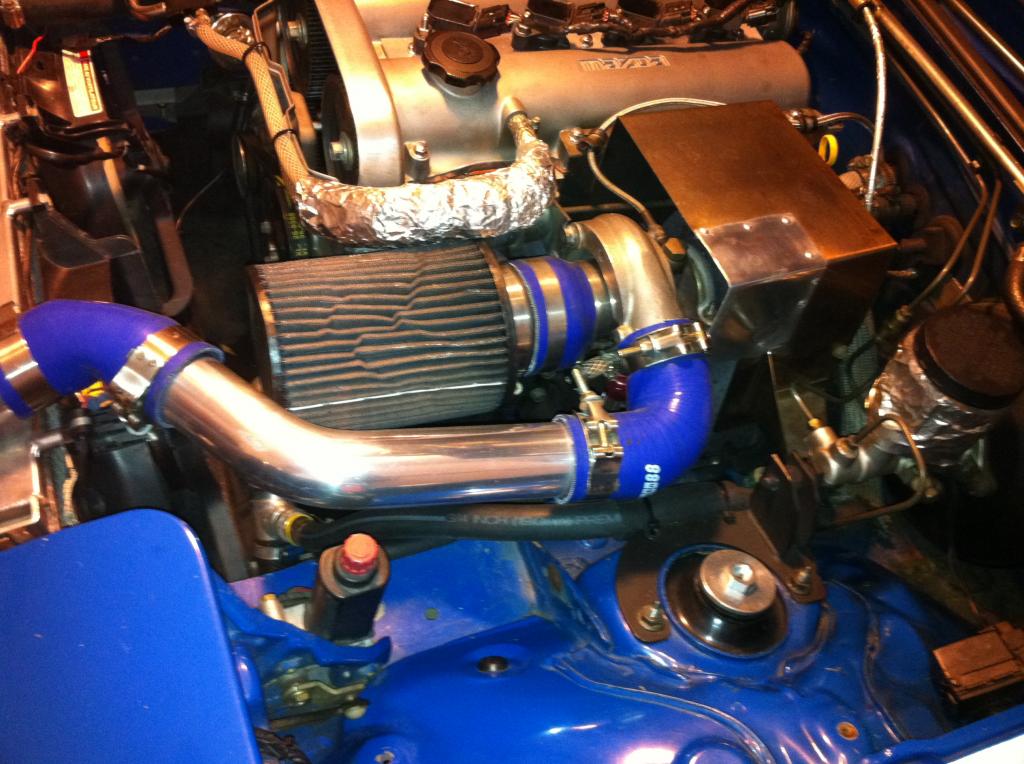

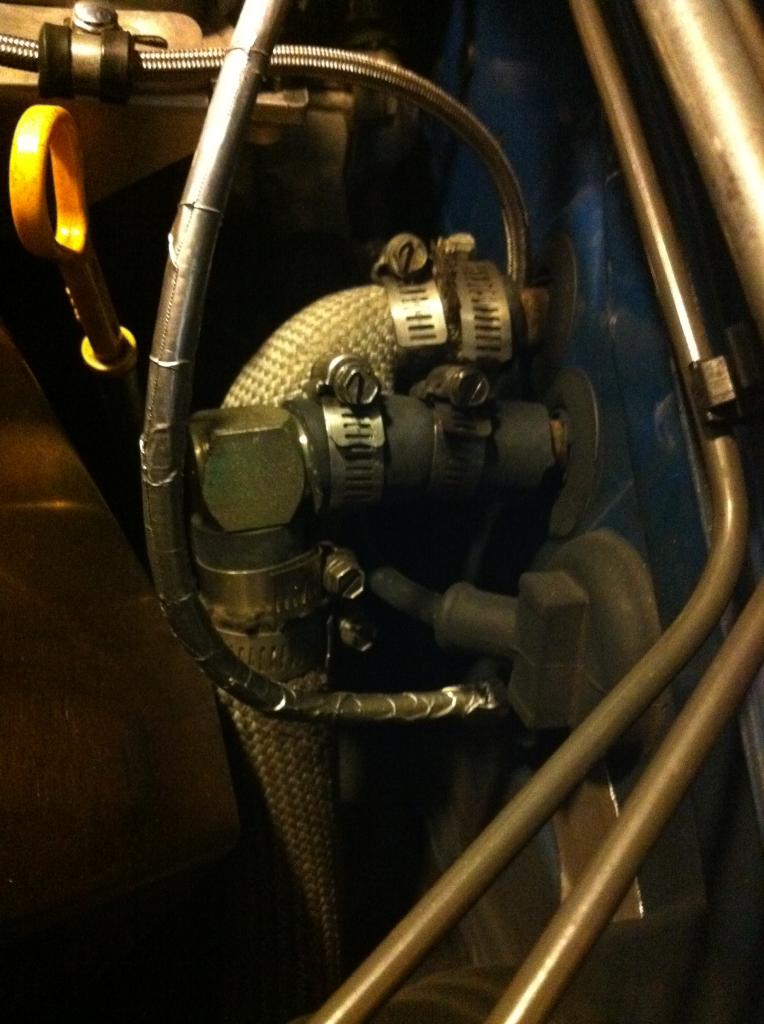

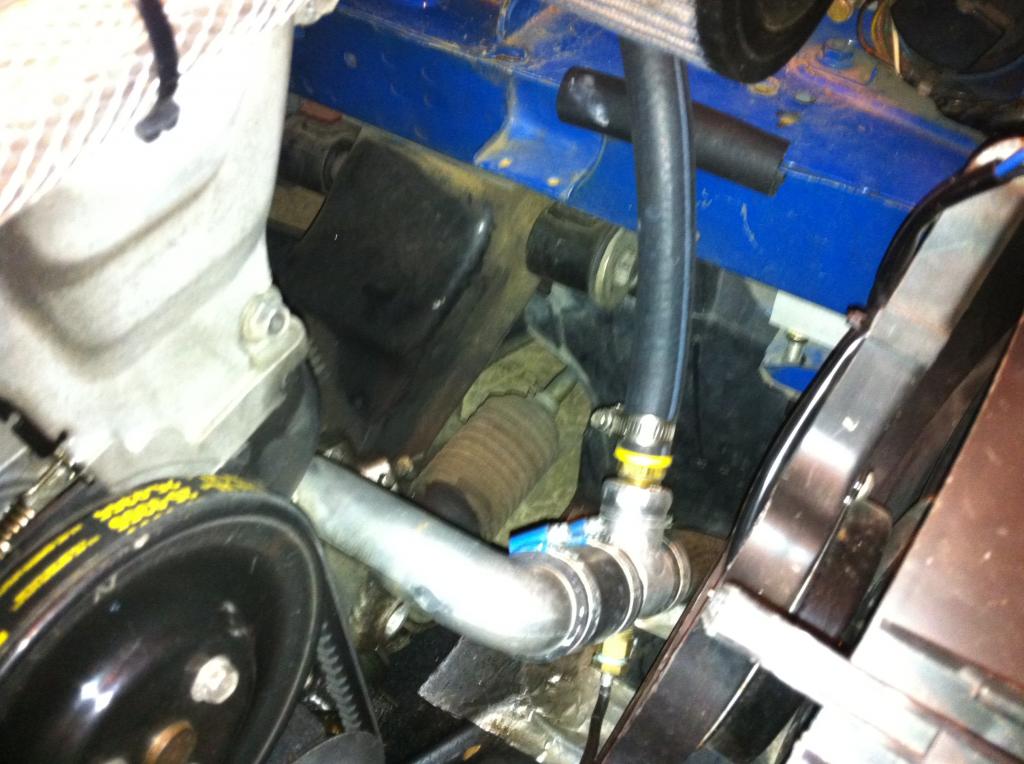

Attached Thumbnails
Heater hose relocate ideas-heaterreturn001_zps143b3cfb.jpg   Heater hose relocate ideas-heaterreturn002_zpsd48b2f33.jpg   Heater hose relocate ideas-heaterreturn004_zps278927cf.jpg
curly is offline   Reply With Quote
Old 11-20-2013, 03:22 PM   #10
Junior Member
iTrader: (1)

Join Date: Feb 2013
Location: Windsor, Ontario
Posts: 404
Total Cats: 64
Default

Just take it off, throw it in the vice and bend it however much you need.

Quote:
Originally Posted by fooger03 View Post
Be careful not to oval out the end.
If you do oval out the end, stick a socket (somewhere between 12mm to 14mm) in it and hammer it in until its round again.
BoostedSmurf is offline   Reply With Quote
Old 11-21-2013, 01:30 AM   #11
Junior Member
Thread Starter

Join Date: Nov 2012
Location: Camp Pendleton, CA
Posts: 49
Total Cats: 0
Default

Thanks for the plethora of ideas. I might do a setup like what Curly has, but if I get pissed off while I'm working on it before I head off to the hardware store I'll probably just beat the **** out of it then become furious and end up breaking it. Then at that point I'll have to use his idea.

I will try my best to contain myself.
connor is offline   Reply With Quote
Old 11-21-2013, 02:30 AM   #12
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

3 options.

Bend the bitch back an inch.

Do the quick reroute where you toss the rear coolant neck in the front and the front neck in the rear then weld a pipe to the inlet mixing casting coming from the radiator and run the lines together like in curlys picture.

Last one is to run a full coolant reroute and do the same **** with the front mixing casting again like in curlys picture.

I guess your last option is to run a hyper reroute like 18psi says and buy one of these.
Attached Thumbnails
Heater hose relocate ideas-smrj79-1837610.jpg
triple88a is offline   Reply With Quote
Old 11-21-2013, 04:34 AM   #13
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,877
Total Cats: 344
Default

If you've got a cast manifold, you don't need to take it off. Just get a Gordon Freeman crowbar and apply some leverage. Not recommended with thinner-walled tubes, though.

--Ian
codrus is offline   Reply With Quote
Old 11-22-2013, 05:14 PM   #14
Junior Member

Join Date: Jul 2010
Location: Camp Pendleton, CA
Posts: 93
Total Cats: 2
Default

What unit are you with? Im also on pendleton during the week, although my Miata lives up in Glendale.
Darthteddy is offline   Reply With Quote
Old 11-22-2013, 06:02 PM   #15
Senior Member
iTrader: (8)

paNX2K&SE-R's Avatar

Join Date: Dec 2007
Location: Mocksville, NC
Posts: 676
Total Cats: 11
Default

Mine is similar to Curly's setup but I routed the hose under the brake booster and along the far edge of the engine bay near the fender line. It's tee'd into the lower radiator hose as well.

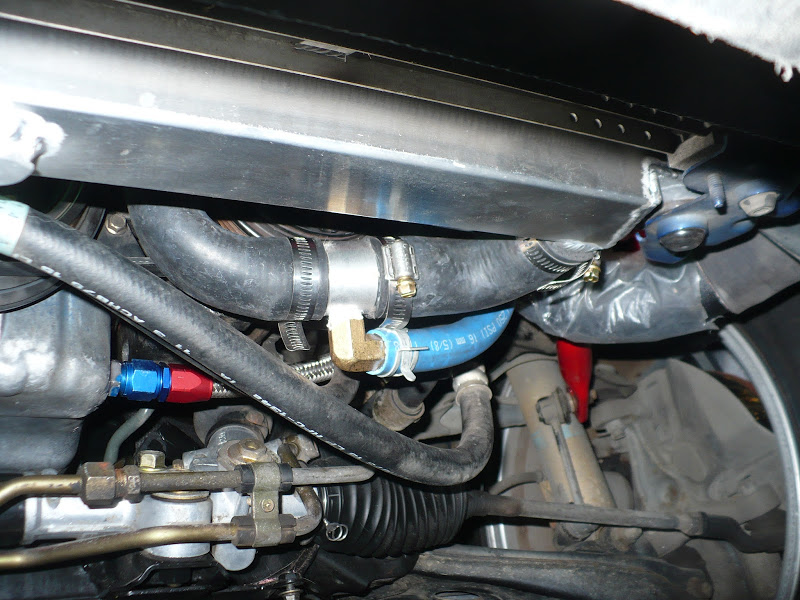

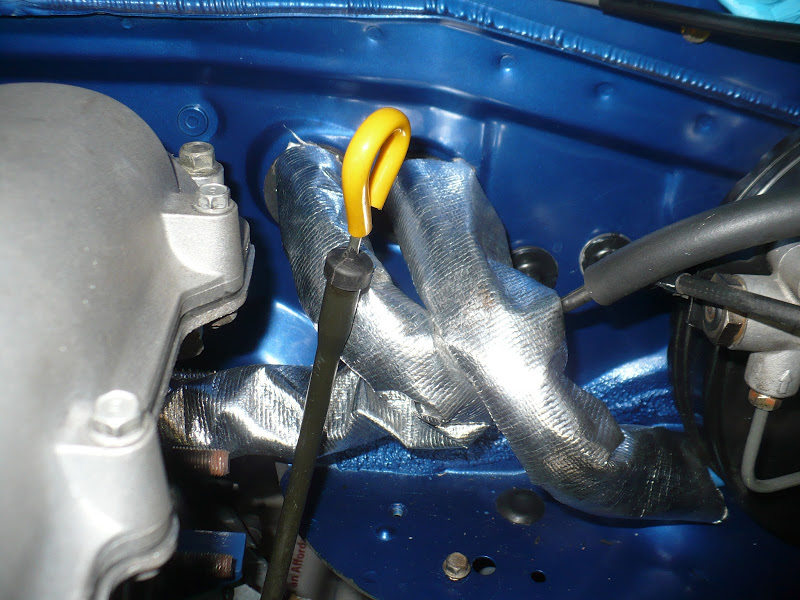

Attached Thumbnails
Heater hose relocate ideas-picture%252520115%252520-%252520copy.jpg   Heater hose relocate ideas-picture%252520131.jpg
paNX2K&SE-R is offline   Reply With Quote
Old 11-22-2013, 08:32 PM   #16
Junior Member
iTrader: (1)

Join Date: Apr 2009
Location: illinois
Posts: 190
Total Cats: -4
Default

Has anyone tried using the kia thermostat hosting that begi uses for the reroute?
ls1motorsports is offline   Reply With Quote
Old 11-22-2013, 08:40 PM   #17
Junior Member
iTrader: (1)

Join Date: Apr 2009
Location: illinois
Posts: 190
Total Cats: -4
Default

Nvm I'm retard. They probably don't have the same opening on the flange
ls1motorsports is offline   Reply With Quote
Old 11-22-2013, 08:53 PM   #18
Senior Member
iTrader: (5)

Join Date: Sep 2009
Location: Lompoc, CA
Posts: 579
Total Cats: 12
Default

Actually the bolt pattern is identical and the openings are close. But I don't recall if it seals properly onto the water pump. I seem to remember thinking about using that for the radiator hose at one point, but decided to weld and flip the stock mixing manifold instead.
baron340 is offline   Reply With Quote
Old 11-23-2013, 12:03 AM   #19
Junior Member
Thread Starter

Join Date: Nov 2012
Location: Camp Pendleton, CA
Posts: 49
Total Cats: 0
Default

Quote:
Originally Posted by Darthteddy View Post
What unit are you with? Im also on pendleton during the week, although my Miata lives up in Glendale.
I'm at the H&HS on the airstation right now. What about you?
connor is offline   Reply With Quote
Old 11-23-2013, 11:24 PM   #20
Junior Member

Join Date: Jul 2010
Location: Camp Pendleton, CA
Posts: 93
Total Cats: 2
Default

I also work on the airstation at 303. Hanger 3.
Darthteddy is offline   Reply With Quote
