DIY Turbo Discussion greddy on a 1.8? homebrew kit?

Reply



LinkBack Thread Tools
Old 01-22-2008, 10:08 PM   #21
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Quote:
Originally Posted by tvalenziano View Post
not jackign but any links to a pic of this? I know i can search, just wondering if u have somethign quick...

GL to da OP..., subscribing for a happy ending..(not that kind)

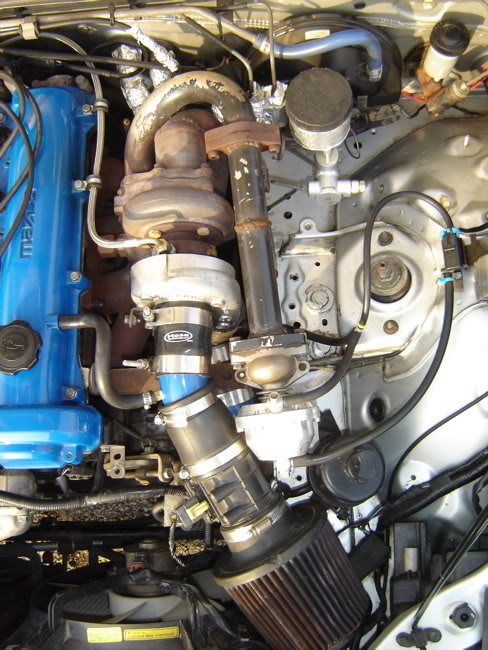

Sure...
Name:  DSC01921.jpg
Views: 0
Size:  89.1 KB
cjernigan is offline   Reply With Quote
Old 01-22-2008, 10:09 PM   #22
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,908
Total Cats: 1,793
Default

thanks Chad

Braineack is online now   Reply With Quote
Old 01-22-2008, 10:10 PM   #23
Elite Member
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

The crankcase is pressurized when BOOST makes it into the crankcase through blown rings. Or it can make its way into the valve cover if the PCV valve isn't strong enough or is compromised. The space under the valve cover and the crankcase are connected through holes that run through the block. You can also pressurize the crankcase if you blow a head-gasket and boost makes it through the compromised gasket and into the holes than run through the block that connect the valve space and the crankcase.

Since the oil drain from the turbo drains itself directly into the crankcase (oilpan), when you pressurize that space, it prevents oil from draining... backing up oil in the oil return line into the CHRA... but since oil is still being forced into the CHRA through the oil-feed line, you pressurize the CHRA and the oil has nowhere to go but out through the turbo seals into the compressor or turbine... and you burn oil. You will also usually get a lot of oil leaking through the outside of the turbine housing coating the outside of the housing. You will almost always blow your dipstick out and cover the back of the engine bay in oil.
samnavy is offline   Reply With Quote
Old 01-22-2008, 10:15 PM   #24
Elite Member
iTrader: (17)

Join Date: May 2007
Location: NY
Posts: 1,614
Total Cats: 2
Default

Quote:
Originally Posted by cjernigan View Post
Sure...
Of course, i knew i seen that...DUH!
Thanks much!
TonyV is offline   Reply With Quote
Old 01-22-2008, 10:25 PM   #25
Junior Member
iTrader: (1)

Join Date: Jun 2007
Posts: 114
Total Cats: 0
Default

Its not boost to the crankcase just a breather filter on the crank case
HKSturboMiata is offline   Reply With Quote
Old 01-22-2008, 10:30 PM   #26
Junior Member
iTrader: (1)

Join Date: Jun 2007
Posts: 114
Total Cats: 0
Default

looks like the filter on this case
http://i6.photobucket.com/albums/y22...cs002Small.jpg
HKSturboMiata is offline   Reply With Quote
Old 01-22-2008, 10:38 PM   #27
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

That works fine as well. Make sure you have a good PCV valve, if it's leaking boost into the valvecover you'll still have the same problem.
cjernigan is offline   Reply With Quote
Old 01-22-2008, 10:56 PM   #28
Junior Member
iTrader: (1)

Join Date: Jun 2007
Posts: 114
Total Cats: 0
Default

So if I buy a standard PCV vavle for a 1988-1989: 4Cyl 1.6L Gas, Fuel Injected, Turbo GTX. This will replace the valve on my 91 1.6? I figure I need to replace it anyways.
HKSturboMiata is offline   Reply With Quote
Old 02-17-2008, 02:09 AM   #29
Junior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2008
Location: sonora ,CA
Posts: 48
Total Cats: 0
Default

for the answer to my turbo pro check my other post

Last edited by andygoesfast; 02-17-2008 at 02:15 AM. Reason: wrong post
andygoesfast is offline   Reply With Quote
Old 02-17-2008, 02:16 AM   #30
Junior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2008
Location: sonora ,CA
Posts: 48
Total Cats: 0
Default

ok so i did not do this right but it fixed it i took it off took it apart cleaned it out it was a mess dirt in a turbo i have never seen it before but the seal could not seal from all the **** lol, but it is back to good
andygoesfast is offline   Reply With Quote
