Default Help with LC-1 / Megasquirt wiring, lots of pictures, tell me what I did wrong.

When I purchased my car, it had been previously turbocharged. I found a wideband in trunk with a gauge. It is an LC-1, unknown gauge model.

I took apart the loom and looked up innovates manuals and product manuals and figured out all of the wires in the loom. I attempted to hook it up in my car, but the gauge is not powering on.

I have also tried installing an MS3x built by braineack but purchased from a different forum member here at the same time as the wideband.
I have used what I think is a ridiculous length of vacuum line, at an attempt to not drill my firewall.
After hooking everything up according to manuals, and my research on this site and others I haven't been able to get power to the gauge.

I was hoping someone can look through these photos and help me figure out this out.


Thanks!

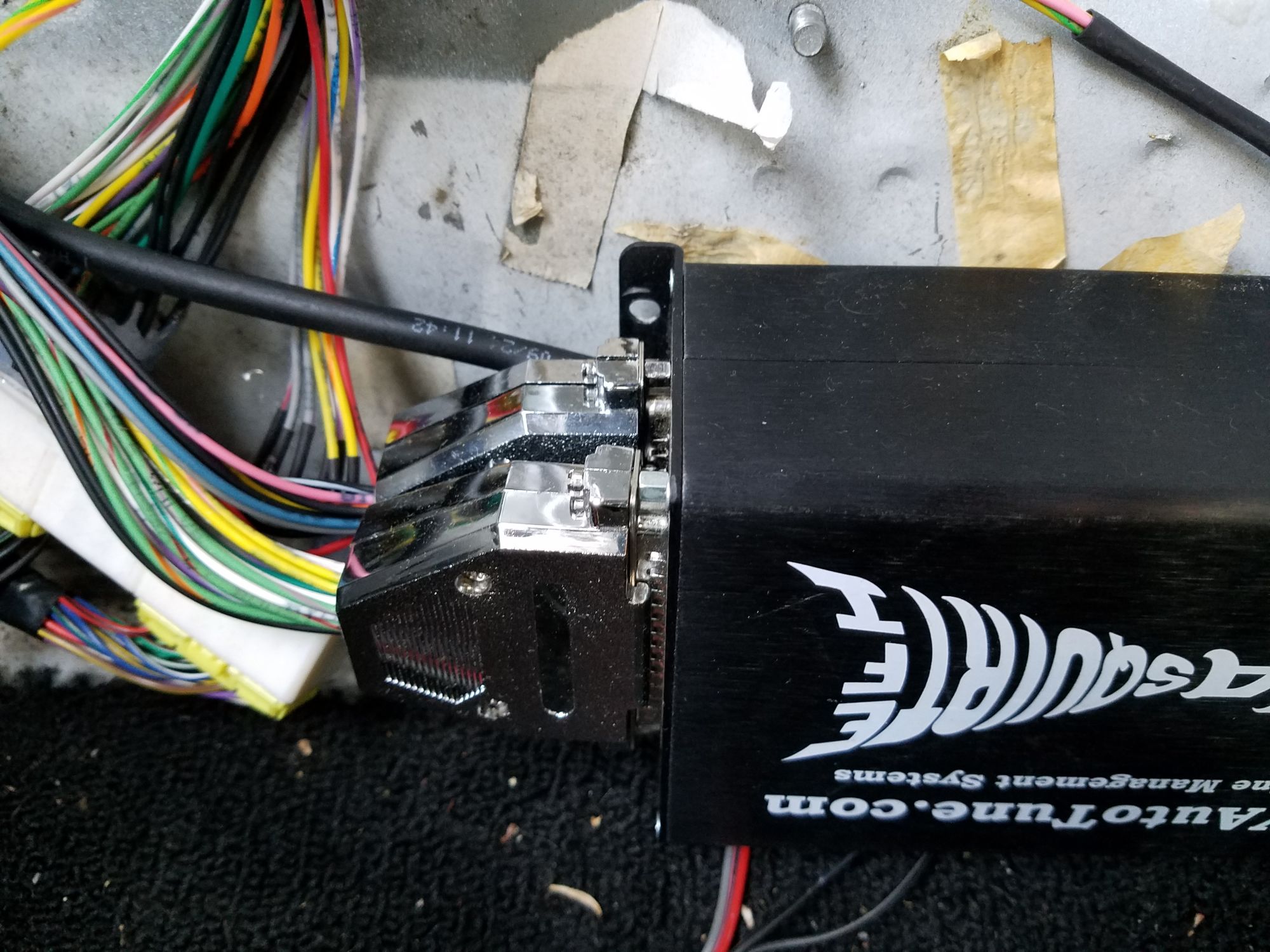

Brain build MS3 bought from Dwink, hooked into factory wiring, with vacuum line.
<br><br>

<br><br>

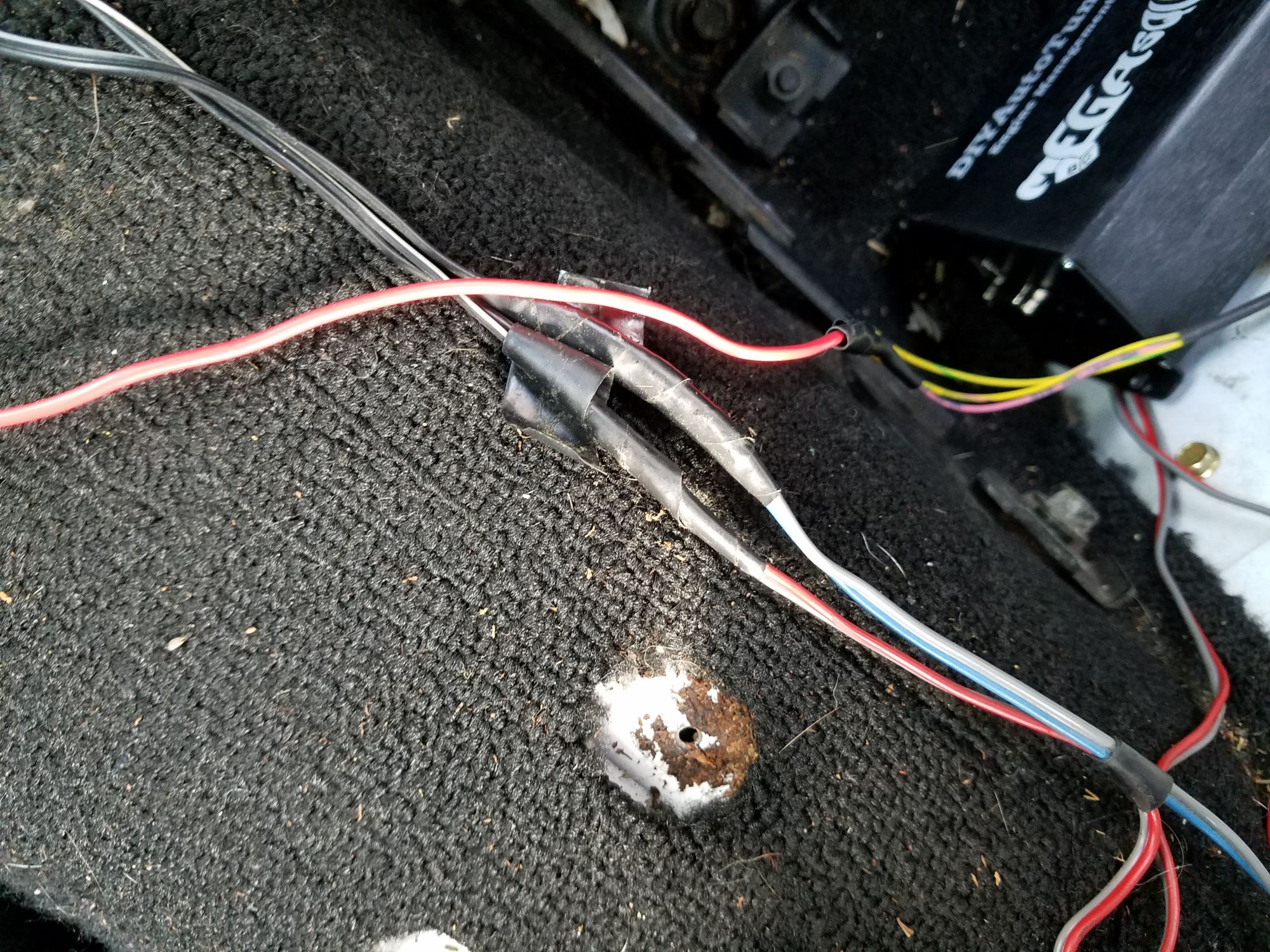

ecu spot isnt permanent, but I used some vacuum line to run it from the back of the passenger seat around the car lol.


<br><br>

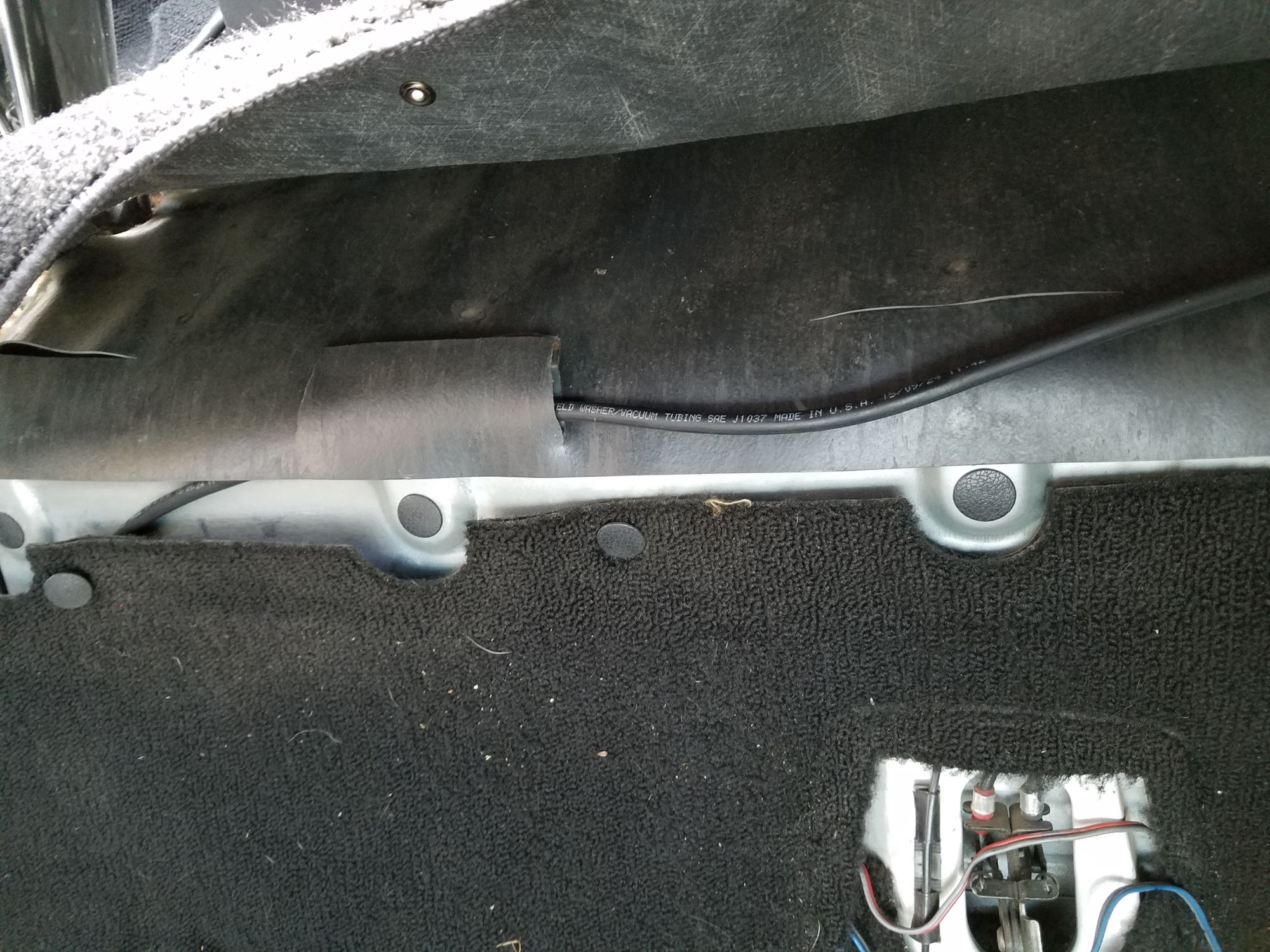

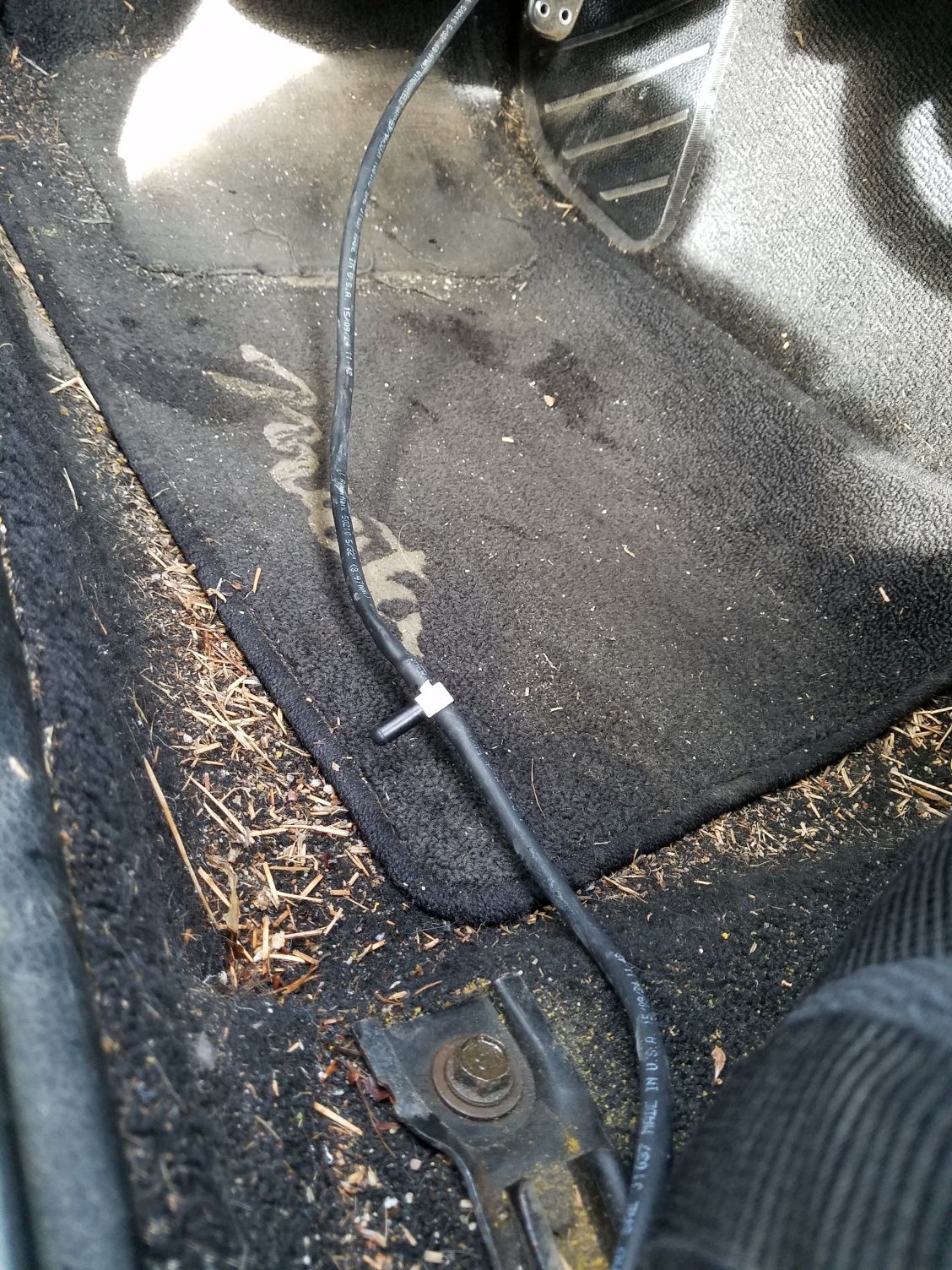

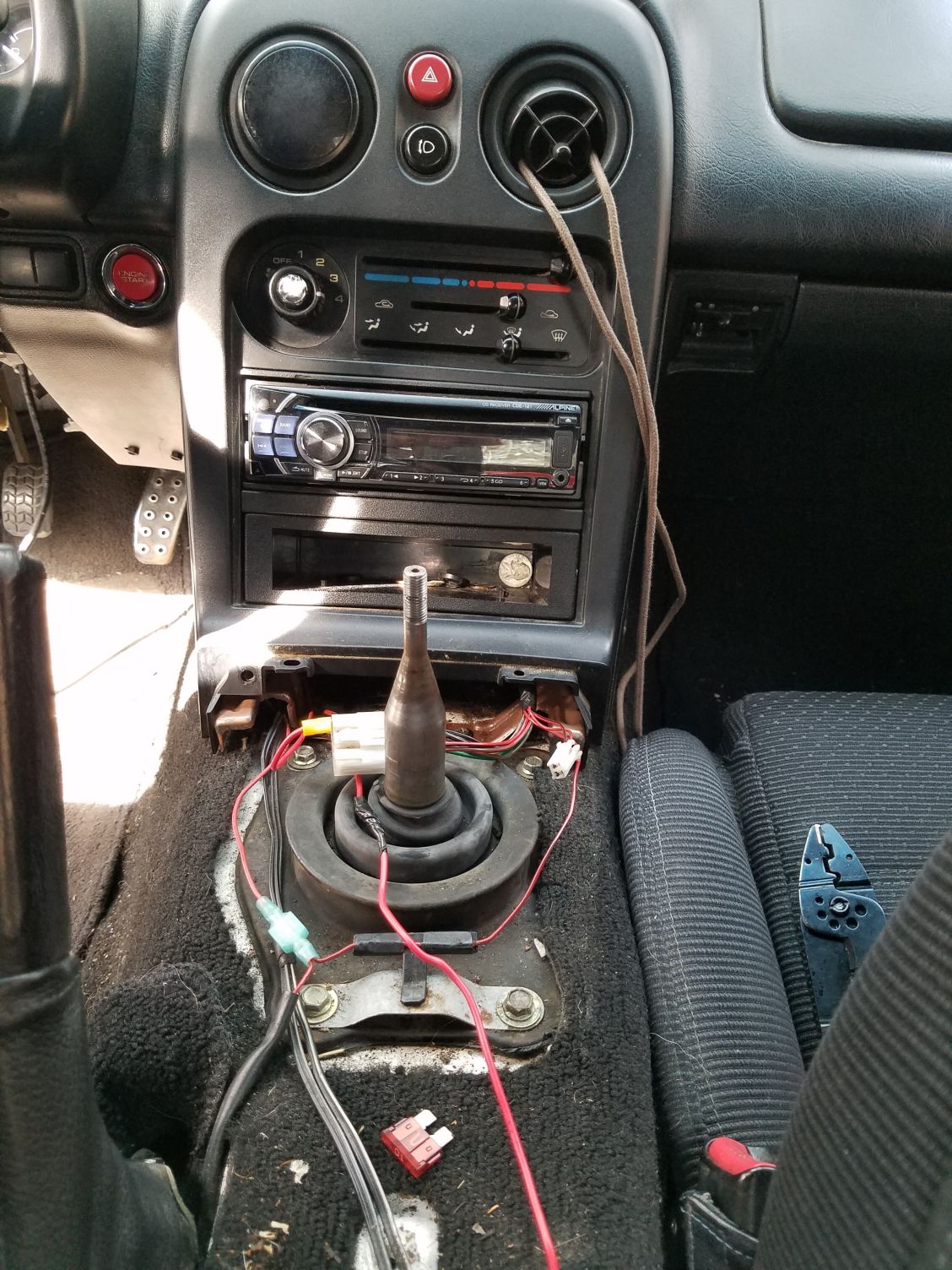

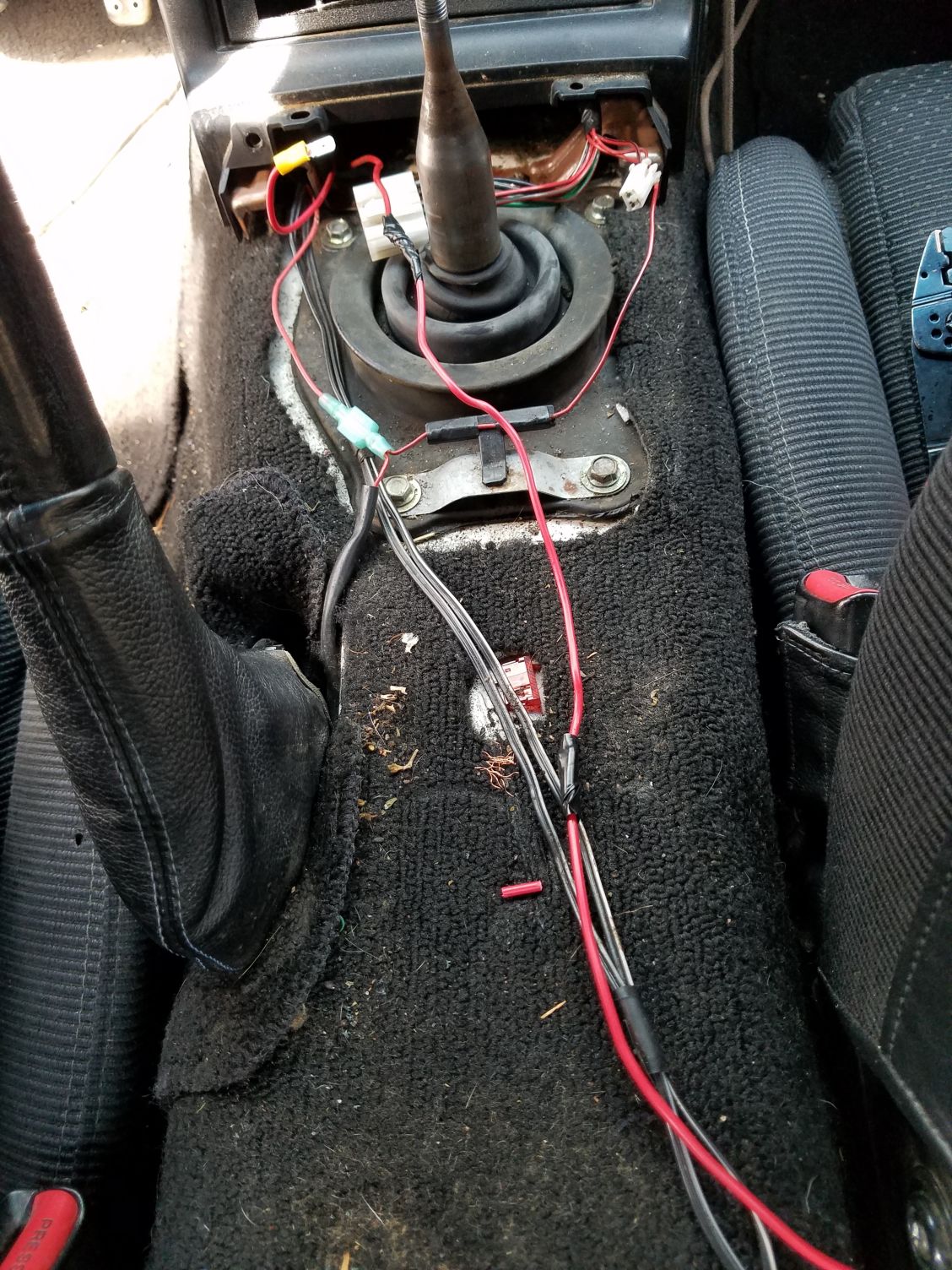

it runs around my driver seat and out of the firewall


<br><br>

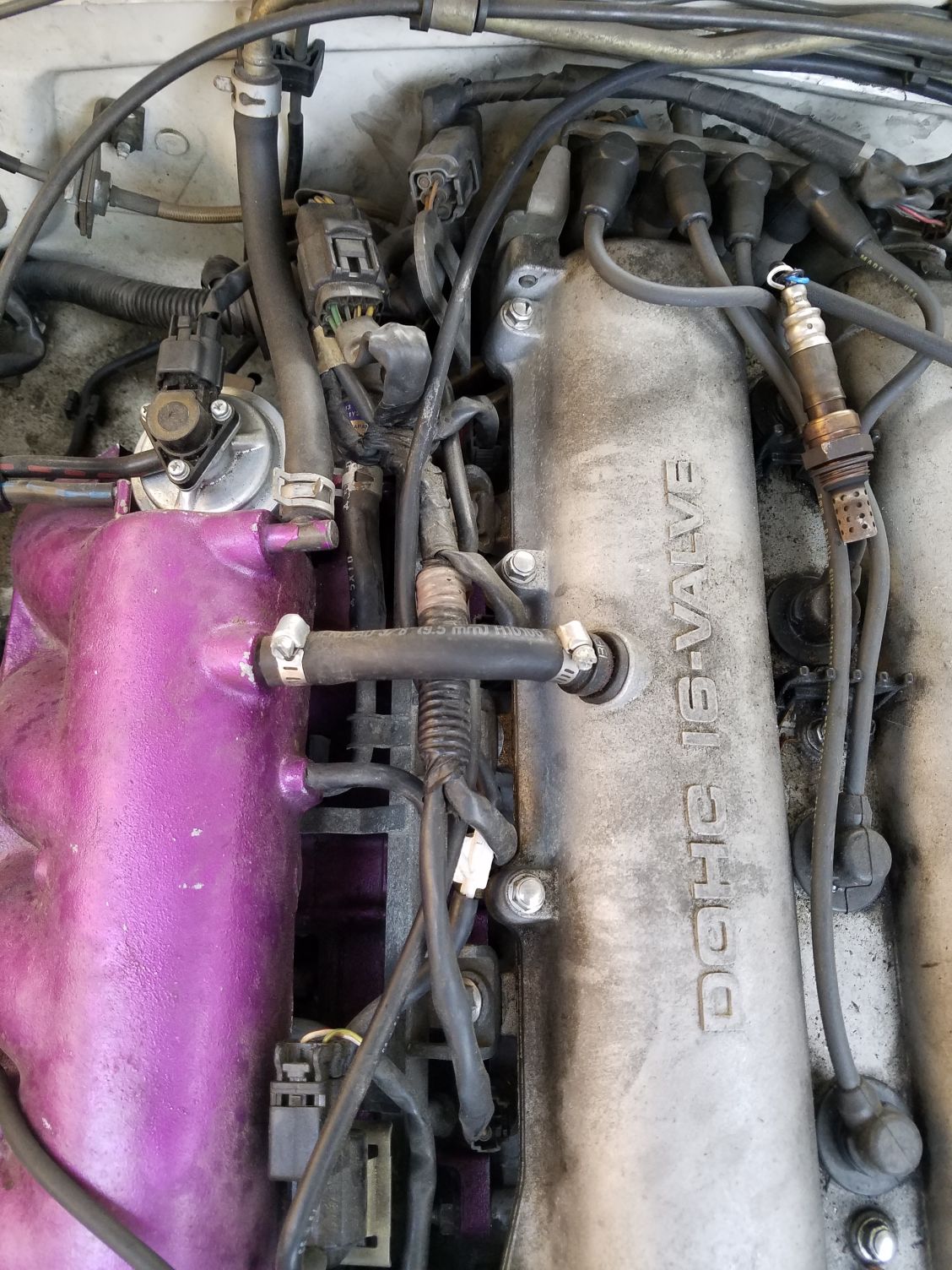

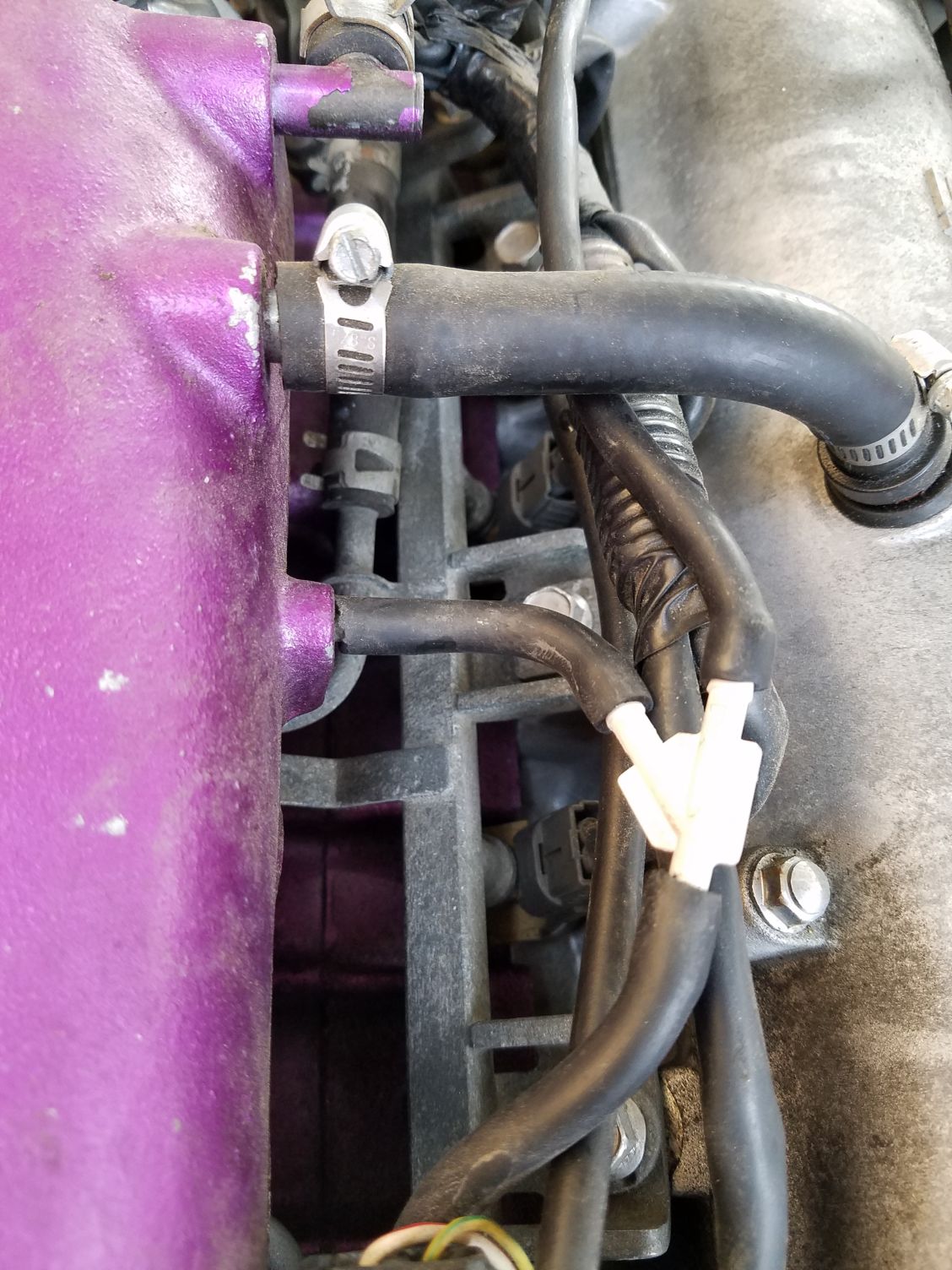

i tapped into the port that the instructions say to.


<br><br>

it fits decent for the time being
<br><br>

wideband analog wire from the ecu


<br><br>

tracing the wideband analog wire


<br><br>

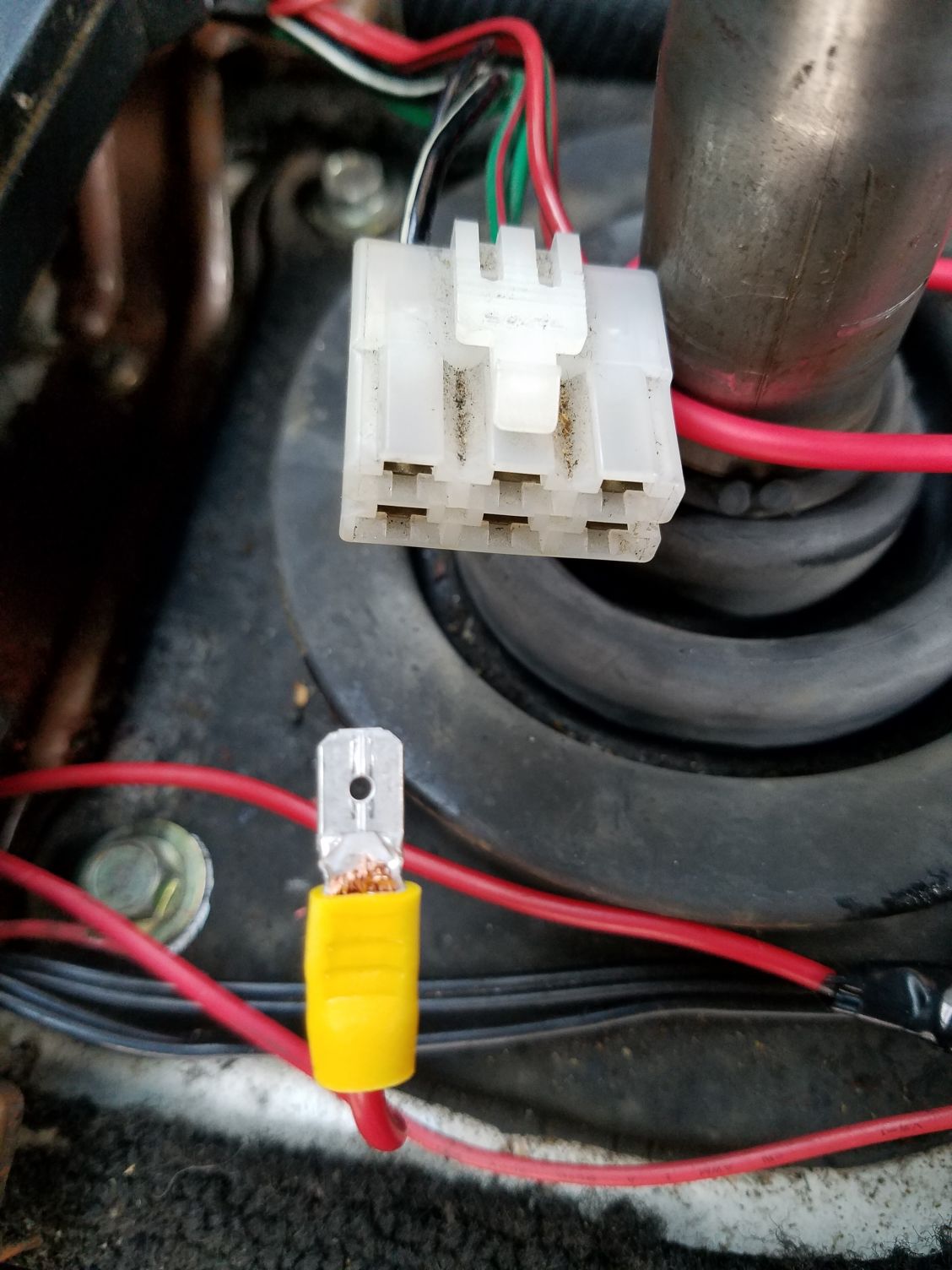

Male spade connector on the end of the LC-1 power wire.


<br><br>

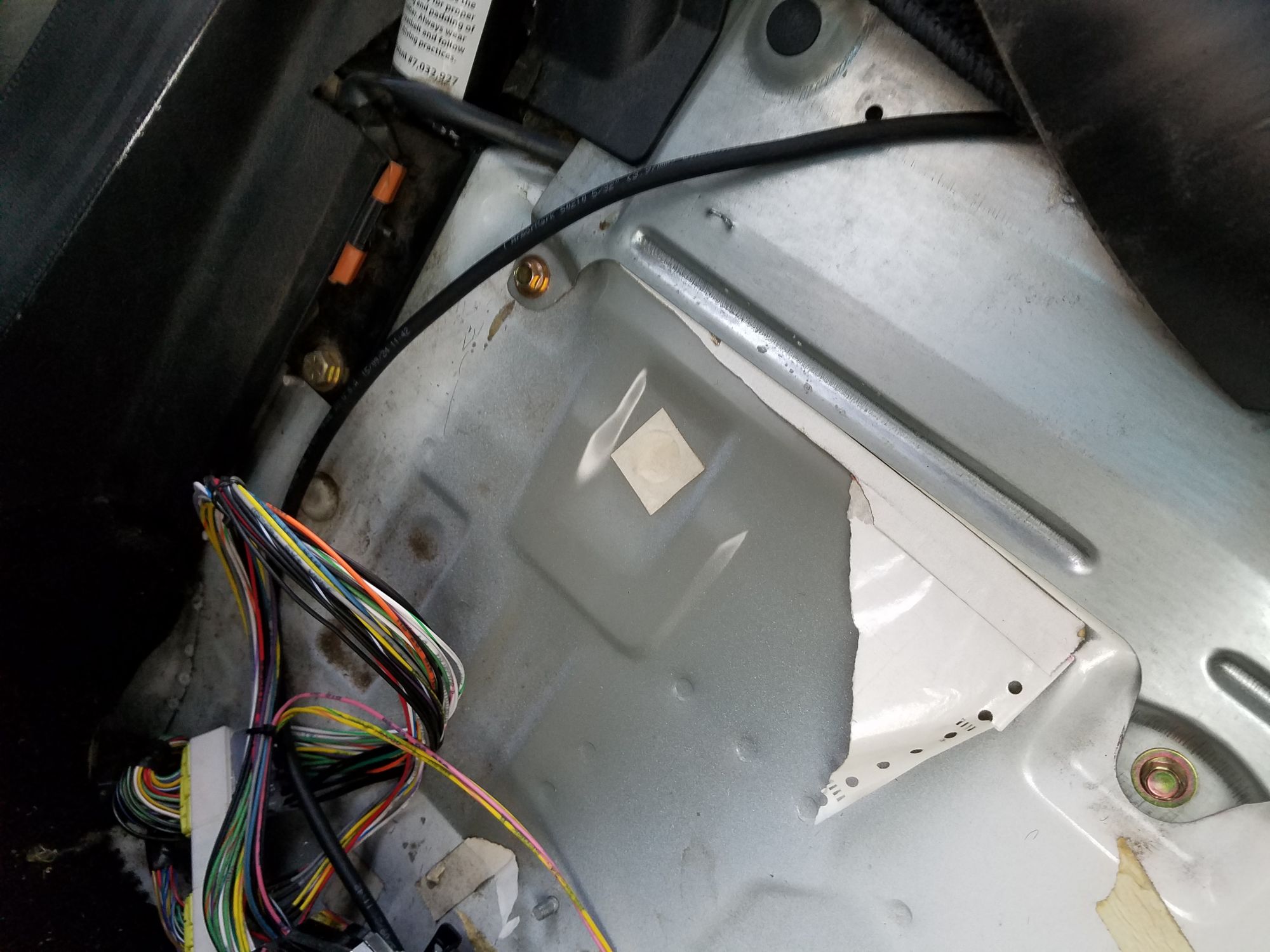

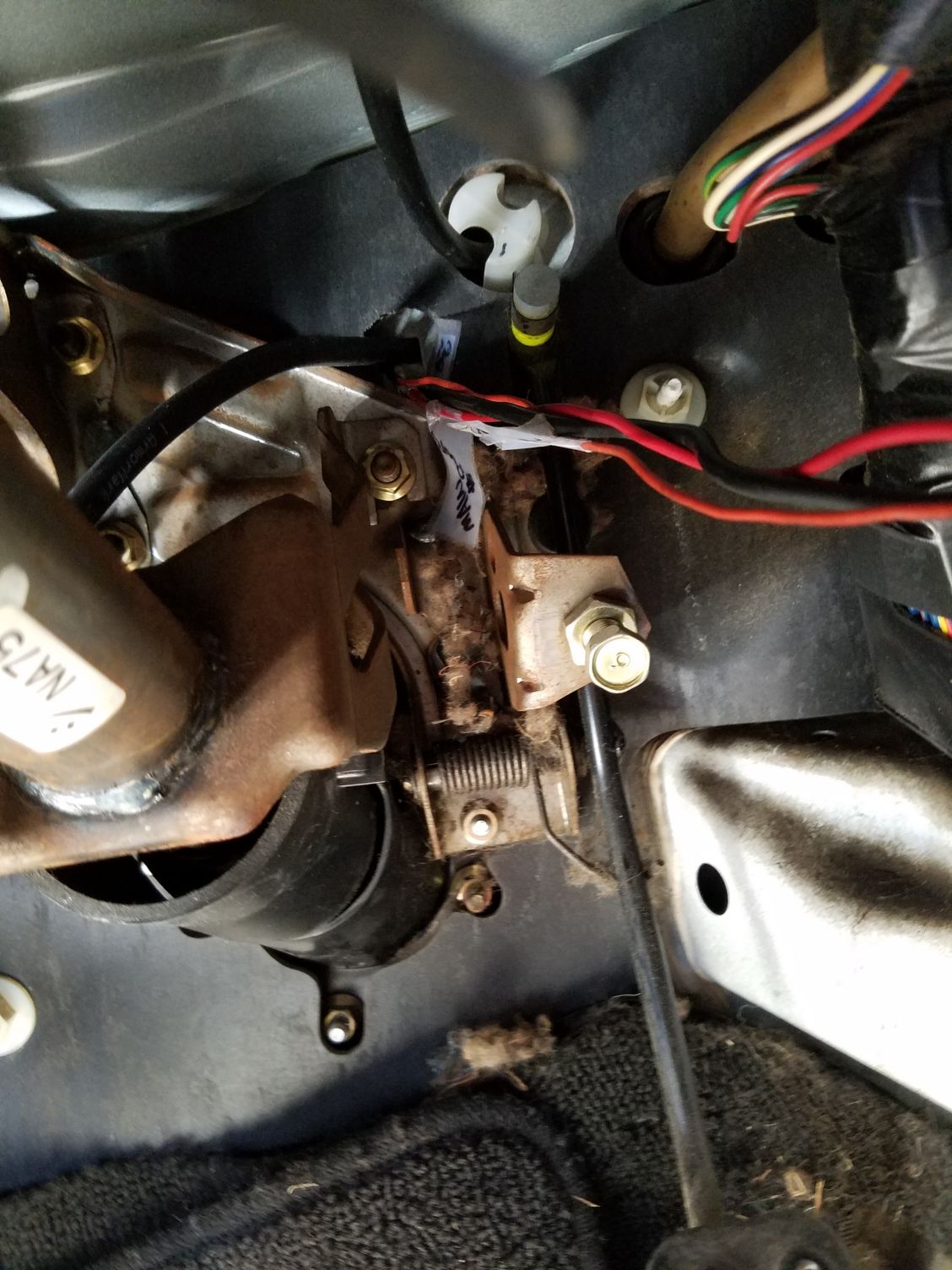

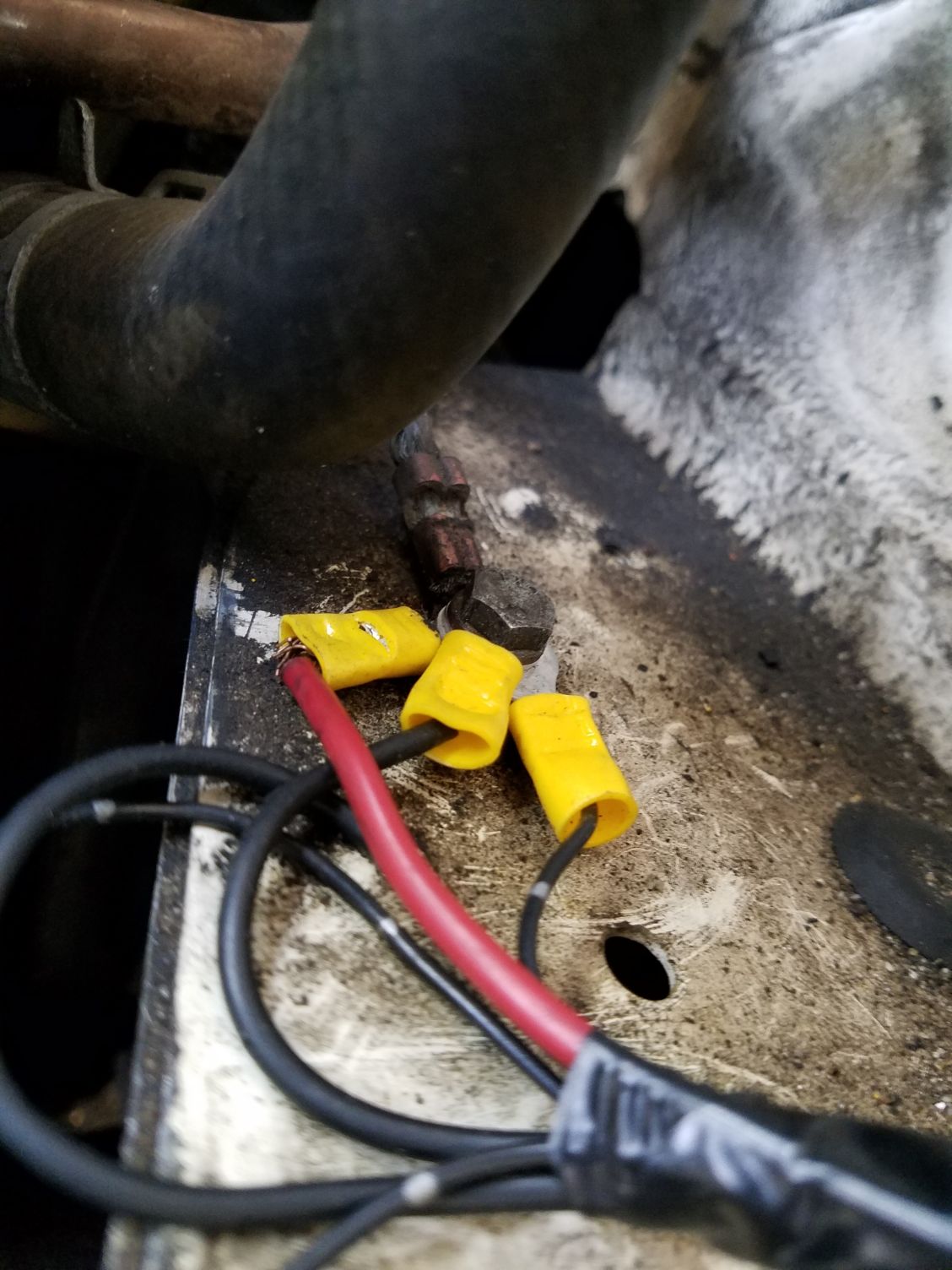

unknown gauge wires, and power/ecu wires in through the firewall


<br><br>

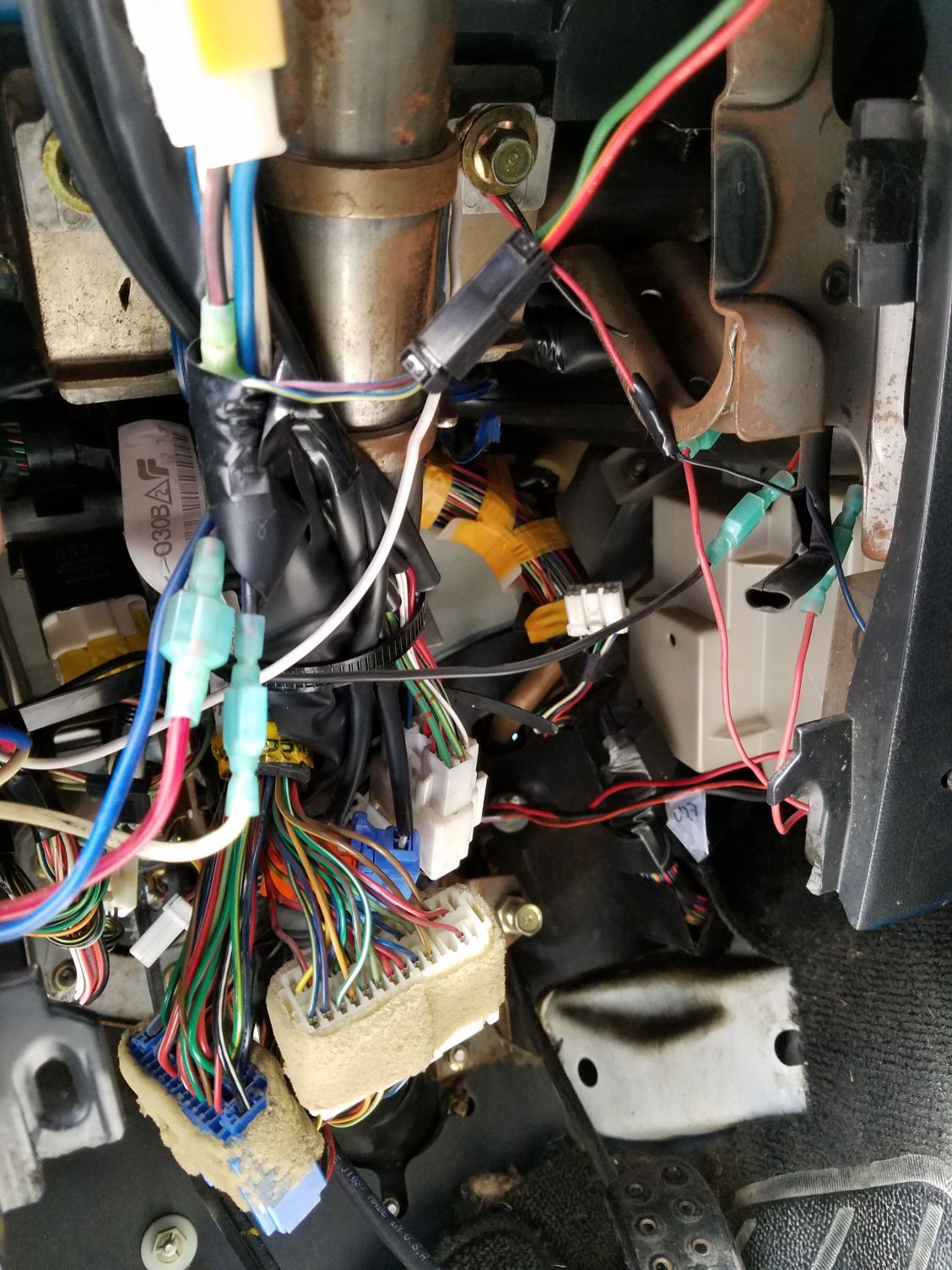

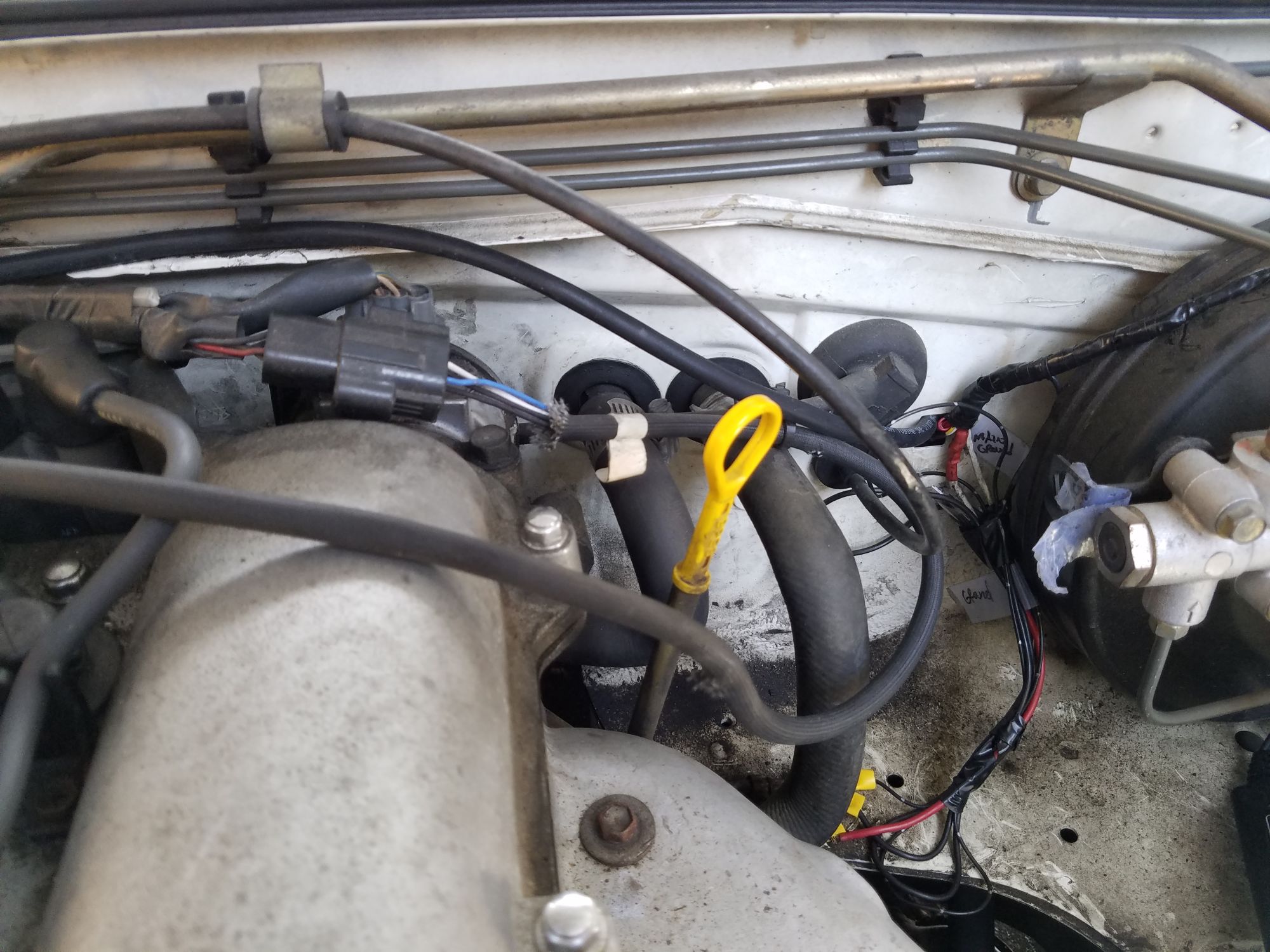

vacuum and wires through same hole. you can see my grounds right below.


<br><br>

instructions said if not using the dimming feature of the gauge then to ground that wire to the same spot as other grounds, so you can see I grounded everything here.<br><br>&nbsp;

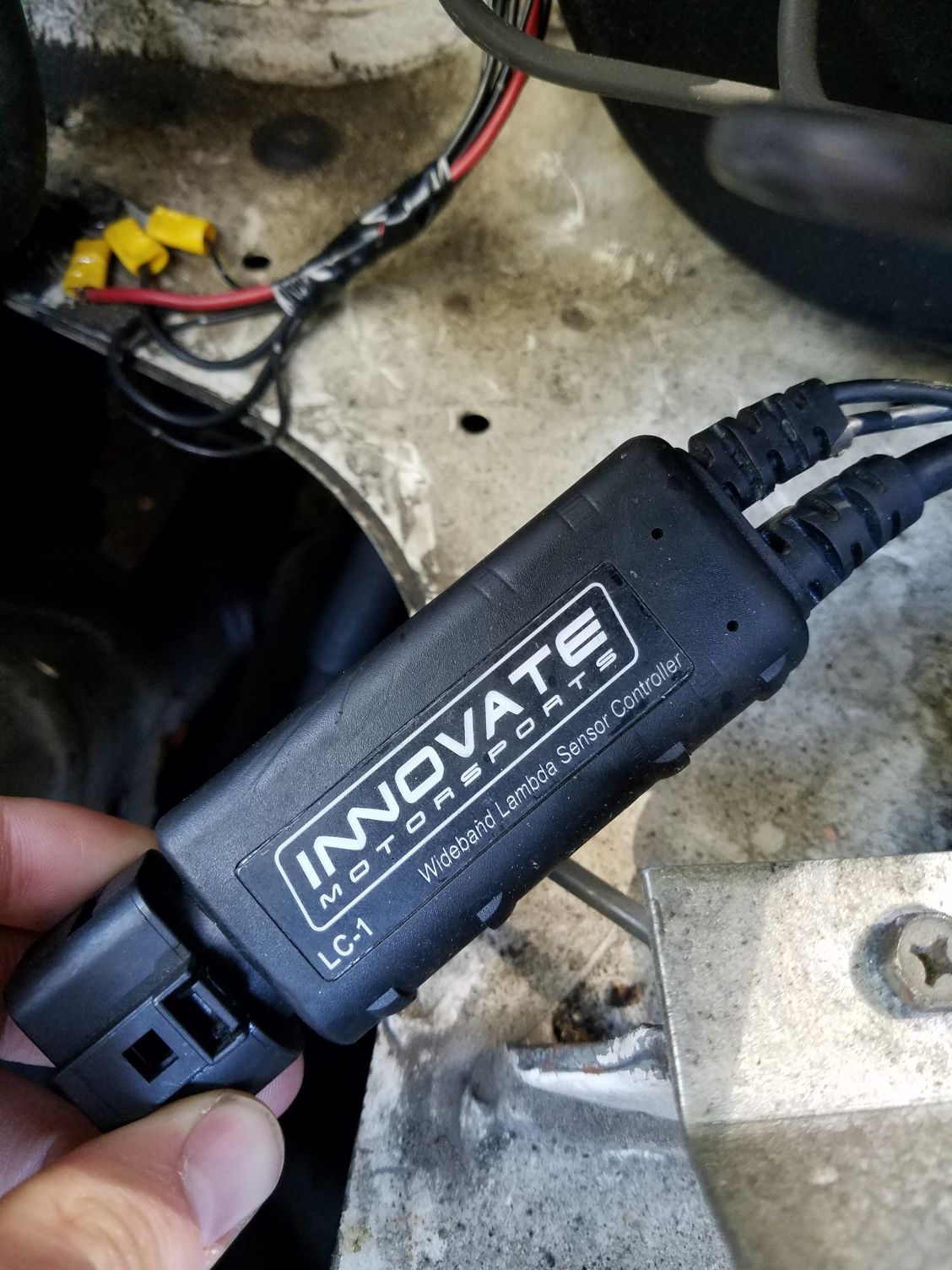

under the brake booster, the controller without the sensor hooked up, nice view of everything<br><br>&nbsp;

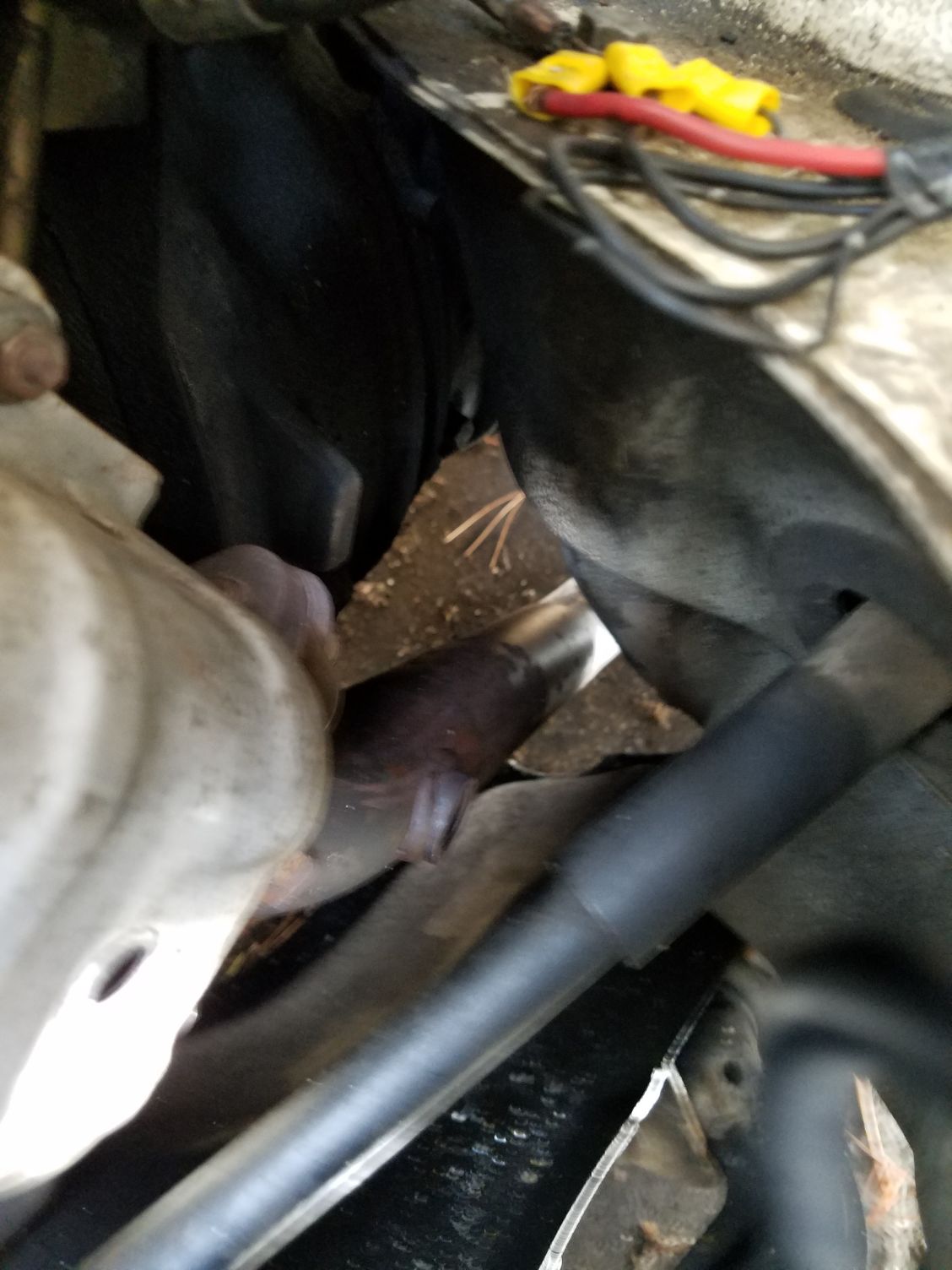

factory bung hole where I've remove the stock o2 sensor, cant put the wideband in until I get I know the gauge works.


<br><br>

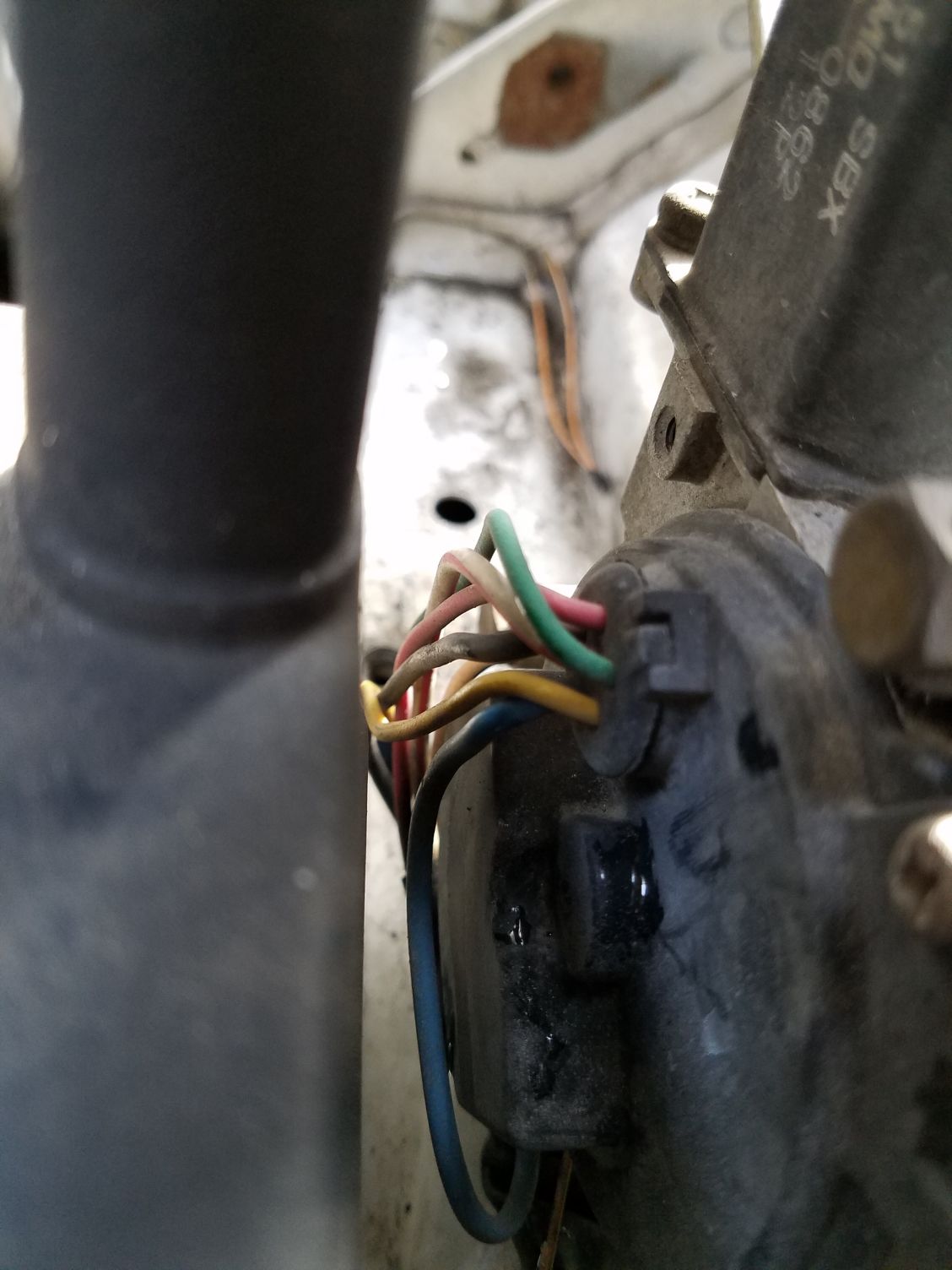

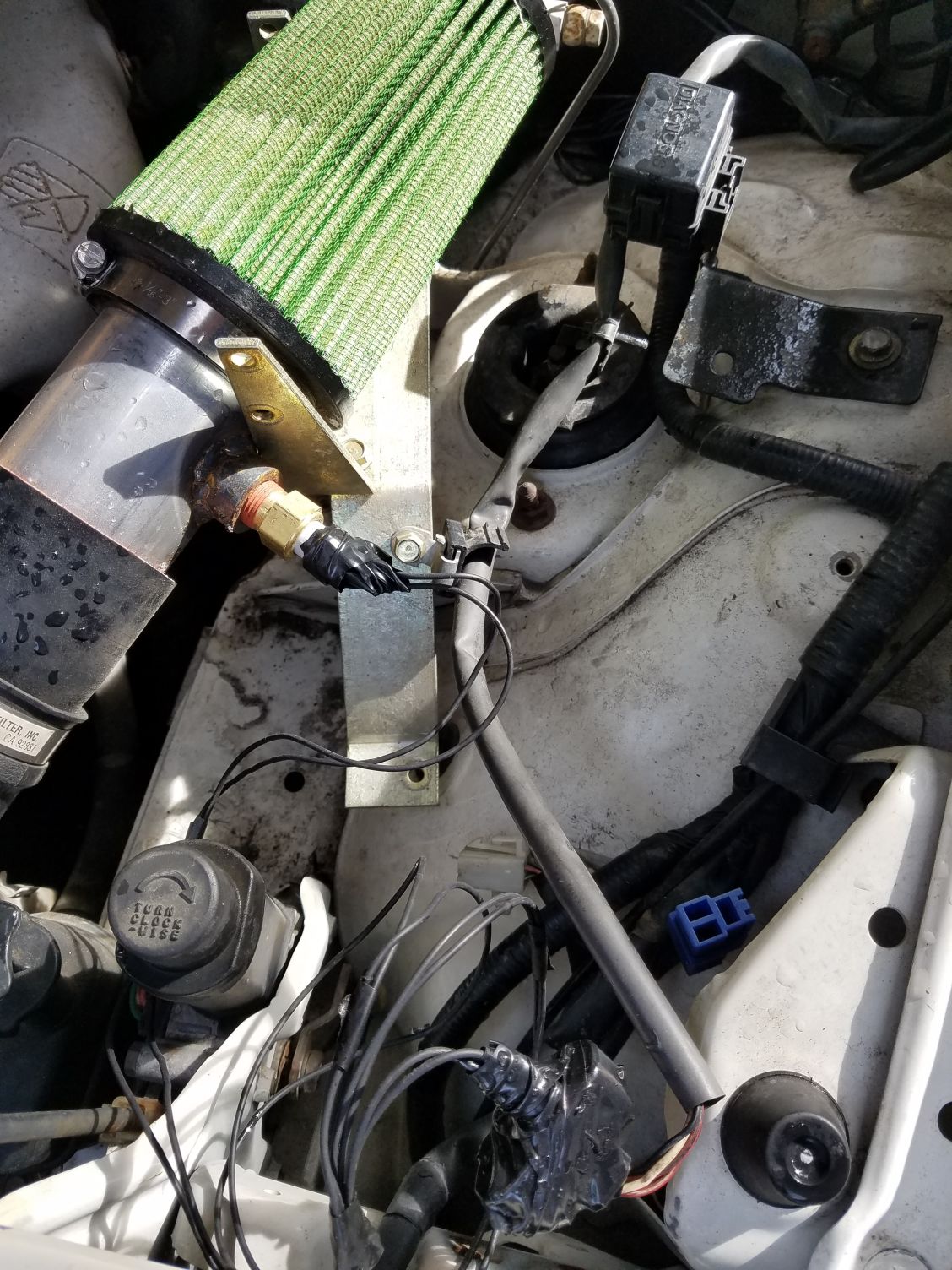

IAT wired into the 3&amp;4 spots in the MAF sensor, taped up for weather proofing.<br><br>&nbsp;

Someone said I could tap into this blue headlight wire for power for my wideband.
<br><br>

another person said to use this big blue wire on the left for the wideband power.<br><br>&nbsp;

with everything hooked up and key switched to on, my radio comes on but the gauge doesn't light up and I'm expecting to see an error message at this point.
Attached Thumbnails
Help with LC-1 / Megasquirt wiring, lots of pictures, tell me what I did wrong.-80-20160314_101801_45cbec8cb0d82c482ff0097c95e882c0e5a3eaf7.jpg   Help with LC-1 / Megasquirt wiring, lots of pictures, tell me what I did wrong.-80-20160314_101840_9cdcf88f202d0abf5985f1ccdbba3e183e20a285.jpg   Help with LC-1 / Megasquirt wiring, lots of pictures, tell me what I did wrong.-80-20160314_101806_2e27a4360d153eba3c8b7b46bb7587429ef707e6.jpg   Help with LC-1 / Megasquirt wiring, lots of pictures, tell me what I did wrong.-80-20160314_101853_681154dbc64cc326527f3a5ca51946d841697339.jpg   Help with LC-1 / Megasquirt wiring, lots of pictures, tell me what I did wrong.-80-20160314_101944_bf8b7845bc0a381e4a747653360e3d94fbe46f1c.jpg

Help with LC-1 / Megasquirt wiring, lots of pictures, tell me what I did wrong.-80-20160314_101953_5b25bd7ce8ef36daae57fab3ae58c60b0cac0a48.jpg   Help with LC-1 / Megasquirt wiring, lots of pictures, tell me what I did wrong.-80-20160314_101812_bf41784dbd0a9ea45f74fe6ac8f60057291d7d13.jpg   Help with LC-1 / Megasquirt wiring, lots of pictures, tell me what I did wrong.-80-20160314_101829_44b583cda154848592bf2515183cd558d02d85e3.jpg   Help with LC-1 / Megasquirt wiring, lots of pictures, tell me what I did wrong.-80-20160314_101726_e0605b1bc0f0b903a613b0044ceb6175f271a228.jpg   Help with LC-1 / Megasquirt wiring, lots of pictures, tell me what I did wrong.-80-20160314_101904_49f28b5ea982680bc68cef855522075673a671a8.jpg

Help with LC-1 / Megasquirt wiring, lots of pictures, tell me what I did wrong.-80-20160314_101958_e32e91c5f0758aefd5f65e4dc8668b87e384982b.jpg   Help with LC-1 / Megasquirt wiring, lots of pictures, tell me what I did wrong.-80-20160314_102008_89de8c9668c1dd7fdb510651d3cdb56c5b3dc29b.jpg   Help with LC-1 / Megasquirt wiring, lots of pictures, tell me what I did wrong.-80-20160314_102017_5c40a2ff214e5ddaeac3fa33da164a5d32c9b7a6.jpg   Help with LC-1 / Megasquirt wiring, lots of pictures, tell me what I did wrong.-80-20160314_102028_bc60e00e5d3f57fac017893911dd6e4c0fcdb586.jpg   Help with LC-1 / Megasquirt wiring, lots of pictures, tell me what I did wrong.-80-20160314_102036_4a526f5ef904aa66b6f12dbb579d58ddafa5fd3f.jpg

Help with LC-1 / Megasquirt wiring, lots of pictures, tell me what I did wrong.-80-20160314_102053_f0626ab89eacf9f5d628db52ac1c6a86c76013f3.jpg   Help with LC-1 / Megasquirt wiring, lots of pictures, tell me what I did wrong.-80-20160314_102106_0__38a147f3db0662ff26625d14e688c652be495daf.jpg   Help with LC-1 / Megasquirt wiring, lots of pictures, tell me what I did wrong.-80-20160314_102205_354622e9fff34e3019b114d2ba5542fc86ba17bf.jpg
miataa is offline   Reply With Quote
Old 03-14-2016, 03:34 PM   #2
Senior Member

mmmjesse's Avatar

Join Date: Aug 2007
Posts: 568
Total Cats: 43
Default

holy wiring mess. did you do all that yourself? or was some of that pre-existing? Im not trying to be rude but that is **** and wont cut it. The lc1 led coming on at all? have you confirmed your power and ground sources with a multimeter?
mmmjesse is offline   Reply With Quote
Old 03-14-2016, 03:39 PM   #3
Junior Member
Thread Starter

Join Date: Feb 2015
Location: South Lake Tahoe
Posts: 100
Total Cats: 2
Default

Quote:
Originally Posted by mmmjesse View Post
holy wiring mess. did you do all that yourself? or was some of that pre-existing? Im not trying to be rude but that is **** and wont cut it. The lc1 led coming on at all? have you confirmed your power and ground sources with a multimeter?

lol, the loom was totally butchered. I did my best to unwrap it and find out what was done.

All I'm trying to do right now is figure out if this thing works, if it does, I am going to redo the loom and all of the connections, and permanently install it.

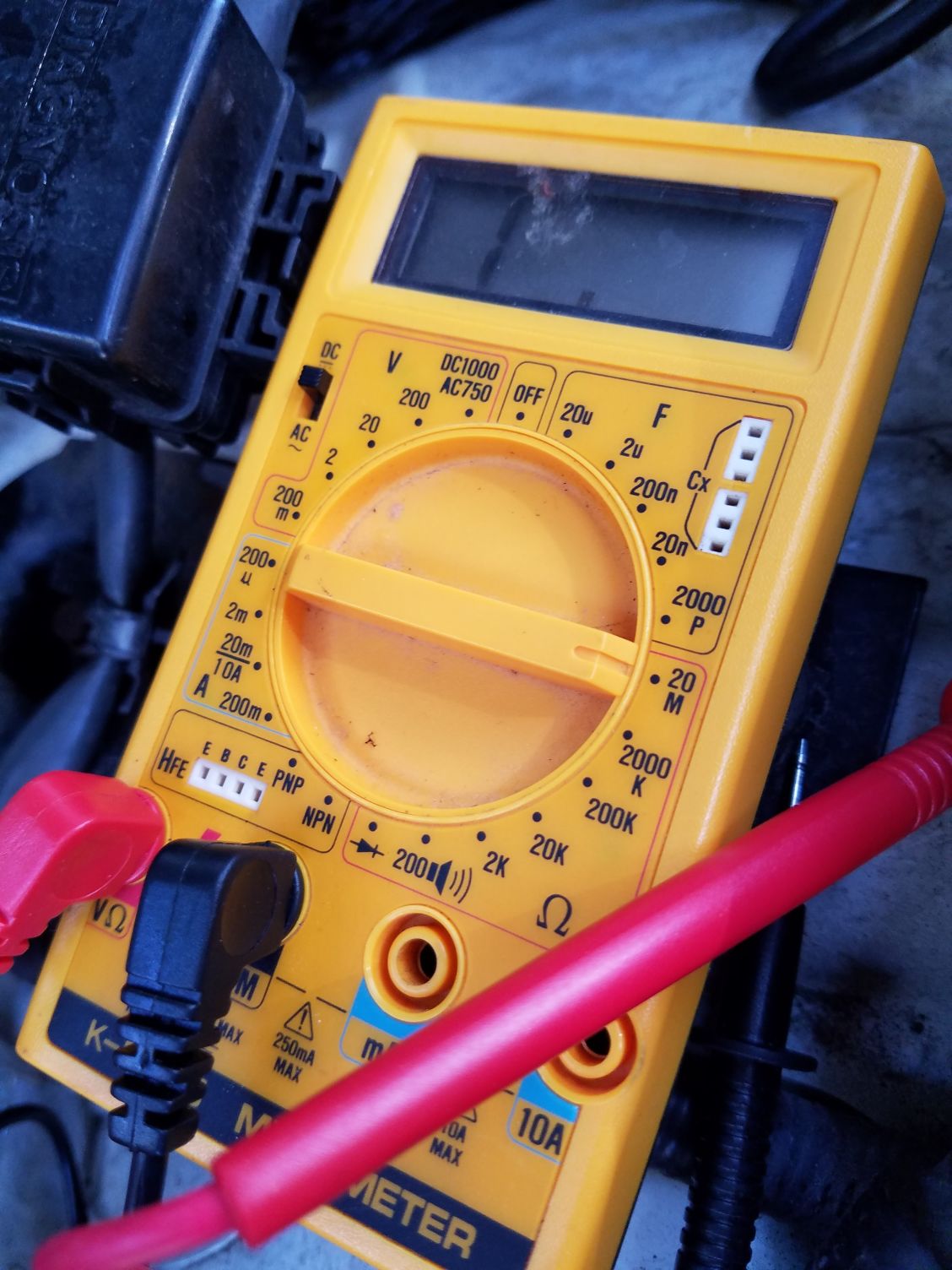

I have a multimeter, however I have no clue what to test, or what to switch my multimeter to lol. I am an electronics noob.

I havent checked the LED I'll do that right now. EDIT** just checked, and dont see an LED




I dont see an LED o nthe controller itself, and there is no LED wired into the loom




I don't know what to switch this to, or where I'm supposed to put the prongs.
Attached Thumbnails
Help with LC-1 / Megasquirt wiring, lots of pictures, tell me what I did wrong.-80-20160314_114247_92a5be696ee8e3f4c05065c03f507fd89a54d480.jpg   Help with LC-1 / Megasquirt wiring, lots of pictures, tell me what I did wrong.-80-20160314_114352_87da404738ee11ee2e4ab1977b2f36227496025a.jpg
miataa is offline   Reply With Quote
Old 03-14-2016, 04:19 PM   #4
Senior Member

mmmjesse's Avatar

Join Date: Aug 2007
Posts: 568
Total Cats: 43
Default

ok, so if you do not know how to use a multimeter, you might not want to do this without adult supervision. i would atleast get on youtube or something and search for any videos showing you how to operate the meter. you are wanting to measure DC voltage on the power wire to the LC-1. Then measure resistance to ground on your ground connections.

see the instructions at this link for the LC-1 install info and note where it discusses hooking in the LED. http://www.innovatemotorsports.com/s...C-1_Manual.pdf
mmmjesse is offline   Reply With Quote
Old 03-14-2016, 07:14 PM   #5
Junior Member

Join Date: May 2014
Location: Columbia, MD
Posts: 140
Total Cats: 8
Default

Where are you located? You definitely need some on-hands help with that mess. You absolutely need to learn how to use a volt meter before you mess up any more of that wiring.
gjsmith66 is offline   Reply With Quote
Old 03-15-2016, 12:22 AM   #6
Junior Member
Thread Starter

Join Date: Feb 2015
Location: South Lake Tahoe
Posts: 100
Total Cats: 2
Default

Quote:
Originally Posted by gjsmith66 View Post
Where are you located? You definitely need some on-hands help with that mess. You absolutely need to learn how to use a volt meter before you mess up any more of that wiring.

Yea lol hands on help would be nice. I'm in Tahoe California.

I did learn how to test grounds today, and check for continuity. Tomorrow in the light I'm going to try and test my grounds on the cable and go from there.
miataa is offline   Reply With Quote
Old 03-15-2016, 12:31 AM   #7
Junior Member

Join Date: May 2007
Location: Atlanta
Posts: 383
Total Cats: 38
Default

So, while I do not approve this wiring overall - I will say that if you are using the power windows for a 12v source, you will need to add a fuse into the fusebox that's in the drivers side. That said.. ugh man. Don't burn down your car.

Also be aware that position is accessory powered - so it will turn off while cranking and back on when running.
gooflophaze is offline   Reply With Quote
Old 03-15-2016, 12:31 AM   #8
Elite Member
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 2,398
Total Cats: 200
Default

Using the same color wire for multiple circuits, will keep you in the dark. Forever.

Red wires leading to ground, is the holy grail of wrong. Black, black and white, are ground colors.

Go on ebay and buy some assorted color packs of 18-20g wire.

Buy a 40 dollar soldering iron, a sponge some Flux and silver solder, and some shrink tube.

Go on YouTube for some solder lessons. Your skills will be great in no time. I think.
ryansmoneypit is offline   Reply With Quote
Old 03-15-2016, 09:02 AM   #9
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

I cringe every time i see someone install a WBo2 controller inside the engine bay and run wires through the firewall.


Who are these "people" that you are referring to for the worst wiring advice known to mankind?
Braineack is offline   Reply With Quote
Old 03-15-2016, 09:03 AM   #10
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

Quote:
Originally Posted by ryansmoneypit View Post
black and white, [is a] ground color.
not on a miata.
Braineack is offline   Reply With Quote
Old 03-15-2016, 09:49 AM   #11
Elite Member
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 2,398
Total Cats: 200
Default

Right.
ryansmoneypit is offline   Reply With Quote
Old 03-15-2016, 07:34 PM   #12
Junior Member
Thread Starter

Join Date: Feb 2015
Location: South Lake Tahoe
Posts: 100
Total Cats: 2
Default

Quote:
Originally Posted by gooflophaze View Post
So, while I do not approve this wiring overall - I will say that if you are using the power windows for a 12v source, you will need to add a fuse into the fusebox that's in the drivers side. That said.. ugh man. Don't burn down your car.

Also be aware that position is accessory powered - so it will turn off while cranking and back on when running.
If 94's and 95's are the same, then it should be my cigar fuse for the power windows correct?

Quote:
Originally Posted by ryansmoneypit View Post
Using the same color wire for multiple circuits, will keep you in the dark. Forever.

Red wires leading to ground, is the holy grail of wrong. Black, black and white, are ground colors.

Go on ebay and buy some assorted color packs of 18-20g wire.

Buy a 40 dollar soldering iron, a sponge some Flux and silver solder, and some shrink tube.

Go on YouTube for some solder lessons. Your skills will be great in no time. I think.
So the loom has the 6 colored wires that innovate says are there, the loom is wired correctly to an innovate gauge, all of the wires that you see coming out are either grounds or power or the 1 ECU analog wire.

The ecu wire is red as well, and I grounded the gauge's dimming feature power wire which is red.

It is crazy messy, but it's all there, I'm hoping it works.


Quote:
Originally Posted by Braineack View Post
I cringe every time i see someone install a WBo2 controller inside the engine bay and run wires through the firewall.


Who are these "people" that you are referring to for the worst wiring advice known to mankind?
None of this is permanent, like I said originally, all I am trying to do is find out if this wideband works.

Those "people" are users of this site. I found old posts of people discussing where they wired in the LC-1's power wire. After searching, I asked, because obviously, I didn't take their advice, and I went with the male spade connector to power window switch as there were more posts of people doing that with success.



I have been at work all day so I have still yet to test my grounds, but I'll be doing that tonight.
miataa is offline   Reply With Quote
Old 03-15-2016, 09:35 PM   #13
Junior Member

Join Date: May 2007
Location: Atlanta
Posts: 383
Total Cats: 38
Default

No. Power windows are their own 30a fuse.

And there's what works and what's right. Power window works, but it ain't right.
gooflophaze is offline   Reply With Quote
Old 03-16-2016, 01:24 PM   #14
Junior Member
Thread Starter

Join Date: Feb 2015
Location: South Lake Tahoe
Posts: 100
Total Cats: 2
Default

Quote:
Originally Posted by gooflophaze View Post
No. Power windows are their own 30a fuse.

And there's what works and what's right. Power window works, but it ain't right.

Any suggestions on where to get power instead of the power window connector?
miataa is offline   Reply With Quote
Old 03-16-2016, 03:02 PM   #15
Senior Member

mmmjesse's Avatar

Join Date: Aug 2007
Posts: 568
Total Cats: 43
Default

in the past i have used the air bag power wire over near the steering column. That is on cars that i have changed the steering wheel and no longer use air bags. since the air bag power fuse is no longer supplying voltage to the module, i used it. Thats just a thought.
mmmjesse is offline   Reply With Quote
Old 03-16-2016, 03:17 PM   #16
Junior Member

Join Date: May 2007
Location: Atlanta
Posts: 383
Total Cats: 38
Default

Fuse box. Tap-a-fuse.

Put it on a non-critical ignition switched fuse.
gooflophaze is offline   Reply With Quote
Old 03-16-2016, 04:02 PM   #17
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

if you're going to use any power, i'd suggest a red/white one; the same the ECU uses.

i'll update this post with a better response.

I DO like the idea of adding a 5A fuse on the wideband power.
Braineack is offline   Reply With Quote
Old 03-19-2016, 05:47 PM   #18
Junior Member
Thread Starter

Join Date: Feb 2015
Location: South Lake Tahoe
Posts: 100
Total Cats: 2
Default

So I tested all of my grounds, and they all worked.
I had a buddy come over who knows more about the electrical stuff than I do. I tested power, and after all of our work, he seemed to think it was the gauge itself that was broken. Here are a few more pictures of my updated progress.


I also cut through the layer of dynamax protecting my A/C line firewall hole, and routed the ECU vacuum line correctly.


Once again, I'm just trying to test if this thing works, if it doesn't I'll buy a new one. If I need to route power differently, I will, or if i need the fuse to test for power to the gauge I will go put a fuse in.
Thanks for all the help so far guys.

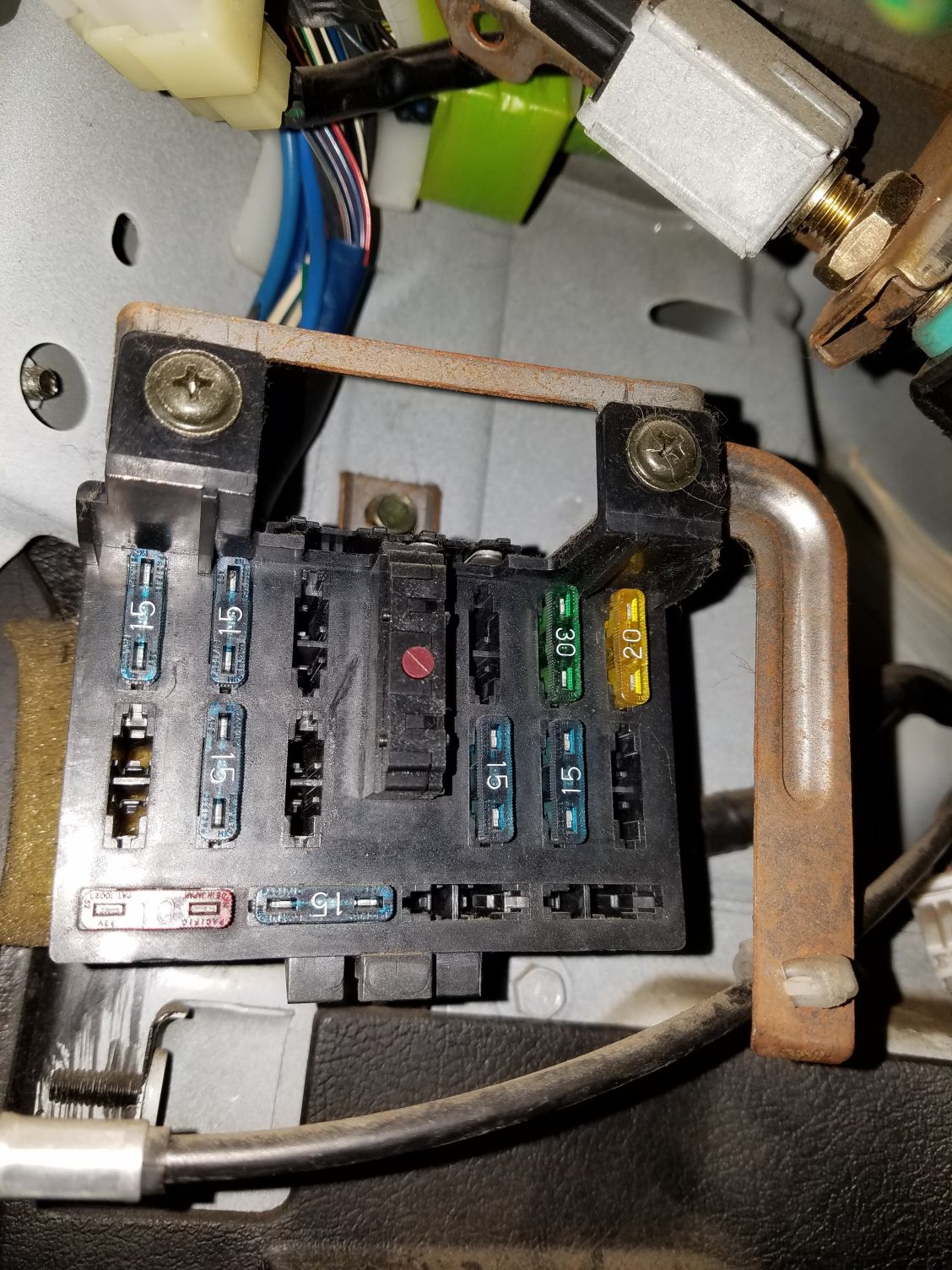

I dont have a cover for my fuse box, my friend said I should be able to see power on the gauge without a fuse in here, is he wrong?




with the key on.

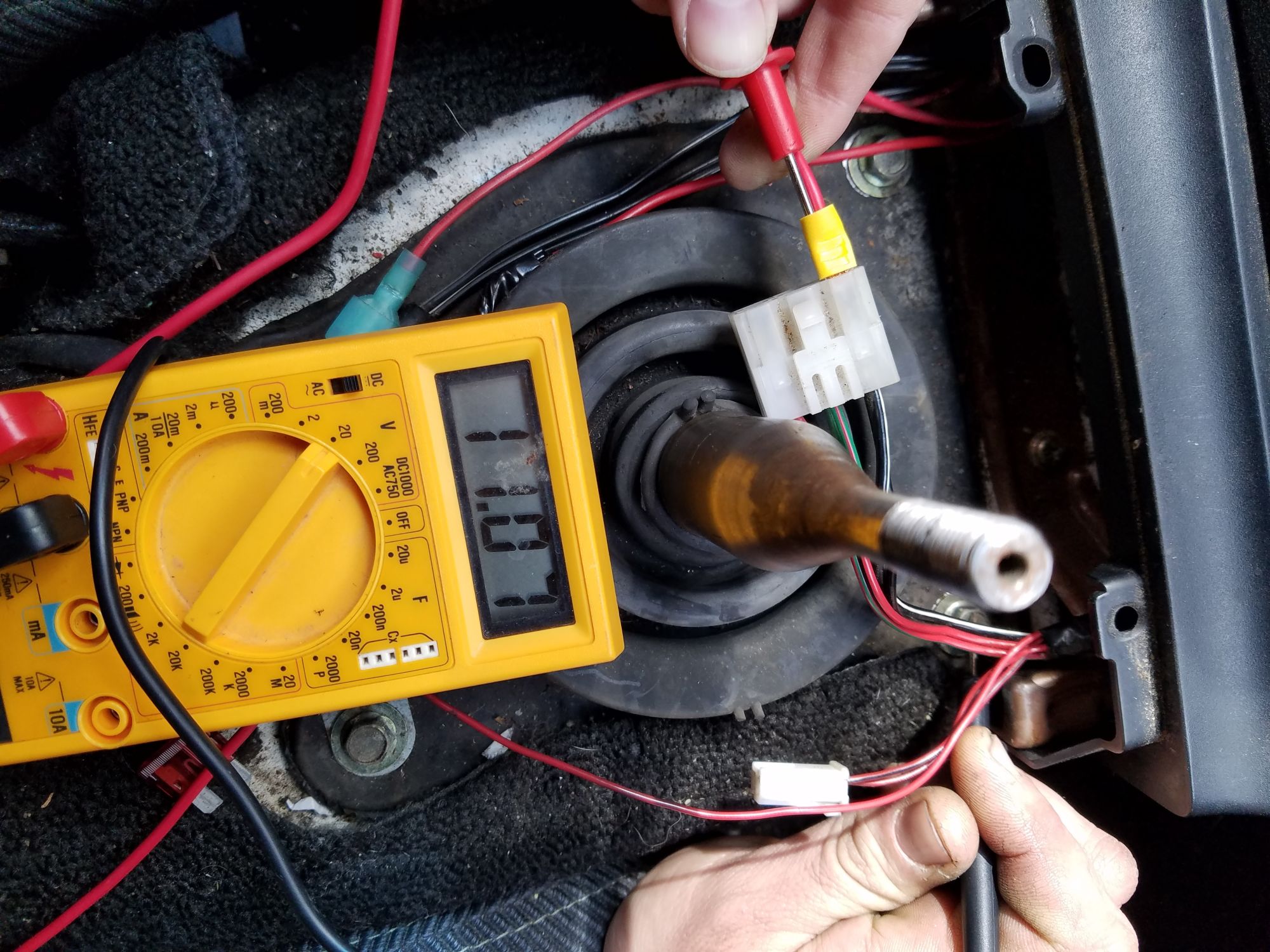

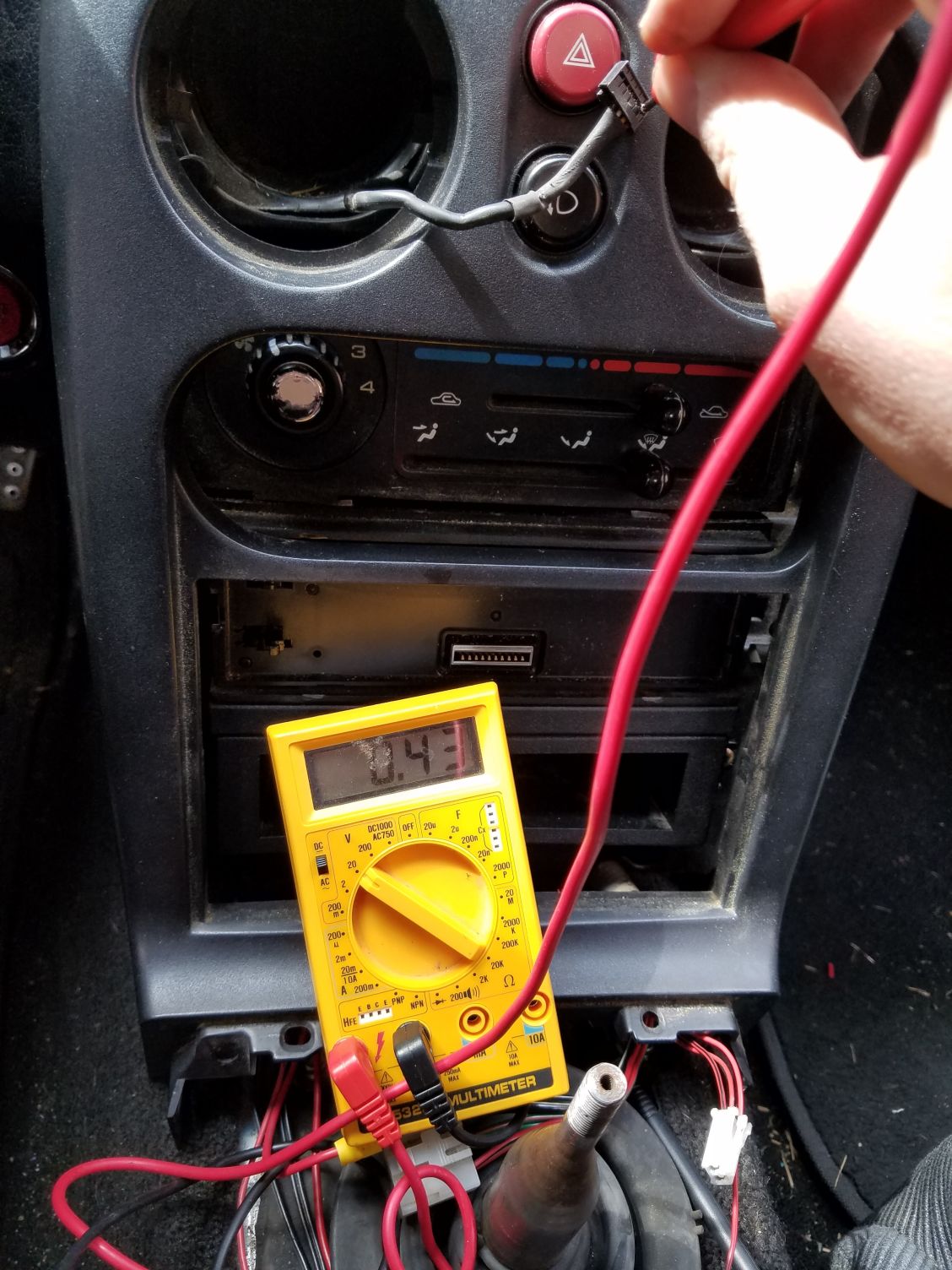

this is the reading from the power wire on the connector to the back of the gauge.




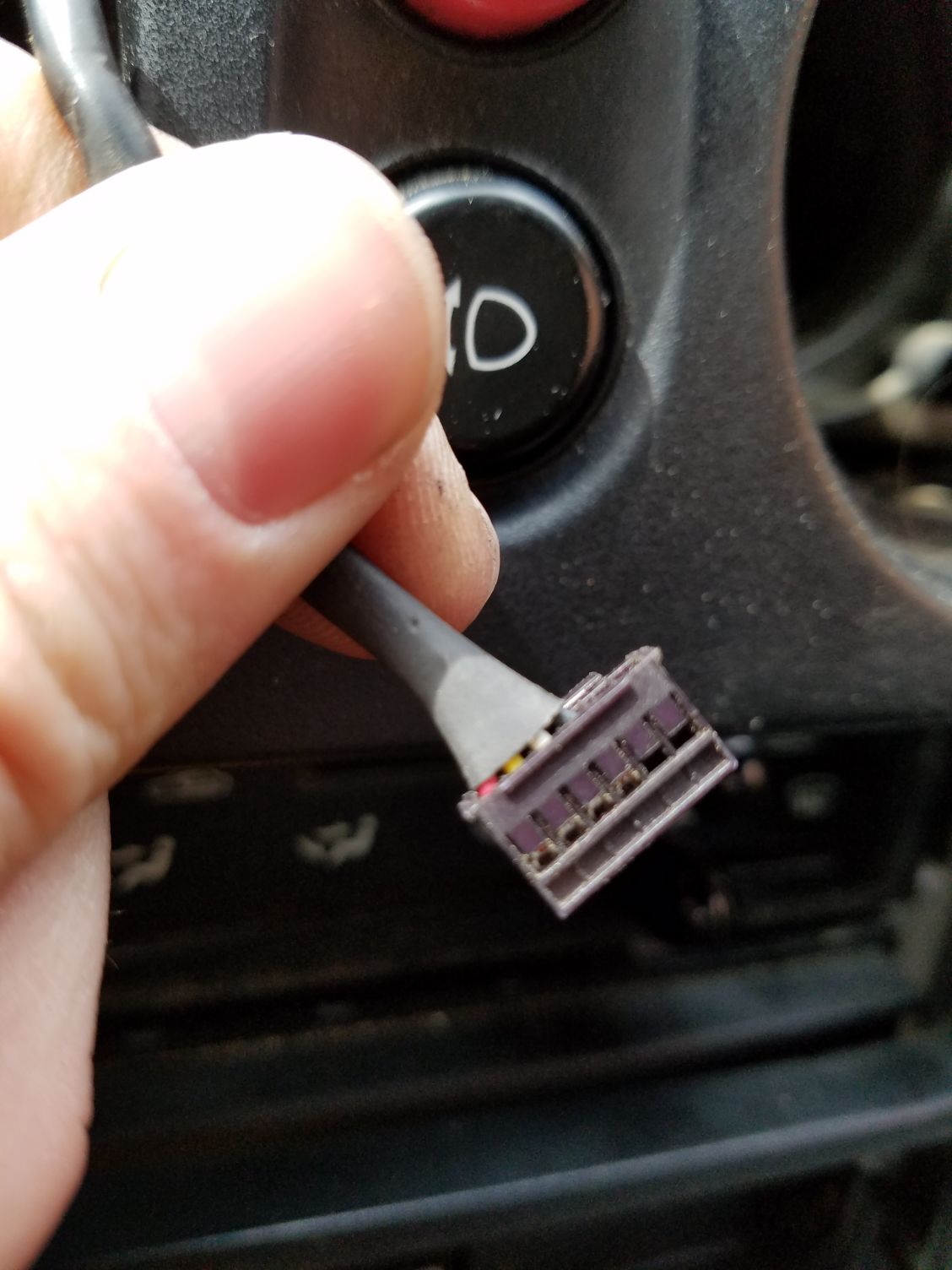

I tested the red wire
Attached Thumbnails
Help with LC-1 / Megasquirt wiring, lots of pictures, tell me what I did wrong.-80-20160319_132814_ef7dfbb6ef83b3a3b3e366bbe3ca83b239b3c571.jpg   Help with LC-1 / Megasquirt wiring, lots of pictures, tell me what I did wrong.-80-20160319_133234_3e597259527b10d8d4df6e9a4eaee15b44d5bbcc.jpg   Help with LC-1 / Megasquirt wiring, lots of pictures, tell me what I did wrong.-80-20160319_133530_b23653dfd6991d7b921f63d196fe04d63b88ee5b.jpg   Help with LC-1 / Megasquirt wiring, lots of pictures, tell me what I did wrong.-80-20160319_133552_0151f5756a64836cb02b8c54bc8e4951136fe679.jpg
miataa is offline   Reply With Quote
Old 03-19-2016, 05:58 PM   #19
Elite Member
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 2,398
Total Cats: 200
Default

So power isn't making it frome where you tap into it, to where it connects to the gauge?
ryansmoneypit is offline   Reply With Quote
Old 03-19-2016, 06:01 PM   #20
Junior Member
Thread Starter

Join Date: Feb 2015
Location: South Lake Tahoe
Posts: 100
Total Cats: 2
Default

Quote:
Originally Posted by ryansmoneypit View Post
So power isn't making it frome where you tap into it, to where it connects to the gauge?
When everything is hooked up, and I turn the key so that the accessories power on, the gauge itself does not light up.

I'm expecting it to light up and say "E2"
miataa is offline   Reply With Quote
