Default Help me choose a new turbo

My ~13yo Turbonetics turbo failed in spectacular fashion. A rebuild is likely not feasible so I'm looking to replace it with a like unit. Unfortunately the original model is no longer available. The car is a dedicated track car (99) running stock internals @ 10psi, aftermarket ECU, ignition and straight pipe exhaust.

The failed Turbonetics T3:
  • .48 A/R
  • 60 trim
  • Turbine outlet 49mm
  • Turbine wheel 58mm @base & 46mm @end
For the replacement unit:
The compressor wheel options are 60 trim or super 60 trim. Which one should I choose?
The turbine wheel is available in 54mm, 57mm or 62mm. Which one should I choose?

Thank you for the help!
supersuckers is offline   Reply With Quote
Old 06-27-2016, 08:43 PM   #2
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 113
Default

The F1-49 turbine wheel is the one you want on stock internals, sure there's no 49mm option?

T3 Turbo | Turbonetics Performance

Page 7 and 18
http://www.turboneticsinc.com/perfor...alog_MED_6.pdf

I wouldn't mind trying this guy here, if it were $600...
Turbonetics 11039-BB | Buy Turbonetics T3 Turbochargers at JEGS






deezums is offline   Reply With Quote
Old 06-27-2016, 11:03 PM   #3
Newb
Thread Starter

Join Date: May 2011
Location: Gaithersburg, MD
Posts: 43
Total Cats: -3
Default

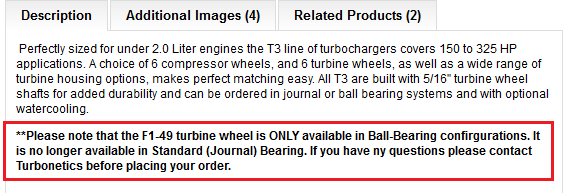

Looks like the 11038 pretty much matches what I have. I now see why the F1-49 wheel isn't listed. Guess I should read the bold print.

Why would you choose the 50 trim over the 60 trim?


Attached Thumbnails
Help me choose a new turbo-80-untitled_ea649db3285b20c51681ca06689f115393a30590.png

Last edited by supersuckers; 06-27-2016 at 11:05 PM. Reason: error
supersuckers is offline   Reply With Quote
Old 06-28-2016, 12:05 AM   #4
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Cant you still get that exact turbo as a chinacharger?
Leafy is offline   Reply With Quote
Old 06-28-2016, 12:07 AM   #5
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 113
Default

AFAIK the compressor wheels are all pretty much the same size, with the lower trim wheels favoring low speed flow over high speed.

Since the t3 50 trim everyone likes to use seems able to get to transmission/conrod worrying levels of torque all the way through the powerband my guess is there's no need for the extra flow that would probably hurt spool.

And yeah, that's pretty much the MKturbo t3. You can find the same turbo on old volvos and saabs.

http://www.ebay.com/itm/For-T3-Turbo...FReuTz&vxp=mtr
deezums is offline   Reply With Quote
Old 06-28-2016, 12:03 PM   #6
Junior Member

Join Date: Jun 2016
Location: Westminster
Posts: 65
Total Cats: 0
Default

How much power were you making with that turbo?
muutant1998@gmail.com is offline   Reply With Quote
Old 06-28-2016, 12:04 PM   #7
Junior Member

Join Date: Jun 2016
Location: Westminster
Posts: 65
Total Cats: 0
Default

I bought a Garret with same specs so just curious.
muutant1998@gmail.com is offline   Reply With Quote
Old 06-28-2016, 01:22 PM   #8
Newb
Thread Starter

Join Date: May 2011
Location: Gaithersburg, MD
Posts: 43
Total Cats: -3
Default

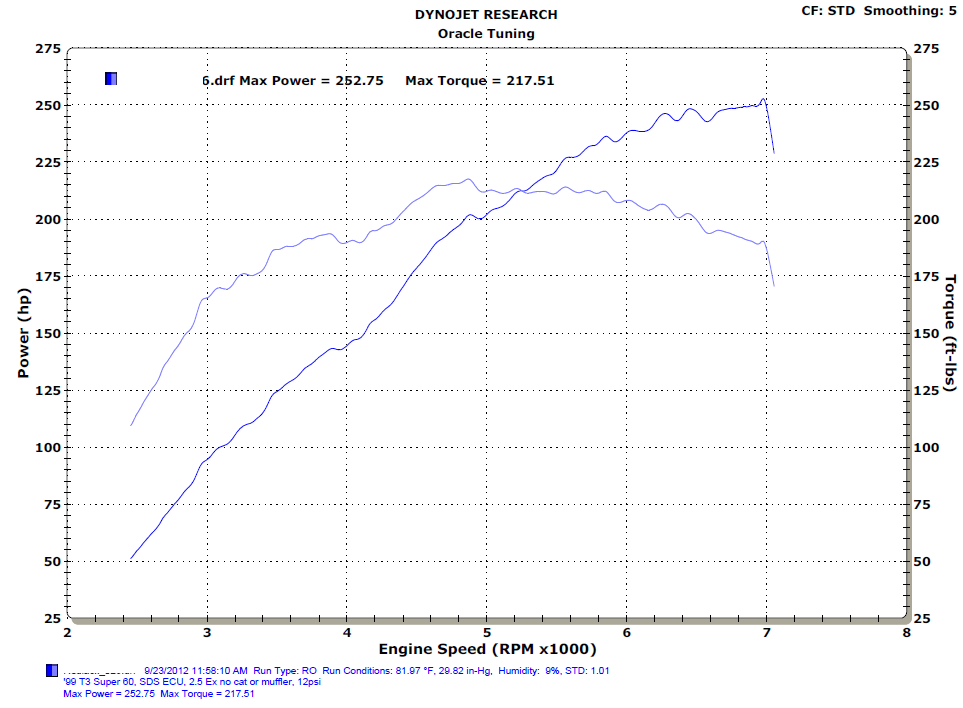

I suspect the numbers are a bit inflated and it's not entirely clear if the run was made at 10psi or 12psi.
Attached Thumbnails
Help me choose a new turbo-80-untitled_345627a0a1db4d88dcf84ba691a31d2a4a2061fd.png
supersuckers is offline   Reply With Quote
Old 06-28-2016, 01:46 PM   #9
Junior Member

Join Date: Jun 2016
Location: Westminster
Posts: 65
Total Cats: 0
Default

Thanks for the dyno sheets. And no problem doesn't have to be exact just wanted a general ball park of what power to expect!
