Default Help me hook up my electronic boost controller please

I picked up a old HKS Ev1 boost controller a few days ago on a trade, I started looking at it today and I'm not sure how the vaccumm lines are suppose to be ran. I have never hooked a electric boost controller up so if anyone could help me out I would appreciate it alot.

I numbered the lines I need help on.

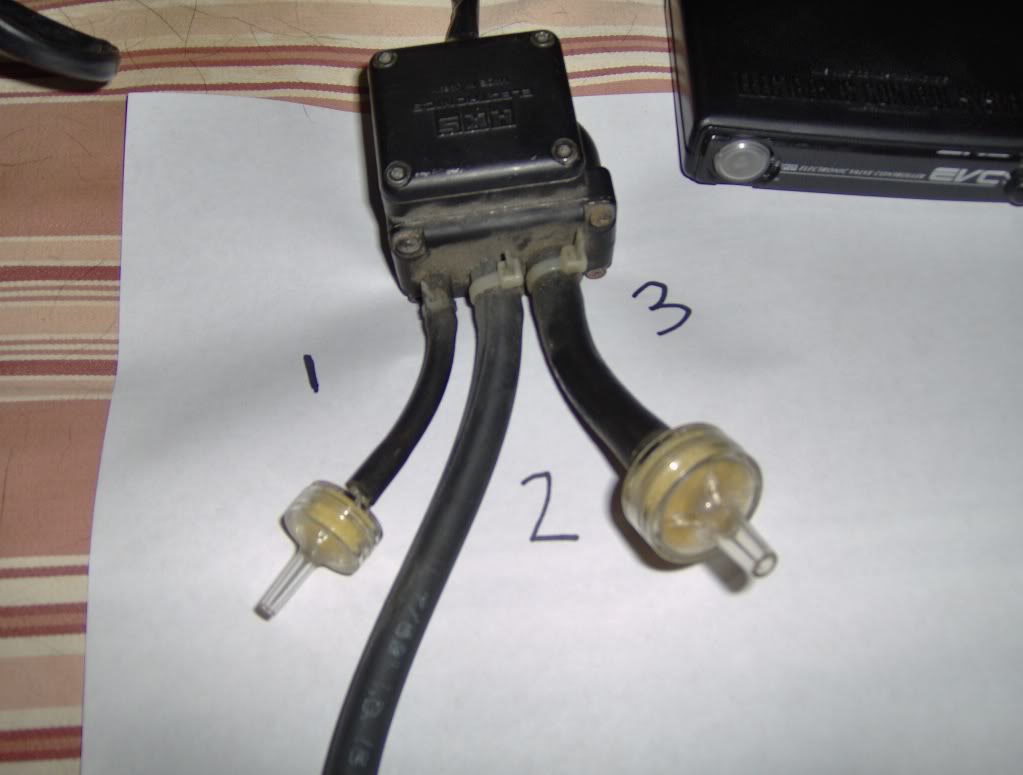

Name:  HPIM0560.jpg
Views: 1
Size:  89.0 KB

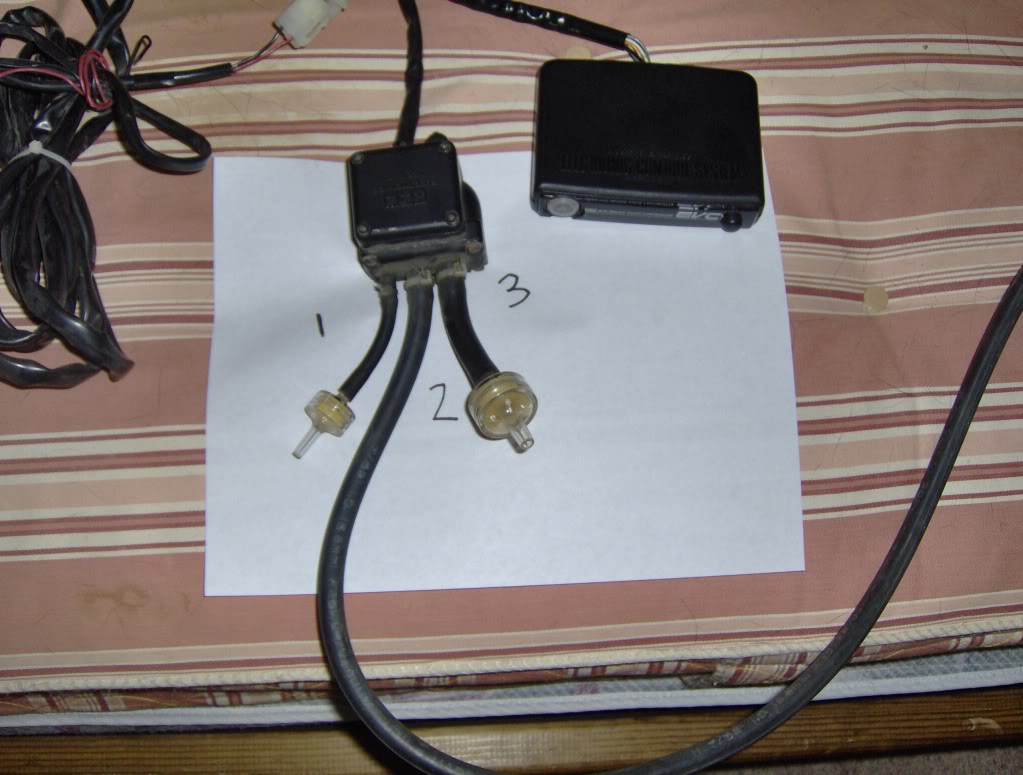

Name:  HPIM0559.jpg
Views: 1
Size:  125.8 KB
