Default Help me Make My V-Mount Funtional

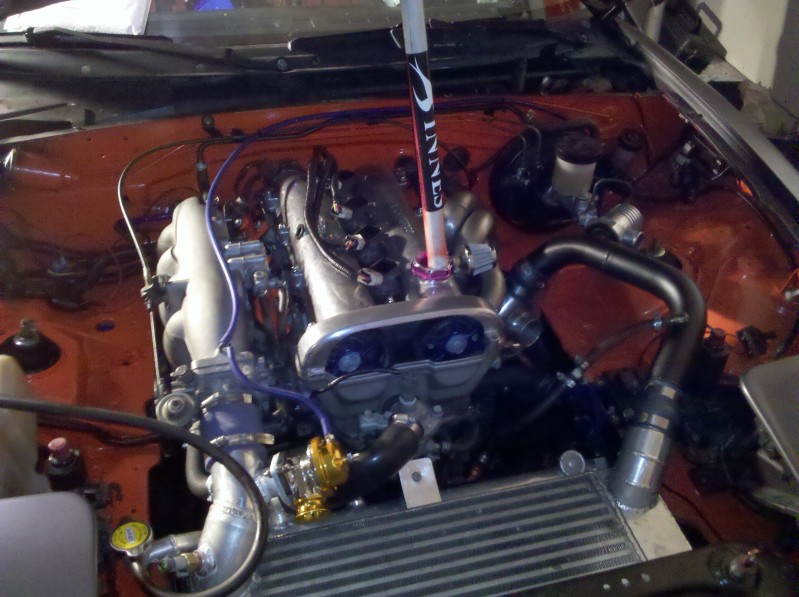

So my previous owner installed this V-Mount set up. I dont have an issue with over heating on the street, but Im trying to get the car set up to be reliable on the track. I know That I need to block off the gaps on the side so that air can only pass through the radiator and intercooler, but Id like to see if anyone has any other suggestions for how to improve the setup. Pardon the nastiness in the pictures. Im in the process of restoring it back to half decent.

As far as how the car is set up. Stock 1.6, TD05-16g turbo, ext. WG, 460cc inj, ms3x running full sequential, and 10psi of boost.

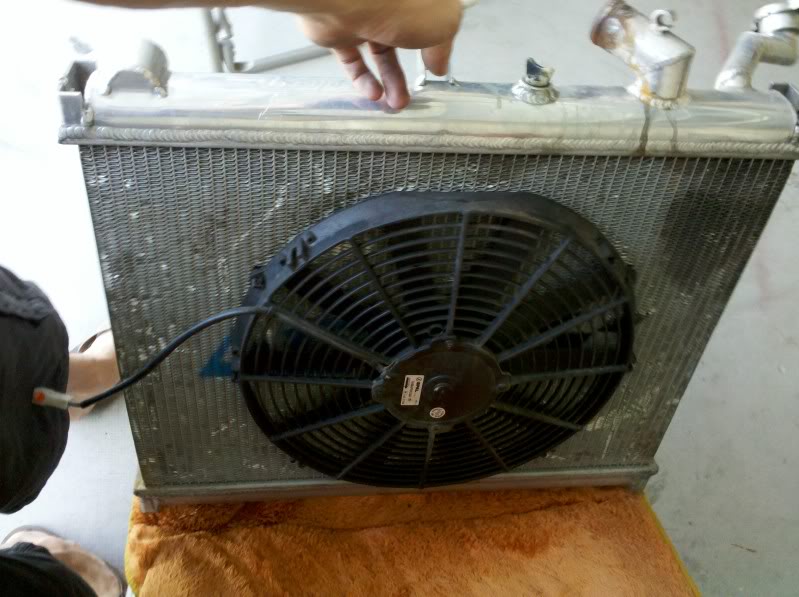

Heres how the fan is mounted to the radiator.

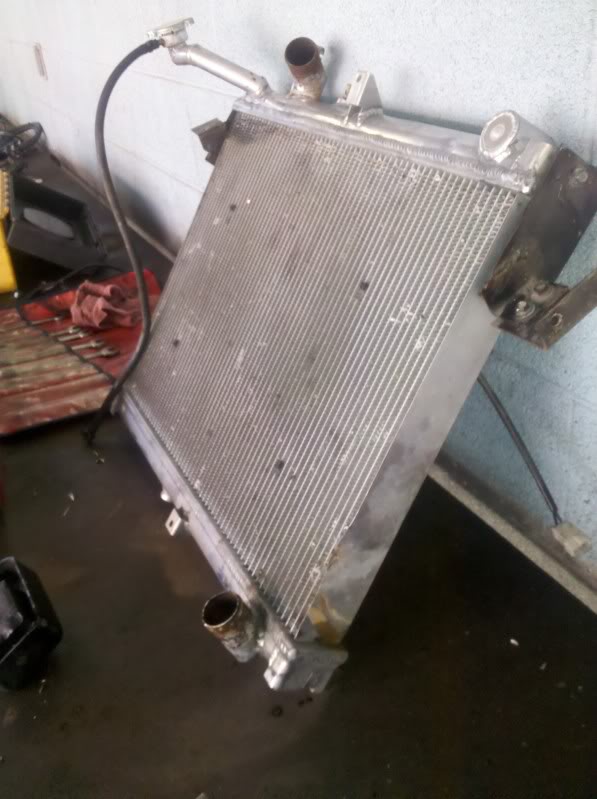

I dont have measurements for the radiator thats in it now, but heres a picture to get an idea of its thickness ect...

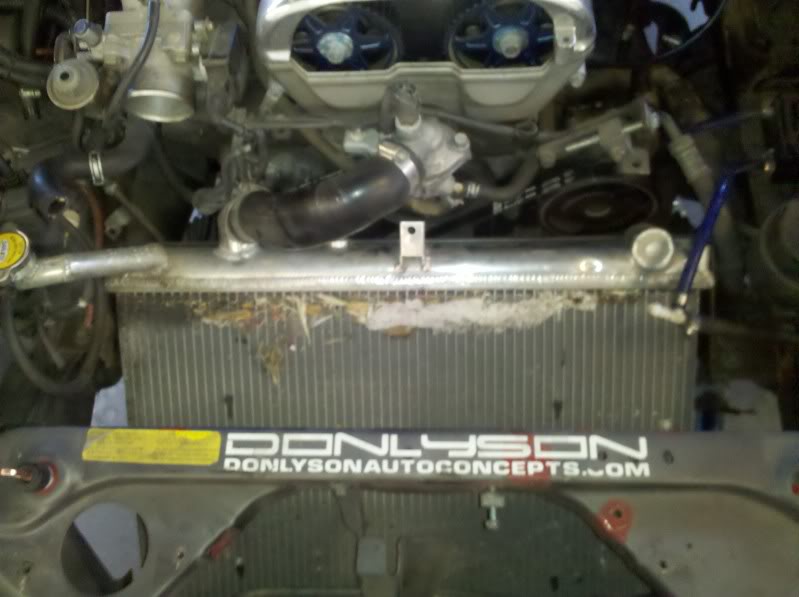

Ignore the trash on it and the stupid stickers and ----. This is when I first tore it all down to restore. This is how the radiator sits without the intercooler.

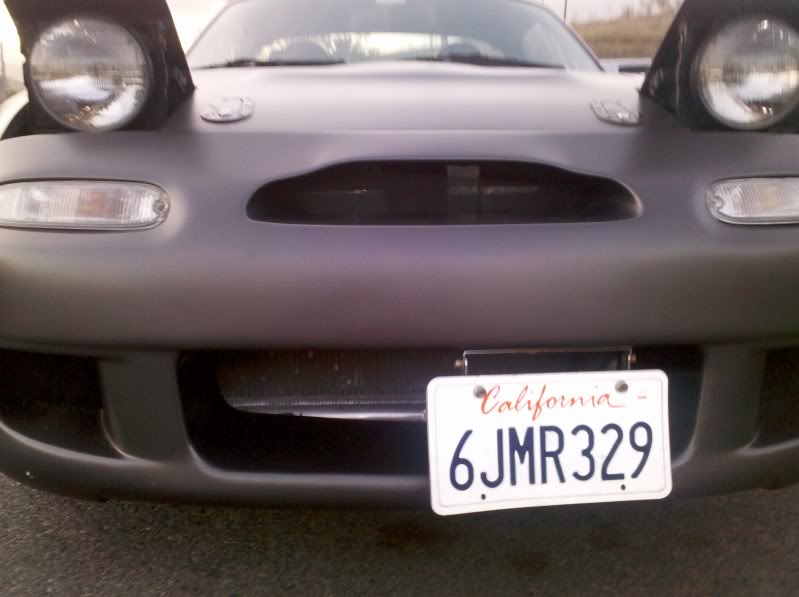

Ignore the now not installed bumper.

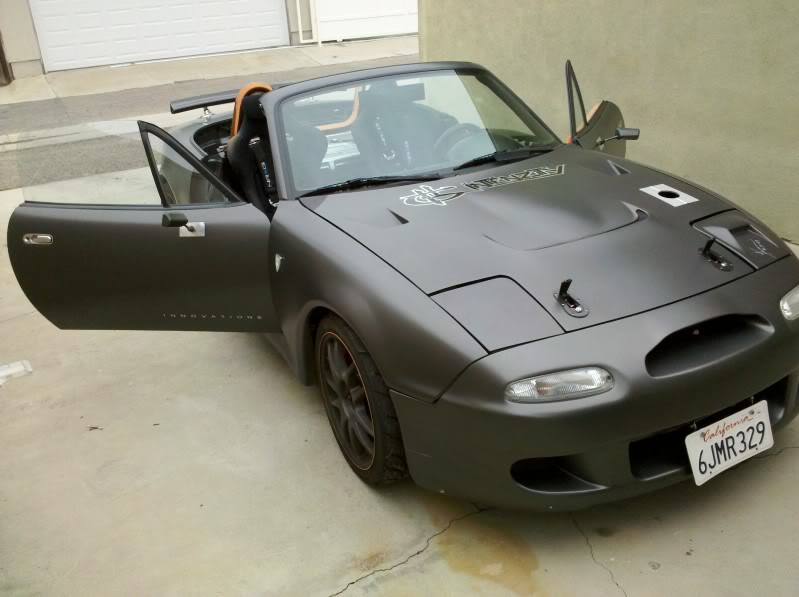

Once again please ignore the ------- Rice. De-Rice is in progress. But this is the only picture of the hood I have that shows the vent right above the intercooler.


Ill get a few more pictures that better show how its mounted and everything when I return to my house on thursday.

Thanks in advance.
Attached Thumbnails
Help me Make My V-Mount Funtional-img_20111226_182933.jpg   Help me Make My V-Mount Funtional-img_20110918_130919.jpg   Help me Make My V-Mount Funtional-img_20110719_161143.jpg   Help me Make My V-Mount Funtional-img_20110627_172401.jpg   Help me Make My V-Mount Funtional-img_20101025_175445.jpg

Help me Make My V-Mount Funtional-img_20101016_134641-1.jpg
Darthteddy is offline   Reply With Quote
Old 02-28-2012, 02:00 PM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

looks like it is functional. I'd just prefer the IC to be angled inside of parallel to the ground. And I'd absolutely seal the sides of the IC/Rad.
Braineack is offline   Reply With Quote
Old 02-28-2012, 02:12 PM   #3
Junior Member
Thread Starter

Join Date: Jul 2010
Location: Camp Pendleton, CA
Posts: 93
Total Cats: 2
Default

So your saying to tip the front of the intercooler down or the opposite? And how about the back of the radiator? Some kind of shroud around the fan?
Darthteddy is offline   Reply With Quote
Old 02-28-2012, 02:21 PM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

well like sides/wall, v-shaped, that would make sure no air that came into the mouth can go anywhere but the IC or rad.
Braineack is offline   Reply With Quote
Old 02-28-2012, 03:09 PM   #5
Elite Member
iTrader: (10)

leatherface24's Avatar

Join Date: Dec 2006
Location: Pembroke Pines
Posts: 4,033
Total Cats: 2
Default

I remember that car. I wouldnt even bother with doing anything more with the V-mount. Coming from a guy that had a incredibly functionally sound v-mount setup, for what you have, youre better off doing a traditional front mount. If you insist on keeping that setup then box out the sides so no air escapes and is forced into both the rad and I.C.
leatherface24 is offline   Reply With Quote
Old 02-28-2012, 03:22 PM   #6
Senior Member
iTrader: (10)

Join Date: Jul 2009
Location: Oakdale, CA
Posts: 1,353
Total Cats: 66
Default

I think what Brain is saying (and dont shoot me if its not) is that the intercooler needs to be tilted, the front needs to be brought up to actually make a "v" mount. Because it looks like the intercooler just lays flat and the radiator is tilted...But it looks like the cold side of the intercooler has been made specifically for where it sits. Which would make it pretty difficult to change I would imagine.
RyanRaduechel is offline   Reply With Quote
Old 02-28-2012, 03:29 PM   #7
Junior Member
Thread Starter

Join Date: Jul 2010
Location: Camp Pendleton, CA
Posts: 93
Total Cats: 2
Default

Modifying the fittings on either is no issue. Im just looking for the most functional set up I can make. I could probably gain a few degrees of tilt on the intercooler if I shaved down the bottom edges of the stock upper rad support and changed the angle on the rear bracket where it bolts to the rad.

As for changing it back to front mount, im gonna wait till I get it on the track and see how well it works before I pull the trigger on completely re doing it. Not that im completely opposed to it, but I think it would make more sence to at least try and get this set up on point then completely re do all of the radiator lines, intercooler piping, bov, ect. Like i said ive had 0 over heating issues in the past with it set up as bad as it is, even in CA summer traffic. But if its neccesary then ill do it.
Darthteddy is offline   Reply With Quote
Old 02-28-2012, 04:27 PM   #8
Elite Member
iTrader: (10)

leatherface24's Avatar

Join Date: Dec 2006
Location: Pembroke Pines
Posts: 4,033
Total Cats: 2
Default

I didnt exactly have a traditional Vmount setup. Mine consisted of the radiator being tilted and the intercooler having a boxed in duct on the bottom that channeled air through it. I put sidewalls on the radiator as well to make sure the air was forced through it. The faster I drove, the cooler everything became. Many local guys could attest to my setup working great. Try doing that vs redoing everything first
leatherface24 is offline   Reply With Quote
Old 02-28-2012, 04:32 PM   #9
Junior Member
Thread Starter

Join Date: Jul 2010
Location: Camp Pendleton, CA
Posts: 93
Total Cats: 2
Default

Indeed. Thank you for the input. Ill get to boxing up the gaps on it when I return to cali on Thursday.
Darthteddy is offline   Reply With Quote
Old 02-28-2012, 04:33 PM   #10
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

is the hole in the nose above the IC? hard to tell.
Braineack is offline   Reply With Quote
Old 02-28-2012, 04:35 PM   #11
Elite Member
iTrader: (5)

pusha's Avatar

Join Date: Nov 2009
Location: Miami, FL
Posts: 7,363
Total Cats: -32
Default

do you have any pics, Jared? I'm looking through all my old bullshit right now for some
pusha is offline   Reply With Quote
Old 02-28-2012, 04:38 PM   #12
Junior Member
Thread Starter

Join Date: Jul 2010
Location: Camp Pendleton, CA
Posts: 93
Total Cats: 2
Default

Quote:
Originally Posted by Braineack View Post
is the hole in the nose above the IC? hard to tell.
It is just behind it. It sits right about at the front of the valve cover. I think I should have the clearance to box it out so the air can only go out.
Darthteddy is offline   Reply With Quote
Old 02-28-2012, 04:40 PM   #13
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

ill make sure to duct that so air is unable to flow above the IC and not through it.
Braineack is offline   Reply With Quote
Old 02-28-2012, 05:45 PM   #14
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,110
Total Cats: 518
Default

Is that a mesh grill in the hood extractor? I'd remove that too, it looks very solid. Smaller mesh can act like a solid wall at speed.

My fans were near worthless when ziptied to the radiator like that. I had two and it seemed to work fine on the street, but once it overheated they would do nothing to stop it. Now when I over heat on track I can back off a bit and it cools down, or come to a stop with the fans on and that even works. Granted this is "overheating" to 240-250* vs 230*. I don't wait long before backing off, but unless I'm chasing down someone at above 8/10, I'm fine.

I'd work with what you have without putting any money into it, since down the line you're going to want to do a reroute, and you'll have to modify the radiator for that.
curly is offline   Reply With Quote
Old 02-28-2012, 08:12 PM   #15
Junior Member
Thread Starter

Join Date: Jul 2010
Location: Camp Pendleton, CA
Posts: 93
Total Cats: 2
Default

Did you ever come up with a better solution for mounting your fans? Im drawing a blank other then a piece of sheet metal the size of the rad that has a hole cut out for the fan slightly off of the radiator. My only worry with that is at speed, could that actually hinder flow through it by only having that 12" or whatever diameter hole to pass through?
Darthteddy is offline   Reply With Quote
Old 02-28-2012, 08:53 PM   #16
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

you dont need no stinking shroud.
Braineack is offline   Reply With Quote
Old 02-28-2012, 09:05 PM   #17
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,110
Total Cats: 518
Default

I ended up going back to stock shrouds, which you can't do obviously. They fit great, and are tapered to allow airflow at speed. My first attempt at a DIY fan shroud ended in a punctured radiator, so I quit while I was still only $40 behind. If I'm not mistaken, there's a fair amount of plastic on either side of the stock shrouds, you could try trimming those to fit, but without the mounts to bolt them too, it's probably less work to make something like FM's or CXracing's fan shroud.
