Help picking Manifold and down pipe for EFR 6258

DIY Turbo Discussion greddy on a 1.8? homebrew kit?
Sponsored by:
Sponsored by:

Help picking Manifold and down pipe for EFR 6258


Old 10-16-2017, 06:32 PM
  #1
Junior Member
Thread Starter
iTrader: (1)

Join Date: May 2013
Location: Orlando, Florida
Posts: 70
Total Cats: -7
Default Help picking Manifold and down pipe for EFR 6258

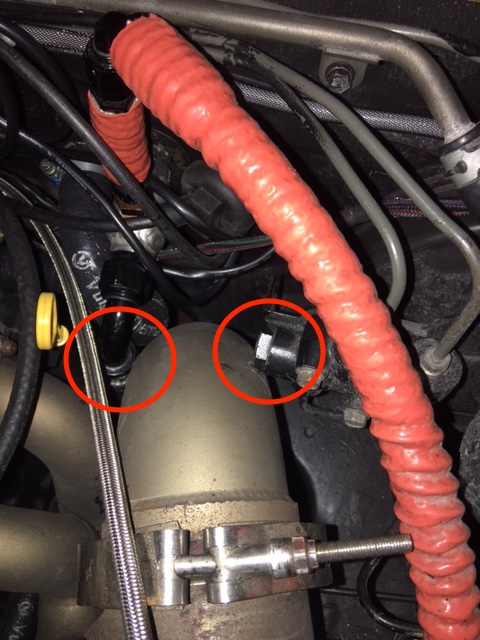

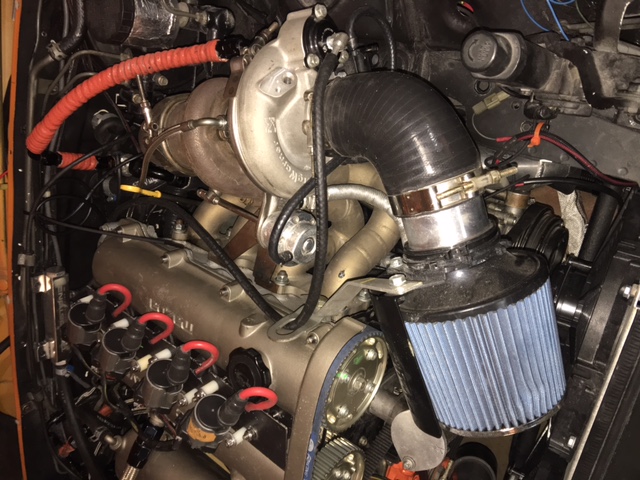

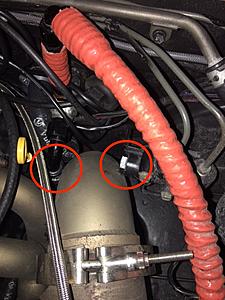

I already have custom efr6258 manifold and downpipe installed on my car. However the fabricator designed it too close the firewall and now the downpipe is almost touching the master cylinder and
the heater hose (See attached photo). I am unable to come up with a satisfactory solution to this and thinking of just replacing the manifold and downpipe with pre-built setup. Mine is 97 Miata with 99 engine and Non V-band EFR6258 with internal wastegate.
Any recommendations on who I should get the manifold and downpipe from?

Cheers
Attached Thumbnails Help picking Manifold and down pipe for EFR 6258-img_7337.jpg   Help picking Manifold and down pipe for EFR 6258-img_7335.jpg
orlmiata is offline
Old 10-16-2017, 06:35 PM
  #2
Ich verstehe nur Bahnhof
iTrader: (4)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 4,512
Total Cats: 493
Default

Tell the fabricator to try again.
psyber_0ptix is offline
Old 10-16-2017, 06:41 PM
  #3
Elite Member
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 3,210
Total Cats: 398
Default

My guess is that he built it for a 2560, thought it would work for EFR because bolts. Nope, the EFR is just a monster in size. TSE and be done.
ryansmoneypit is offline
Old 10-16-2017, 06:50 PM
  #4
Junior Member
Thread Starter
iTrader: (1)

Join Date: May 2013
Location: Orlando, Florida
Posts: 70
Total Cats: -7
Default

Originally Posted by psyber_0ptix View Post
Tell the fabricator to try again.
Unfortunately this was fabricated two years ago and I just got to installing it couple of months ago. The fabricator has moved on/away. Gone ADIOS.
I see you have ARTech. How do you like his manifold and downpipe?
orlmiata is offline
Old 10-16-2017, 08:24 PM
  #5
Ich verstehe nur Bahnhof
iTrader: (4)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 4,512
Total Cats: 493
Default

Ryansmoneypit is right wrt the length of the EFR.

I absolutely love my Artech manifold. It's made great torque. I have everything that Abe was willing to make for me and the quality is pretty amazing. TSE spent a lot of time developing their kit and it's a bangin setup. You'd have to contact Abe directly about whether or not he's taking on manifold projects or only doing exhausts now.

Can't go wrong with either option.
psyber_0ptix is offline
Old 10-16-2017, 09:19 PM
  #6
Moderator
iTrader: (12)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 19,304
Total Cats: 2,434
Default

Cut or bend the shelf parts and make it work. Add heat shielding.
sixshooter is online now
Old 10-16-2017, 09:26 PM
  #7
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 15,310
Total Cats: 2,019
Default

I would say buy my parts, but honestly, my stuff is going to foul in the same places. Moving the prop valve and heater hoses is de rigueur for turbo installations here.
__________________

High-Performance Turbo Specialists - Sunnyvale, CA - Email us!

Originally Posted by codrus View Post
Basically I've come over to the camp of "If something is a reliability problem on the track, just ask Andrew and do what he says".
Savington is online now
