Default Holes dont line up on downpipe :(

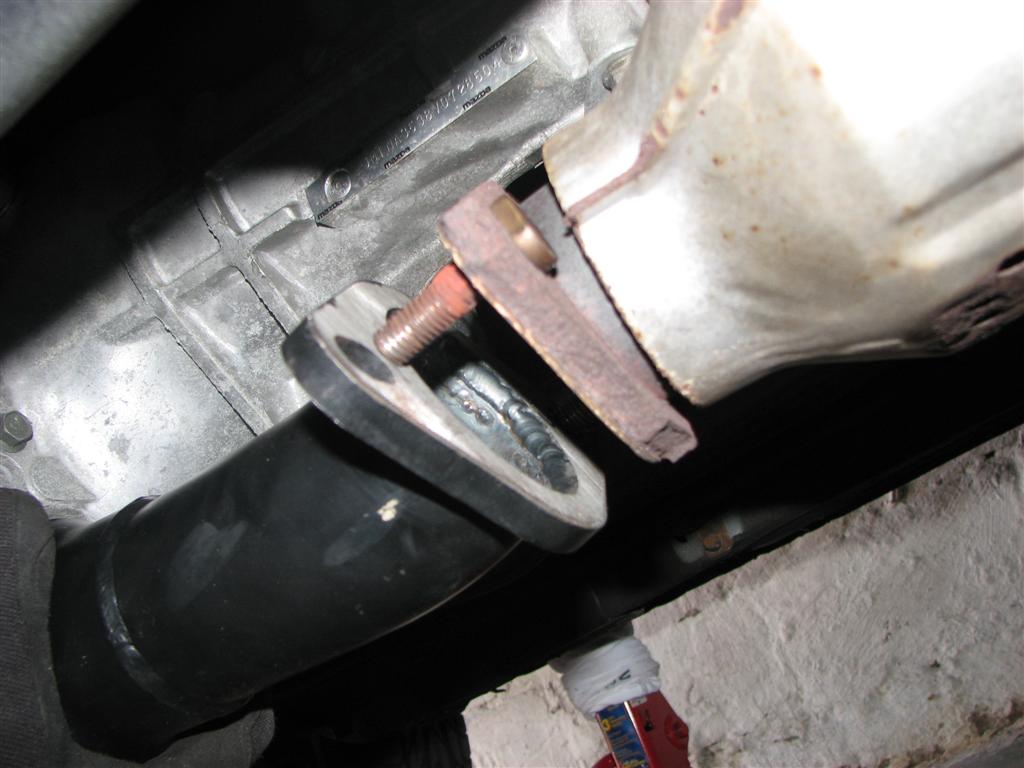

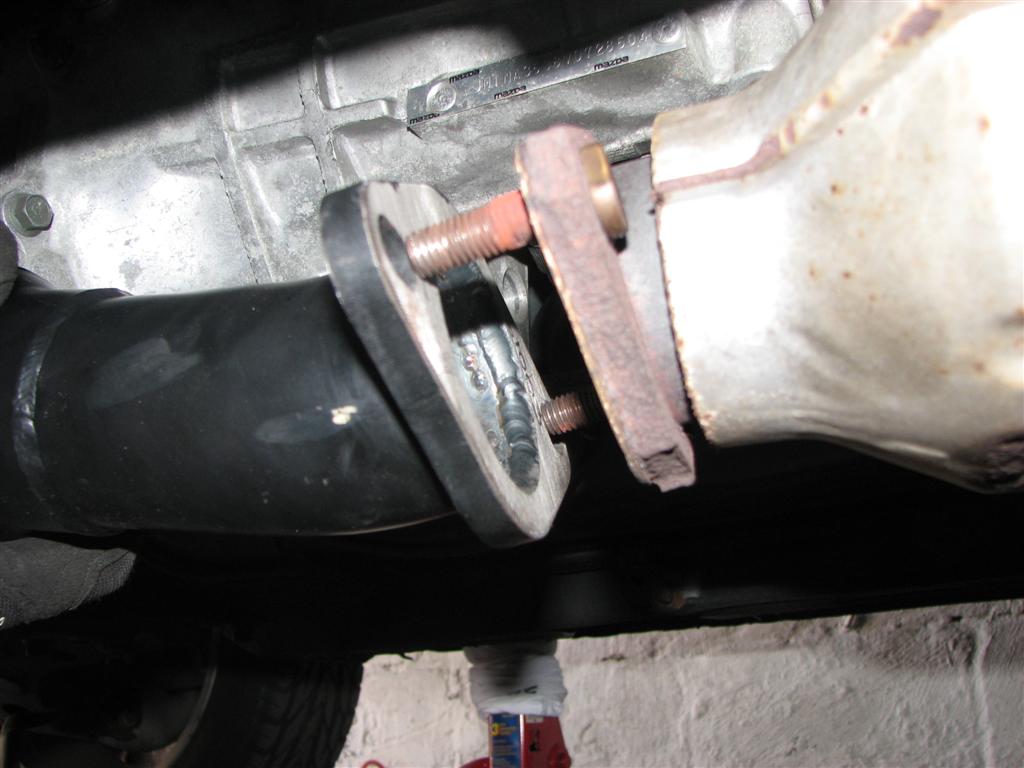

This is a begi old style bell mouth manifold. The turbo end is fine, but the other end that bolts up to the catalytic has a problem. The stud holes don't line up, the stock cat is just a bit to small and the downpipe holes aren't big enough.

The other problem is that it seems that the downpipe may not be long enough. I have to pull the exhaust by the cat to even get it close to the downpipe.

I don't know what to do, other then have the holes widened but could it be that its a 1.6 downpipe?

I cant believe I hit another snag :(. I was really hoping to get measurements for the intercooler pipes today and be done next weekend. double :(
Attached Thumbnails
Holes dont line up on downpipe :(-img_3083-large-.jpg   Holes dont line up on downpipe :(-img_3085-large-.jpg   Holes dont line up on downpipe :(-img_3086-large-.jpg   Holes dont line up on downpipe :(-img_3088-large-.jpg
Saml01 is offline   Reply With Quote
Old 03-30-2008, 04:07 PM   #2
Junior Member

Join Date: Mar 2008
Location: Charleston, S.C.
Posts: 159
Total Cats: 0
Default

The 1.6 and the 1.8 uses a different cat. The angle is different and the flange is different. I'm not sure about the length but it's possible you have the wrong DP based on your flange issue.
04 Miata is offline   Reply With Quote
Old 03-30-2008, 04:17 PM   #3
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,236
Total Cats: 288
Default how I'd fix it w/o a welder

If it's not the wrong downpipe (meaning the flange angles match) then:

- I'd widen the flange holes with a file
- Cut the exhaust pipe on the back side of the cat and add a "parts store" exhaust sleeve and two clamps to extend the reach of the cat to meet the flange. The sleeve is essentially an exhaust adapter, same size both sides.
m2cupcar is offline   Reply With Quote
Old 03-30-2008, 04:26 PM   #4
Junior Member

Join Date: Mar 2008
Location: Charleston, S.C.
Posts: 159
Total Cats: 0
Default

I just went to the garage and measured the holes on the DP flange. It's an old 1.6 BEGI DP and the holes look to be 3.25" center to center.
04 Miata is offline   Reply With Quote
Old 03-30-2008, 05:02 PM   #5
Elite Member
Thread Starter
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

So you have the same one as mine and youre saying that it is an old begi 1.6 piece? Am I understanding you correctly?
Saml01 is offline   Reply With Quote
Old 03-30-2008, 05:05 PM   #6
Junior Member

Join Date: Mar 2008
Location: Charleston, S.C.
Posts: 159
Total Cats: 0
Default

My DP is from an old BEGI System IV kit and the flange holes are 3.25" on center. If you have those dimensions I guess you have a 1.6 pipe.
04 Miata is offline   Reply With Quote
Old 03-30-2008, 05:08 PM   #7
Elite Member
Thread Starter
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

OOOOOOOOOOH.

OK, ill go measure in a couple of hours. Thanks a lot.
Saml01 is offline   Reply With Quote
Old 03-30-2008, 05:24 PM   #8
Elite Member
iTrader: (11)

Trent's Avatar

Join Date: Feb 2006
Location: Louisiana
Posts: 1,625
Total Cats: 5
Default

Well, the 1.6 catalytic converter has a flange that is rotated about 30* off from the 1.8 flange. the bolt holes wouldn't line up at all if that were the case.
Trent is offline   Reply With Quote
Old 03-30-2008, 05:30 PM   #9
Elite Member
Thread Starter
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

Quote:
Originally Posted by supersaiyan93 View Post
Well, the 1.6 catalytic converter has a flange that is rotated about 30* off from the 1.8 flange. the bolt holes wouldn't line up at all if that were the case.
Then this is 100% a 1.6 downpipe because with the downpipe assembled the flange is off by about 30 degrees.

edit: or I could be wrong, maybe the angle is not off, but the fact that it doesnt reach the cat is 100% certainty.

Last edited by Saml01; 03-30-2008 at 08:01 PM.
Saml01 is offline   Reply With Quote
Old 03-30-2008, 07:40 PM   #10
Elite Member
Thread Starter
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

Quote:
Originally Posted by 04 Miata View Post
My DP is from an old BEGI System IV kit and the flange holes are 3.25" on center. If you have those dimensions I guess you have a 1.6 pipe.
My flange is 4.25 maybe 4.5 center to center of each hole. The factory flange is 3.5 center to center.

They are about 1/4 inch off from being able to mate up.

Heres a question.

Do the two pieces of the downpipe have to be completely inserted into each other and tightened down tightly. Because now that I think about it, if I was to not insert the two halves into each other completely it may be long enough.

Last edited by Saml01; 03-30-2008 at 07:57 PM.
Saml01 is offline   Reply With Quote
Old 03-30-2008, 07:56 PM   #11
Senior Member
iTrader: (7)

Join Date: Mar 2005
Location: VT
Posts: 939
Total Cats: 0
Default

Learn from your parents mistakes, wear a condom.


Jefe is offline   Reply With Quote
Old 03-30-2008, 08:19 PM   #12
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,914
Default

Putting aside the flanges, are the two pipes of the same diameter, that of the downpipe and that of the cat? The angles appear correct, but by appearance I'd wager that the DP is of a larger diameter pipe than the cat. Is not the Bell downpipe at least 2.5" in diameter, if not 2.75"? (That measurement alone the difference between a 1.6 and 1.8 downpipe will reveal, according to the info on Bell's website.) Such a discrepancy then I'd fully expect when attempting to mate with a stock catalytic converter.

A similar situation I also encountered as to the gap betwixt the two, with my 1.6 TurboTony downpipe and matching 2.5" cat. By way of a solution, I procured from a local exhaust shop two generic 2.5" steel flanges, each roughly 3/8" in thickness. Using them as spacers, one before the cat and the other aft, along with slightly longer-than-stock bolts was the system drawn properly together.
Joe Perez is offline   Reply With Quote
Old 03-30-2008, 08:28 PM   #13
I'm Miserable!
iTrader: (1)

Join Date: Oct 2007
Location: Niagara Falls, On, CANADA
Posts: 979
Total Cats: 0
Default

Quote:
Originally Posted by Jefe View Post
Learn from your parents mistakes, wear a condom.


miataz is offline   Reply With Quote
Old 03-30-2008, 09:10 PM   #14
Elite Member
Thread Starter
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

Quote:
Originally Posted by Joe Perez View Post
Putting aside the flanges, are the two pipes of the same diameter, that of the downpipe and that of the cat? The angles appear correct, but by appearance I'd wager that the DP is of a larger diameter pipe than the cat. Is not the Bell downpipe at least 2.5" in diameter, if not 2.75"? (That measurement alone the difference between a 1.6 and 1.8 downpipe will reveal, according to the info on Bell's website.) Such a discrepancy then I'd fully expect when attempting to mate with a stock catalytic converter.

A similar situation I also encountered as to the gap betwixt the two, with my 1.6 TurboTony downpipe and matching 2.5" cat. By way of a solution, I procured from a local exhaust shop two generic 2.5" steel flanges, each roughly 3/8" in thickness. Using them as spacers, one before the cat and the other aft, along with slightly longer-than-stock bolts was the system drawn properly together.
The diameter of the downpipe is 2.5 inches.

But begi's downpipes despite being of a larger internal diameter are all designed to mate with the stock catalytic converter.

As for your solution in the second paragraph, that would not work because the gap is almost 5 inches.

---

I sent this thread to stephanie and I hope she will be able to shed light on this. If it is in fact a 1.6 pipe, I have someone interested in it and I will order a new DP from Begi the same day.
