Default Holset VE turbos

Has anyone looked into these turbos? It seems like they can be picked up pretty cheap, and I would think the MS could be used to control the electronics.

Here is an example:
http://cgi.ebay.com/ebaymotors/Ram-H...item20b7ebc058

What would be the ideal VE turbo for the miata, or are they all too big?
miatauser884 is offline   Reply With Quote
Old 04-08-2011, 11:49 AM   #2
Elite Member
iTrader: (10)

Join Date: Oct 2008
Location: Seattle, Wa
Posts: 1,780
Total Cats: 30
Default

The electronics are a bit more complicated than one would think. AFAIK, they aren't just a PWM signal.

There have been some people that have reported success in removing the VGT electronics and replacing them with an internal wastegate actuator. In theory, if properly set up you could actually control boost using just the VGT, but from what I've seen, the guys that do it tend to run an EWG as well.

It seems like every time I decide NOT to put one on the BMW, someone else brings these damn things up. Maybe the universe is trying to tell me something :P.
Jeff_Ciesielski is offline   Reply With Quote
Old 04-08-2011, 11:50 AM   #3
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,202
Total Cats: 2,584
Default

DO IT lol
18psi is offline   Reply With Quote
Old 04-08-2011, 11:55 AM   #4
Elite Member
iTrader: (10)

Join Date: Oct 2008
Location: Seattle, Wa
Posts: 1,780
Total Cats: 30
Default

Just a word of caution before anyone buys an HE351VE and tries to just slap it in their car.

1.They use a different flange. Its close to a T4, but not quite.
2. The turbine housings are HUGE. Not like "oh, thats a big turbo", but like JESUS ******* CHRIST THATS A BIG TURBO. It makes a 3076 look like a 13g.

Edit:

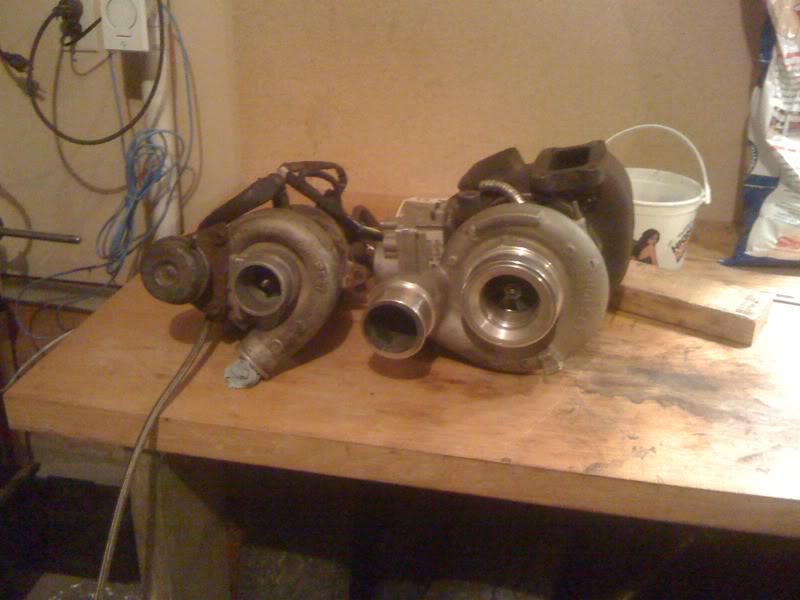

Name:  Picture046.jpg
Views: 29
Size:  54.9 KB

HE351VE vs 14b
Jeff_Ciesielski is offline   Reply With Quote
Old 04-08-2011, 12:06 PM   #5
Junior Member
iTrader: (3)

Join Date: Feb 2010
Location: boston, ny
Posts: 282
Total Cats: 0
Default

i read about some people making some sort of controller for them, and ive read of others who just used a big spring to hold it closed till the pressure opens it by itself. but i cant see the springs taking loads of heat...
yunvmyegt is offline   Reply With Quote
Old 04-08-2011, 12:30 PM   #6
Elite Member
Thread Starter
iTrader: (11)

Join Date: Feb 2009
Posts: 2,982
Total Cats: 10
Default

I thought I found a few post where peoeple were controlling it with MS using CAN. This is beyond me, but there are some pretty electroniclly savvy individuals on this site. I also thoguht I read that the native communication of the HE351VE is CAN idf using the stock controller.
miatauser884 is offline   Reply With Quote
Old 04-08-2011, 12:33 PM   #7
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

I wish I still had Neo's picture of the HE35 bolted to a BEGi Manifold...there was no way that thing was going to fit. A Sawzall to the frame rail would be in order.
Braineack is offline   Reply With Quote
Old 04-08-2011, 12:44 PM   #8
Elite Member
iTrader: (10)

Join Date: Oct 2008
Location: Seattle, Wa
Posts: 1,780
Total Cats: 30
Default

Quote:
Originally Posted by Braineack View Post
I wish I still had Neo's picture of the HE35 bolted to a BEGi Manifold...there was no way that thing was going to fit. A Sawzall to the frame rail would be in order.
Well, I think we found faeflora's next turbo.
Jeff_Ciesielski is offline   Reply With Quote
Old 04-08-2011, 01:07 PM   #9
Elite Member
Thread Starter
iTrader: (11)

Join Date: Feb 2009
Posts: 2,982
Total Cats: 10
Default

I could probably mount one on my Artech manifold since it angles upward. I'd have to send my manifold to him for a new flange, so he could mock it up.

http://www.msextra.com/forums/viewto...?f=131&t=36668

Some interesting ideas here. It seems like a MAP control gets interest.

http://www.superturbodiesel.com/std/...control?page=2

Last edited by miatauser884; 04-08-2011 at 01:25 PM.
miatauser884 is offline   Reply With Quote
Old 04-08-2011, 01:25 PM   #10
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,687
Total Cats: 1,562
Default

They come in both electronically controlled and air controlled. It uses a sliding ring aperture that, in effect, simulates varying from a very small a/r turbine housing up to a very large one. That one is sized for a six liter engine maxing out at 3k rpms, so I figure it would also work well on a three liter engine maxing out at 6k rpms. That makes it awfully large for an under two liter engine like ours. Perhaps they have a smaller one.

Here is info on the technology (with diagram).
sixshooter is offline   Reply With Quote
Old 04-08-2011, 01:37 PM   #11
Elite Member
Thread Starter
iTrader: (11)

Join Date: Feb 2009
Posts: 2,982
Total Cats: 10
Default

Quote:
Originally Posted by sixshooter View Post
They come in both electronically controlled and air controlled. It uses a sliding ring aperture that, in effect, simulates varying from a very small a/r turbine housing up to a very large one. That one is sized for a six liter engine maxing out at 3k rpms, so I figure it would also work well on a three liter engine maxing out at 6k rpms. That makes it awfully large for an under two liter engine like ours. Perhaps they have a smaller one.

Here is info on the technology (with diagram).

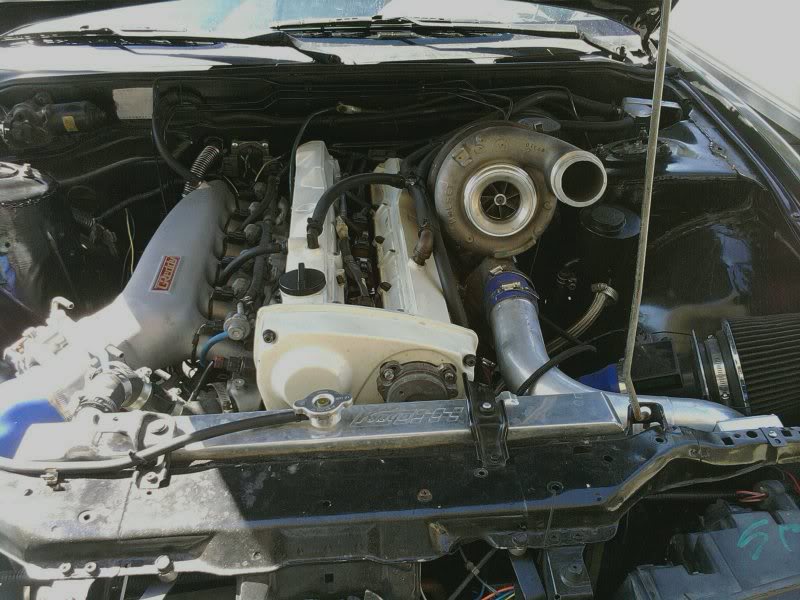

It is a little redonkulous

Name:  mms_picture.jpg
Views: 36
Size:  86.2 KB
miatauser884 is offline   Reply With Quote
Old 04-08-2011, 01:54 PM   #12
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Quote:
Originally Posted by Jeff_Ciesielski View Post
Well, I think we found faeflora's next turbo.
Faeflora is offline   Reply With Quote
Old 04-08-2011, 02:47 PM   #13
Elite Member
Thread Starter
iTrader: (11)

Join Date: Feb 2009
Posts: 2,982
Total Cats: 10
Default

Quote:
Hi there,

I am new to this thread, but I am not new to turbocharger control and electronics. I am from Mechatronics and computer engineering background, specialized in forced induction ECU design and research in my thesis (decades ago anyway). My first touch on VNT/VGT in gasoline is inspired from the Aerocharger VATN turbochargers (they are still around see www.aerocharger.com) .

I am working in a motorsports and performance parts business right now. We are throwing in lots of resources in VNT gasoline projects instead of treating this as a home made or school project. We have a bunch of cars here ready for test projects, including factory turbocharged cars like a series of Nissan GTR's from R32 to R34, Audi/VW/Porsche turbos , 911 NA turbo conversions and such .

Personally, I have done at least dozens of electronic boost controller installations, HKS EVC, Apex AVCR, Greddy and ECU mapping work.

I read through this thread and find that its the most active up-to-date VNT turbocharger thread in gasoline . But there is something I really need to point out. First of all, thanks to CivicTSI who has done a lot of work on reverse engineer the Holset actuator (not controller). I think he has mixed up the "controller" and the "actuator" . I don't think its a good idea to mixed up the 2 pieces into a single model. First, an actuator should accept signal for vane position (or wastegate actuation for wastegated turbochargers). Secondly, the boost controller is a unit that should send out signals to the actuator according to boost changes or with other logics (will explain further later). Whether the actuator accepts a CAN message protocol or a PWM is not important, it is just an implementation issue. What is important is how your controller will control the vanes. I hope reader is with me and is clear about what I want to point out. Garrett make two versions of their REA (rotary electronic actuator, rotary electric actuator). The second accepts a PWM signal for vane position for simplicity and the first uses a CAN message. The AVNT slide vane turbochargers found on GT37V series (GT3571VA, GT3771VA, GT3782VA, GT3788VA, GT3794VA) turbochargers all uses a PWM signal for vane position control.

VNT turbochargers control is much more complex is not as simple as wastegated turbocharger control, in a way it can be simple if you setup your control schematics clearly. Mixing the actuator and controller together will result yourself in a very difficult situation.

A VNT turbocharger can varies the A/R of the turbine, but not controlling the boost. If your turbine A/R is small, it result in high exhaust manifold pressure and causing the turbine to spin up fast (we all know that) . Open up the vanes result in a larger A/R, result in lowering the exhaust back pressure but will still keep your turbine to energize and result in speeding up the turbine (not bypassing the turbine). A wastegate bypass the turbine and deenergizes the turbine and causing it to reduce speed. Most gasoline engines have a high working range (high rpm) and high EGT . The way how turbocharger works is we pickup the energy in the exhaust gas and use it to drive the turbine. So that, in theory or in practice, open up the vanes (large A/R) doesn't mean you that you can control the boost. Gasoline engines uses a throttle to control engine load, the higher the rpm , the higher the gas flow rate and will continue to cause boost to rise unless causing your compressor to reach the stall line (refer to your compressor map) . That means, a wastegate is needed to bypass the turbine for boost control. This not happen to diesel engines because they don't use throttle so that the maximum air flow can always be determined.

If you go youtube or threads that have successful installation of VGT in gasoline, most of them (at least the ones that I saw) are all done by wastegate actuators. This way, you missed the beauty of VGT that allow you to open up vanes wide in cruise mode for reduction in pumping loss thus improve fuel economy. Another advantage of VGT is engine braking by closing up the vanes when needed. These logics can only be done by electronics, or a complex solenoid valve setup with vacuum reservoirs by a dual port wastegate actuator (Aerocharger people use this kind of setup, but no vacuum reservoir). Relying on vacuum is just unreliable because vacuum will/may run out due to driving condition changes.

To properly take advantage to a VGT turbine, what you need is to setup a controller with a mapping style control. The map should be a 3-axis (rpm+tps+targetboost) for vane position readout. As in different air flow (rpm+tps) rate there should be a desired turbine A/R according to your target boost level. When your compressor is under surge (air flow rate beyond the left line in your compressor map) the vanes should remain wide open so that your engine maintains in a highest VE to reduce compressor surge . Before you reach a certain flow rate your compressor doesn't/cannot make any boost anyway. Vane position should remains wide open so that when cruising/surge you get the best VE and thus best fuel economy. This is one advantage over wastegate turbo . A map for vane position is really needed because you don't want to close up your vane with a wide open throttle so that will cause your engine to choke, or even an unpreditable engine VE in a given situation so that you have no way to setup your fuel maps AFR properly.

I would like to point out some missing information as well. Don't mixed up turbo lag and compressor surge . There is no way to get around with compressor surge if your compressor is large (or with a high value of A/R on the compressor) in low air flow situations. Turbo lag is the time required for spool . If you pick such a large compressor for high power and you will deserve a surge line at high flow rates (only able to make boost in high rpm, thus high air flow rate). If you really need boost in low rpm (low air flow rate) the only way is to use a smaller compressor to give up some top end power. It is always good to pick compressors which has a "wide flow range" at a certain pressure ratio (the Garrett GTX compressors are good in this) . The other way to get around this issue is go for a sequential turbo with twin smaller compressors so that they can add up at the top end.

I am sorry to post such a long message but I hope this will clear up some misunderstood turbo theory from home builders .

For my own VNT projects, I vote for Garrett AVNT because the actuator (the VGT solenoid uses a electro-hydraulic) accepts a PWM signal out of the box so that we can interface it easy. There is no easy way in hacking the CAN messages because we don't know about the protocol and is really a waste of time. We bought dozens of GT37Vs out of Ford Powerstrokes and GM Duramax turbos so that we can pull them apart and pick the size of compressor wheels that suit for each engine build. For example, a 71mm or 76mm compressor will be good for a 2.0, and twin 82mm compressor will be good for a 2.6L twin turbo GTR or Porsche. One more thing to point out is that the Powerstroke turbos are not watercooled, it is no good for serious power outputs so the Duramax turbo is better but they come with stock 88mm compressor or 94mm compressor which will be too large for most of the applications .

For CivicTSI work, I strongly suggest he should separate the actuator and controller. If he can standardize his actuator implementation for the HE351VE turbocharger, it can be a very useful piece of work. It will be not difficult to use the PIC ADC to receive a PWM signal for vane position to simulate what the Garrett turbochargers can do . There is apparently a weight disadvantage for the HE351VE comparing with Garrett GT37V, also for the popularity for parts in garrett turbochargers, there is a bunch of compressors out there, or even the GTX compressors which has a better flow range .

Last post from CivicTSI is 6 months ago and not sure where is he up to now. Hope he is still working on the project or he is still viewing this thread. Its nice to see people around working on VGT and is having the same goal.

My current engineering project is the turbocharger boost controller for VNT turbochargers. We are now busy in setting up a new workshop and will have lots of equipment coming, including a dyno and a new turbo balancer for in-house turbocharger rebuild and modifications. Once we have some results and we will post some updates. Work progress is slow, but we are getting there.

Hope this information is useful to the thread. Thanks for reading.

Sounds like the Garrett version would be a better starting point. The other downside is that if your actuator ever broke, your VE table will be wrong, which could result in a less than ideal outcome.
