Default How not to make your own Downpipe.

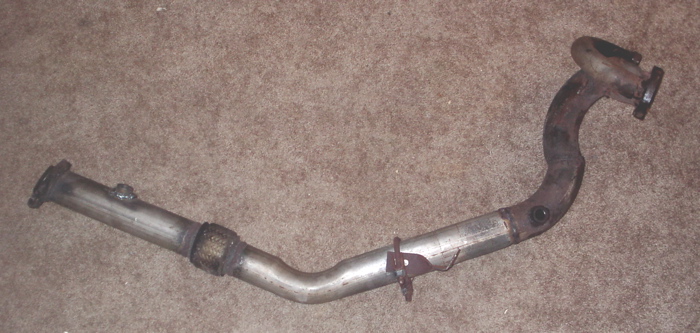

So today I took my downpipe off to weld in a bung for my AEM Wideband. I had no idea how crappy it is. First of all the bends suck, they aren't welded very well though and look like crap. The final bend is crush bent, making my 2.5" DP more like 1.5" so my entire exhaust system is bottlenecked at that point. To top the cake my external wastegate system is also complete crap. I'll post some more pictures of that after a bit when I take them. I also spent 5 minutes today drilling a hole in the pipe and welding the bung in it. I didn't care what the weld looked like so don't let that be a example of my welding ability.
Again:
HOW NOT TO BUILD YOUR DOWNPIPE!
Attached Thumbnails
How not to make your own Downpipe.-03100001.jpg
cjernigan is offline   Reply With Quote
Old 11-27-2006, 11:13 PM   #2
Junior Member

Join Date: Jun 2005
Location: Huntington Beach, CA
Posts: 354
Total Cats: 0
Default

Hahaha that's sweet.
iWeasel410 is offline   Reply With Quote
Old 11-27-2006, 11:19 PM   #3
Elite Member
iTrader: (3)

Mach929's Avatar

Join Date: Oct 2004
Location: lansdale PA
Posts: 2,500
Total Cats: 0
Default

wow that is one ugly bend but i don't know if it gets any smaller than stock
Mach929 is offline   Reply With Quote
Old 11-27-2006, 11:21 PM   #4
Elite Member
Thread Starter
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

The rest of my exhuast system looks good, all 2.5" going back after that flange. That is definitely the bottleneck of the system for sure. That's what I get for buying a car with the DIY turbo setup already on it. Always better to do it right yourself.
cjernigan is offline   Reply With Quote
Old 11-27-2006, 11:21 PM   #5
Junior Member

Join Date: Oct 2004
Posts: 171
Total Cats: 3
Default

WOW!

That has to be the fugliest D/P ive seen! I hope you didnt make that..If you did then think of it as a learning experience!! that thing will be killing so much power from your system. I bet when you get a proper 2.5"DP youll spool at least 300 rpm earlier and make 10-15 more RWHP without any other changes!

Have a look at the bottom of page 6 on my Cardomain site for a real DP!
http://www.cardomain.com/ride/264041/6
4sfed5 is offline   Reply With Quote
Old 11-27-2006, 11:25 PM   #6
Elite Member
Thread Starter
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Yeah i definitely didn't make that downpipe. The sad thing is the guy i bought the car from in Kentucky had the entire kit put together by a performance shop. They must have been smoking rocks to think they were building a good product. Mine would look far better. I might end up rolling out my own product early '07 we'll see.
cjernigan is offline   Reply With Quote
Old 11-28-2006, 02:02 AM   #7
Senior Member

Join Date: Jun 2005
Location: WA
Posts: 500
Total Cats: 0
Default

that looks pretty bad, you'll pick up some power if you get a nicer downpipe 3" would be nice.

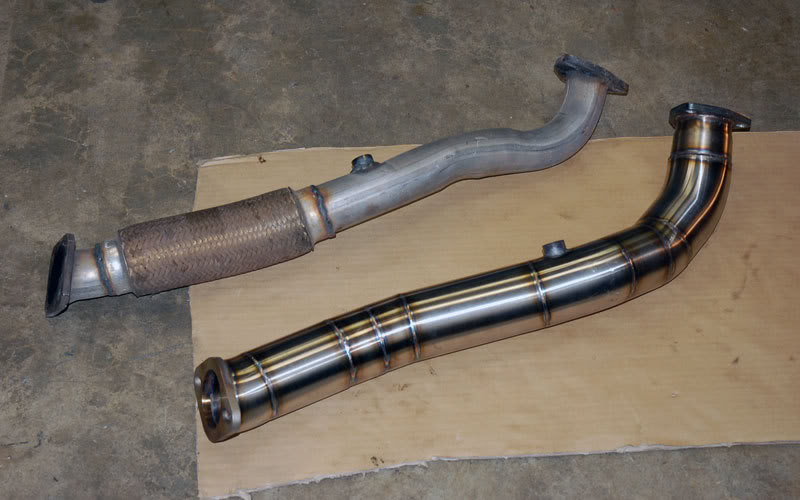

Check out my old vs. new downpipe, that sure made a huge difference in spoolup/response/power on my car.
Name:  dp2.jpg
Views: 19
Size:  59.4 KB
RusMan is offline   Reply With Quote
Old 11-28-2006, 02:09 AM   #8
Elite Member
Thread Starter
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Man, do you have pics of your manifold as well. because that downpipe is pretty badass.
Who made it up for you?
cjernigan is offline   Reply With Quote
Old 11-28-2006, 02:22 AM   #9
Junior Member

Join Date: Apr 2006
Posts: 457
Total Cats: 0
Default

holy **** that thing is beefy
LunaticDriver is offline   Reply With Quote
Old 11-28-2006, 02:28 AM   #10
Senior Member
iTrader: (6)

Join Date: Mar 2005
Location: Sammamish, Washington
Posts: 1,396
Total Cats: 0
Default

Quote:
Originally Posted by RusMan View Post
Check out my old vs. new downpipe, that sure made a huge difference in spoolup/response/power on my car.

No way...Not possible

Thats a gorgeous piece RusMan.
Kelly is offline   Reply With Quote
Old 11-28-2006, 02:35 AM   #11
Supporting Vendor
iTrader: (6)

Join Date: Mar 2005
Location: Broken Arrow,Ok
Posts: 1,061
Total Cats: 40
Default

Very quality looking piece. 3"? Gotta love some real craftsmanship.
-Michael-
TheBandit is offline   Reply With Quote
Old 11-28-2006, 03:40 AM   #12
Junior Member

Join Date: Oct 2004
Posts: 171
Total Cats: 3
Default

Holy crap rus....
How do you stop your transmission tunnel from melting with a 3" dump pipe?? i have enough trouble with a 2.5"!
4sfed5 is offline   Reply With Quote
Old 11-28-2006, 03:45 AM   #13
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

SS would be better at it than Mild Steel.
Braineack is offline   Reply With Quote
Old 11-28-2006, 09:53 AM   #14
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

anybody who has made one can appreciate all those cuts and welds
m2cupcar is offline   Reply With Quote
Old 11-28-2006, 10:12 AM   #15
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

cjernigan, what's up with the wastegate port, it looks like it comes back around the front?


ohhh, wait, were you the dude who bought that used kit off ebay? So your external wastegate was actually a port off the exhaust, not the manifold?
Braineack is offline   Reply With Quote
Old 11-28-2006, 10:21 AM   #16
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
How do you stop your transmission tunnel from melting with a 3" dump pipe??
Quote:
Originally Posted by braineack View Post
SS would be better at it than Mild Steel.
No, SS would be worse.
Ben is offline   Reply With Quote
Old 11-28-2006, 10:36 AM   #17
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

Doesn't stainless steel have greater insulating properities. Mild Steel on the other hand radiates like a champ.
Braineack is offline   Reply With Quote
Old 11-28-2006, 11:19 AM   #18
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

No 304 SS will conduct heat better than 409 MS.
Ben is offline   Reply With Quote
Old 11-28-2006, 11:30 AM   #19
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

I'm still sticking with more heat stays inside the stainless tubes and does not get passed into the surrounding air. Mild steel tubes will give off heat rather then insulatling it. It's exactly why SS downpies do better for underhood temps then MS, and why you need to get them thermal coated.
Braineack is offline   Reply With Quote
Old 11-28-2006, 12:28 PM   #20
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,485
Total Cats: 248
Default

Quote:
Originally Posted by Ben View Post
No 304 SS will conduct heat better than 409 MS.
matweb says otherwise (16.2 W/m-K vs. 24.9 W/m-K). A mild steel like 1018 is 51.9 W/m-K, chrome-moly 4130 is 42.7. As a reference, 6061-T6 aluminum is 167!

Generally speaking, stainless steels conduct less heat but expand more than mild steels. I think this expansion problem is why you don't want to ceramic coat stainless pipes.
TurboTim is offline   Reply With Quote
