Default i need a new intercooler but dont know what im looking for...

i went to the drag strip last night and was gettin 150*F-160*F with an ambient air temp of only mid 80's. im running a mitsu big 16G turbo and starion stock intercooler.

im aiming for 325-350 whp @ 18psi.

needless to say i need a new front mount but im also not looking to spend alot of money(ebay specials welcome). what is everyones setup? i dont know much about intercoolers and i have limited space.

i was looking at this one below...what do you think?

http://cgi.ebay.com/ebaymotors/UNIVE...item27bba33b33
fastivab6tg25mr is offline   Reply With Quote
Old 06-09-2011, 09:18 PM   #2
Senior Member
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 39
Default

http://www.cxracing.com/mm5/merchant...ry_Code=IC25CO

is a popular one for these cars.

this one is a little bigger but woudl work... their prices are cheaper on ebay

http://www.cxracing.com/mm5/merchant...ry_Code=IC30CO
aaronc7 is offline   Reply With Quote
Old 06-09-2011, 09:47 PM   #3
Free Moustache Rides
iTrader: (8)

matthewdesigns's Avatar

Join Date: Jun 2008
Location: Colorado Springs
Posts: 1,656
Total Cats: 49
Default

I think the general consensus is that eBay cores aren't that bad. I had one on my Talon and it worked fine. Unless you've read all the IC threads here and found the "perfect" one, then just buy it and try it. Probably be everything you need. If you really want to know for sure, do some math on the heat exchange potential of the core so you know it will benefit your setup.
matthewdesigns is offline   Reply With Quote
Old 06-09-2011, 09:51 PM   #4
Senior Member
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 39
Default

or get a custom one made like i did. i went thru ETS
aaronc7 is offline   Reply With Quote
Old 06-10-2011, 04:42 AM   #5
Junior Member
Thread Starter

Join Date: Jan 2011
Location: sacramento ,ca
Posts: 402
Total Cats: 46
Default

is 2.5" inlet and outlet needed for 325-350whp? or will 2" be ok?
fastivab6tg25mr is offline   Reply With Quote
Old 06-10-2011, 05:16 AM   #6
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,363
Total Cats: 1,323
Default

I'd probably look at 2.5 by that point.

I have a Precision 600hp core and it's fantastic. It's 31x8x3.5, I trashed a 28x6x2.5 eBay core for it. 15*F delta to ambient after a full 60-120 pull, on all the 4th or 5th gear pulls it's ambient+8*F. I probably have 40% of it blocked off, too.

You can get 350whp cores for well under $300. IMO, it's a more solid option than an eBay core.
Savington is offline   Reply With Quote
Old 06-10-2011, 12:28 PM   #7
Junior Member
Thread Starter

Join Date: Jan 2011
Location: sacramento ,ca
Posts: 402
Total Cats: 46
Default

im planning on cutting my bumper to have it fully exposed and just paint it with some blak heat transfer paint.

is bar and blate better than tube and fin?
fastivab6tg25mr is offline   Reply With Quote
Old 06-10-2011, 12:31 PM   #8
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

look at savingtons sig pic, he went through the effort of making his front opening smaller.

but if you want to do this:



look stupid without real benefits, be my guest.
Braineack is offline   Reply With Quote
Old 06-10-2011, 12:46 PM   #9
Junior Member
Thread Starter

Join Date: Jan 2011
Location: sacramento ,ca
Posts: 402
Total Cats: 46
Default

i dont have a miata and my bumper is already cut out for my current setup...i have a BP+T though... im usually on here to ask megasquirt questions... you guys usually have more knowledgable responces than most forums im on.

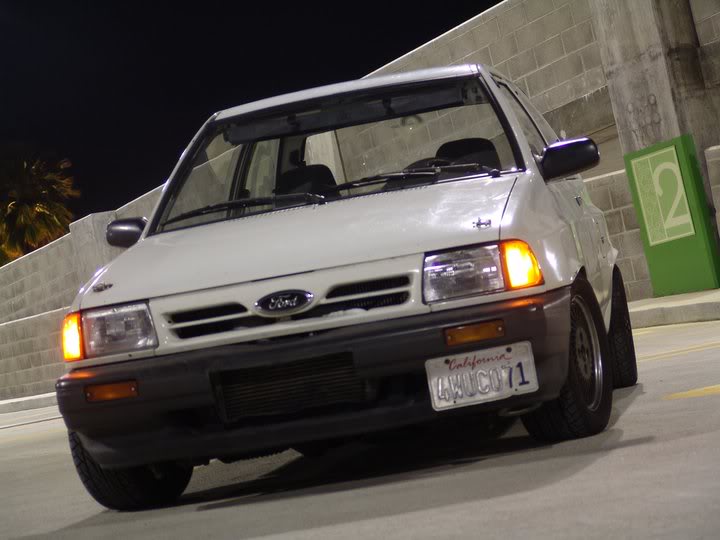

here is what it looks like

Name:  164583_163315160382173_100001110701016_327699_2355346_n.jpg
Views: 2
Size:  46.5 KB
fastivab6tg25mr is offline   Reply With Quote
Old 06-10-2011, 02:30 PM   #10
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

This is where it would help to put the gist of your setup in your signature. Can't blame us for assuming you have a Miata, right?
kotomile is offline   Reply With Quote
Old 06-10-2011, 07:03 PM   #11
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,185
Total Cats: 2,582
Default

JT, the one you posted should work. Not bad as long as you get it to fit and make sure there's sufficient airflow THROUGH it and not around it. Maybe figure out how to shroud it from behind to draw air through it more effectively.

Tube/fin and bar/plate the general consensous as far as I know is this:
-tube/fin slightly better heat dissipation but slightly less flow. more fragile
-bar/plate slightly less efficient heat dissapation but better flow. more sturdy

IMO tube/fin is a tiny bit better, but from what I read the difference isn't really drastic so either one should get the job done. the kind of driving you do though (constantely over 100 lol ) id probably get a bar/plate just because you'll have bugs, rocks, dirt, etc slamming against that thing and you want it as strong as possible to withstand all that. basically just about anything will be better than that tiny/shitty starion ic you have now lol
18psi is offline   Reply With Quote
Old 06-10-2011, 07:26 PM   #12
Junior Member
Thread Starter

Join Date: Jan 2011
Location: sacramento ,ca
Posts: 402
Total Cats: 46
Default

lmao...thanks vlad... that shitty starion ic is a tube and fin and brian beat the **** out if it before i got it...note the rally racing gone bad mark on the bottom pasenger side of it... and it has no leaks... ill try to get it ordered today or tomorrow. im gonna throw in a bigger radiator in and make a shroud to seal it to the bumper when it gets in. so [email protected] on a 2.23 60' at 159*f intake air temp should drop to the 12's with a decent front mount?
fastivab6tg25mr is offline   Reply With Quote
Old 06-10-2011, 07:38 PM   #13
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,185
Total Cats: 2,582
Default

if your ait is lookin good I think we'll be able to bump your timing a bit in the midrange and a good amount up top. I looked around at some maps and yours is definitely very safe, so I think we should be able to get that trap speed of yours up a bit with the better heat exchanger and more tuning.

my biggest fear is that once the weather starts heating up (100+*) and on our shitty 91oct **** we really have to be careful and watch for det
18psi is offline   Reply With Quote
Old 06-10-2011, 08:44 PM   #14
Junior Member
Thread Starter

Join Date: Jan 2011
Location: sacramento ,ca
Posts: 402
Total Cats: 46
Default

will my 450 injectors still hold up or will i need 550's? 650's? i ordred a tube and fin 27x8x4 with 3" in and out. im just gonna run reducers on the ends to get it to 2" or 2.5"...i havent decided yet.
fastivab6tg25mr is offline   Reply With Quote
Old 06-10-2011, 08:50 PM   #15
Senior Member
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 39
Default

for 350whp?

550s will get you 270-300whp
aaronc7 is offline   Reply With Quote
Old 06-10-2011, 09:10 PM   #16
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,185
Total Cats: 2,582
Default

I HIGHLY doubt you'll hit 350whp on 18psi on our crappy 91oct.
Maybe with a ton of water/meth injection or e85, but on pump 91 forget about it.

Also get rid of that crappy 2" piping and run 2.5" at least.

I think with all the improvements and tuning you might get really close to 300 maybe even hit it.
18psi is offline   Reply With Quote
Old 06-11-2011, 02:27 AM   #17
Junior Member
iTrader: (1)

Join Date: Oct 2008
Location: Palm Harbor FL
Posts: 332
Total Cats: 4
Default

I would go for a really nice core, garret or precision, especially with your ambitious power goals. Your gonna need something decent, 16g turbos blow alot of heat at those power levels.
I had a 1g dsm with a evo3 16g on 26psi used a precision 650hp and it worked amazing, previous cooler was ebay and there was an obvious power gain right of the bat but more importantly i could do pass after pass and not get any slower like i did with the ebay core.
1slowna is offline   Reply With Quote
Old 06-15-2011, 08:37 PM   #18
Senior Member
iTrader: (1)

Join Date: Oct 2008
Location: Trailer County
Posts: 530
Total Cats: -9
Default

Man, that festiva must be a blast to drive. On Clubprotege there is bunch of info on BPs and turbo setups, they even have KLZE fests from all motor to fully boosted ones.

Any pics of that engine bay?

d-series.org depeding on the threads, many times has a lot of useful info. Its a good forum as long as you can handle the honda worshiping.
mazpr is offline   Reply With Quote
Old 06-15-2011, 10:58 PM   #19
Junior Member
Thread Starter

Join Date: Jan 2011
Location: sacramento ,ca
Posts: 402
Total Cats: 46
Default

there are some pretty good pics in my cop thread

https://www.miataturbo.net/showthrea...highlight=cops

honda worship isnt bad at all as long as it stays in reality.... but when some jack *** says a stock GSR 178HP at the crank new can make well over 200whp on intake and exhaust alone even after 150K + mileage, then i just tune out and disregard ever thing that person says as stupidity... the only fwd car ive lost to in recent memory is a 93 hatch with a k20 turbo... 519whp @ 2500lbs is hard to beat :( .... and thats on an actual dyno ... not mouth diarrhea
fastivab6tg25mr is offline   Reply With Quote
Old 06-17-2011, 12:23 PM   #20
Junior Member
Thread Starter

Join Date: Jan 2011
Location: sacramento ,ca
Posts: 402
Total Cats: 46
Default

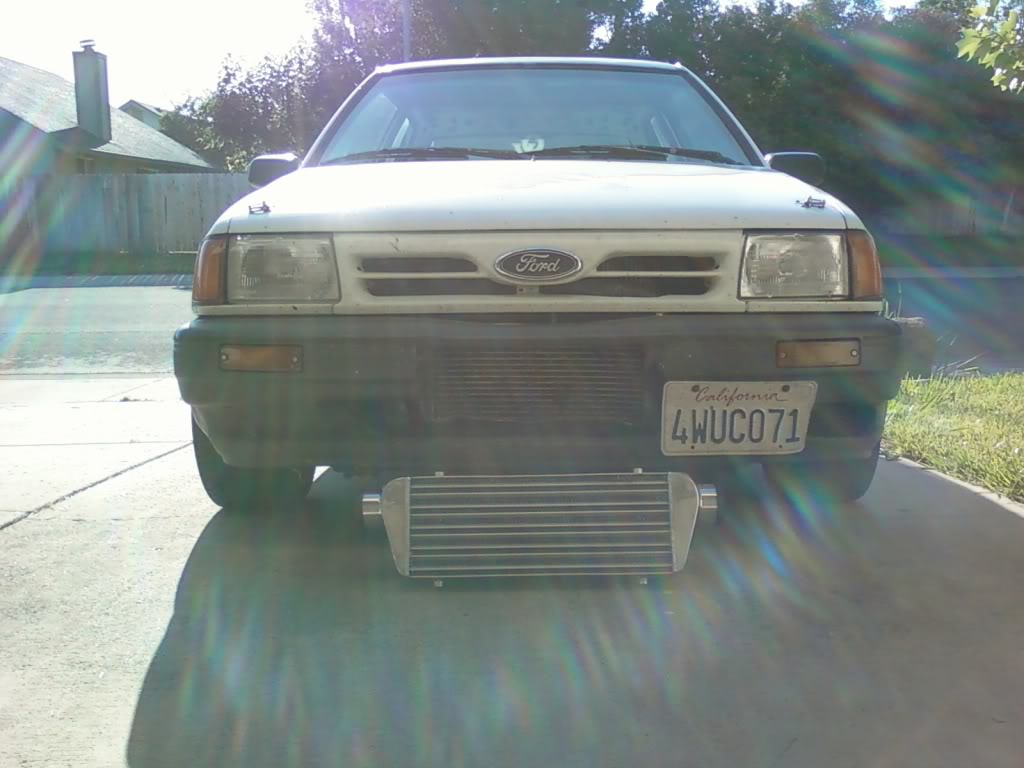

new intercooler came last night... the core is 19x7.25x3.5 with 3" in and out. my buddy has some 3" piping he isn too attached to so i think im gonna run all 3".... i figure turbo lag= traction

Name:  0617075452.jpg
Views: 2
Size:  82.1 KB
fastivab6tg25mr is offline   Reply With Quote
