Old 07-14-2009, 12:43 PM   #41
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

Yeah- I don't think Travis thought that one out before posting it. If he made a cam gear that could dynamically change, we'd all have one.
m2cupcar is offline   Reply With Quote
Old 07-14-2009, 12:56 PM   #42
Elite Member
iTrader: (9)

Join Date: Jun 2008
Location: Houston, TX
Posts: 1,583
Total Cats: 8
Default

Quote:
Originally Posted by JayL View Post
So when did you start offering VVT cam gears? Using a dyno plot from someone not even using your product is a bit misleading don't you think?
Well Matt made these plots using fixed timing just like a cam gear would. He posted the plot degrees somewhere for each run. He can do angle changes a little quicker then we can because he just has to type a number in, but as far as power changes a cam gear is a cam gear is a variable cam gear fixed guys.

I was glad Matt let me use the dyno plot. Many thanks!
TravisR is offline   Reply With Quote
Old 07-14-2009, 01:25 PM   #43
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

The dyno plots show the cam gear in three different positions. It doesn't move during the dyno run.

Now if he had shown those and said "have the best of all three at the same time!" it would definitely be misleading.

now if he had the exhaust cam gears in carbon fiber, I could put one on and satisfy the "not even using your product" requirement.
y8s is offline   Reply With Quote
Old 07-14-2009, 02:27 PM   #44
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

Ahhhh- ok. Didn't realize cam timing was fixed.
m2cupcar is offline   Reply With Quote
Old 07-14-2009, 02:39 PM   #45
Elite Member
iTrader: (12)

Join Date: May 2007
Location: Austin, TX
Posts: 1,923
Total Cats: 0
Default

That makes sense using it at a fixed position to show the differences. I was thinking that it's always used as a variable system. Time to play with this on my own car....an email is coming at you shortly y8s.
JayL is offline   Reply With Quote
Old 07-14-2009, 05:35 PM   #46
Senior Member
Thread Starter
iTrader: (10)

Join Date: Oct 2005
Posts: 718
Total Cats: 5
Default

Thanks for all the info folks.

I will update this bad boy as soon as I have more info..
TURNS101 is offline   Reply With Quote
Old 07-25-2009, 02:35 AM   #47
Senior Member
Thread Starter
iTrader: (10)

Join Date: Oct 2005
Posts: 718
Total Cats: 5
Default

OK people
I got my turbo from turbonetics.
Super 60 stage 1 exhaust wheel with a .48 housing.

I will hit the Dyno next week.

I will also get whatever info I can from them from my past dyno runs with boost and all that jazz
TURNS101 is offline   Reply With Quote
Old 07-30-2009, 12:33 AM   #48
Senior Member
Thread Starter
iTrader: (10)

Join Date: Oct 2005
Posts: 718
Total Cats: 5
Default

I will have the dyno plot tomorrow.
At 20psi, word is, I am in the 300's for whp and ftlbs. Thats on a Mustang Dyno.
Tomorrow I will have the plot to scan so we can see how it spools up..
TURNS101 is offline   Reply With Quote
Old 07-30-2009, 09:37 AM   #49
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

Mustang? That's like 360+ rwhp on a dynojet... at least compared to the mustang/dynojet I was on.
m2cupcar is offline   Reply With Quote
Old 07-30-2009, 04:01 PM   #50
Senior Member
Thread Starter
iTrader: (10)

Join Date: Oct 2005
Posts: 718
Total Cats: 5

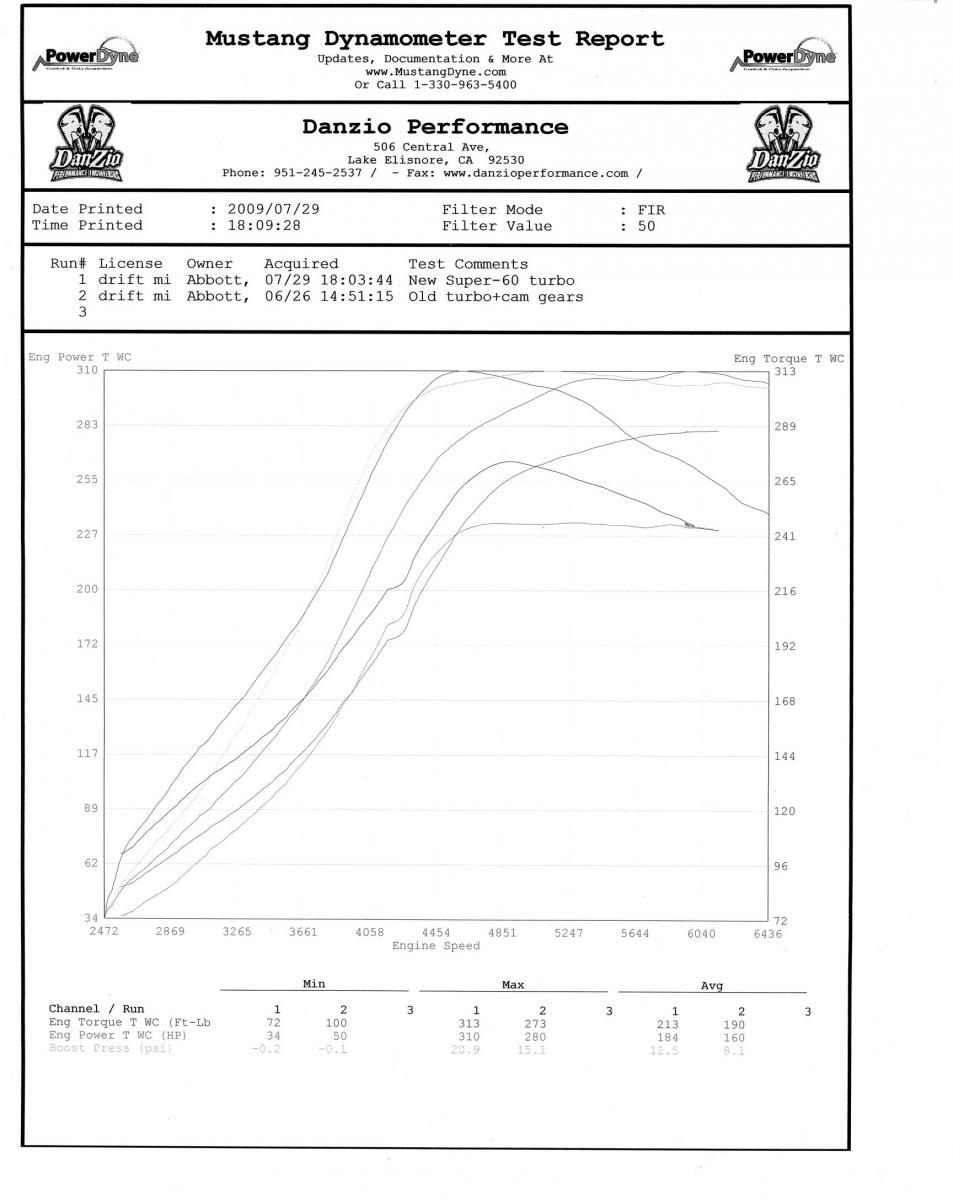

Default Stage 1 vs the stage 3 dyno plot

The plot is not spooled/boosted as soon as i wanted it to be. i think with the increase head flow and the Intake mod, it slowed that down a bit.

Regardless, I think these numbers are pretty bad ***.

please let me know your thoughts..

20lbs of boost.

The skinny line is the boost, with the stage 1 turbine .48 it had 313 tq and 310 rwhp.
Attached Thumbnails
I now need some serious help from the turbo masters-image001.jpg
TURNS101 is offline   Reply With Quote
Old 07-30-2009, 09:38 PM   #51
Senior Member

Join Date: Mar 2006
Posts: 1,379
Total Cats: 1
Default

FEAR THE SUPER 60, Bitch!!!

Mark
Markp is offline   Reply With Quote
Old 07-30-2009, 10:09 PM   #52
Elite Member
iTrader: (12)

Join Date: Aug 2006
Location: Central-ish VA
Posts: 4,449
Total Cats: 16
Default

Quote:
Originally Posted by Markp View Post
FEAR THE SUPER 60, Bitch!!!

Mark
You're still alive?

ON TOPIC:

What LB spring are you runing on the Tial? Do you have EBC? Tial recommends never running more than 2x the LBs boost as the spring you have in the EWG. Ideally you run the spring that is just under what you plan to run. Coupled with the EBC and you will not leak boost from the manifold pressure. With those combos you should be able to hit max boost around 3400-3500rpm at the latest. My best educated/experienced guess is that manifold pressure is opening you wg early and leaking gases.

My 1.6 with 13lb spring, running no ebc or mbc, hits max at 3500rpm currently. Same turbo.
neogenesis2004 is offline   Reply With Quote
Old 07-31-2009, 04:50 AM   #53
Senior Member
Thread Starter
iTrader: (10)

Join Date: Oct 2005
Posts: 718
Total Cats: 5
Default

I thought about that. I have a 14lb spring in the tial wg right now.

My EBC died on dyno and I now have a MBC in its place. It was turned up to 20psi while tuning it.

I believe that the mod I made to the intake manifold is what has caused this.

The HP carries well. I believe the intake mod heped that, but hurt my spool..

I will see how this feels on the track sunday. If it sucks, I will throw on a stock IM and see what happens with the spool. I know it may make the HP dip off, but if I am feathering and clutch kicking all the time, I will take the small loss in power..

Thanks for looking everyone.
Mark P is alive!!!!
TURNS101 is offline   Reply With Quote
Old 08-01-2009, 11:31 PM   #54
Senior Member

Join Date: Mar 2006
Posts: 1,379
Total Cats: 1
Default

I am alive, I no longer own a Miata, so I don't cruise the Miata boards anymore. I've been working my *** off in this Ph.D. program that I am in, so I don't get much time to surf the net at all.

I recently did pick up a new ride, picture below.

Markp is offline   Reply With Quote
Old 01-28-2010, 09:36 AM   #55
Junior Member
iTrader: (1)

Join Date: Jan 2008
Posts: 161
Total Cats: 0
Default

I thought you were the owner of the thread, kind of come out of the blue with such post.

Enjoy the overly priced mini.
psiturbo is offline   Reply With Quote
Old 01-28-2010, 11:11 AM   #56
Senior Member
iTrader: (5)

Join Date: Jan 2008
Location: Central, TX / Bay area, CA
Posts: 1,272
Total Cats: 3
Default

you do realize this thread has been dead for months now right?
Gotpsi? is offline   Reply With Quote
Old 01-28-2010, 11:13 AM   #57
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

and the post was not out of the blue either. But, psiturbo, yours was.
Braineack is offline   Reply With Quote
