Default IAT bung

All right, trying to get my intercooler piping run and realized I'm going to need a IAT bung somewhere.

So my question is: Where can I get some piping with a bung for my IAT?

Orrrrr who wants to weld me up one
FRT_Fun is offline   Reply With Quote
Old 03-29-2011, 10:05 PM   #2
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

in..terested
Faeflora is offline   Reply With Quote
Old 03-29-2011, 10:08 PM   #3
Elite Member
iTrader: (11)

Join Date: Feb 2009
Posts: 2,982
Total Cats: 10
Default

it would be nice if we could get someone to make a run of pipe with a bung welded on. Would make it easy to switch the location of my IAT without taking my car someplace to have it done.
miatauser884 is offline   Reply With Quote
Old 03-29-2011, 10:10 PM   #4
I'm a terrible person
Thread Starter
iTrader: (19)

FRT_Fun's Avatar

Join Date: Apr 2009
Location: Arizona
Posts: 7,293
Total Cats: 180
Default

Can we get ARTech or Tim to weld some **** up... I know it's a waste of their mad skillz, but it would help us unskilled people
FRT_Fun is offline   Reply With Quote
Old 03-29-2011, 10:13 PM   #5
Elite Member

Join Date: Feb 2008
Location: Victoria, BC
Posts: 2,322
Total Cats: 12
Default

I just ordered one of these from silicone intakes:
http://www.siliconeintakes.com/produ...837704b5e90b9e

These lightweight Stainless Steel Joiners are designed to install in your intake, giving you the ability to install three 1/8"-27 NPT probes for intake temperature, boost, or other gauges, or water injection nozzles without any dangerous drilling in your intake.

Stainless Steel Joiners add a high degree of flexibility to any installation, allowing you to make any number of pieces, or your entire intake, out of silicone. They have a lip on each end to prevent hoses from blowing off, and utilizing our high quality t-bolt clamps they can be used in very high boost applications. T-bolt clamps and silicone parts sold separately.

Lip on edge to hold silicone parts
Will not rust or corrode
Will not collapse under extreme clamping pressure

$10.
dustinb is offline   Reply With Quote
Old 03-29-2011, 10:13 PM   #6
I'm a terrible person
Thread Starter
iTrader: (19)

FRT_Fun's Avatar

Join Date: Apr 2009
Location: Arizona
Posts: 7,293
Total Cats: 180
Default

Sold. Although I only need 1 bung lol....
FRT_Fun is offline   Reply With Quote
Old 03-29-2011, 10:18 PM   #7
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,109
Total Cats: 518
Default

Drill and tap your intercooler end tank? Thats what I did.
curly is online now   Reply With Quote
Old 03-29-2011, 10:22 PM   #8
Elite Member

Join Date: Feb 2008
Location: Victoria, BC
Posts: 2,322
Total Cats: 12
Default

Quote:
Originally Posted by FRT_Fun View Post
Sold. Although I only need 1 bung lol....
That's what I was thinking too, but just get some plugs. I might also play with water/meth injection at some point, and this just makes it easy.
dustinb is offline   Reply With Quote
Old 03-29-2011, 10:22 PM   #9
Senior Member
iTrader: (6)

Join Date: May 2009
Location: San Francisco
Posts: 989
Total Cats: 23
Default

I can make one for anybody who needs one. Or I can make a bunch of them if you all can decide length/material/ what bungs you want
wittyworks is offline   Reply With Quote
Old 03-29-2011, 10:31 PM   #10
Senior Member
iTrader: (5)

Join Date: Sep 2009
Location: Lompoc, CA
Posts: 579
Total Cats: 12
Default

Learn to weld?

I have never ever run into a situation where knowing how to weld was a bad thing. I have a cheapo Lincoln flux core welder I picked up at Lowes. It makes ugly welds, but with good cleaning I can produce air tight welds without too much trouble. Just takes a little practice. I prefer the TIG at work, but hell, bird crap welds will do in a pinch.
baron340 is offline   Reply With Quote
Old 03-29-2011, 10:35 PM   #11
I'm a terrible person
Thread Starter
iTrader: (19)

FRT_Fun's Avatar

Join Date: Apr 2009
Location: Arizona
Posts: 7,293
Total Cats: 180
Default

I live in an apartment, not sure how well welding in my bedroom would work out. Not that I'm ruling it out.
FRT_Fun is offline   Reply With Quote
Old 03-29-2011, 10:50 PM   #12
Elite Member

Join Date: Feb 2008
Location: Victoria, BC
Posts: 2,322
Total Cats: 12
Default

Quote:
Originally Posted by FRT_Fun View Post
I live in an apartment, not sure how well welding in my bedroom would work out. Not that I'm ruling it out.
Until the gasses kill you in your bedroom.
dustinb is offline   Reply With Quote
Old 03-29-2011, 11:25 PM   #13
Senior Member
iTrader: (5)

Join Date: Sep 2009
Location: Lompoc, CA
Posts: 579
Total Cats: 12
Default

Ah, good point... didn't really consider apartment living. Just buy the $10 thingy and put plugs in the unused ports.
baron340 is offline   Reply With Quote
Old 03-30-2011, 12:09 AM   #14
Junior Member

Join Date: May 2009
Location: Dayton, OH
Posts: 291
Total Cats: 12
Default

I just ghettofabulously JB welded mine to my intercooler end tank.
shooterschmidty is offline   Reply With Quote
Old 03-30-2011, 12:13 AM   #15
Junior Member

Golferluke's Avatar

Join Date: Oct 2009
Location: Springfield, MO
Posts: 497
Total Cats: 3
Default

Quote:
Originally Posted by dustinb View Post
I just ordered one of these from silicone intakes:
http://www.siliconeintakes.com/produ...837704b5e90b9e

These lightweight Stainless Steel Joiners are designed to install in your intake, giving you the ability to install three 1/8"-27 NPT probes for intake temperature, boost, or other gauges, or water injection nozzles without any dangerous drilling in your intake.

Stainless Steel Joiners add a high degree of flexibility to any installation, allowing you to make any number of pieces, or your entire intake, out of silicone. They have a lip on each end to prevent hoses from blowing off, and utilizing our high quality t-bolt clamps they can be used in very high boost applications. T-bolt clamps and silicone parts sold separately.

Lip on edge to hold silicone parts
Will not rust or corrode
Will not collapse under extreme clamping pressure

$10.
If you need one in a hurry, they sell these at autozone in the ricer section

EDIT:
just realized those are 1/8"-27 npt. Didn't look at what the autozone one is but I imagine the same. I just tapped my intercooler tank end, used the 3/8 tap I used for tapping the oil pan.
Golferluke is offline   Reply With Quote
Old 03-30-2011, 12:44 AM   #16
Elite Member
iTrader: (10)

Join Date: Oct 2008
Location: Seattle, Wa
Posts: 1,780
Total Cats: 30
Default

Quote:
Originally Posted by curly View Post
Drill and tap your intercooler end tank? Thats what I did.
Either this^

Or just drill into your intercooler piping, tap it with the same tap that BEGi sends out for oil pans, and screw it right in.
Jeff_Ciesielski is offline   Reply With Quote
Old 03-30-2011, 01:07 AM   #17
Junior Member

Golferluke's Avatar

Join Date: Oct 2009
Location: Springfield, MO
Posts: 497
Total Cats: 3
Default

Quote:
Originally Posted by Jeff_Ciesielski View Post
Or just drill into your intercooler piping, tap it with the same tap that BEGi sends out for oil pans, and screw it right in.
I was wondering if this will work. At the moment I actually don't have an iat lol, somewhere in transporting my turbo project stockpile to the garage I installed it in it got lost. I drilled and tapped my tank but figured out my iat was MIA so I installed a 3/8" boost source for my waste gate. Well anyways, when I find/buy a new iat I'll need another 3/8" hole somewhere post intercooler. My intercoolers pretty small so I'm hesitant about drilling another one in the endtank. I was hoping I'd be able to drill/tap the ic piping. Probabbly still jb weld the **** out of it though after I install it.
Golferluke is offline   Reply With Quote
Old 03-30-2011, 10:02 AM   #18
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

I might have ot pick that up. SS and welded bungs beats my section of Mild pipe with a JB welded bung.

Braineack is offline   Reply With Quote
Old 03-30-2011, 10:40 AM   #19
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

Quote:
Originally Posted by dustinb View Post
I just ordered one of these from silicone intakes:
http://www.siliconeintakes.com/produ...837704b5e90b9e

These lightweight Stainless Steel Joiners are designed to install in your intake, giving you the ability to install three 1/8"-27 NPT probes for intake temperature, boost, or other gauges, or water injection nozzles without any dangerous drilling in your intake.

Stainless Steel Joiners add a high degree of flexibility to any installation, allowing you to make any number of pieces, or your entire intake, out of silicone. They have a lip on each end to prevent hoses from blowing off, and utilizing our high quality t-bolt clamps they can be used in very high boost applications. T-bolt clamps and silicone parts sold separately.

Lip on edge to hold silicone parts
Will not rust or corrode
Will not collapse under extreme clamping pressure

$10.
I think someone else mentioned this, but just in case . . . . Problem is that this is designed for WI nozzles and the bungs are too small for most IAT probes. Most IAT probes need a 1/4 or 3/8 bung.

Apartment living. That's a tough one.

For aluminum, you can attach with HTS-2000 rods and MAPP gas. Pretty simple and quick, although you need to be careful with the heat and not melt the aluminum tubing. I've got some examples (both good and bad) on my build thread.

Really, nothing wrong with JB Weld as long as you rough up the pipe, keep everything clean and allow ample cure time. Make sure the JB Weld joint isn't exposed to anything above ~250F. Not a problem for IAT because you want that on the cold side anyway and you want to locate the IAT where it won't heat soak.

Another option, friend with a welder and some space? Where are you located. Surely, there's an MT.net'r nearby.
hornetball is offline   Reply With Quote
Old 03-30-2011, 12:41 PM   #20
Senior Member
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 39
Default

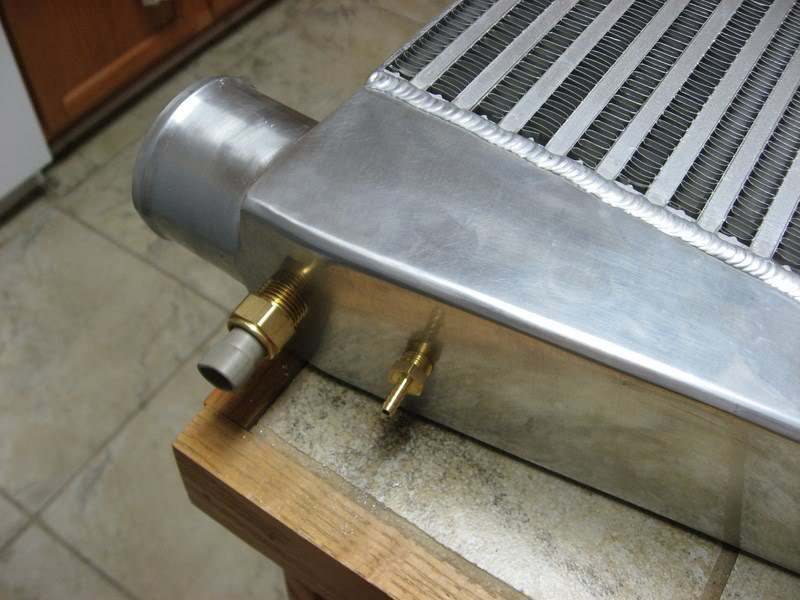

+1 for the intercooler endtank.. if it's cast, plenty of material there. I did 3/8 NPT for IAT, and 1/8 NPT for a boost source for my mbc.

Name:  IMG_0319800x600.jpg
Views: 52
Size:  73.8 KB
aaronc7 is offline   Reply With Quote
