Default Identifying oil line

99 Miata. The car had a VF supercharger installed at one point. Maybe 3 years ago or so. Guy before P.O., installed it, then it supposedly broke, the engine went kaput & he ended up replacing the engine without the charger. The details are still pretty shady. Well, there's some type of oil line still just hanging there. Would it be some type of oil feed? I'm in the process of turbo build & didn't know if I could use it as a supply or not. Hopefully you can see what I'm looking at here.


emericareaper2 is offline   Reply With Quote
Old 06-03-2015, 03:01 PM   #2
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,328
Total Cats: 1,926
Default

Based on that second photo, this is indeed an oil feed line. Normally, that hole in the block is just for the oil pressure switch. It now has a T fitting installed in it, with the pressure switch in the side and the oil supply hose on the end.

It wouldn't be a bad idea to consider replacing that rubber hose with something more significant, but that is an idea location to draw the oil supply for a turbo from.
Joe Perez is offline   Reply With Quote
Old 06-03-2015, 03:02 PM   #3
Junior Member
Thread Starter

Join Date: May 2015
Posts: 79
Total Cats: 1
Default

^Awesome! Well my supply line is sorted out now. What do you recommend to replace that hose with? Braided line?
emericareaper2 is offline   Reply With Quote
Old 06-03-2015, 03:40 PM   #4
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,780
Total Cats: 1,107
Default

Quote:
Originally Posted by emericareaper2 View Post
^Awesome! Well my supply line is sorted out now. What do you recommend to replace that hose with? Braided line?
-4 an stainless line to feed your turbo. Preferably wrapped in fire sleeve so it does not rub through things in your engine bay. Open up your phone book and look for hydraulic shops. They should be able to make you a line
shuiend is offline   Reply With Quote
Old 06-03-2015, 04:17 PM   #5
Junior Member
Thread Starter

Join Date: May 2015
Posts: 79
Total Cats: 1
Default

One other question. Does the VF Supercharger for these require an oil drain?
emericareaper2 is offline   Reply With Quote
Old 06-03-2015, 04:19 PM   #6
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,780
Total Cats: 1,107
Default

Quote:
Originally Posted by emericareaper2 View Post
One other question. Does the VF Supercharger for these require an oil drain?
No clue, I would look for the VF Supercharger directions and see what they say.
shuiend is offline   Reply With Quote
Old 06-03-2015, 04:23 PM   #7
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,206
Total Cats: 2,587
Default

Yep. It's so dumb.
Probably one of the reasons they are no longer for sale.
18psi is offline   Reply With Quote
Old 06-03-2015, 04:34 PM   #8
Junior Member
Thread Starter

Join Date: May 2015
Posts: 79
Total Cats: 1
Default

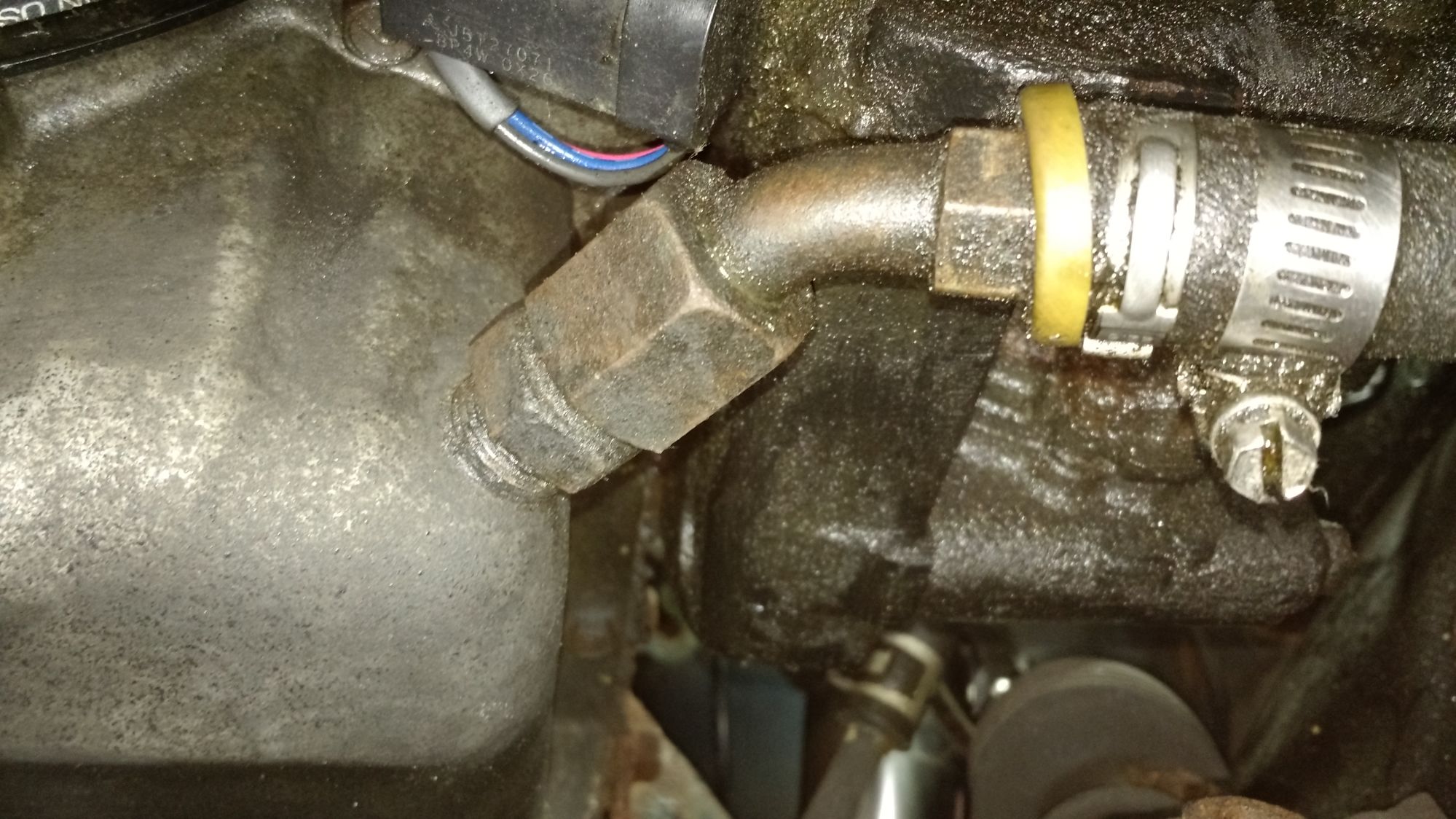

Holy **** I've struck gold. Reason I asked is because that's the charger that was installed several years back on this car. My Dad pointed out an out-of-place hose a couple weeks back. Didn't think much of it. Welp, sure enough, I already have an oil return! Easiest oil return install ever.

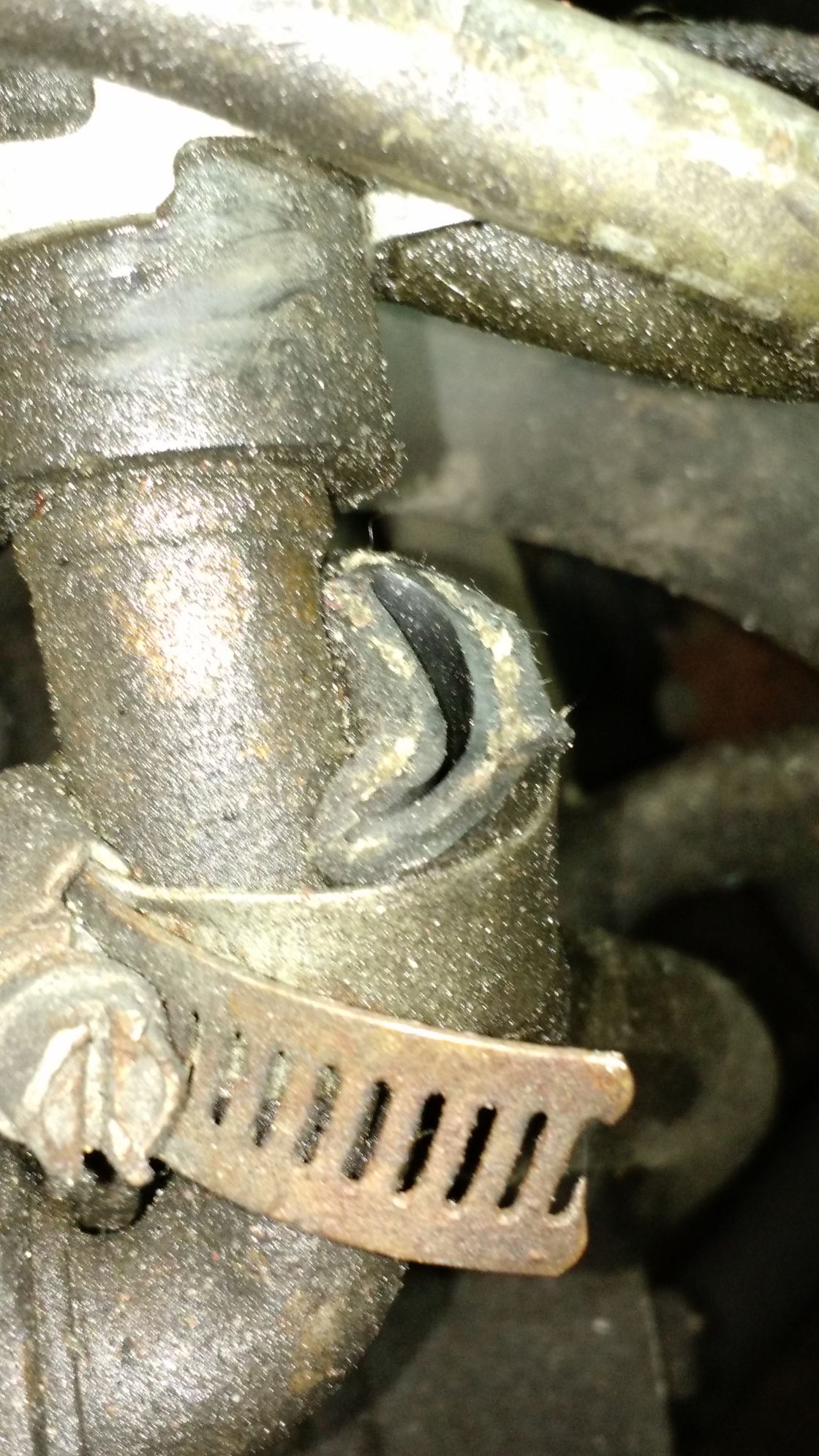

You can see the top held in with the clamp. And yes, I will be replacing that hose as well.
Attached Thumbnails
Identifying oil line-80-0kh1lh1_b2719d52fa4563722db044a3d4ac4ac4519cf8e0.jpg   Identifying oil line-80-udcri8u_41d141769267bb45e5282b1173f6da888fd4cfb8.jpg
emericareaper2 is offline   Reply With Quote
Old 06-03-2015, 04:37 PM   #9
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,206
Total Cats: 2,587
Default

your car needs like 10 gallons of degreaser/cleaner and a date with a pressure washer
18psi is offline   Reply With Quote
Old 06-03-2015, 04:41 PM   #10
Junior Member
Thread Starter

Join Date: May 2015
Posts: 79
Total Cats: 1
Default

^Don't get me started. I hate looking at it while working on it.
emericareaper2 is offline   Reply With Quote
Old 06-04-2015, 08:16 AM   #11
Senior Member

Join Date: Dec 2004
Location: Brisbane, Australia
Posts: 1,272
Total Cats: 32
Default

You haven't struck liquid gold, that's just an epic oil leak.
timk is offline   Reply With Quote
Old 06-04-2015, 11:52 AM   #12
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,110
Total Cats: 518
Default

Dammit I was about to say that.

Buy some cans of brake clean, and spray the **** out of all oil unions, disassemble, reassemble with quality parts, then get those areas super clean with brake clean again. Give it a week, and if it's still clean, carry on.
curly is offline   Reply With Quote
Old 06-04-2015, 12:27 PM   #13
Junior Member
Thread Starter

Join Date: May 2015
Posts: 79
Total Cats: 1
Default

^Alright. I'll have a go at it this week. Its so much better having clean parts to work on.
