Default If EFR budget...

A two part query for you:

If you had the budget for a efr 7163 and a chassis waiting on power would you consider anything else (gtx, comp triple ball bearing, ect)?

Why?

I have the chassis, powerplant to support, and have done my research but need to get a new Mani built to insert said turbo and am looking for some other opinions. Thanks guys.
astroboy is offline   Reply With Quote
Old 07-02-2014, 02:04 PM   #2
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,362
Total Cats: 1,323
Default

Not really. Maybe re-evaluate your power goals and decide whether you really want/need 500whp, and if you can live with 450, look at a 6758 to improve low-end power.
Savington is online now   Reply With Quote
Old 07-02-2014, 03:30 PM   #3
Elite Member
iTrader: (8)

Ryan_G's Avatar

Join Date: Jan 2012
Location: Tampa, Florida
Posts: 2,578
Total Cats: 155
Default

Quote:
Originally Posted by Savington View Post
Not really. Maybe re-evaluate your power goals and decide whether you really want/need 500whp, and if you can live with 450, look at a 6758 to improve low-end power.

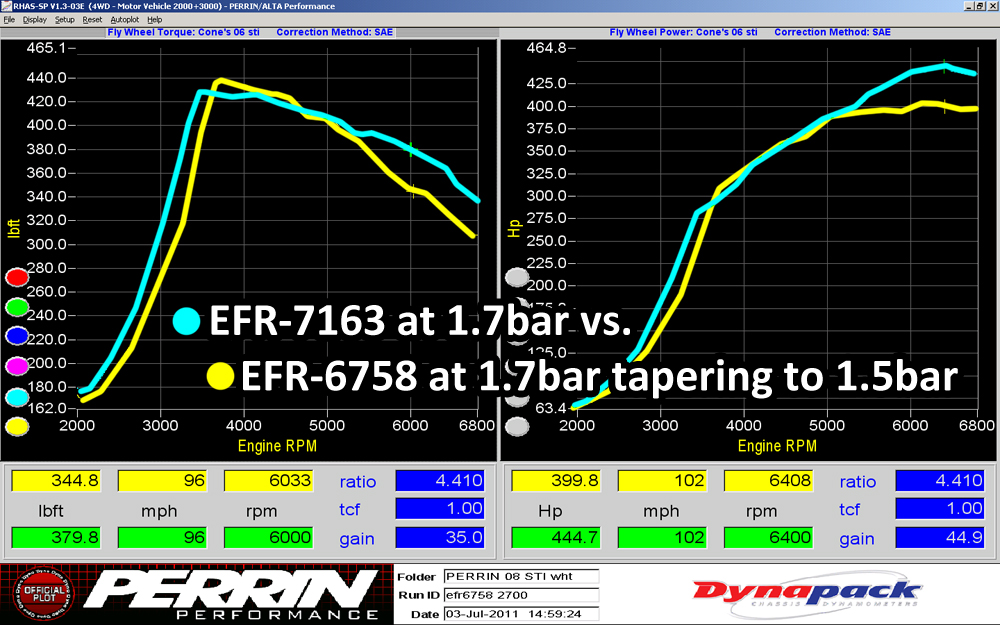

Although I agree that making sure 500rwhp is something you are actually looking for I would like to add that the testing I have seen of the two turbo's back to back show that the 7163 out performs the 6758 in almost every way because it is a gen 2 design.

EDIT: I also understand that this is a full throttle run and does not provide part throttle or transient response data but my throttle only has 2 positions anyway



EDIT 2: Not a built bp but the behavioral characteristics are still relevant.
Quote:
I ran a GT2860RS and GT2871R with a Tial turbine housing and external gate on my car (2.0Lt on E85) before moving to the EFR turbos.

Car is now running an EFR7163 after initially having the EFR6758. The 6785 out flowed the GT2817R, had better spool (boost threshold) and better transient response than the GT8271. The 7163 was around the same boost threshold but way outflowed it and has better transients. It was making around 325kw ATW's before we ran out of injector so it might have a little more in it but I think the turbine housing is going to start choking it off pretty soon.
Attached Thumbnails
If EFR budget...-efr7163vs6758bad17bar.jpg
Ryan_G is offline   Reply With Quote
Old 07-02-2014, 04:41 PM   #4
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,517
Total Cats: 257
Default

Until there is an acceptable transmission solution I can't really recommend anything except 6258.
soviet is offline   Reply With Quote
Old 07-03-2014, 04:09 AM   #5
Elite Member
Thread Starter
iTrader: (18)

Join Date: Dec 2007
Location: oahu
Posts: 1,720
Total Cats: 2
Default

So the goal is 300 HP with low boost but also to have the ability to run a higher pressure and not be limited by the turbo or fuel. I feel I have the supporting items to do that before going with a new engine management system and a vvt head (these are the next steps for me).
astroboy is offline   Reply With Quote
Old 07-03-2014, 10:37 AM   #6
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,184
Total Cats: 2,582
Default

get the 6258
18psi is offline   Reply With Quote
Old 07-03-2014, 11:45 AM   #7
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,517
Total Cats: 257
Default

I made you a chart
Attached Thumbnails
If EFR budget...-untitled.png
soviet is offline   Reply With Quote
Old 07-03-2014, 03:11 PM   #8
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,464
Total Cats: 782
Default

Gooby plz!
concealer404 is offline   Reply With Quote
Old 07-03-2014, 03:26 PM   #9
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,184
Total Cats: 2,582
Default

wish I could probab that 10 more times
18psi is offline   Reply With Quote
Old 07-03-2014, 03:44 PM   #10
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,362
Total Cats: 1,323
Default

Quote:
Originally Posted by astroboy View Post
So the goal is 300 HP
Get a 6258.
Savington is online now   Reply With Quote
Old 07-03-2014, 04:53 PM   #11
Elite Member

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 2,158
Total Cats: 131
Default

Along these lines... I already have a Precision 4828 which is supposedly a potato with some better parts. It is on a BEGI cast manifold. Would it make sense to move the precision turbo over to an EFR compatable manifold and fab a downpipe until I can afford to build the motor (hopefully get better spool out of it) or should I just hold off and do the EFR at the same time as the manifold/downpipe? I am at about 230whp now but I feel like I am not hitting 10psi boost until 4,300 rpm or so.

(my spool data
https://www.miataturbo.net/diy-turbo...2/#post1140285

Current downpipe is BEGI non-divorced gases pipe that exits to 2.5" and it continues 2.5" to the muffler at which point it exits at 3". I am holding off upgrading the mid-pipe until I also do the downpipe...

If my goal is to improve spool and reduce the amount of parts bought twice, where is the smart money?

Given the following future upgrades: build engine with forged rods, EFR 6758 or 6258, EFR compatable manfold, 3" turbo to tailpipe.

Also, consider that the block is stock for now.
Chiburbian is offline   Reply With Quote
Old 07-03-2014, 05:04 PM   #12
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,184
Total Cats: 2,582
Default

if you want spool your money needs to go to tubular hotside parts and a proper 3" tbe
I'm also assuming you're already running ebc and the wga arm is tight. (forgot your mod list already)
18psi is offline   Reply With Quote
Old 07-03-2014, 05:23 PM   #13
Elite Member

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 2,158
Total Cats: 131
Default

Quote:
Originally Posted by 18psi View Post
if you want spool your money needs to go to tubular hotside parts and a proper 3" tbe
I'm also assuming you're already running ebc and the wga arm is tight. (forgot your mod list already)
^ Yes.

To isolate one question I asked above, can I mount my current turbo on a tubular manifold designed for an EFR? Obviously it would be a different downpipe than an EFR but if I am going to replace something, i'd rather it be the downpipe. Heck, I might even be able to modify the downpipe to make it work, but then that might be almost as much money as a brand new one?
Chiburbian is offline   Reply With Quote
Old 07-03-2014, 05:39 PM   #14
Elite Member
Thread Starter
iTrader: (18)

Join Date: Dec 2007
Location: oahu
Posts: 1,720
Total Cats: 2
Default

Sounds like an efr it is. Thanks guys
astroboy is offline   Reply With Quote
Old 07-03-2014, 07:24 PM   #15
Senior Member
iTrader: (2)

Join Date: Mar 2014
Location: Meridian, Mississippi
Posts: 637
Total Cats: 42
Default

One point here,

Never use a dynapack dyno to show differences in spool up of different turbos. You can program the ramp rate of the dynapack which allows you to set it to increase RPM's from 2000 to 4000 very slowly, and this will tend to make a large turbo spool at a much lower RPM than it would if RPM's increased at a faster rate. I'm not sure if other load cell dyno's can do this but I know that the dynapack can.

Keith
Twodoor is offline   Reply With Quote
Old 07-03-2014, 10:20 PM   #16
Senior Member
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,106
Total Cats: 48
Default

what is the availability like on these things now?
ctdrftna is offline   Reply With Quote
Old 07-03-2014, 10:34 PM   #17
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Quote:
Originally Posted by Ryan_G View Post
Although I agree that making sure 500rwhp is something you are actually looking for I would like to add that the testing I have seen of the two turbo's back to back show that the 7163 out performs the 6758 in almost every way because it is a gen 2 design.

EDIT: I also understand that this is a full throttle run and does not provide part throttle or transient response data but my throttle only has 2 positions anyway



EDIT 2: Not a built bp but the behavioral characteristics are still relevant.
Stop using this graph please. The 6758 had the TGVs stuck closed on a bank and the 7163 was the pre-release version with the not as good compressor wheel.
Leafy is offline   Reply With Quote
Old 07-09-2014, 08:20 AM   #18
Junior Member

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

Quote:
Originally Posted by soviet View Post
Until there is an acceptable transmission solution I can't really recommend anything except 6258.
This.
muoto is offline   Reply With Quote
Old 07-09-2014, 09:11 AM   #19
Junior Member
iTrader: (1)

Join Date: Feb 2013
Location: Windsor, Ontario
Posts: 404
Total Cats: 64
Default

Quote:
Originally Posted by muoto View Post
This.
What's wrong with a TII drivetrain?
BoostedSmurf is offline   Reply With Quote
Old 07-09-2014, 09:24 AM   #20
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Quote:
Originally Posted by BoostedSmurf View Post
What's wrong with a TII drivetrain?
Gearing.
