Exclamation Im having a Issue finding a Downpipe flange!

I must have called over 5 online places including atp, optionmotorsport and a few others and none of them have a standard t25 downpipe weld flange, atp has this flange-
http://www.atpturbo.com/Merchant2/me...egory_Code=FLS

but It's for a 3.0 downpipe I believe, so what am I to do in this case, Get a ruducer to a 2.5 outlet from a 3 and go from there, would that be my best bet, Im not sure If Im going to have enough room for a 3 inch downpipe, and even if I did it would be a lil overkill for the boost levels that the turbo will be running 7-psi.
RicanmiataRacer is offline   Reply With Quote
Old 09-19-2006, 08:42 PM   #2
Junior Member
iTrader: (8)

Join Date: Jun 2005
Location: Lansdale, PA
Posts: 426
Total Cats: 0
Default

This is what I used, but paid 13 bucks for it off of ebay.

http://www.atpturbo.com/Merchant2/me...egory_Code=FLS

I ended up cutting most of it out to increase wastegate flow. I'd go with a divorced setup if I were to do it all over again.

This is what I'm going to use when I redo my downpipe:

http://cgi.ebay.com/ebaymotors/OBX-G...spagenameZWDVW
Stripes is offline   Reply With Quote
Old 09-19-2006, 09:15 PM   #3
Senior Member
Thread Starter

Join Date: Dec 2005
Posts: 1,167
Total Cats: -1
Default

http://cgi.ebay.com/ebaymotors/OBX-G...spagenameZWDVW

so this flange should work perfect for the sr20 t25 right
RicanmiataRacer is offline   Reply With Quote
Old 09-19-2006, 09:25 PM   #4
Junior Member
iTrader: (8)

Join Date: Jun 2005
Location: Lansdale, PA
Posts: 426
Total Cats: 0
Default

I'm not entirely sure. I thought there was only one type of t25 exhaust flange. Ask the seller if it's the correct flange. Can you post a pic of your turbo?
Stripes is offline   Reply With Quote
Old 09-19-2006, 09:31 PM   #5
Senior Member
Thread Starter

Join Date: Dec 2005
Posts: 1,167
Total Cats: -1
Default

Quote:
Originally Posted by Stripes View Post
I'm not entirely sure. I thought there was only one type of t25 exhaust flange. Ask the seller if it's the correct flange. Can you post a pic of your turbo?

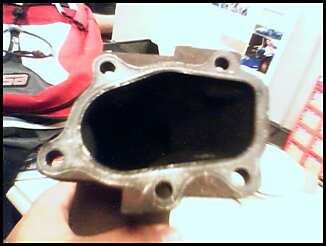

Yea Here is the original dump pipe the turbo came with, the flange looks to be what I need, but then again Im not sure.
Attached Thumbnails
Im having a Issue finding a Downpipe flange!-down-pipe.jpg
RicanmiataRacer is offline   Reply With Quote
Old 09-19-2006, 09:34 PM   #6
Junior Member
iTrader: (8)

Join Date: Jun 2005
Location: Lansdale, PA
Posts: 426
Total Cats: 0
Default

That looks like a t25 exhaust flange to me.
Stripes is offline   Reply With Quote
Old 09-19-2006, 09:36 PM   #7
Senior Member
Thread Starter

Join Date: Dec 2005
Posts: 1,167
Total Cats: -1
Default

so Whats my best option in your oppinion, the obx flange above looks to be similer But I could be wrong, what do you think?
RicanmiataRacer is offline   Reply With Quote
Old 09-19-2006, 09:51 PM   #8
Junior Member
iTrader: (8)

Join Date: Jun 2005
Location: Lansdale, PA
Posts: 426
Total Cats: 0
Default

It all depends if you want to run a divorced setup or not. Like i said before, if I were to do it all over again, I would buy the divorced flange. If you decide to go this route, you will need this flange, a 2.25 inch ubend pipe, 1.5 inch ubend pipe and a transition pipe to what ever size exhaust you are running. OR you can buy a similar ATP flange and don't worry about the wastegate.

Again, I'm pretty sure you have a standard t25 flange. Just contact the seller to be sure.

Here are some pictures of my t25 2.5 inch dowpipe and how I customized my flange.

Last edited by Stripes; 08-19-2007 at 11:11 AM.
Stripes is offline   Reply With Quote
Old 09-19-2006, 10:11 PM   #9
Senior Member

Join Date: Dec 2004
Posts: 1,450
Total Cats: -1
Default

Show us more of the downpipe and flange that came with the turbo. Is it cast? SS? How long is it before the next flange?
bripab007 is offline   Reply With Quote
Old 09-19-2006, 10:14 PM   #10
Junior Member
iTrader: (8)

Join Date: Jun 2005
Location: Lansdale, PA
Posts: 426
Total Cats: 0
Default

That's a good point.^ If it's not cast, you could cut off the old pipe and reuse the flange that came with the turbo.
Stripes is offline   Reply With Quote
Old 09-19-2006, 10:18 PM   #11
Senior Member
Thread Starter

Join Date: Dec 2005
Posts: 1,167
Total Cats: -1
Default

Im going to get that flange, I was going to get a divorced type flange originally.
RicanmiataRacer is offline   Reply With Quote
Old 09-19-2006, 10:20 PM   #12
Senior Member
Thread Starter

Join Date: Dec 2005
Posts: 1,167
Total Cats: -1
Default

the piece that came with the turbo is cast iron, there would be no use In trying to use that to fab a custom down, from what Im told cast dos not bond well with ss steel and the bond would fail within a short period of time .
RicanmiataRacer is offline   Reply With Quote
Old 09-19-2006, 10:48 PM   #13
Senior Member
Thread Starter

Join Date: Dec 2005
Posts: 1,167
Total Cats: -1
Default

thanks for the help stripes!
RicanmiataRacer is offline   Reply With Quote
Old 09-19-2006, 11:54 PM   #14
Senior Member

Join Date: Dec 2004
Posts: 1,450
Total Cats: -1
Default

Yes, but how long is the cast piece? Would it fit on the car at all? Would it clear major components (e.g. frame/shelves in engine bay, etc.)?
bripab007 is offline   Reply With Quote
Old 09-20-2006, 01:24 AM   #15
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

that is what i was thinking see if you can get it in and on and then another flanged peice to some pipe to the cat.
magnamx-5 is offline   Reply With Quote
Old 09-20-2006, 02:37 AM   #16
Senior Member
iTrader: (6)

Join Date: Mar 2005
Location: Sammamish, Washington
Posts: 1,396
Total Cats: 0
Default

You guys should all hit me up when you need stuff from ATP. I can save you some money.
Kelly is offline   Reply With Quote
Old 09-20-2006, 09:20 AM   #17
Senior Member
Thread Starter

Join Date: Dec 2005
Posts: 1,167
Total Cats: -1
Default

I wanted to use to original dump pipe, however since the turbo fits on the manifold different to that of the sr20 manifold the dump goes upward towards the hood, so It would be really hard to do anything with the stock dump, From looking at the original manifold of the sr, the turbo apparently bolted up upside down ,therfore the dump was in a different position on the hotside before hand, So basically using the cast piece would make life harder than it is so Im going to get the divorced downpipe flange and call it a day.
RicanmiataRacer is offline   Reply With Quote
Old 09-20-2006, 09:25 AM   #18
Senior Member

Join Date: Dec 2004
Posts: 1,450
Total Cats: -1
Default

Gotcha! Thanks for satisfying our curiosity
bripab007 is offline   Reply With Quote
Old 09-20-2006, 09:27 AM   #19
Senior Member
Thread Starter

Join Date: Dec 2005
Posts: 1,167
Total Cats: -1
Default

UR welcome BRp!
