Default I'm an idiot, show me your oil return.

So I'm slapping this MSM turbo on, and my return line is both way too long and way too inflexible to make the turn into the oil pan. Anyone mind firing up a few pictures so I can get an idea of what to do here?
saedrin is offline   Reply With Quote
Old 06-04-2010, 02:47 AM   #2
Junior Member

Join Date: Apr 2008
Posts: 350
Total Cats: -2
Default



Don't be a *****. Search.
SolarYellow510 is offline   Reply With Quote
Old 06-04-2010, 02:49 AM   #3
I'm Miserable!
iTrader: (1)

Join Date: Mar 2010
Location: North Carolina
Posts: 471
Total Cats: 0
Default

Not gonna find much searching for nissan.
na8psi is offline   Reply With Quote
Old 06-04-2010, 11:13 AM   #4
Junior Member

Join Date: Apr 2008
Posts: 350
Total Cats: -2
Default

I recycled the image from the stud thread, whaddayawant?. I didn't mean to bless specifically searchers for the word "Nissan," but all producers of searches.
SolarYellow510 is offline   Reply With Quote
Old 06-04-2010, 11:31 AM   #5
Junior Member
iTrader: (1)

Join Date: Apr 2010
Location: MA
Posts: 436
Total Cats: 1
Default

nissan miata?
redfred18t is offline   Reply With Quote
Old 06-04-2010, 12:48 PM   #6
Senior Member

Join Date: Jul 2008
Location: Phoenix
Posts: 657
Total Cats: 12
Default

.
Attached Thumbnails

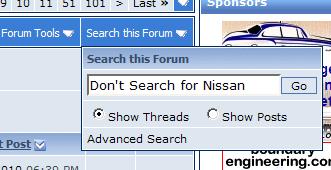

I'm an idiot, show me your oil return.-nissan-search.jpg
oilstain is offline   Reply With Quote
Old 06-04-2010, 12:58 PM   #7
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,682
Total Cats: 216
Default

worst thread ever.
Full_Tilt_Boogie is offline   Reply With Quote
Old 06-04-2010, 01:30 PM   #8
Junior Member
Thread Starter
iTrader: (2)

Join Date: Sep 2009
Location: Chicago, IL
Posts: 250
Total Cats: 0
Default

I'd love to search, except I'm forced to use a cell phone for the week while my connection is down and searching for what I would want would take hours of scrolling and be a general pain in the ***. If you can link me a picture or give me any sort of advice, feel free to help. If not, your e-thug comments and general douchebaggery could be used in a thread where it is actually warranted.
saedrin is offline   Reply With Quote
Old 06-04-2010, 02:45 PM   #9
Elite Member

Join Date: Feb 2008
Location: Victoria, BC
Posts: 2,322
Total Cats: 12
Default

If it's too long, cut it and put some sort of joiner together. I had to put a 90 degree brass fitting in my line to get the angle I needed.
dustinb is offline   Reply With Quote
Old 06-04-2010, 03:33 PM   #10
I'm Miserable!
iTrader: (1)

Join Date: Mar 2010
Location: North Carolina
Posts: 471
Total Cats: 0
Default

Quote:
Originally Posted by oilstain View Post
.
Niceeee
na8psi is offline   Reply With Quote
Old 06-04-2010, 04:11 PM   #11
Junior Member
Thread Starter
iTrader: (2)

Join Date: Sep 2009
Location: Chicago, IL
Posts: 250
Total Cats: 0
Default

Quote:
Originally Posted by dustinb View Post
If it's too long, cut it and put some sort of joiner together. I had to put a 90 degree brass fitting in my line to get the angle I needed.
The problem is that it's a freaking huge AN line and I can't get the thing to bend in the shape I need to make the turn since the fittings are straight. I'm considering going to a 45 degree fitting out of the turbo, 4" of line, and into a 90 degree fitting into the pan.
saedrin is offline   Reply With Quote
Old 06-04-2010, 05:08 PM   #12
Elite Member

Join Date: Feb 2008
Location: Victoria, BC
Posts: 2,322
Total Cats: 12
Default

Quote:
Originally Posted by saedrin View Post
The problem is that it's a freaking huge AN line and I can't get the thing to bend in the shape I need to make the turn since the fittings are straight. I'm considering going to a 45 degree fitting out of the turbo, 4" of line, and into a 90 degree fitting into the pan.
I'm using -10AN for mine. I have a 90 degree coming off of the oil pan, then it follows the motor in a 45 degree angle until it's lined up with the oil drain. I then have a 90 degree brass fitting that hooks up to a 45 degree line coming off the turbo.
dustinb is offline   Reply With Quote
Old 06-04-2010, 05:30 PM   #13
Junior Member
Thread Starter
iTrader: (2)

Join Date: Sep 2009
Location: Chicago, IL
Posts: 250
Total Cats: 0
Default

I'm going do something similar then, my line is -10 as well. Thanks!
saedrin is offline   Reply With Quote
Old 06-04-2010, 05:47 PM   #14
Elite Member

Join Date: Feb 2008
Location: Victoria, BC
Posts: 2,322
Total Cats: 12
Default

Here's a pic of my drain from the oil pan up (you can't see the fitting on the turbo, but it's a 45 degree -10AN fitting.
dustinb is offline   Reply With Quote
Old 06-04-2010, 06:23 PM   #15
Junior Member
iTrader: (4)

Join Date: Dec 2007
Location: Springfield, Mass
Posts: 364
Total Cats: 0
Default

That looks a little restrictive for flow.
seraph is offline   Reply With Quote
Old 06-04-2010, 06:25 PM   #16
Elite Member

Join Date: Feb 2008
Location: Victoria, BC
Posts: 2,322
Total Cats: 12
Default

Quote:
Originally Posted by seraph View Post
That looks a little restrictive for flow.
It's a big line and is always angled down.
dustinb is offline   Reply With Quote
Old 06-05-2010, 12:51 AM   #17
Senior Member
iTrader: (4)

Join Date: Nov 2009
Location: Toronto, ON
Posts: 1,479
Total Cats: 6
Default

Why don't you just use one pieces of AN hose if you have the fittings already?
dgmorr is offline   Reply With Quote
Old 06-05-2010, 12:57 AM   #18
Elite Member

Join Date: Feb 2008
Location: Victoria, BC
Posts: 2,322
Total Cats: 12
Default

Quote:
Originally Posted by dgmorr View Post
Why don't you just use one pieces of AN hose if you have the fittings already?
The stuff is ridiculously rigid, so it's very hard to maneuver. If you flex it too much it just collapses on itself.
dustinb is offline   Reply With Quote
Old 06-09-2010, 06:56 AM   #19
Junior Member

Join Date: Jun 2005
Posts: 166
Total Cats: 11
Default

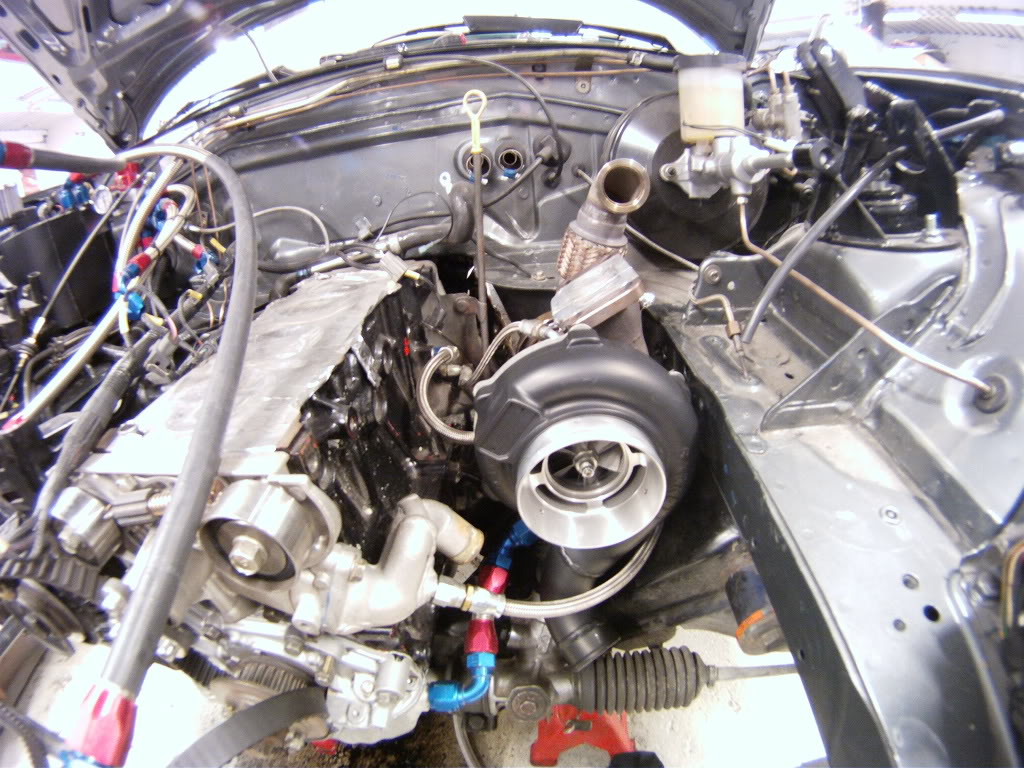

that pic is supposed to be " how not to do it! " ? i hope

no problems using an hose for oil returns btw.

Name:  GOPR0027.jpg
Views: 1
Size:  167.3 KB
hf-mx5t is offline   Reply With Quote
Old 06-10-2010, 04:06 AM   #20
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,877
Total Cats: 344
Default



-10 AN hose, 45 degree NPT to AN on the oil pan, straight hose ends on both ends. You have to pull the pan out to drill in this position though, because the subframe's in the way while in the car.

--Ian
codrus is offline   Reply With Quote
