DIY Turbo Discussion greddy on a 1.8? homebrew kit?

Reply



LinkBack Thread Tools
Old 09-20-2008, 01:03 PM   #41
Senior Member
Thread Starter
iTrader: (2)

dc2696's Avatar

Join Date: May 2005
Location: Edmonton Ab, Canada
Posts: 1,176
Total Cats: 13
Default

Well tried to fire her up last night but the fuel pump didnt want to turn on?

Mspnp says the pump is on but I didn't hear ****, no fuel in the lines either, then I get an injector blowing out...

Needless to say I'm not racing today lol, really curious what would cause the fuel pump to not come on though. Doesn't prime when the key is in the on possition or when cranking.

It was late last night so I'll check into it today and hopefully get it running.
dc2696 is offline   Reply With Quote
Old 09-20-2008, 01:18 PM   #42
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,702
Total Cats: 237
Default

Hmm good luck, keep us updated.
Fireindc is offline   Reply With Quote
Old 09-21-2008, 10:50 PM   #43
Senior Member
Thread Starter
iTrader: (2)

dc2696's Avatar

Join Date: May 2005
Location: Edmonton Ab, Canada
Posts: 1,176
Total Cats: 13
Default

She runs. Primed fuel pump, replaced an o-ring on an injector and swapped out the fancy aftermarket cas and coil packs for oem miata equipment. Fired right up. Rear oil pan seal was crappy and she started leaking oil pretty bad so I shut her down and pulled the tranny and flywheel today. Sealed it back up and will re-install the tranny tommorrow.

This engine is loud as hell. The exhaust mainly (as in it sounds like a ******* mustang :S lol) but the the top-end sounds like the hla's are dirty, although I didnt run it too long so maybe shes just alittle out of shape having not been run in so long.

Regardless so far so good, I really underestimated the cooling lines and where they have to be run, it looks like **** honestly, but I'll get some SS hardlines made up this winter to clean up the bay alittle.

Can't wait to put the boost to her and see how long my tranny lasts lol.
dc2696 is offline   Reply With Quote
Old 10-22-2008, 03:39 AM   #44
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,702
Total Cats: 237
Default

Any updates? Hows does she run now?
Fireindc is offline   Reply With Quote
Old 10-22-2008, 04:28 AM   #45
Elite Member
iTrader: (15)

Join Date: Sep 2007
Location: Incline Village, NV
Posts: 2,073
Total Cats: 5
Default

Im very interested in the starter mounting, if you happen to have snapped any shots of the bracket that holds the starter onto the block that would be awesome.
thesnowboarder is offline   Reply With Quote
Old 10-22-2008, 10:25 AM   #46
Senior Member
Thread Starter
iTrader: (2)

dc2696's Avatar

Join Date: May 2005
Location: Edmonton Ab, Canada
Posts: 1,176
Total Cats: 13
Default

Starter mounts the same as it does on the miata(using the miata trans remember)

As for updates, well I drove it 30km home and found I really need a restrictor in the feed line to the turbo. Also when I was pulling the old motor out I found my manifold had a bad crack through the outlet flange so it needs replacing.

So its parked for the winter, I need some bigger injectors(750's) and a new fuel pump(still on the oem 1.6 lol) and I'll be making my rail a dual feed set-up.
dc2696 is offline   Reply With Quote
Old 04-10-2009, 02:16 PM   #47
Senior Member
Thread Starter
iTrader: (2)

dc2696's Avatar

Join Date: May 2005
Location: Edmonton Ab, Canada
Posts: 1,176
Total Cats: 13
Default

Little update:

So my rush install job last fall was stupid so I decided to pull the motor this spring and fix everything that was sub par.

I also was thinking, since finding the mbsp and I was curious, what else was done to this engine that I didn't know about??

Well this was

And that makes me very happy lol (see: shim-under-buckets).

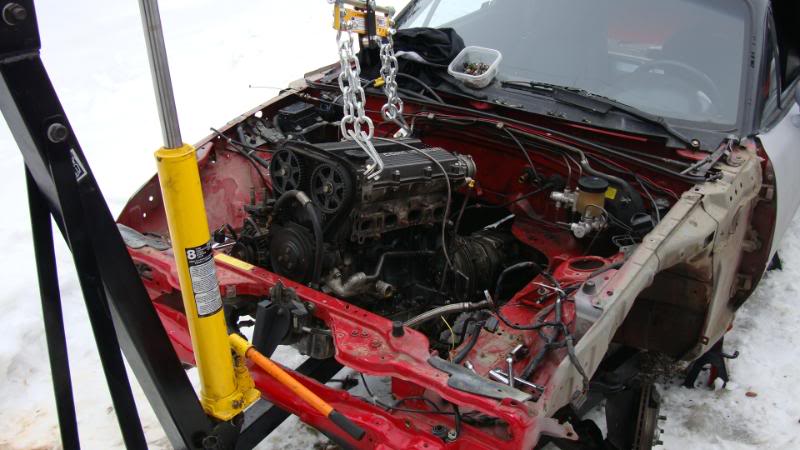

Name:  DSC00414.jpg
Views: 8
Size:  67.8 KB
So Now the engine is out of the car and I managed to give the bay a respray and started cleaning up the turbo lines ect as the GTX motor has slightly different coolant routing (obviously)

So heres a couple shots from the other day, note that I have the lines routed differently now and the timing belt is done (tricky to do by yourself the first time by hand)

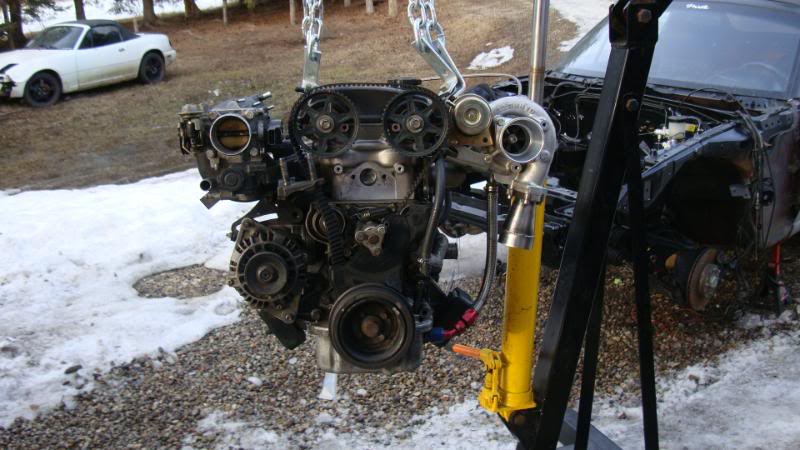

Name:  DSC00498.jpg
Views: 9
Size:  79.6 KB

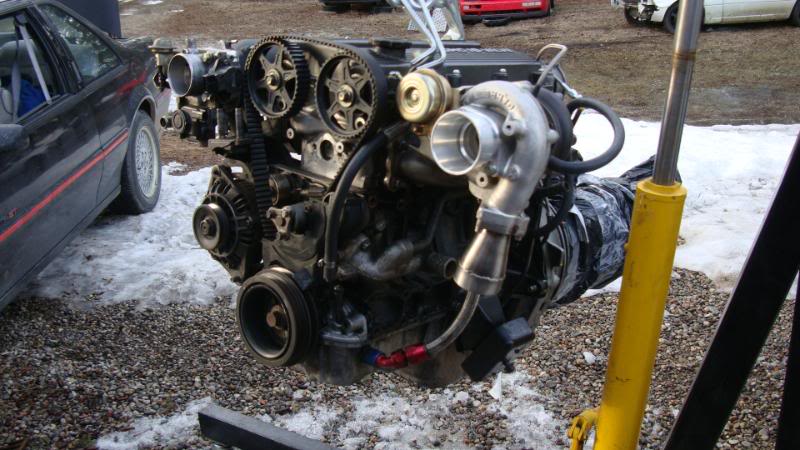

Name:  DSC00499.jpg
Views: 9
Size:  88.3 KB

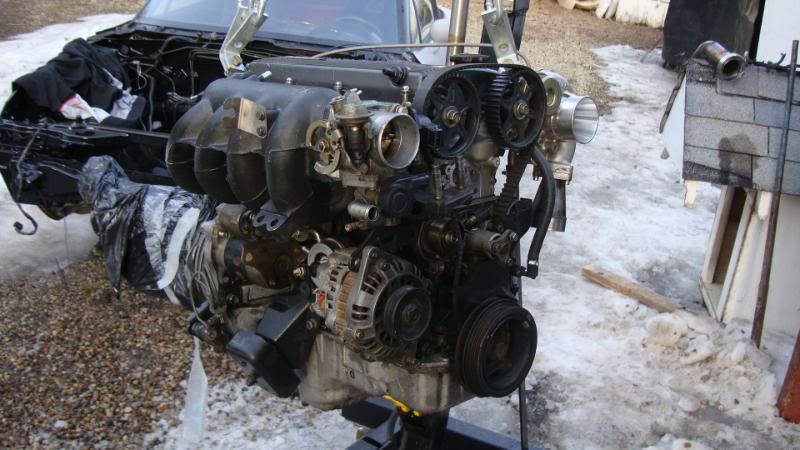

Name:  DSC00500.jpg
Views: 8
Size:  79.2 KB

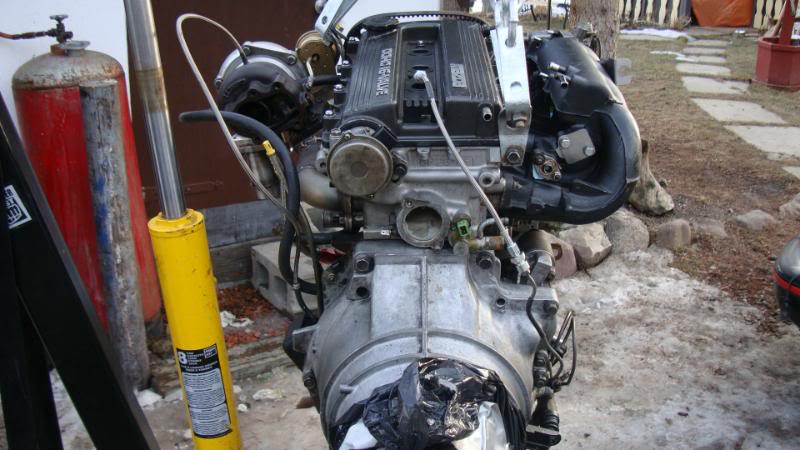

Name:  DSC00503.jpg
Views: 8
Size:  78.8 KB

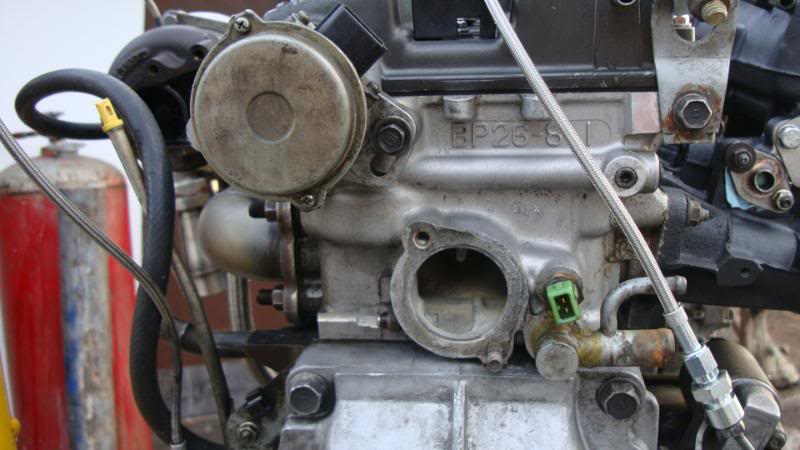

Name:  DSC00504.jpg
Views: 9
Size:  66.6 KB

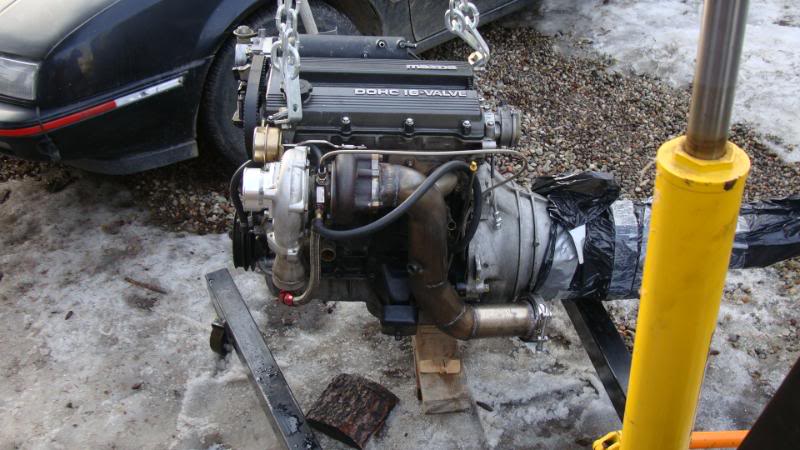

Name:  DSC00510.jpg
Views: 8
Size:  80.0 KB

The intake manifold is one I bought with a 99 head from FM, its ported out pretty good and the "paint" is a heat dispersion coating (didn't come off in the ultra-sonic bath).

Anyways, I'll get more pics/vids when it gets up and running again (this month)


-Dean
dc2696 is offline   Reply With Quote
Old 08-30-2009, 07:34 PM   #48
Newb

Join Date: Jul 2009
Posts: 7
Total Cats: 0
Default

I am following your updates ,
Is it possible to use the GTR ecu?
And how do you know the gtx from the GTR
Good luck with your poject.
canon is offline   Reply With Quote
Old 08-30-2009, 08:54 PM   #49
Senior Member
Thread Starter
iTrader: (2)

dc2696's Avatar

Join Date: May 2005
Location: Edmonton Ab, Canada
Posts: 1,176
Total Cats: 13
Default

Quote:
Originally Posted by canon View Post
I am following your updates ,
Is it possible to use the GTR ecu?
And how do you know the gtx from the GTR
Good luck with your poject.

I doubt the GTR ecu would plug into the miata harness, and I'm using a MSPNP anyway as this is a fully built motor and the stock ecu probably wouldn't like the things I'm doing so I would not even bother trying to use a stock ecu.

The GTR motor is different and has a lot of things that identify it vs the GTX motor, just wikipedia it and you'll see for yourself.

Thanks, motor has been running strong for awhile now.


-Dean
dc2696 is offline   Reply With Quote
Old 09-04-2009, 03:54 AM   #50
Senior Member
iTrader: (13)

Join Date: Jul 2008
Location: Macon, Ga
Posts: 826
Total Cats: 0
Default

vids or pics? I used to wanna do this
Sam Amporful is offline   Reply With Quote
Old 09-04-2009, 12:56 PM   #51
Senior Member
iTrader: (2)

Join Date: Aug 2005
Location: Granbury, TX
Posts: 567
Total Cats: 1
Default

Dude I don't see how you northern people do it, I could NOT work on my car when it's that cold outside, guess you got more ***** than me haha.
greenday3437 is offline   Reply With Quote
Old 09-05-2009, 05:45 AM   #52
Senior Member
Thread Starter
iTrader: (2)

dc2696's Avatar

Join Date: May 2005
Location: Edmonton Ab, Canada
Posts: 1,176
Total Cats: 13
Default

Quote:
Originally Posted by greenday3437 View Post
Dude I don't see how you northern people do it, I could NOT work on my car when it's that cold outside, guess you got more ***** than me haha.
I have more ***** than Hustler yo. lol

I've done diff/clutch/motor swaps solo in -20C weather. No one has bench pressed there tranny or diff laying outside in the snow as much as I have the last 5 years (or worked in the winter outside on their car period lol)

As for the other guy;

I actually don't have any pics of the motor in the car (after looking around, I'll take some tomorrow) but really its just a bp motor, ya its got a different head and valve cover and stupid fwd motor mount still, other than that its just a miata motor. (mine just happens to be build is all)

Don't bother doing this swap unless you get the motor for free.

-Dean
dc2696 is offline   Reply With Quote
Old 09-05-2009, 02:39 PM   #53
Newb

Join Date: Jul 2009
Posts: 7
Total Cats: 0
Default

Quote:
Don't bother doing this swap unless you get the motor for free.
Reasons why would u do not recomend doing this swap .
I was thinking this block is made for boost low compression stronger rods ....
canon is offline   Reply With Quote
Old 09-05-2009, 11:20 PM   #54
Senior Member
Thread Starter
iTrader: (2)

dc2696's Avatar

Join Date: May 2005
Location: Edmonton Ab, Canada
Posts: 1,176
Total Cats: 13
Default

Quote:
Originally Posted by canon View Post
Reasons why would u do not recomend doing this swap .
I was thinking this block is made for boost low compression stronger rods ....
The oem miata bp is just as strong in my opinion, you need to swap the dizzy for a CAS and coilpacks, you need a coolant reroute, you have to use miata intake and exhaust manifolds. So really after its all said and done you have a lower compression motor with a shitty head(oh ya the stock heads SUCK, they need alot of porting to be just as good as a bp05).

Like I said, if the motor was built and you got a screaming deal (my case) and you already had all the extra pieces from another 1.8 (mine was blown up) it makes sense.

If this is your situation just save the money and buy new pistons and rods for you miatas current motor.


-Dean
dc2696 is offline   Reply With Quote
Old 09-08-2009, 07:36 PM   #55
Junior Member
iTrader: (1)

Join Date: Oct 2004
Location: Haarlem ,the Netherlands
Posts: 453
Total Cats: 0
Default

yep only the GTR is worth looking at...

The compression is lower than a 94-97.(9.0 is as low as you want to go on a stock engine (bpt is nothing else than a 8.6 compression miata engine. That is too low...for good power off a stock engine...)
These 94-97 blocks are the one you want... (94-95 have oil port on exhaust side)

The GTR has special pistons and rods... The rods are bigger than the 1.6 gtr (the one with bigger rods than the miata)
left to right:
GTR, GTX & B6T Rods
http://img254.imageshack.us/img254/5...dbptb6tfd1.jpg
The pistons off the gtr has special oil ports on the inside(cooling???)
http://img354.imageshack.us/img354/4...rpiston1pz.jpg
Only 8.2:1 cr...(but ready for high boost!!)

I have a set at home..
The crank and head are not more interesting than the miata.. Even ported it will be as good or worse than the 99-00...

Still they are nice high hp motors but worth the trouble??
In my opinion, NOT.
greddymx5 is offline   Reply With Quote
Old 09-08-2009, 08:39 PM   #56
Junior Member

Join Date: Mar 2008
Location: Seattle
Posts: 243
Total Cats: 3
Default

if I recall correctly, the BP-Z3 and BP-4W motors also have those trick oil squirters under the pistons. In fact, I think even the BP-ZE in the 94-97 miatas also has the oil squirters...

I could be wrong, however.
DontPassTheFence is offline   Reply With Quote
