Default Install: Eastern 3" 200 cell metal core cat

Got my Eastern Catalytics 200 cell metal core catalytic converter installed yesterday. It was $95 delivered from performance peddler.

Of note- the worst thing about the cat is the end pieces that slide over the exhaust. It's obvious this is where the cost is cut. These end pipes overlap the cat body by about a 1/2". That creates a giant lip - basically catching the exhaust as it exits the cat. Rather than install it this way, I cut the end of the cat off pre weld and removed the inner sleeve. I hammered out the 3" exhaust pipe using a ball-pein to get a good taper/flare that followed the cat body contour. That work surely negates the savings over a true MetalCat. Oh well.
-------------
400 cell ceramic universal cat

-------------
200 cell Eastern Catalytics metal core cat

-------------
400 cell ceramic universal cat

-------------
200 cell Eastern Catalytics metal core cat

-------------
200 cell metal core left, 400 cell ceramic core right

-------------
Eastern cat's big lip protruding into the cat body

-------------
Eastern cat with end pipe removed

-------------
Flared 3" exhaust pipe

-------------
Tacking in place (note diy SST = Cheap tube jack stand with hole and nut welded to outer sleeve for an infinitely adjustable support)

-------------
More fav tools (built a turn down pipe to swap out with the muff)

-------------
built

-------------
installed

-------------

Last edited by m2cupcar; 06-16-2008 at 03:07 PM.
m2cupcar is offline   Reply With Quote
Old 06-16-2008, 10:20 AM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

i bet that rubber hanger puller makes life easy. love the vice grips!
Braineack is offline   Reply With Quote
Old 06-16-2008, 10:21 AM   #3
Elite Member
iTrader: (39)

Zabac's Avatar

Join Date: Sep 2007
Location: High Point NC
Posts: 4,854
Total Cats: 8
Default

Good thinking ahead of time...A+++ for the turn down as well, I've been considering doing this myself, and tell you what, a V-band would be money well spent there.
Zabac is offline   Reply With Quote
Old 06-16-2008, 10:30 AM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

btw, your welds look a lot like my HPV.
Braineack is offline   Reply With Quote
Old 06-16-2008, 10:48 AM   #5
Elite Member
Thread Starter
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,236
Total Cats: 288
Default

V-band is only a dream for me. Three bolt 3" flanges are just too cheap and they work. When I redo the dp (go to an EWG) I will most definitely do a vband there.

Yes, my welds aren't pretty. And flux core doesn't help. I need two days to get pretty welds on a project, the first day to practice welding since I only get around to doing it a few times a year.
m2cupcar is offline   Reply With Quote
Old 06-16-2008, 03:12 PM   #6
Junior Member

Join Date: Feb 2007
Location: 11368 miles from where i would like to be
Posts: 269
Total Cats: 92
Default

I have to say, the weld is looking a lot better in the close up ;-)

Any noticeable difference?

I was expecting bigger, not smaller. It certainly won't clean the air as well as the old one, but the large gaps in it should let the exhaust out pretty well :-)

Is it possible to buy a tree hugger one that also flows well?

Fred.
rb26dett is offline   Reply With Quote
Old 06-16-2008, 03:20 PM   #7
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

welding and v-bands are overrated.

c-clamps are where it's at....mmmm and look at all the diff fluid.

Braineack is offline   Reply With Quote
Old 06-16-2008, 03:52 PM   #8
Elite Member
Thread Starter
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,236
Total Cats: 288
Default

I haven't gotten out today (make money first). Maybe tomorrow. But it MUST flow better, can't see how it wouldn't. Based on my research, I didn't find anybody who went from a ceramic universal/OE cat to a 200 cell metal can't and failed emissions. OTOH I did read that some had emissions CELs on OBDII cars with the 100 cell metal core cats. Besides, the 100 cells I found were 2-1/2 times the cost of the Eastern.

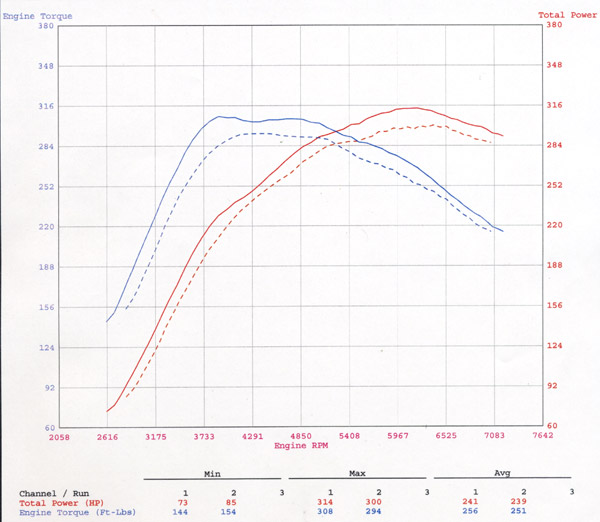

Here's an EVO that went from a 300 cell high flow ceramic to a 100 cell metal core:
