If you just mount the current in configuration A, how much could to angle the top portion towards the front of the car grill so you wouldn't have to cut the bonnet?
Braineack is offline   Reply With Quote
Old 02-26-2015, 08:59 AM   #42
Newb

Join Date: Nov 2010
Location: Yorkshire, UK
Posts: 36
Total Cats: 12
Default

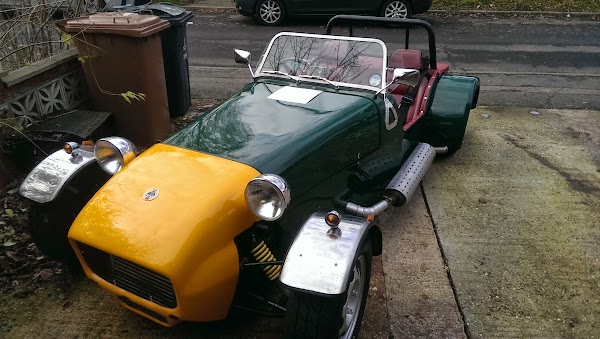

What's wrong with this? The beauty of a Caterfield/7 type is you could easily do this and make it look good. Short pipe runs, free air over the I/C, no change to coolant system...?
Attached Thumbnails
Intercooler mounting ideas-20150222_144741_zpsd739f2d6.jpg
snotrag is offline   Reply With Quote
Old 02-26-2015, 10:00 AM   #43
Newb

Join Date: Dec 2014
Location: Stevenage, UK
Posts: 9
Total Cats: 2
Default

Quote:
Originally Posted by Braineack View Post
I think I'd buy this:

cxracing.com: Turbo Intercooler 16.5"x11"x3", 3" Core: 11"x11"x3",2.5" Inlet & Outlet on One Side,3" Core


then do this:




two 45 bends would fit better under the fasica cover. I'd then build shrouding to direct airflow directly under and onto the IC.
This is virtually how I did mine. The same intercooler you have can be got with the in and outlets at the top. Gives a lot more room as all you have to cater for is the silicone elbows rather than the core and end tanks that high.




Cheers
Stot
Attached Thumbnails
Intercooler mounting ideas-chargepiping2.jpg
Stot is offline   Reply With Quote
Old 02-26-2015, 10:25 AM   #44
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

that's exactly what I was thinking.

but I'm wondering if the current couldn't just be used like this, on an angle:

Attached Thumbnails
Intercooler mounting ideas-angle_ic.jpg

Last edited by Braineack; 02-26-2015 at 10:36 AM.
Braineack is offline   Reply With Quote
