Default Intercooler piping routing

Having the piping come up through the holes in the core support, how do you guys that do it this way get your hood to shut? Do you just cut the braces off the hood where the piping interferes? Does anyone have any pictures to help? Not afraid to cut the braces, just wanted to make sure before I go at it. Thanks for any help.
whinin is offline   Reply With Quote
Old 04-06-2014, 11:53 PM   #2
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

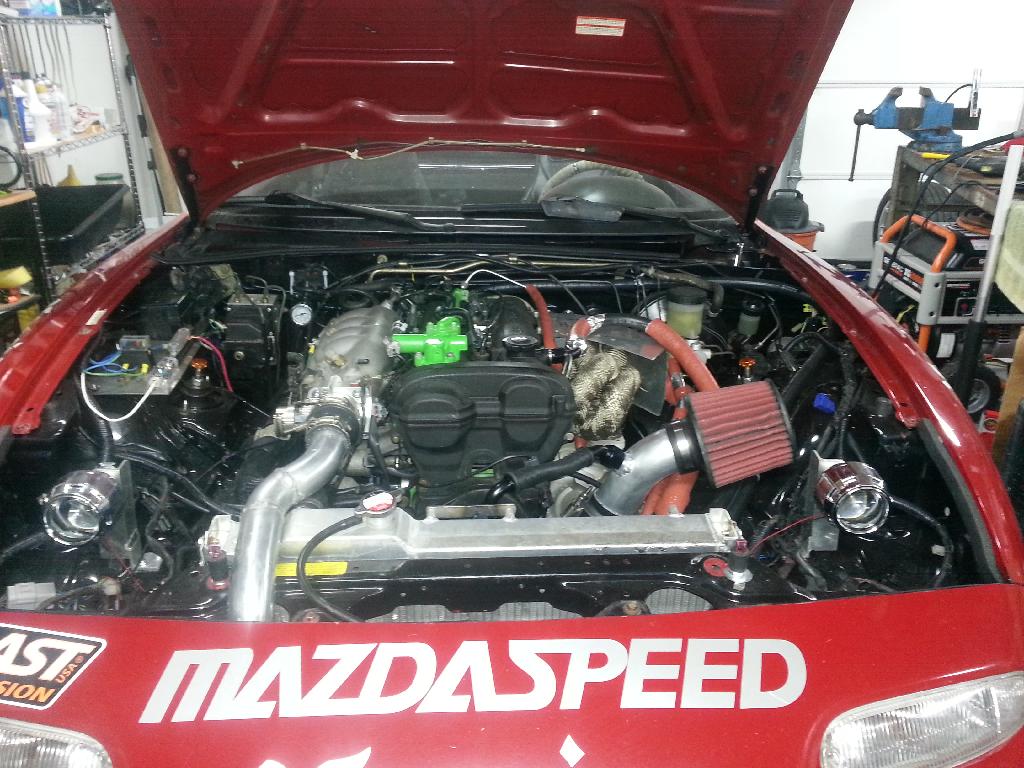

I went though the hole on the passenger side. I had to cut the hood even with 2" piping, but it fit easily. If I was going to do it all over I'd be running a custom radiator so I didnt need the stupid jog in the piping.

Attached Thumbnails
Intercooler piping routing-img_20140322_214556.jpg
Leafy is offline   Reply With Quote
Old 04-07-2014, 01:45 PM   #3
Senior Member
iTrader: (3)

Join Date: May 2005
Location: Mass.
Posts: 816
Total Cats: 41
Default

As you are aware, you have to cut out the bracing, or at a minimum, hammer it in.

IMO, if you must go over the radiator, there are better ways to do it. Just pivot the radiator and fit the pipes between the rad and the core support.

-Zach
thasac is offline   Reply With Quote
Old 04-07-2014, 01:50 PM   #4
Senior Member
iTrader: (10)

Join Date: Aug 2007
Location: Fredericton, NB
Posts: 1,187
Total Cats: 4
Default

I think this really all depends on your turbo manifold setup...

Running a low mount Begi S6 kit with this hot side pipe (have ac & ps)
Flyin' Miata : Turbochargers : Parts and upgrades : 1994-05 compressor to intercooler hose
Worth every penny to not worry about the extra connections.
PS line bracket needed to be bent for good fitment on my MSM.
Preluding is offline   Reply With Quote
Old 04-07-2014, 01:55 PM   #5
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Quote:
Originally Posted by thasac View Post
As you are aware, you have to cut out the bracing, or at a minimum, hammer it in.

IMO, if you must go over the radiator, there are better ways to do it. Just pivot the radiator and fit the pipes between the rad and the core support.

-Zach
There's no way you could get away with the hammer. Mine almost touches the outer skin of the hood and I have the tiny 2" piping.
Leafy is offline   Reply With Quote
Old 04-07-2014, 02:01 PM   #6
Senior Member
iTrader: (3)

Join Date: May 2005
Location: Mass.
Posts: 816
Total Cats: 41
Default

Quote:
Originally Posted by Leafy View Post
There's no way you could get away with the hammer. Mine almost touches the outer skin of the hood and I have the tiny 2" piping.
For your design, yes. I've seen others which were just hammered ... which I didn't think was possibly until I saw pictures.

Regardless, I'm biased to the radiator pivot since ... shocker...that's what I did. This allows more freedom of design (in my case, a very direct charge pipe path). It does require some re-engineering of the radiator brackets and ducting. It also requires slimmer fans, such as SPAL units. It was a fun exercise and I'm happy with the results; however, if I were to do it again I would have run the pipes FM style.



-Zach
Attached Thumbnails
Intercooler piping routing-5fhvazi.jpg
thasac is offline   Reply With Quote
Old 04-07-2014, 02:31 PM   #7
Junior Member
Thread Starter

Join Date: Apr 2013
Location: Elgin, SC
Posts: 359
Total Cats: -4
Default

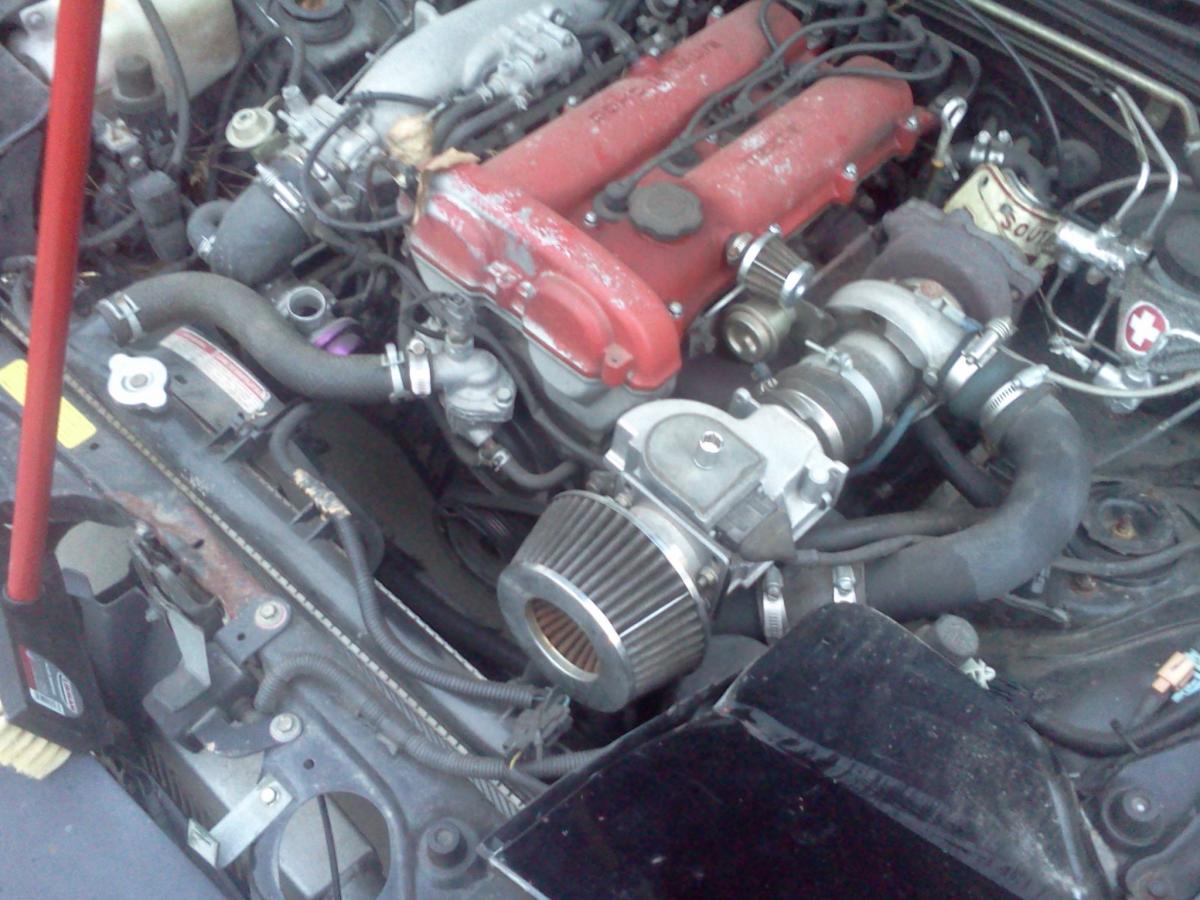

Mind you, I picked up this car for $1200 so it's rough.

Attached Thumbnails
Intercooler piping routing-dc0t1jf.jpg
whinin is offline   Reply With Quote
Old 04-07-2014, 02:33 PM   #8
Junior Member
Thread Starter

Join Date: Apr 2013
Location: Elgin, SC
Posts: 359
Total Cats: -4
Default

That's how it was routed, all 2" piping. It went UNDER the radiator so far that it had scrape marks on it, so I wanted to route it over it. The hood closes enough that the headlight lids are level with the hood, so I think I have enough clearance. I don't have the bumper back on yet, but it should be even with it. I have couplers and such coming in this week.
whinin is offline   Reply With Quote
Old 04-08-2014, 06:41 PM   #9
Junior Member
Thread Starter

Join Date: Apr 2013
Location: Elgin, SC
Posts: 359
Total Cats: -4
Default

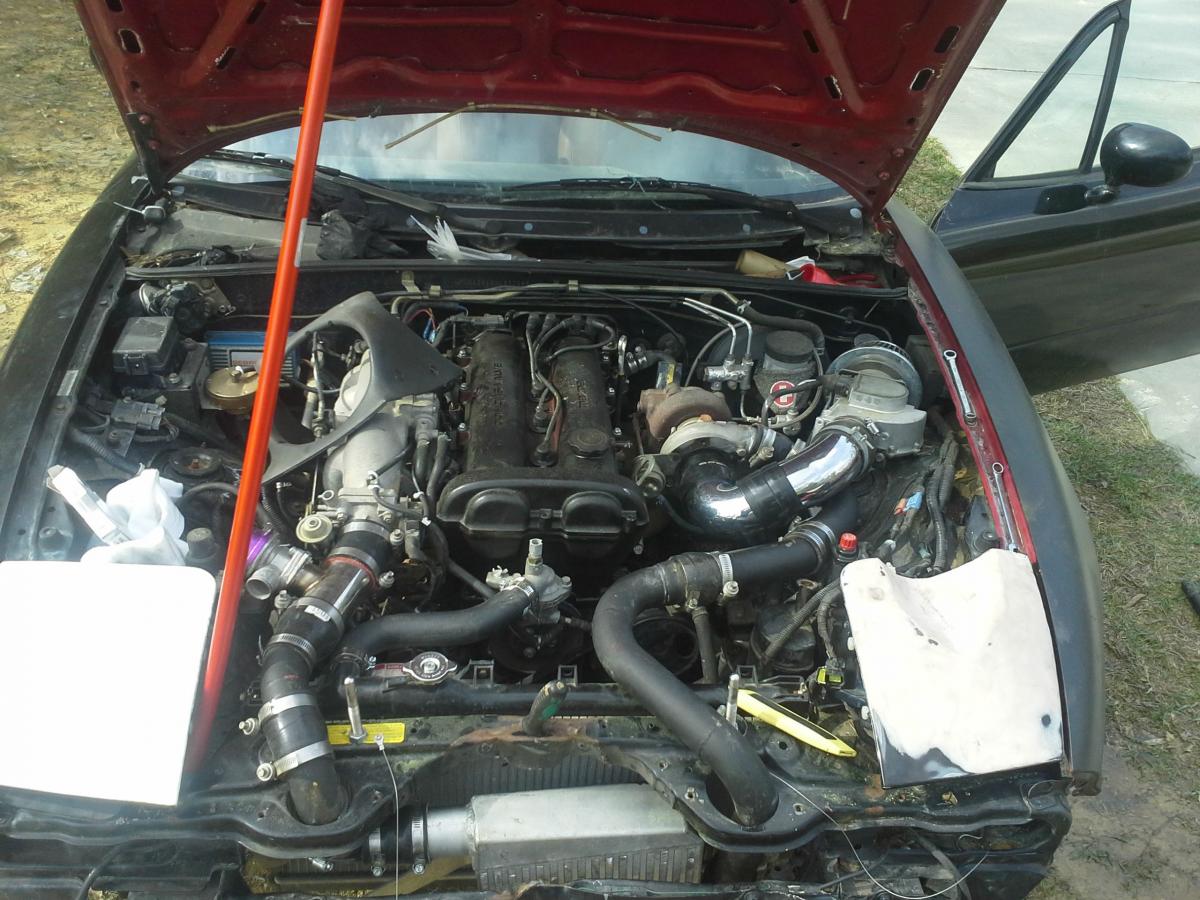

This is how I have it right now. Needs some clamps still, and I need someone to trade me megasquirts! Then oil change and put the bumper back on and I should be good to go.
Attached Thumbnails
Intercooler piping routing-dwys527.jpg
whinin is offline   Reply With Quote
Old 04-08-2014, 06:47 PM   #10
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 782
Default

Wait.... hasn't there already been a thread about this car? Isn't that this dude that couldn't figure out if his car had a wideband or not, couldn't follow directions, then sold it on CL saying something like "Super fast and super easy to tune!!"

?

It looks familiar.
concealer404 is offline   Reply With Quote
Old 04-08-2014, 06:51 PM   #11
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Looks like the brother of techsalvager's car.
Leafy is offline   Reply With Quote
Old 04-08-2014, 06:51 PM   #12
Junior Member
Thread Starter

Join Date: Apr 2013
Location: Elgin, SC
Posts: 359
Total Cats: -4
Default

Haha, no it's not, I read that thread, not the same car. I know what I'm talking about (to a point),
whinin is offline   Reply With Quote
Old 04-08-2014, 06:53 PM   #13
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 782
Default

Wasn't accusing you of being dumb.

At least... not yet.

But rather wondering just how bad of a clusterfuck you've ended up with.
concealer404 is offline   Reply With Quote
Old 04-08-2014, 06:53 PM   #14
Junior Member
Thread Starter

Join Date: Apr 2013
Location: Elgin, SC
Posts: 359
Total Cats: -4
Default

The car was in worse shape when I got it.
whinin is offline   Reply With Quote
Old 04-08-2014, 06:54 PM   #15
Junior Member
Thread Starter

Join Date: Apr 2013
Location: Elgin, SC
Posts: 359
Total Cats: -4
Default

Oil leaking at every connection in the piping (because PO routed oil drain going uphill to the passenger side) so oil backed up and caused the turbo to burn it.
whinin is offline   Reply With Quote
Old 04-08-2014, 06:56 PM   #16
Junior Member
Thread Starter

Join Date: Apr 2013
Location: Elgin, SC
Posts: 359
Total Cats: -4
Default

Running on a Vortech FMU (unknown disc) and a timing box. Wondering how the compression is, can't wait to find out /sarcasm.
whinin is offline   Reply With Quote
Old 04-08-2014, 07:15 PM   #17
Junior Member
iTrader: (2)

Join Date: Jul 2012
Location: Miami, FL
Posts: 109
Total Cats: 1
Default

Isn't this the same car with the crazy oil return or was that another car? Looks similar, don't know where I saw it.

As for the piping, I guess its better than before but you really need to go a different route for it not to look terrible.
Alpod is offline   Reply With Quote
Old 04-08-2014, 07:35 PM   #18
Junior Member
Thread Starter

Join Date: Apr 2013
Location: Elgin, SC
Posts: 359
Total Cats: -4
Default

Yeah the oil return went uphill twice going to the passenger side, and they used heater hose! The main thing I wanted to go for was to not have the piping scrape because the PO had it going under the radiator, and there were scrape marks from doing it that way. I don't really care about looks, I have my '96 for that, just as long as it works good then I am ok with it.
whinin is offline   Reply With Quote
Old 04-08-2014, 07:38 PM   #19
Senior Member
iTrader: (1)

Join Date: Sep 2008
Location: Tucson, Arizona
Posts: 889
Total Cats: 55
Default

I'm not going to search but there are a lot of threads about intercooling routing. search to win. There are LOTS of pictures too.
krissetsfire is offline   Reply With Quote
Old 04-08-2014, 07:41 PM   #20
Junior Member
Thread Starter

Join Date: Apr 2013
Location: Elgin, SC
Posts: 359
Total Cats: -4
Default

Yeah I did after I made the thread >.<

I saw a lot of people making new radiator brackets and angling the radiator back to let the piping come in behind the core support but in front of the radiator. I eventually will go that route but I just want the car done and drivable. I will probably tie the WG open until I find someone that wants to trade me ECU's.
whinin is offline   Reply With Quote
