Default Interesting cop idea.

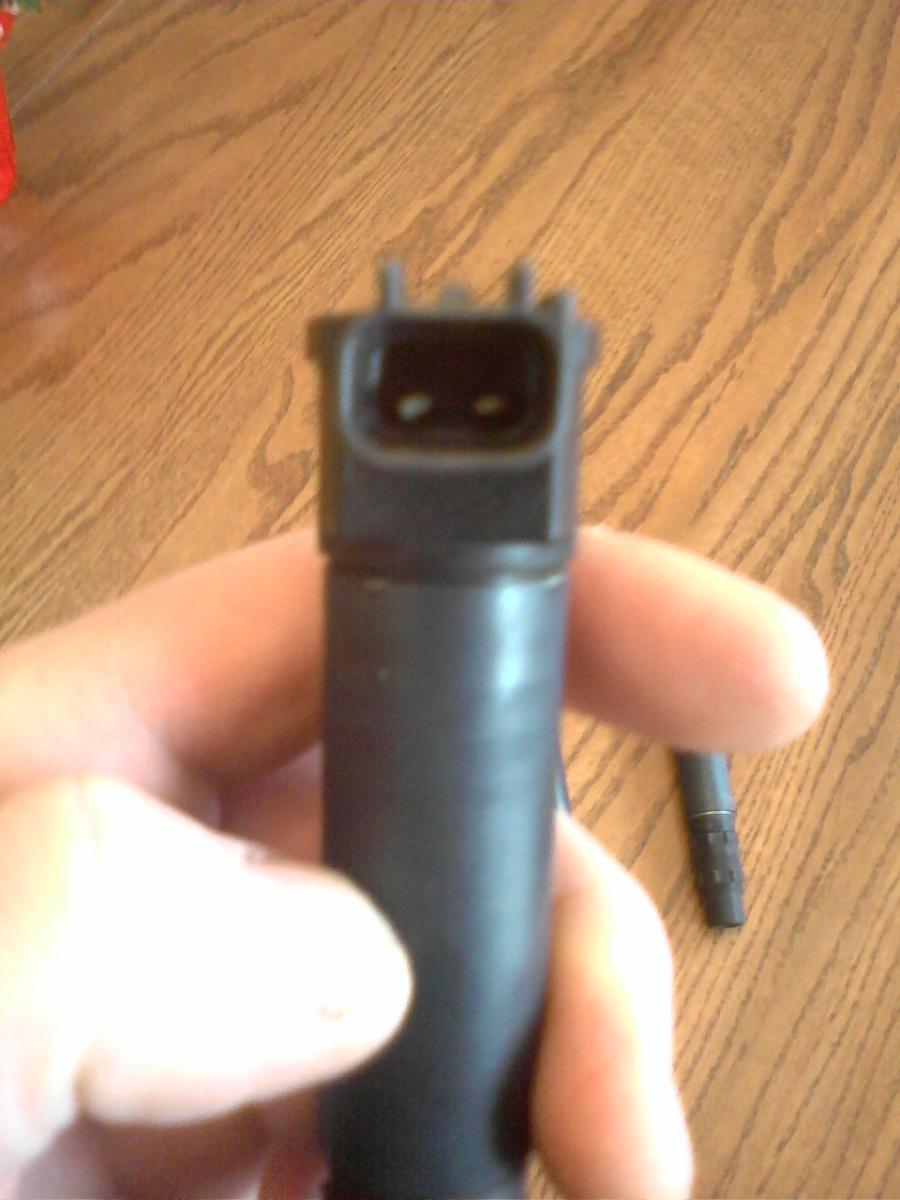

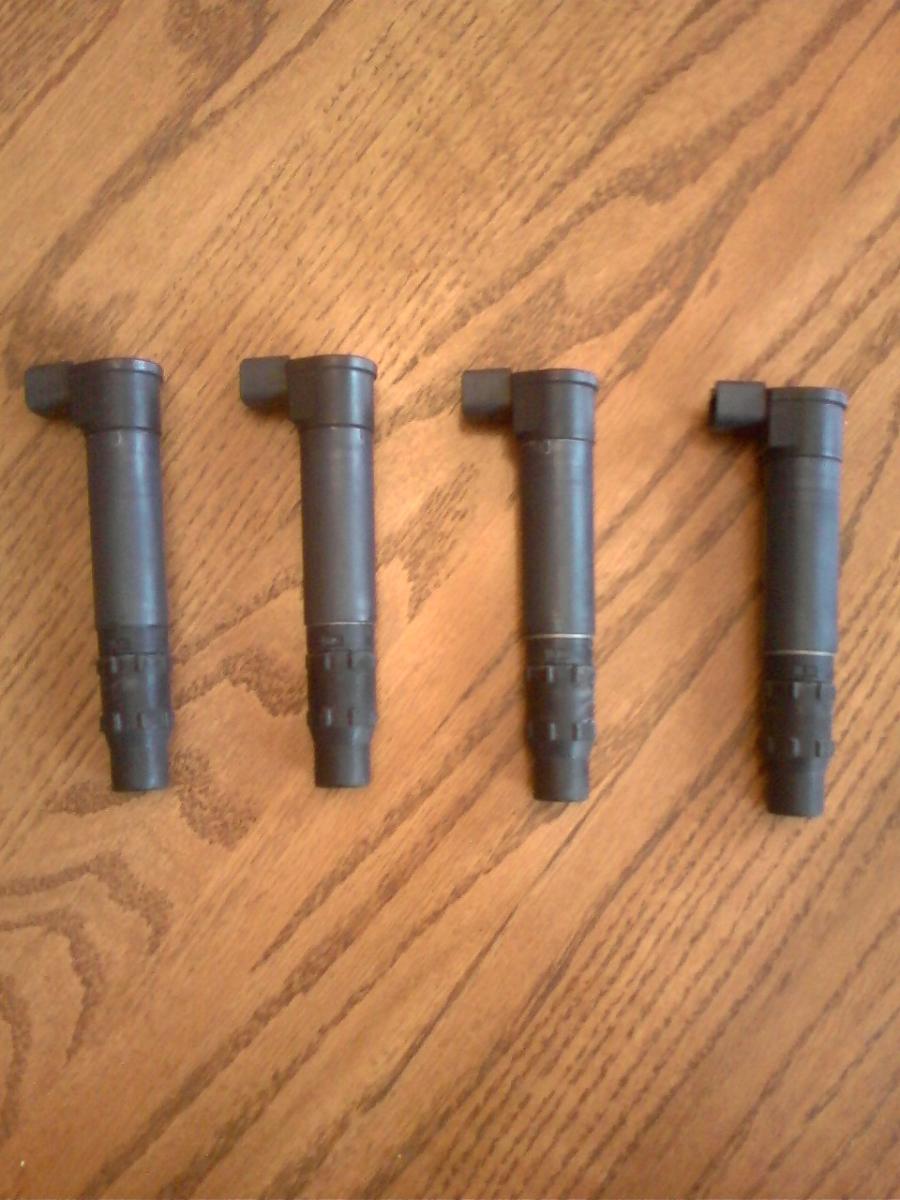

I found these in a pile of old motorcycle parts in my garage, I also have the complete harness with connectors for it(about 18in long). They are denso's from a 02 gsxr 600.

The length is perfect, the connector would sit about 2mm from the valve cover when plugged in. I just need to find a spark plug with a removable cap.

Anyone ever use these before with any success?
Attached Thumbnails
Interesting cop idea.-p_00233.jpg   Interesting cop idea.-p_00234.jpg
flounder is offline   Reply With Quote
Old 02-20-2011, 01:56 PM   #2
Newb

Join Date: Mar 2009
Posts: 30
Total Cats: 0
Default

depends on their input voltage and what ems you're running. i like them though, nice and small, could probably even fab a cover for the plug valley with as low pro as they are.
sinhumane is offline   Reply With Quote
Old 02-20-2011, 05:08 PM   #3
Elite Member
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

they are only 2 pin. So I don't see how they get a power, ground and input signal. Unless they ground through a mounting bolt which would not be ideal.
falcon is offline   Reply With Quote
Old 02-20-2011, 05:23 PM   #4
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Plug would be the ground I think?
richyvrlimited is offline   Reply With Quote
Old 02-20-2011, 05:23 PM   #5
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

They need an external ignitor.
Reverant is offline   Reply With Quote
Old 02-21-2011, 12:36 AM   #6
Senior Member
iTrader: (3)

Join Date: Jun 2008
Location: Port Orchard, WA
Posts: 620
Total Cats: 4
Default

Quote:
Originally Posted by flounder View Post
I just need to find a spark plug with a removable cap.
If you're talking about the upper tip where the plug wire/COP connects, every spark plug I've ever used has a screw on tip. Usually just takes a pair of pliers on the tip and a good twist by hand.
Rennkafer is offline   Reply With Quote
Old 02-21-2011, 09:35 PM   #7
Elite Member
Thread Starter

Join Date: Mar 2010
Location: Detroit
Posts: 1,524
Total Cats: 27
Default

Quote:
Originally Posted by Reverant View Post
They need an external ignitor.
Any way of doing this and retaining the stock ecm?

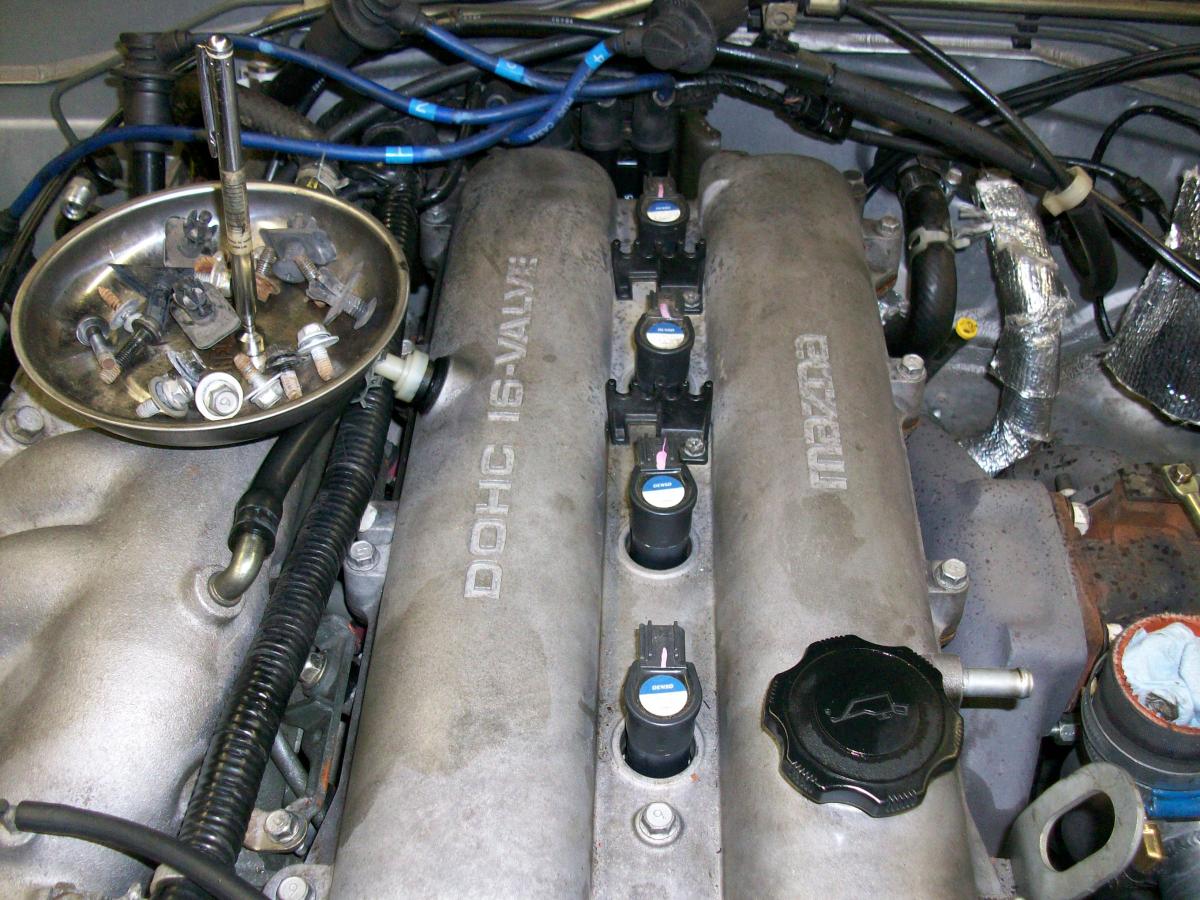

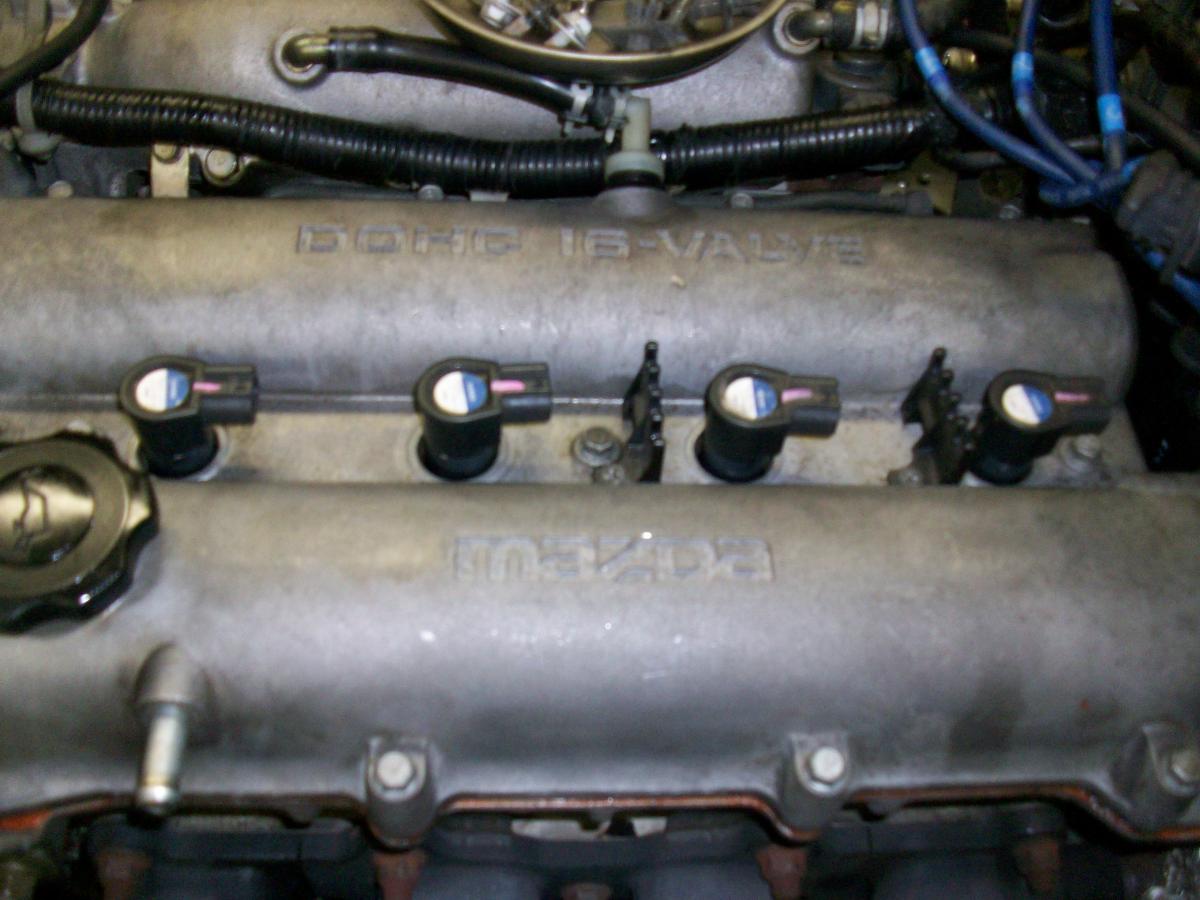

Here's some pics of what it would look like. I was way off on the height, they are actually extended about an inch off the cover. With the correct plugs in there they would probably drop another 1/4in or so.
Attached Thumbnails
Interesting cop idea.-100_2010.jpg   Interesting cop idea.-100_2011.jpg
flounder is offline   Reply With Quote
Old 02-21-2011, 09:40 PM   #8
Elite Member
Thread Starter

Join Date: Mar 2010
Location: Detroit
Posts: 1,524
Total Cats: 27
Default

Quote:
Originally Posted by Rennkafer View Post
If you're talking about the upper tip where the plug wire/COP connects, every spark plug I've ever used has a screw on tip. Usually just takes a pair of pliers on the tip and a good twist by hand.
Not the ngk's. I think bosch makes one though.
flounder is offline   Reply With Quote
Old 02-23-2011, 02:40 AM   #9
Senior Member
iTrader: (3)

Join Date: Jun 2008
Location: Port Orchard, WA
Posts: 620
Total Cats: 4
Default

Quote:
Originally Posted by flounder View Post
Not the ngk's. I think bosch makes one though.
Maybe not on the platinums... standard NGK's have removable tips.
Rennkafer is offline   Reply With Quote
Old 02-23-2011, 08:27 PM   #10
Elite Member
Thread Starter

Join Date: Mar 2010
Location: Detroit
Posts: 1,524
Total Cats: 27
Default

Quote:
Originally Posted by Rennkafer View Post
Maybe not on the platinums... standard NGK's have removable tips.
I beg to differ.
flounder is offline   Reply With Quote
Old 02-23-2011, 08:28 PM   #11
Junior Member
iTrader: (2)

Join Date: Dec 2009
Location: Louisville, KY
Posts: 232
Total Cats: 0
Default

Quote:
Originally Posted by Rennkafer View Post
Maybe not on the platinums... standard NGK's have removable tips.
I just looked at my bkr6e's sitting on the shelf and they do not appear to have screw on tops. No pliers to confirm though...
AutoFreak57 is offline   Reply With Quote
